SteelHead SaaS is configured using the default redirection port. Which statement correctly describes the configuration that must be applied to a firewall at the branch location?

A.

Allow UDP 9545 from/to In-path interfaces

B.

Allow 443 traffic from/to Primary interface

C.

Allow TCP 9545 from/to In-path interfaces

D.

Allow TCP 9545 from/to Primary interfaces

Consider a SteelHead deployment with SMB optimization and SMB signing enabled on all SteelHeads. The client is configured to have signing enabled and the server has signing disabled. What will happen to SMB connections between these two hosts?

A.

The connection will be unsigned but allowed. The SteelHead does not need to have SMB signing enabled to accommodate this connection.

B.

The connection will not be allowed, as signing is enabled on the client and disabled on the server.

C.

The connection will be allowed and will be signed as the client determines whether SMB signing is used or not.

D.

The connection will be allowed, and will be signed between the client and client-side SteelHead.

MAPI optimization configuration should be applied.

A.

All SteelHeads except those configured for failover.

B.

On both the client-side and server-side SteelHeads.

C.

All SteelHeads except those configured for failover and data store sync.

D.

On the server-side SteelHead

E.

On the client-side SteelHead

In a virtual-inpath deployment, when the Steelhead appliance exports data to a flow data collector:

A.

All traffic has the LAN and WAN interface index.

B.

All traffic has the WAN interface index.

C.

All traffic has the LAN interface index.

D.

All traffic has the primary interface index.

You see errors such as the following in the SteelHead messages log “error=SMB_SHUTDOWN_ERR_SEC_SIG_ENABLED”. What do these indicate?

A.

SMB signing has been detected on SMB sessions which the SteelHead attempted to optimize, but SMB signing is not configured on the SteelHeads.

B.

The SteelHeads are configured to carry secure traffic over SSI and the inner channel failed to establish.

C.

The optimization service encountered an error, and the SMB blade has been shut down.

D.

The SteelHead encountered a kernel error and was forced to shut down.

E.

The server send a secure signal to terminate an optimized SMB session.

You deploy a pair of SteelHead appliances in-path. At the server-side, there is a firewall inspecting traffic between the SteelHeads. The firewall must see the original client and server IPs and is configured to drop packets where the same host pairs and port pairs are reused within 30 seconds of termination. Which addressing mode would workaround this issue?

A.

Full Transparency

B.

Port Transparency

C.

Correct Addressing

D.

Full Transparency with reset

-- Exhibit –

-- Exhibit --

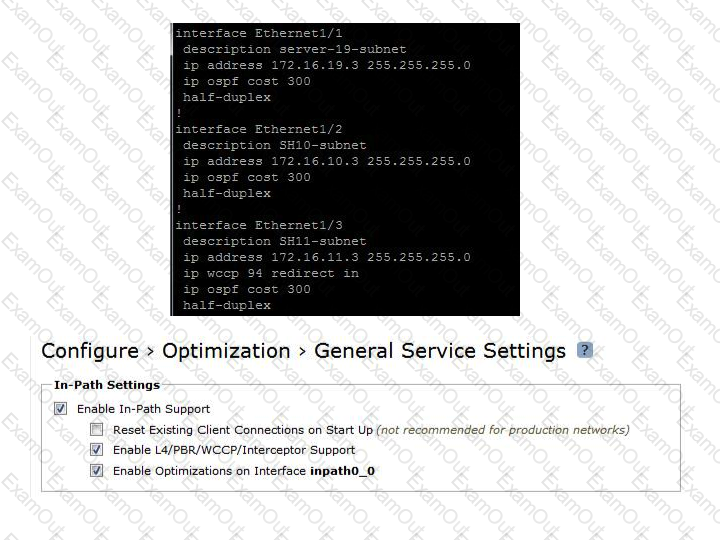

Refer to the exhibit. In a WCCP environment with R3, SH10 and SH11, which statement below is true?

A.

The Steelhead appliance is only receiving HTTP traffic from the router.

B.

All traffic will be sent from the router to the Steelhead appliance.

C.

The Steelhead appliance will not receive HTTP traffic from the router.

D.

There is no need to use access-lists on the router to select HTTP traffic.

E.

The Steelhead appliance is only receiving traffic on port TCP 1741.

-- Exhibit –

-- Exhibit --

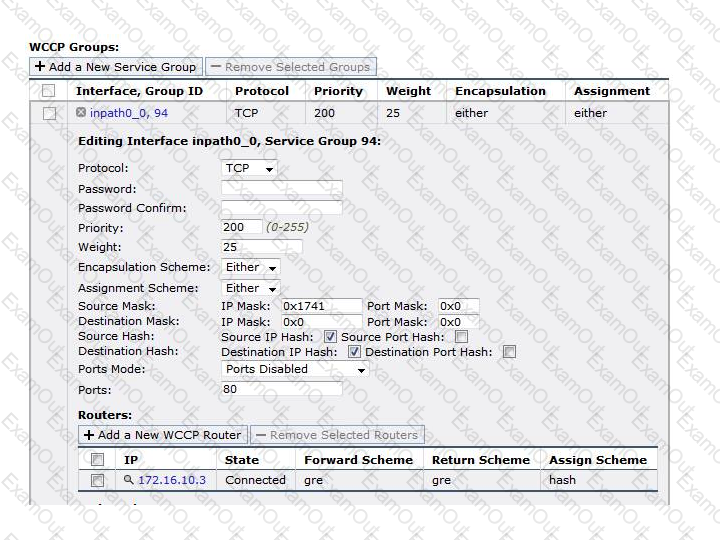

Refer to the exhibit. In a WCCP environment with R3, SH10 and SH11, it was observed that the returning traffic from Server2 is not being optimized by the Steelhead appliances. Why? (Select 2)

A.

The router is not properly configured.

B.

Physical in-path mode should be enabled.

C.

The wccp redirect command is missing.

D.

You should disable logical in-path.

Connection Pooling works with:

A.

Port and Full Transparency

B.

Correct Addressing and Port Transparency

C.

Correct Addressing only

D.

Correct Addressing, Port and Full Transparency

E.

Full Transparency only

-- Exhibit –

-- Exhibit --

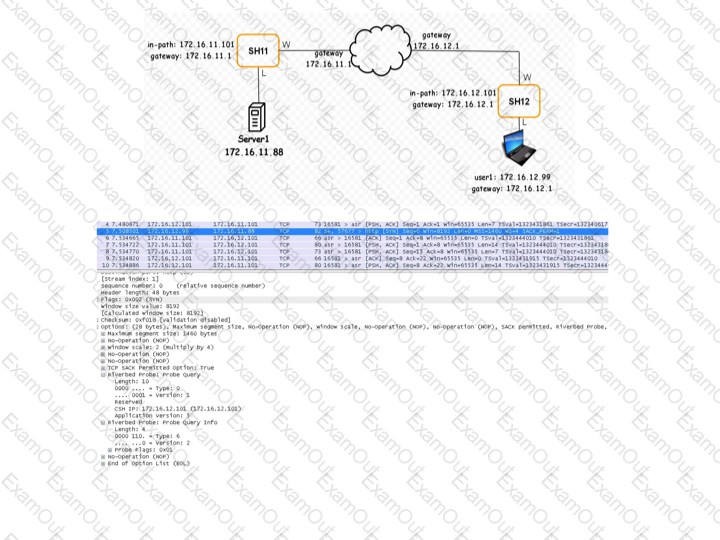

Refer to the exhibit. According to the packet capture, what statements are true? (Select 2)

A.

This Steelhead appliance is configured with enhanced auto-discovery.

B.

This Steelhead appliance is configured with enhanced peering discovery.

C.

The SYN packet coming from 172.16.12.99 with a destination to 172.16.11.88 carries a probe of 10 bytes.

D.

The SYN packet coming from 172.16.12.99 with a destination to 172.16.11.88 carries a probe of 10 bytes + a 4 bytes notification message.
