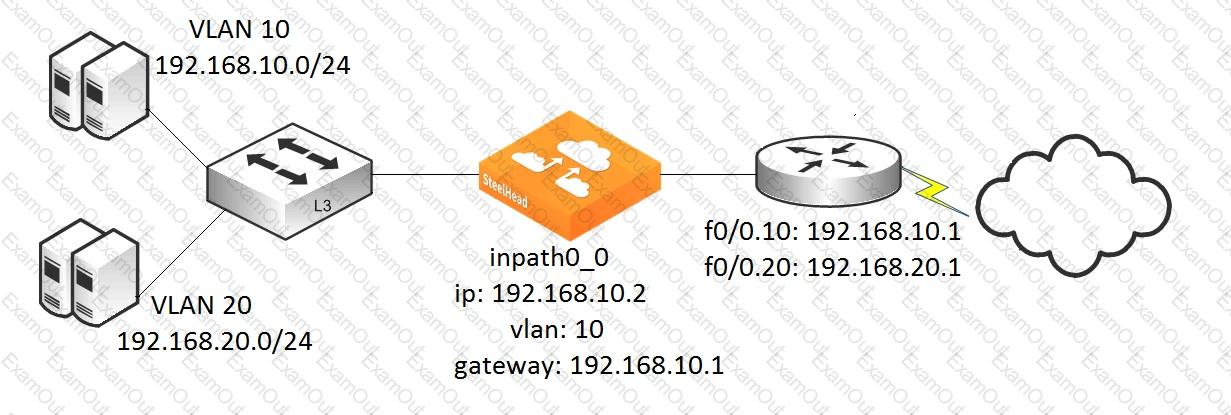

A SteelHead is deployed on an 802.1Q trunk in the diagram below. A connection is being optimized from a client on VLAN 20 using Correct Addressing.

Which VLAN ID will be on the inner channel connection?

A.

10

B.

20

C.

The native VLAN

D.

No VLAN ID

E.

Only VLAN 10 can be optimized. All other are passed through on their original tag

What configuration policies can be used on the SteelCentral Controller for SteelHead (SCC) for Interceptor deployments?

A.

The SCC can be used to create all configuration for the Interceptors and its associated SteelHeads, as long as all the devices are in the same SCC group.

B.

The SCC can create in-path rules policies the same as a SteelHead, as long as that is the only page enabled for the Interceptor.

C.

The SCC can be used to configure the cluster of registered Interceptors and SteelHeads. Then, in-path rules and load balancing rules can be pushed to the interceptors.

D.

The SCC can be used to create cluster policies, for the Interceptor to SteelHead connections only and not in-path or load balancing rules.

E.

The SCC can only monitor the health, backup the configuration and upgrade Interceptors. Policies are only for SteelHeads. Interceptors and SteelHead Mobile are not supported.

Citrix optimization does not work although you removed ports 1494 and 2598 from the Interactive Ports label and enabled Citrix optimization on the client-side Steelhead appliance. What could be the problem? (Select 2)

A.

You need to enable Citrix optimization on the server-side Steelhead appliance.

B.

Secure ICA encryption needs to be enabled.

C.

Citrix CDM optimization needs to be enabled.

D.

You need to restart the optimization service.

-- Exhibit –

-- Exhibit --

Refer to the exhibit. A Steelhead administrator has decided to implement two Interceptor appliances and one Steelhead appliance on his data center. After configuring the Interceptor appliances, and the Steelhead appliance, he decided to check if the connections are being forwarded appropriately. What happened? (Select 2)

A.

The connection from client 172.16.12.99 to server 172.19.88 was optimized by Steelhead appliance 172.16.10.101.

B.

The connection from client 172.16.19.88 to server 172.16.12.99 was optimized by Steelhead appliance 172.16.10.101.

C.

The connection was not optimized because of the GRE tunnel.

D.

The connection was optimized because of the GRE tunnel.

What type of problem does the error message below indicate:

Sep 7 22:53:50 SH pm[18184]: [pm.NOTICE]: Output from sport:

/opt/rbt/bin/sport (pid 27529) received signal 12 (SIGUSR2) marking bit

A.

It is not a problem. The message is displayed when a system dump is generated.

B.

The management process crashed

C.

The optimization process crashed

D.

The management process received permission to apply QoS marking

E.

The sport process received permission to apply QoS marking

While performing a health check for a Steelhead appliance at a remote site, you noticed some of the pass-through traffic should have been optimized. The pass-through reason for the suspicious traffic is "SYN on WAN side". Upon further investigating, you also noticed that all of the traffic initiated at the data center is pass-through while all of the traffic initiated at the remote site is optimized. There is only one path between the data center and the remote site and both Steelhead appliance are physically in-path. What are the possible causes? (Select 2)

A.

There is a pass-through in-path rule configured on the data center Steelhead appliance.

B.

There is a pass-through in-path rule configured on the remote site Steelhead appliance.

C.

There is a pass-through peering rule configured on the data center Steelhead appliance.

D.

The LAN and WAN interfaces on the data center Steelhead appliance are reversed.

E.

The LAN and WAN interfaces on the remote site Steelhead appliance are reversed.

When a SteelHead reaches ‘admission control’, what happens to the network traffic it is processing?

A.

Existing optimized connections continue to be optimized but new connections are passed through.

B.

All existing connections continue to be optimized and new connections are also optimized.

C.

Existing optimized connections are passed through and new connections are optimized.

D.

All connections are reset to clear the alarm.

E.

All new connections are optimized except those which are MAPI pre-population.

A customer uses a single URL for a service that uses many servers with different certificates. What SSL options should be enabled to enhance performance?

A.

Passive key derivation

B.

SSL proxy support and SNI (Server name indication)

C.

SSL advanced mode

D.

Early start/late finish

-- Exhibit –

-- Exhibit --

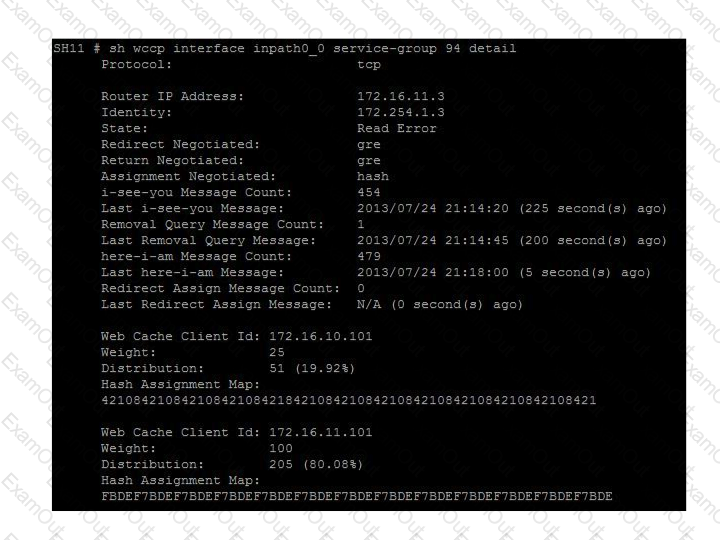

In a WCCP environment with R3, SH10 and SH11, it was observed that SH11's WCCP state is "read error". What is the possible cause?

A.

The Steelhead is not receiving i-see-you messages from the router

B.

The Steelhead is not sending here-i-am messages to the router

C.

The Steelhead is not receiving removal query messages from the router

D.

Everything is in order – working properly

What type of problem does the error message below indicate:

Sep 13 03:50:51 SH alarmd[18371]: [alarmd.NOTICE]: Alarm 'admission_mem' triggering

Sep 13 03:50:51 SH alarmd[18371]: [alarmd.NOTICE]: Alarm 'admission_control' triggering

Sep 13 03:50:51 SH alarmd[18371]: [alarmd.NOTICE]: Alarm 'health' severity changed to 'Admission Control'

A.

High CPU Utilization

B.

Paging alarm

C.

Admission control on connections

D.

Admission control on memory

E.

Admission control on system
