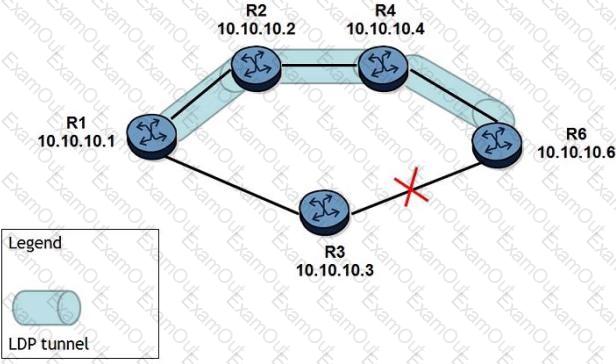

Click on the exhibit.

An LDP tunnel is established on R1-R2-R4-R6 because the link between routers R3 and R6 is down. With the LDP-IGP Sync feature enabled, what happens immediately after the link is restored?

A.

A new LDP session is established on R1-R3-R6 as soon as the FIB is updated.

B.

The LDP session remains unchanged until the existing path R1-R2-R4-R6 goes down.

C.

A new LDP session is established on R1-R3-R6 as soon as router R1 receives a new label for router R6.

D.

The LDP session remains unchanged until router R3 stops advertising the maximum metric for the link to router R6.

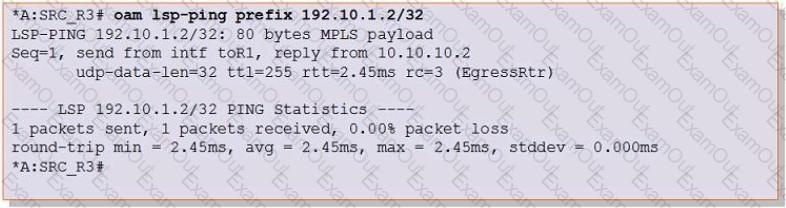

Click on the exhibit.

Which of the following is FALSE?

A.

The router can reach prefix 192.10.1.2/32 through a RSVP-TE tunnel.

B.

The router can reach prefix 192.10.1.2/32 through an LDP tunnel.

C.

The router 10.10.10.2 is the egress router of the prefix 192.10.1.2/32.

D.

The Isp-ping tool is used to perform a unidirectional LSP test.

A static route is created using the command "static-route 0.0.0.0/0 next-hop 3.3.3.1". What command could be used to test the static route on an Nokia 7750 SR?

A.

Ping static 3.3.3.1

B.

Ping static 0.0.0.0/0

C.

Ping 3.3.3.1

D.

Ping 0.0.0.0

Which of the following is NOT a characteristic of RIPv1?:

A.

30 second network updates

B.

Classless routing

C.

Broadcast advertisement

D.

Poison Reverse

The Nokia 7750 SR supports which two of the OSPF area types below?

A.

Not So Stubby Areas

B.

Level 1 Areas

C.

Stub Areas

D.

Partially Stubby Areas

Select the answer below that correctly lists the 5 different OSPF packet types.

A.

Hello, Link State Update, Link State Packet, Link State Acknowledgement, Database Descriptor

B.

Link State Update, Link State Refresh, Link State Acknowledgement, Database Descriptor, Notification

C.

Hello, Link State Refresh, Link State Update, Link State Acknowledgement, Link State Authentication

D.

Hello, Link State Update, Link State Request, Link State Acknowledgement, Database Descriptor

Which of the following regarding MPLS encapsulation for VPRN services is TRUE?

A.

The customer's Layer 3 header is removed at the iLER.

B.

The customer's Layer 2 header is removed at the iLER.

C.

The customer's Layer 3 header is removed at the eLER.

D.

The customer's Layer 2 header is removed at the eLER.

What is the default preference value for a static route in the Nokia 7750 SR router?

A.

0

B.

5

C.

10

D.

15

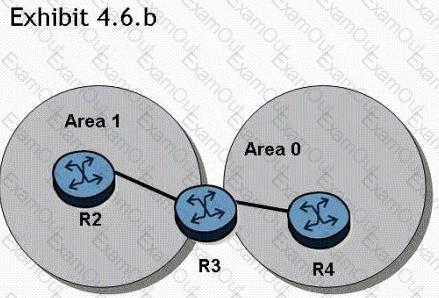

Click the exhibit button.

Which of the following would correctly configure routers R2, R3, and R4?

A.

Option A

B.

Option B

C.

Option C

D.

Option D
