Which of the following best describes downstream on demand label distribution?

A.

An LSR answers requests for label mappings immediately, without waiting for a label mapping from the next-hop.

B.

An LSR advertises label mappings to all peers for which it might be a next-hop for a given FEC.

C.

An LSR distributes a label mapping for a FEC when it has been requested to do so.

D.

An LSR propagates a label mapping downstream for a FEC. only if it has a label mapping for the FEC's next-hop.

Click the exhibit.

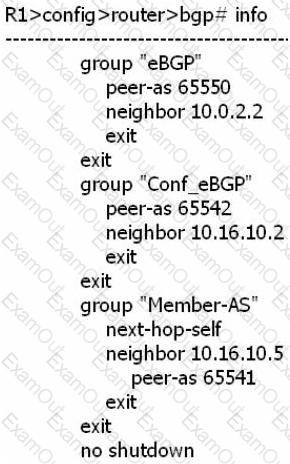

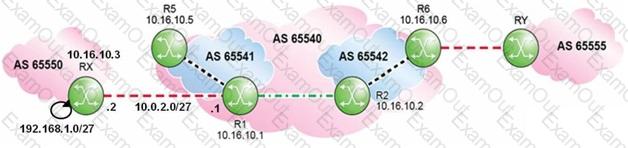

Given the following configuration for router R1, what is the expected Next Hop for prefix 192.168.1.0/27 as seen on router R2?

A.

10.0.2.1

B.

10.0.2.2

C.

10.16.10.1

D.

10.16.10.3

Which of the following regarding route reflectors is TRUE?

A.

Only the route reflector is configured with a cluster id.

B.

There can only be one route reflector in a cluster.

C.

Clients should have iBGP sessions with each other to maintain the mesh.

D.

There can only be one level of route reflectors in the topology.

Click on the exhibit.

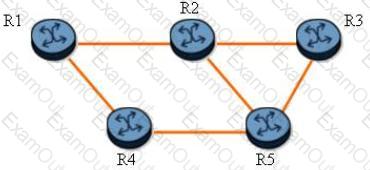

The path of a fast reroute protected LSP is R1-R2-R3. Which of the following about the protected LSP path is TRUE?

A.

All routers along the path, R1, R2, and R3 can be PLRs.

B.

If the R1-R2 link fails, router R4 becomes an MP.

C.

If the R2-R3 link fails, router R3 becomes a PLR.

D.

Router R1 is the LSP head-end and can be a PLR.

Which regular expression will match the AS Path of a route originating in remote AS 65100?

A.

".+ 65100"

B.

"65100.+"

C.

".* 65100.*"

D.

"65100"

Click on the exhibit.

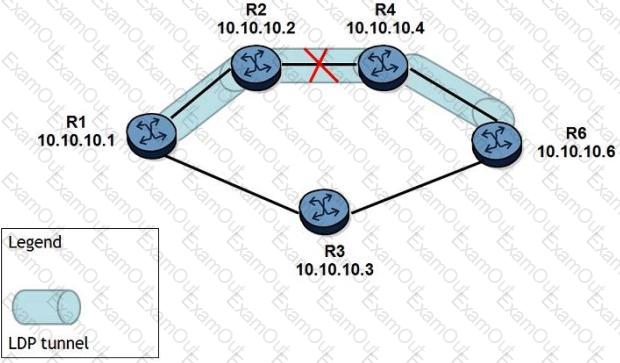

An LDP tunnel is established on router R1 towards router R6. The link between routers R2 and R4 goes down. What will happen to the MPLS data traffic to router R6 IMMEDIATELY after the link goes down?

A.

MPLS data traffic will be discarded until the IGP finds a new next-hop to router R3.

B.

MPLS data traffic will be discarded unless the LDP tunnel has a standby secondary path.

C.

MPLS data traffic will not be discarded because router R1 received labels from both next-hops, routers R2 and R3.

D.

MPLS data traffic will not be discarded because of fast reroute capability on router R2.

An SDP using GRE encapsulation is configured for an E-pipe service. The network port used by the SDP has an MTU of 8000. What value does the SDP path MTU have by default on an Nokia 7750 SR?

A.

7958

B.

7978

C.

8022

D.

8042

Click on the exhibit.

A fully loose LSP "toR6" is configured. All links have the same cost and all routers are Nokia 7750 SRs. The LSP currently traverses the path R1-R2-R7-R8-R4-R6 and the resignal timer is enabled. Which of the following about this LSP is FALSE?

A.

The LSP will switchover to another path if a failure occurs.

B.

The LSP will switchover to a better path as soon as it is available.

C.

CSPF must be enabled for this LSP to attempt to find a better path.

D.

The LSP will switchover to a better path in a MBB fashion.

Which LSA type is not found in point-to-point only OSPF networks?

A.

Type 1 Router LSA

B.

Type 2 Network LS A

C.

Type 3 Summary LSA

D.

Type 5 External LSA

Which of the following about the Isp-ping command on the Nokia 7750 SR is FALSE?

A.

An echo request is sent based on the LSP's label stack.

B.

Echo reply packets may not take the same path as the LSP.

C.

The IP destination address is used to initiate echo requests,

D.

The test fails if the LSP is not operationally up.
