Choose the Distance Vector Protocols from the list below:

A.

OSPF

B.

RIPv1

C.

RIPv2

D.

IS-IS

NSSA LSA packets are what type within an NSSA area, and are converted to what other type at the ABR?

A.

They are type 7 within the area and are not modified at the ABR

B.

They are type 5 within the area and converted to type 3 at the ABR

C.

They are type 5 within the area and are not modified at the ABR

D.

They are type 7 within the area and converted to type 5 at the ABR

Which of the following TLV fields is included in an IS-IS Hello packet?

A.

Area addresses TLV

Intermediate system neighbors

TLV Authentication information TLV

B.

Intermediate system neighbors

TLV Area addresses

TLV LSP entries TLV

C.

The IP internal reachability information

TLV Area Addresses

TLV Authentication Information TLV

D.

The IP external reachability information

TLV Area addresses

TLV Intermediate system neighbors TLV

Which of the following OSPFv3 LSAs have an AS scope?

A.

Link Local LSA

B.

Router LSA

C.

Network LSA

D.

Inter-Area Router LSA

E.

Intra-Area Prefix LSA

F.

None of the above LSAs have an AS scope.

In an IP datagram, which of the following fields identifies the receiving application?

A.

The protocol field of the transport layer header.

B.

The port field of the transport layer header.

C.

The protocol field of the network layer header.

D.

The port field of the network layer address.

A static route is created using the command "static-route 0.0.0.0/0 next-hop 3.3.3.1". What command could be used to test the static route on an Alcatel-Lucent 7750 SR?

A.

Ping static 3.3.3.1

B.

Ping static 0.0.0.0/0

C.

Ping 3.3.3.1

D.

Ping 0.0.0.0

Which of the LSA types stay within an OSPF area and are not exported outside of the area? (Choose all that apply)

A.

Router LSA

B.

Network LSA

C.

Summary Network LSA

D.

Summary Router LSA

Which three IS-IS PDU types are used for database synchronization?

A.

Hellos, CSNPs, PSNPs

B.

LSPs. Hellos, CSNPs

C.

LSPs, PSNPs, Hellos

D.

LSPs, CSNPs, PSNPs

Which of the following OSPF area types are supported by the Alcatel- Lucent 7750 SR? Choose two answers.

A.

Not so stubby areas

B.

Level1 area WC

C.

Stub areas

D.

Partially stubby areas

E.

Level 2 areas

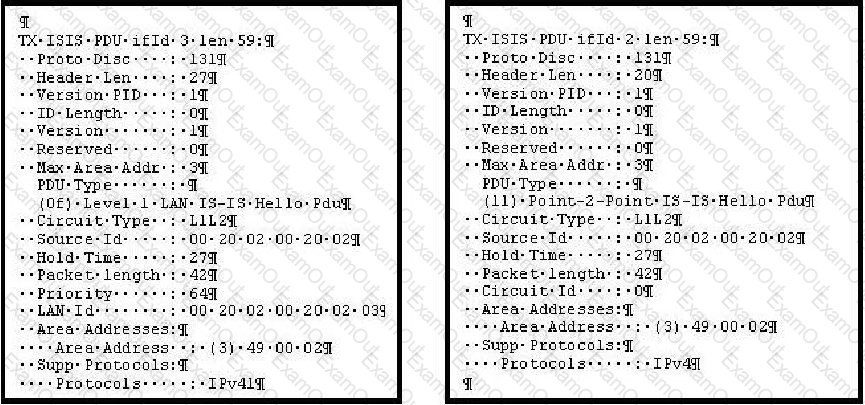

Exhibit

The following IS-IS packets have been exchanged between 2 adjacent IS-IS routers. What type of adjacency will be formed?

A.

An L1 adjacency will be formed.

B.

An L1/L2 adjacency will formed

C.

L2 adjacency will be formed

D.

No adjacency will be formed

Which of the following types of network topologies are supported by IS-IS on the Alcatel-Lucent 7750 SR? Choose two answers.

A.

Non-broadcast

B.

Broadcast

C.

Point-to-multipoint

D.

Point-to-point

A router sets the E bit in the flags of its Type 1 LSA. What does this indicate?

A.

The router is an ABR.

B.

The router is an ASBR.

C.

The router is at the end of a virtual link.

D.

The router's interface is in a stub area.

How many databases does a Link State routing protocol use?

A.

One

B.

Two

C.

Three

D.

Four

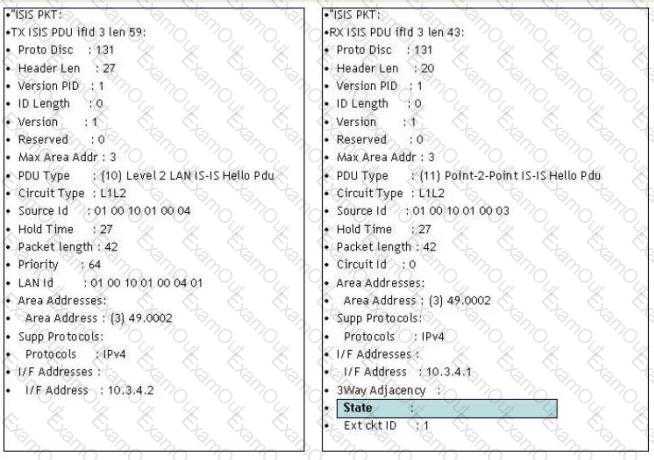

Click the exhibit button.

What is the state of adjacency?

A.

Initializing

B.

Up

C.

Down

D.

2-Way

What acts as the tie breaker on an Alcatel-Lucent 7750 SR if the priorities are the same when IS-IS is electing a DIS?

A.

The system ID

B.

The loopback address

C.

The sequence number of the hello packet

D.

The device that first initiated communication becomes the DIS

Given the NSAP address of 49.0012.1234.1234.1234.00, what area does the IS-IS router reside in?

A.

49.0012.1234

B.

49.0012

C.

12.1234

D.

1234

E.

49.1234

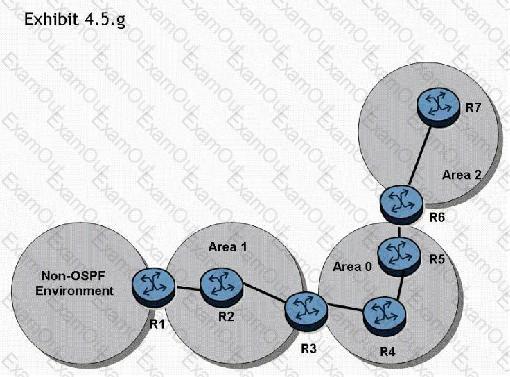

Click the exhibit button.

In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming that there are no stub networks, which of the following statements regarding type 4 LSA generation is true?

A.

Router R1 generates a type 4 LSA that is flooded to areas 0, 1, and 2.

B.

Router R3 generates a type 4 LSA that is flooded to areas 0, 1, and 2.

C.

Router R3 generates a type 4 LSA that is flooded to areas 0 and 2.

D.

Router R3 generates a type 4 LSA that is flooded to area 0, and router R6 generates a type 4 LSA that is flooded to area 2.

What are the types of routers in an IS-IS topology? Choose all that apply.

A.

Level 0

B.

Level 1

C.

Level 2

D.

Level 0/1

E.

Level 1/2

What is wrong with the following filter configuration from an Alcatel-Lucent 7750 SR?

RTR-B# configure filter

RTR-B>config>filter# ip-filter 1 create

RTR-B>config>filter>ip-filter$ entry 1 create

RTR-B>config>filter>ip-filter>entry$ match src-ip 172.2.0.0/16

RTR-B>config>filter>ip-filter>entry# action drop

RTR-B# configure router interface toRTR-A

RTR-B>config>router>if# egress

RTR-B>config>router>if>egress# filter ip 1

A.

There is nothing wrong with this filter

B.

The filter should be applied to the ingress and not the egress.

C.

The mask cannot be a "/" value, it must be in dotted decimal.

D.

All traffic is being blocked

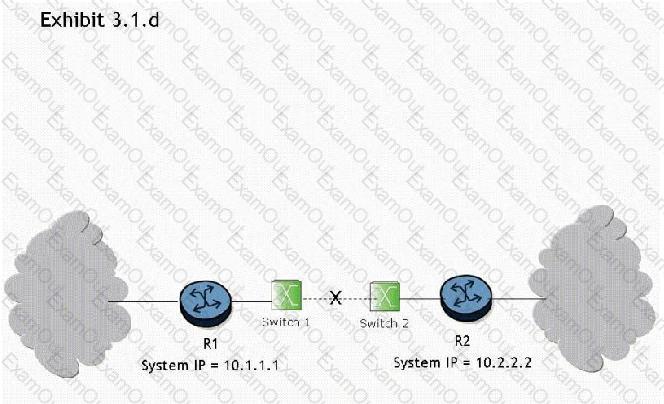

Click the exhibit button.

What triggers convergence of the routing protocol when the link between switch 1 and switch 2 goes down?

A.

Convergence is triggered when the adjacency between routers R1 and R2 drops as a result of Hello timeouts. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

B.

Convergence is triggered when the physical interfaces between routers R1 and R2 go down. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

C.

Convergence will not be triggered because switches cannot run routing protocols between them.

D.

Convergence is triggered when the switches notify the routers about the link state information. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged

E.

Convergence is triggered when an LSA is sent from router R1 to router R2 to indicate that the link is down. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.
