What value should the AFI be set to for locally administered addressing?

A.

1

B.

49

C.

47

D.

45

E.

39

Which of the following features are supported by IS-IS? Choose three answers.

A.

PDU authentication.

B.

The ability to customize the link cost metric.

C.

Use of Bellman-Ford routing algorithm.

D.

Classless routing.

E.

Updates sent as layer 3 multicast.

Select the answer below that correctly lists the 5 different OSPF packet types.

A.

Hello, Link State Update, Link State Packet, Link State Acknowledgement, Database Descriptor

B.

Link State Update, Link State Refresh, Link State Acknowledgement, Database Descriptor, Notification

C.

Hello, Link State Refresh, Link State Update, Link State Acknowledgement, Link State Authentication

D.

Hello, Link State Update, Link State Request, Link State Acknowledgement, Database Descriptor

What best describes the type of packets used by OSPF routers to exchange updates on a pointto-point link?

A.

IP packets sent to an IP multicast address.

B.

Ethernet frames sent to an Ethernet multicast address.

C.

IP packets sent to an IP unicast address.

D.

UDP packets sent to an IP multicast address.

What must be configured on the Alcatel-Lucent 7750 SR for RIP to advertise locally attached links?

A.

A policy statement within the router identifying what is to be advertised

B.

Access-lists denoting what is to be advertised

C.

Default metrics for each link

D.

A group and neighbor statement for each peer

Which of the following is not one of the MT topologies defined for IS-IS?

A.

IPv4 In-Band Management

B.

IPv6 Routing

C.

IPv4 Multicast Routing

D.

IPv6 Multicast Routing

E.

All of the above are MT topologies defined for IS-IS.

If routers R1 and R2 have a Level 1 and Level 2 IS-IS adjacency, which of the following statements is true? Choose two answers.

A.

Routers R1 and R2 are in different areas.

B.

Routers R1 and R2 are in the same area.

C.

Routers R1 and R2 will send a Level 1 Hello PDU and Level 2 Hello PDU, if the interface type between them is point-to-point.

D.

Routers R1 and R2 will send a Level 1 Hello PDU and Level 2 Hello PDU, if the interface type between them is broadcast.

E.

Routers R1 and R2 will send a Level 1/2 Hello PDU if the interface type between them is broadcast.

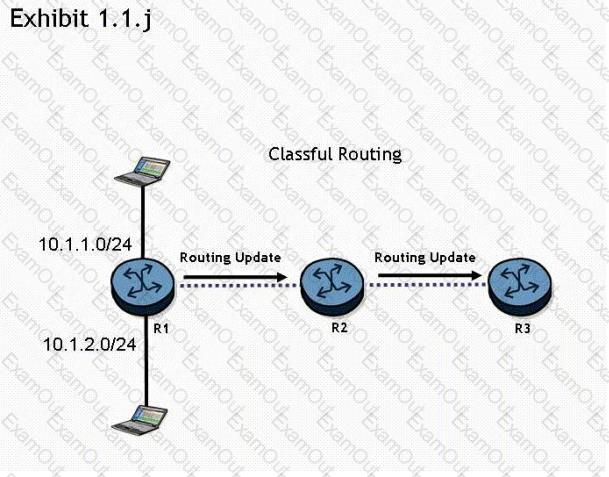

Click the exhibit button.

Routers R1 „ R2, and R3 are running a classful routing protocol between them. Assuming that router R1 advertises all directly connected networks, how will these networks be represented in router R3's routing table?

A.

Router R3's routing table can only contain one of the routes, which will result in route flapping.

B.

Router R3's routing table will have one entry for 10.1.1.0/24 and one entry for 10.1.2.0/24.

C.

The networks will be represented with one entry of 10.0.0.0/8 in router R3's routing table.

D.

The networks will be represented with one entry of 10.0.0.0/24 in router R3's route table.

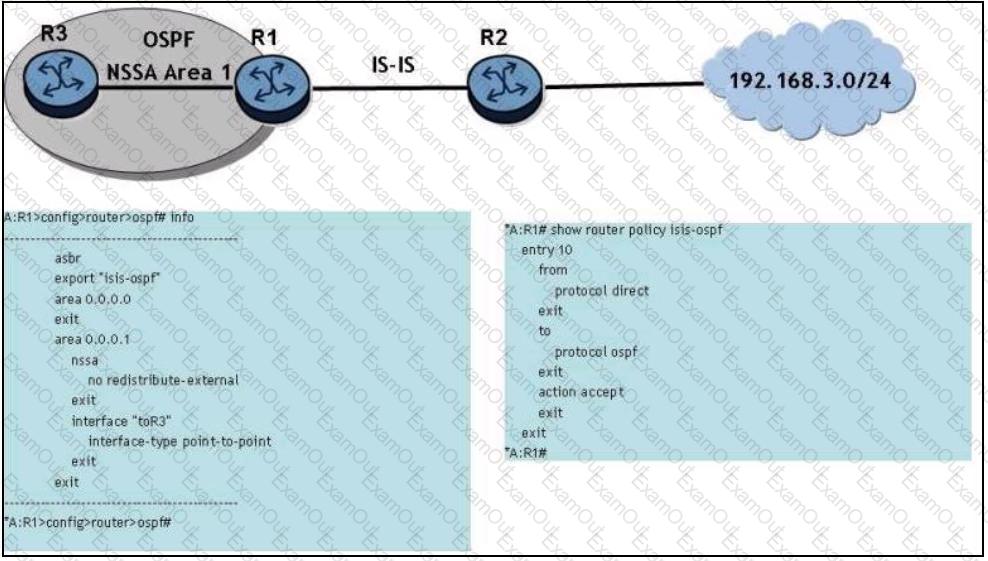

Click the exhibit button

The 192 168 3.0/24 network is learned on router R1 via IS-IS Given the OSPF configuration shown, and assuming that the OSPF adjacency between routers R1 and R3 is up, why is the 192 168.3.0/24 route not in router R3's route table? (Choose two)

A.

The route policy should be applied as in import policy

B.

The no-redistribute-external command is used on router R1

C.

The route policy is incorrect. It should say "from protocol ISIS" rather than "from protocol direct".

D.

It is not possible to be an ASBR and an NSSA. The ASBR configuration should be removed.

E.

The interface between routers R1 and R3 needs to be in OSPF area 0 rather than OSPF area 1 because a backbone area must always exist.

What are the ways the RID can be created on an Alcatel-Lucent 7750 SR router? (Choose three)

A.

From the last 32 bits of the chassis MAC address

B.

From the first 32 bits of the chassis MAC address

C.

The loopback IP address

D.

By using the command "config router ospf rid X.X.X.X"

E.

From the system IP address

F.

From the highest interface IP address

Which of the following correctly lists the 5 OSPF packet types?

A.

Hello, link state update, link state packet, link State acknowledgement, database description.

B.

Link state update, link state refresh, link state acknowledgement, database description, notification.

C.

Hello, link state refresh, link state update, link state acknowledgement, link state authentication.

D.

Hello, link state update, link state request, link state acknowledgement, database description.

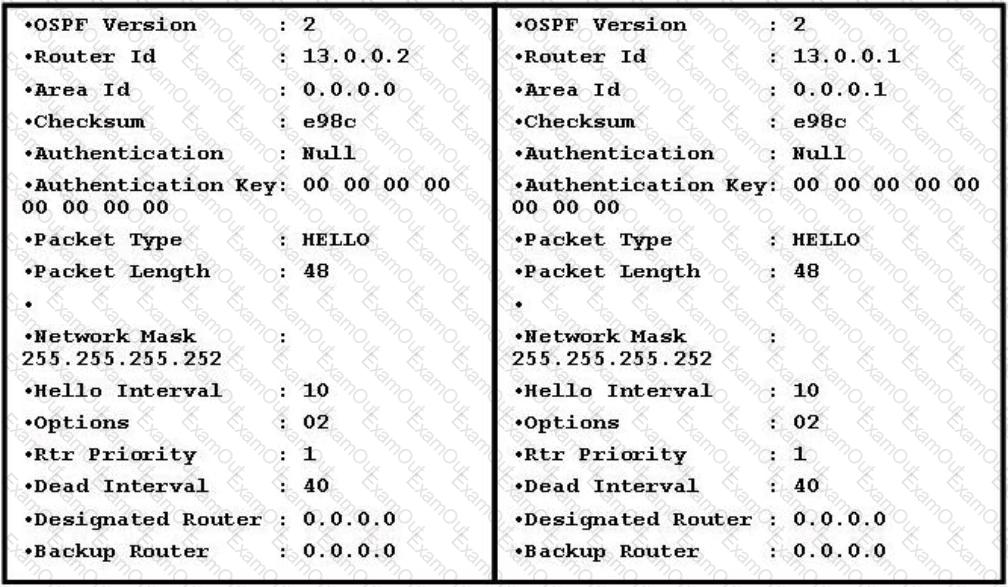

Click the exhibit button.

Two neighboring OSPF routers have exchanged the packets shown. What state is the adjacency in?

A.

Full; both routers are exchanging Helios to maintain the adjacency.

B.

The adjacency is down.

C.

The adjacency is in exstart state.

D.

The adjacency is in the exchange state.

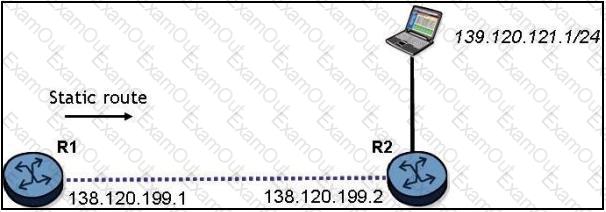

Click the exhibit button.

What is the command to configure a static route on the Alcatel-Lucent 7750 SR router R1 to reach the network behind router R2?

A.

configure router static-route 139.120.121.0/24 next-hop 138.120.199.2

B.

configure router static-route 139.120.121.0/24 next-hop 138.120.199.1

C.

configure router static-route 138.120.199.2/24 next-hop 138.120.199.1

D.

configure router static-route 139.120.121.0/24 next-hop 139.120.121.2

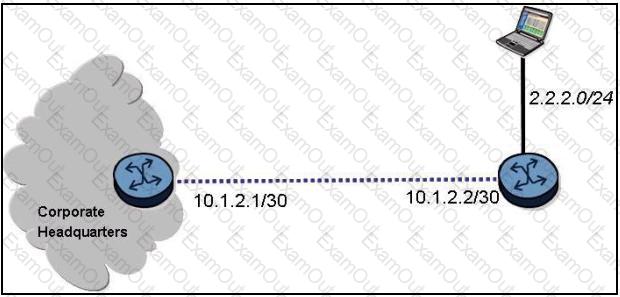

Click the exhibit button.

Given the diagram in the exhibit, what would be the correct static route configuration on the router on the right, if it is an Alcatel-Lucent 7750 SR?

A.

config> static-route 0.0.0.0/0 next-hop 10.1.2.2

B.

config>router> static-route 0.0.0.0 255.255.255.255 next-hop 10.1.2.1

C.

config>router> static-route 0.0.0.0/0 next-hop 10.1.2.2

D.

config>router> static-route 0 0.0 0/0 next-hop 10.1.2.1

What is the protocol number for OSPF in the IP header?

A.

OSPF uses TCP, so the protocol number is 6.

B.

OSPF uses UDP, so the protocol number is 17.

C.

OSPF does not use IP.

D.

OSPF has its own protocol number of 89.

What command could be used to verify proper configuration of a static route in an Alcatel-Lucent 7750 SR router?

A.

Show route-table

B.

Show router routing-table

C.

Show router route-table

D.

Show static

What command will show the IS-IS neighbors, and their status on an Alcatel-Lucent 7750 SR?

A.

Show isis neighbors

B.

Show router isis neighbors

C.

Show router isis adjacency

D.

Show isis adjacency

In IS-IS database synchronization, each router compares each LSP described in the received CSNPs with the LSPs in its own database. Which of the following actions is taken if the database contains a newer copy of the LSP?

A.

The router sends a copy of the LSP from its database to its neighbor

B.

The router sends a PSNP to its neighbor describing the LSP in its database.

C.

The router updates its database with the LSP and floods a copy to its other neighbors.

D.

The router sends a PSNP to its neighbor to request the LSP.

In an OSPF Hello packet what fields must match all neighbor routers on the segment? (Choose 3)

A.

Area ID

B.

Hello and Dead Intervals

C.

Stub flag

D.

DR and BDR addresses

E.

The list of neighbors

Which of the following describes the method used to resolve an IPv6 address to a MAC address?

A.

IPv6 uses the Address Resolution Protocol to resolve the address to a MAC address.

B.

A Neighbor Discovery message is sent to the broadcast MAC address. The host with the IPv6 address responds with a Neighbor Advertisement message.

C.

A Neighbor Discovery message is sent to the solicited-node multicast address. The host with the IPv6 address responds with a Neighbor Advertisement message.

D.

A Neighbor Discovery message is sent to the anycast address for the LAN. The host with the IPv6 address responds with a Neighbor Advertisement message.

E.

IPv6 addresses do not need to be resolved to a MAC address.
