Which protocol can be used to signal the outer label for a VPN service?

A.

IPCP

B.

LDP

C.

PPP

D.

TLDP

On which component is vc-type configured to create an E-pipe service that preserves the VLAN tag during transport?

A.

The SDP itself (outside of the epipe context).

B.

The SAP in the E-pipe.

C.

The mesh SDP in the E-pipe.

D.

The spoke SDP in the E-pipe.

An operator wishes to verify end-to-end connectivity for an individual service. What utility will he or she most likely use?

A.

sdp-ping

B.

Isp-ping

C.

svc-ping

D.

sdp-mtu

Which of the following is TRUE when a service uses a GRE transport tunnel?

A.

The service takes a route determined by the IGP.

B.

The tunnel does not use a service label.

C.

The service label is swapped at each hop in the transport network.

D.

The tunnel is bidirectional and only requires configuration at one end of the service.

On the Alcatel-Lucent 7750 SR, which of the following statements about MP-BGP used for a VPRN is TRUE?

A.

Routes from different customers with the same IPv4 address prefix are treated as equivalent by MP-BGP.

B.

MP-BGP will advertise routes to other BGP sessions on the same PE without the need of policies.

C.

The multi-protocol nature of MP-BGP allows VPRN routes to be converted into IPv4 routes in the provider core network.

D.

MP-BGP is an enhanced version of BGP that can carry customer route prefixes for multiple VPRNs.

On an Alcatel-Lucent 7750 SR, which of the following statements about the default advertisement of VRF routes is true?

A.

All routes in the VRF are advertised to the PEs and CEs.

B.

No routes in the VRF are advertised to the PEs or to the CEs.

C.

All routes in the VRF are advertised to the PEs, but not to the CEs.

D.

All routes in the VRF are advertised to the CEs, but not to the PEs.

In a Layer 2 VPN service, the FCS is stripped when a customer packet arrives at the ingress PE and regenerated on egress.

A.

TRUE

B.

FALSE

Which service type is needed to bridge an ATM-attached user and an Ethernet-attached user?

A.

A-pipe

B.

F-pipe

C.

C-pipe

D.

E-pipe

Assume that, on the Alcatel-Lucent 7750 SR, an LSP is configured with one-to-one FRR and node protection. Which of the following statements are FALSE? (Choose two)

A.

Each PLR signals a detour LSP that avoids the downstream node. If the downstream node cannot be avoided, a detour LSP that avoids the downstream link is signaled.

B.

The detour LSP can take one or more hops before merging back on the protected LSP.

C.

The merge point of the protected LSP must be the next-next-hop node

D.

The ingress router will set the local protection desired flag in the session attribute object of the path message to inform all routers along the protected LSP path to establish detour LSPs.

E.

The label recording desired flag must be set in the session attribute object in order for the PLR to know what label to swap when using the detour LSP.

Which of the following message types does RSVP use to set up an LSP? (Choose two)

A.

Path message

B.

iLER message

C.

Resv message

D.

LSP setup call request

E.

eLER message

Which of the following statements best describes the function of an OSPF Type 4 LSA?

A.

A Type 4 LSA is originated by an ABR to describe a route to an ASBR to routers outside the area.

B.

A Type 4 LSA is originated by an ASBR to describe a route to itself to routers outside the area.

C.

A Type 4 LSA is originated by an ABR that is connected to a stub area. The LSA is injected into the backbone area to provide routing information.

D.

A Type 4 LSA is originated by an ABR that is connected to a stub area. The LSA is injected into the stub area to provide routing information.

What is the function of the MPLS label assigned to a packet?

A.

It identifies the FEC.

B.

It specifies the packet's header length

C.

It identifies the origin of the packet.

D.

It specifies the type of data contained in the packet

Which of the following statements regarding OSPF routing updates on a point-to-point link is true?

A.

On a point-to-point link, there is no need for a DR and BDR election; all routing updates are sent to 224.0.0.5.

B.

On a point-to-point link, a DR and BDR are elected. The DR sends link-state advertisements describing the network.

C.

On a point-to-point link, a DR and BDR are elected. To ensure resiliency, both the DR and BDR send link-state advertisements describing the network.

D.

On a point-to-point link, there is no need for a DR and BDR election. All routing updates are sent to the unicast address of the neighbor's interface.

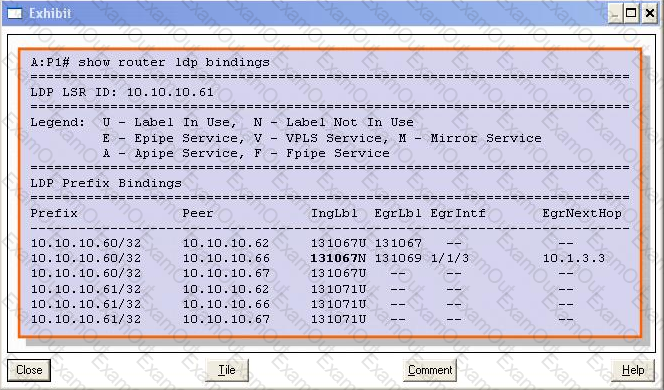

Click on the exhibit button below.

Consider the output shown; why is the label in bold font not in use?

A.

The router cannot do a SWAP of this label.

B.

The label does not match the egress label for the same FEC.

C.

The label is for a FEC for which the next-hop is the peer router

D.

The label was signaled in error.

Which of the following commands is used to display the database containing the OSPF-TE LSAs?

A.

show router ospf opaque-database

B.

show router ospf database

C.

show router ospf opaque-Isa

D.

show router ospf te opaque

Which command can be used to verify the LDP settings for label distribution and retention?

A.

show router ldp default

B.

show router ldp parameters

C.

show router ldp settings

D.

show router mpls settings

E.

show router mpls label-options

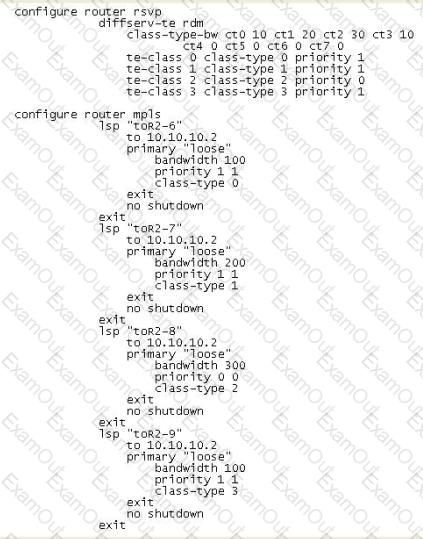

Click on the exhibit button below.

If the four LSPs shown use the shared-explicit reservation style, how much bandwidth does CSPF request across a single 1Gbps link?

A.

100Mbps

B.

200Mbps

C.

300Mpbs

D.

600Mbps

E.

700Mbps

If the OSPF reference bandwidth is set to 1000 Gbps. what is the cost of a 1 Gbps interface?

A.

1

B.

10

C.

100

D.

1000

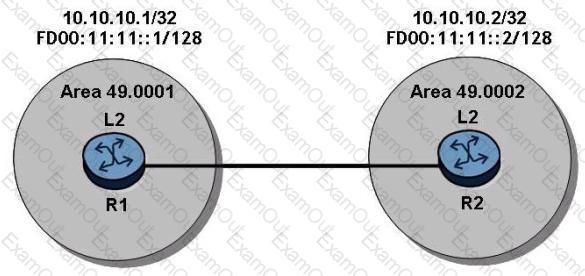

Refer to the exhibit below. The routers have an established IS-IS L2 adjacency on which IPv4 system addresses are exchanged. An operator successfully configures multi-topology IS-IS routing so that the IPv6 system addresses are also exchanged between routers. Which of the following statements best describes the number of IS-IS adjacencies and the number of LSPs in the LSDB of R1 AFTER IPv6 has been configured?

A.

R1 has one IS-IS adjacency and one LSP.

B.

R1 has one IS-IS adjacency and two LSPs.

C.

R1 has one IS-IS adjacency and four LSPs.

D.

R1 has two IS-IS-adjacencies and two LSPs

E.

R1 has two IS-IS adjacencies and four LSPs

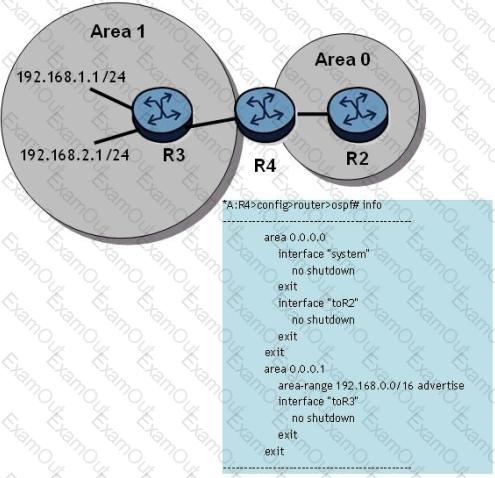

Click on the exhibit.

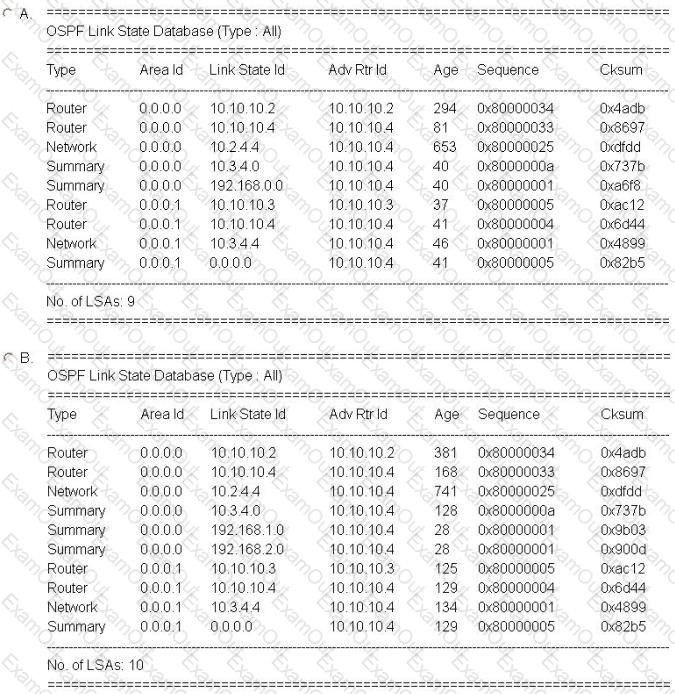

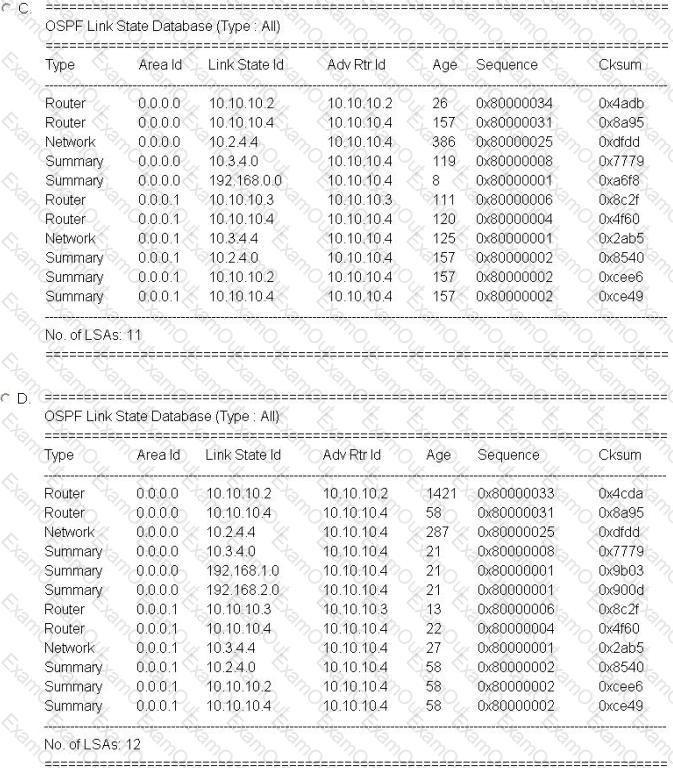

Which of the following would you expect to see in router R4's OSPF database?

A.

Option A

B.

Option B

C.

Option C

D.

Option D
