If the Alcatel-Lucent 7750 SR is rebooted after an "admin save'' has been performed, which of the following about mirror services is TRUE?

A.

Only the mirror source must be re-configured.

B.

Only the mirror destination must be re-configured.

C.

Both the mirror destination and mirror source must be re-configured.

D.

Neither the mirror destination nor the mirror source must be re-configured.

Which service type would be used to provide a bi-directional Layer 2 connection of TDM circuits over an IP/MPLS network?

A.

A-pipe

B.

E-pipe

C.

I-pipe

D.

F-pipe

E.

C-pipe

Choose the following components that are necessary for the configuration of a mirror service. (Choose 2)

A.

A mirror destination to indicate which ports to monitor.

B.

A mirror source to indicate which ports to monitor.

C.

A mirror destination to indicate on which sap or sdp traffic should be replicated.

D.

A mirror source to indicate on which sap or sdp traffic should be replicated

Click the exhibit.

The output is from PE router R4 about VPRN service 100. How many prefixes have been learned from the MP-BGP protocol?

A.

0

B.

2

C.

3

D.

6

Which of the following regarding 6VPE is FALSE?

A.

6VPE is a tunneling technology that makes use of MPLS tunnels to transport IPv6 prefixes over an IPv4 infrastructure.

B.

Customers connected to 6VPE can run IPv6 or IPv4.

C.

On a PE router, if the MP-BGP next hop is an IPv4 address, a mapped IPv6-compliant address will be used.

D.

6VPE implements its own VPN-IPv6 address family and is a replacement for MP-BGP.

Which of the following about VPRN route targets is FALSE?

A.

Route targets are carried in MP-BGP updates.

B.

Route targets identify the VRF that a VPN-IFV4 prefix is associated with.

C.

Route targets are communicated between PEs that are part of a specific VPRN.

D.

Route targets identify the egress SAP of a service towards a CE.

Which of the following comparisons between E-pipes and VPLSes is FALSE?

A.

They both function as a Layer 2 switch from the service provider's perspective.

B.

They both support SAP encapsulations of null, dot1Q and Q-in-Q.

C.

They both use SAPs as the demarcation point between the customer and the provider.

D.

MAC addresses are learned by VPLSes, but not by E-pipes.

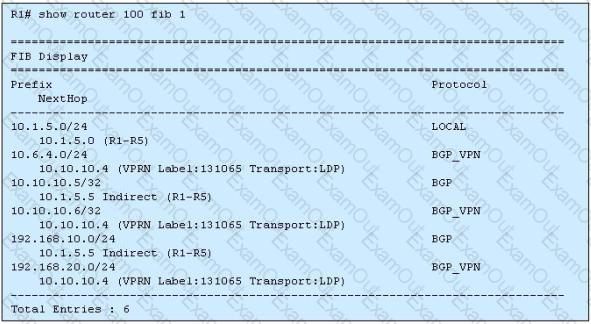

Click the exhibit.

The output is from PE router R1 about VPRN service 100. From which protocol did router R1 learn the prefix 192.168.20.0/24?

A.

LDP

B.

BGP

C.

MP-BGP

D.

MPLS

A VPLS receives a frame with the single VLAN tag 35 on the Q-in-Q SAP 1/1/1:35.*. Which of the following describes default Alcatel-Lucent 7750 SR behavior?

A.

The frame is dropped.

B.

The VLAN tag is removed, and the frame is transported over the network.

C.

The VLAN tag is kept, and the frame is transported over the network.

D.

The VLAN tag is kept, a VLAN of 0 is added, and the frame is transported over the network.

Which of the following about an E-pipe terminating on a VPLS is FALSE?

A.

The VC-IDs used between the E-pipe and VPLS must match.

B.

The E-pipe must maintain a MAC FDB in order to connect to the VPLS.

C.

The service ID of the E-pipe can be different from that of the VPLS.

D.

The service MTU of the VPLS and E-pipe must match.

A service needs to accept frames that have the following: an outer VLAN tag of 200 with an inner VLAN tag of 33; and frames that have an outer VLAN tag of 250 with an inner VLAN tag of 33. What SAP(s) need to be configured?

A.

1/1/1:200.*

B.

1/1/1:*.33

C.

1/1/1:*.*

D.

This requires two SAPs: 1/1/1:200.33 and 1/1/1:250.33

What happens by default on an Alcatel-Lucent 7750 SR when a null encapsulated SAP receives a frame with a VLAN tag?

A.

The original VLAN tag is removed.

B.

The original VLAN tag is kept.

C.

The VLAN tag is replaced by a provider tag.

D.

The VLAN tag is kept and a provider tag is added.

On an Alcatel-Lucent 7750 SR, which vc-type will strip service delimiting tags at the ingress PE?

A.

vc-type ether

B.

vc-type vlan

C.

vc-type dotlq

D.

vc-type null

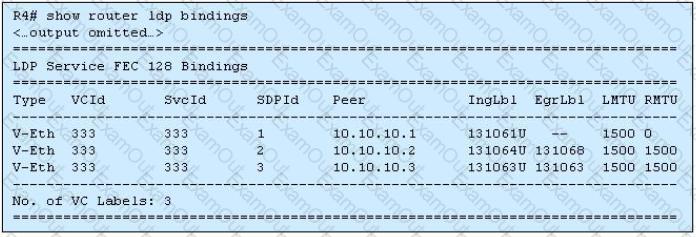

Click the exhibit.

This is output from router R4. Service 333 is a VPLS. Why does peer 10.10.10.1 not have an EgrLbl?

A.

The SDP to 10.10.10.1 on router R4 is shutdown.

B.

Router R4 has not sent a label to router R1 (10.10.10.1) yet.

C.

10.10.10.1 has a different service MTU set.

D.

10.10.10.1 has not sent a label to router R4 yet.

Which of the following statements best describes the main difference between an Ipipe and an Epipe interworking?

A.

An Ipipe is a point-to-point Layer 2 VPN capable of only carrying Ethernet payloads. An Epipe interworking refers to the transportation of ATM/FR traffic over an Epipe.

B.

An Ipipe is used for performing Ethernet interworking with ATM/FR/PPP using bridged-PDUs. An Epipe interworking is used for performing Ethernet interworking with ATM/FR/PPP using routed-PDUs.

C.

An Ipipe is used for performing Ethernet interworking with ATM/FR/PPP using routed-PDUs. An Epipe interworking is used for performing Ethernet interworking with ATM/FR/PPP using bridged-PDUs.

D.

None of the above.

Which of the following about route distinguishes on the Alcatel-Lucent 7750 SR is TRUE?

A.

Route distinguishes are used to ensure that VPRN IP prefixes are globally unique.

B.

Route distinguishes are appended to IPv4 prefixes to form IPv6 prefixes.

C.

Route distinguishes are used to determine which routes a VPRN should import.

D.

CE routes use a route distinguisher to indicate which VPRN they are associated to.

By default, what does an Alcatel-Lucent 7750 SR do to support VPLS services for different customers?

A.

Dedicates a separate port for each customer.

B.

Performs ARP look-ups for each service.

C.

Maintains a different IP routing table for each service.

D.

Maintains a different MAC Forwarding Database for each service.

The SAP 1/1/1:2.3 receives an Ethernet frame with outer VLAN tag 2 and inner VLAN tag 5. Which of the following is TRUE?

A.

The matching outer tag is removed, and the frame is forwarded.

B.

The inner tag is removed, and the frame is forwarded.

C.

The inner tag is changed to match the SAP, and the frame is forwarded.

D.

The frame is dropped.

Which of the following about Hierarchical VPLS is FALSE?

A.

They allow a VPLS to scale more easily.

B.

They use mesh SDPs to connect smaller VPLSes together.

C.

They allow a service to span multiple metro networks.

D.

They simplify the configuration required when adding new PEs.

An E-pipe is configured with a service MTU of 5000. What is the minimum MTU value that should be set on an access port for a dot1q encapsulated SAP on this service?

A.

5000

B.

5004

C.

5008

D.

5014
