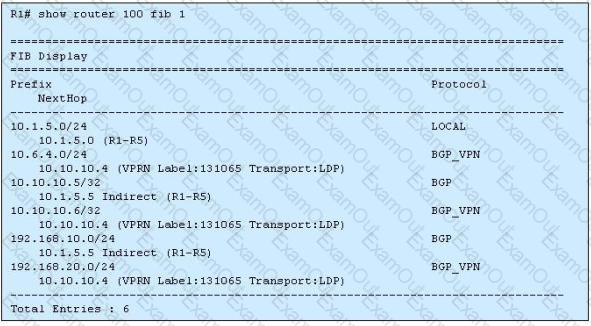

Click the exhibit.

This output is from PE router R1. Based on the output about VPRN 100, how many prefixes has router R1 learned from CE router R5?

A.

0

B.

2

C.

3

D.

6

How many service labels must be signaled to bring up a fully-meshed VPLS among five PE routers?

A.

1

B.

5

C.

10

D.

20

What command syntax would be used to create a new routed interface on an existing IES service?

A.

config>service>ies# interface "to-CE" customer customer-id create

B.

config>service>ies# interface to CE create

C.

config>service>ies# interface to CE

D.

config>service>ies# interface "to-CE" create

Which of the following about 6VPE is FALSE?

A.

To advertise VPN-IPv4 and VPN-IFV6 routes, two MP-BGP sessions are required.

B.

PE routers must support both IPv4 and IPv6 addresses; customer routers can use either one.

C.

MP-BGP is used to advertise IPv6 prefixes and the associated VPRN labels.

D.

The provider core routers are IPv6-unaware.

Which of the following about IES is FALSE?

A.

An IES has a configurable VC MTU.

B.

An IES interface has an IP address assigned to it.

C.

IES supports QoS.

D.

An IES requires a spoke SDP.

Which of the following about VPRN route targets is FALSE?

A.

They are used to identify the VRF table for a prefix at the receiving PE.

B.

They are used by VPRNs to control the distribution of VPN routing information.

C.

They are distributed to all PEs and CEs that are part of the VPRN.

D.

They are distributed to PEs to identify the VRF table that a VPN-IPv4 prefix is associated with.

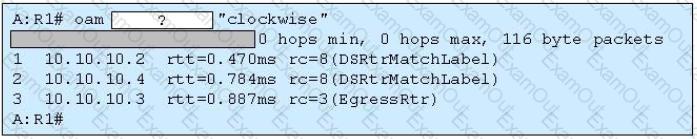

Click the exhibit.

Which OAM tool produced this output?

A.

vprn-ping

B.

sdp-ping

C.

traceroute

D.

Isp-trace

Which of the following statements about SAPs that are part of a VPVVS is FALSE?

A.

SAPs can be defined on Ethernet, POS, Sonet/SDH, or TDM channels.

B.

Only one SAP is required for a service that originates and terminates on the same Alcatel-Lucent 7750 SR.

C.

SAPs can have QoS policies assigned to them.

D.

Multiple SAPs can be defined on the same port.

When a tagged packet is received on a SAP configured with dot1q encapsulation, the VLAN tag must match the value configured on the SAP in order to be forwarded.

A.

TRUE

B.

FALSE

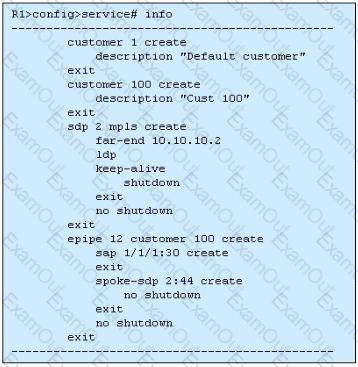

Click the exhibit.

Which of the following statements about the E-pipe service is TRUE?

A.

The service is a local service.

B.

The service requires a second spoke SDP on this router.

C.

The service's VC ID is 44.

D.

The service will accept VLAN tag 100.

By default, what does a PE do to support VPLS services for different customers? (Choose 2)

A.

MAC learning.

B.

Maintain a different Forwarding Data Base for each service

C.

ARP mediation.

D.

Maintain a different Routing Information Base for each service.

An IPv4 MPLS provider network is being configured for 6VPE. BGP is being used for the PE-CE protocol to exchange IPv6 routes. Which of the following is FALSE?

A.

MP-BGP in the provider network needs to support the VPN-IPv6 address family.

B.

PE routers must be configured to run MP-BGP.

C.

PE-to-CE BGP sessions need to be configured to support IPv6.

D.

The provider network core must be configured to support IPv6.

A Cpipe supports both structured and unstructured frames.

A.

TRUE

B.

FALSE

Consider an E-pipe service configured with SAP 1/1/1:5 and SAP 1/1/1:6. If the SAP 1/1/1:5 accepts an ingress frame, which of the following is TRUE?

A.

The frame egresses from 1/1/1:6 with no VLAN tag.

B.

The frame egresses from 1/1/1:6 with VLAN tag 5.

C.

The frame egresses from 1/1/1:6 with VLAN tag 6.

D.

The frame egresses from 1/1/1:6 with an inner VLAN tag of 5 and an outer VLAN tag of 6.

Which of the following best describes how a MAC FDB is populated in a VPLS service?

A.

A VPLS service does not use a MAC FDB.

B.

The router reads the destination MAC address of frames passing through the service.

C.

The router reads the source MAC address of frames passing through the service.

D.

The router uses reverse ARP (RARP) to resolve the MAC addresses for unknown destinations.

E.

The router is programmed with MAC addresses by the network administrator.

Which of the following about the VPN-IFV4 address family is FALSE?

A.

VPN-IFV4 allows multiple customers to have overlapping IP addresses.

B.

CE routers use VPN-IPv4 prefixes to differentiate between services.

C.

PE routers are responsible for creating VPN-IPv4 prefixes.

D.

A VPN-IFV4 prefix is composed of a route distinguisher (RD) and an IPv4 address.

Which of the following SAPs will toward tagged frames but NOT untagged frames?

A.

sap 1/1/1

B.

sap 1/1/1:*

C.

sap 1/1/1:*.0

D.

sap 1/1/1:0

E.

None of the above.

What happens by default on an Alcatel-Lucent 7750 SR when a VPLS accepts a tagged frame at the ingress SAP 1/1/1:100?

A.

The FCS is verified and kept in the customer frame. The VLAN tag is kept and transported over the network.

B.

The FCS is verified and kept in the customer frame. The VLAN tag is removed for transport over the network.

C.

The FCS is verified and removed from the frame. The VLAN tag is kept for transport over the network.

D.

The FCS is verified and removed from the frame. The VLAN tag is removed for transport over the network.

Which of the following best describes the flooding of traffic on a PE when unknown traffic is received on a SAP of a VPLS?

A.

Traffic is flooded to all SAPs in the service.

B.

Traffic is flooded to all SAPs and spoke SDPs in the service.

C.

Traffic is flooded to all SAPs and mesh SDPs in the service.

D.

Traffic is flooded to all SAPs, spoke SDPs, and mesh SDPs in the service.

E.

The traffic is not flooded.

Which of the following about VPLS MAC learning is TRUE?

A.

Mesh SDPs assist MAC learning by flooding traffic to other mesh SDPs.

B.

A PE keeps a single FDB for all VPLSes it has.

C.

Frames received on a SAP that are broadcast, multicast or unknown are flooded.

D.

The FDB only stores the MAC addresses of remote sites.
