(In which order does FortiGate consider the following elements during the route lookup process? Choose one answer.)

A.

SD-WAN rules, ISDB routes, policy routes, BGP routes

B.

Policy routes, SD-WAN rules, Internet Service Database (ISDB) routes, BGP routes

C.

SD-WAN rules, policy routes, static routes, ISDB routes

D.

Policy routes, ISDB routes, SD-WAN rules, static routes

You are tasked with configuring ADVPN 2.0 on an SD-WAN topology already configured for ADVPN. What should you do to implement ADVPN 2.0 in this scenario?

A.

Update the IPsec tunnel configurations on the hub.

B.

Update the SD-WAN configuration on the branches.

C.

Update the IPsec tunnel configuration on the branches.

D.

Delete the existing ADVPN configuration and configure ADVPN 2.0.

Exhibit.

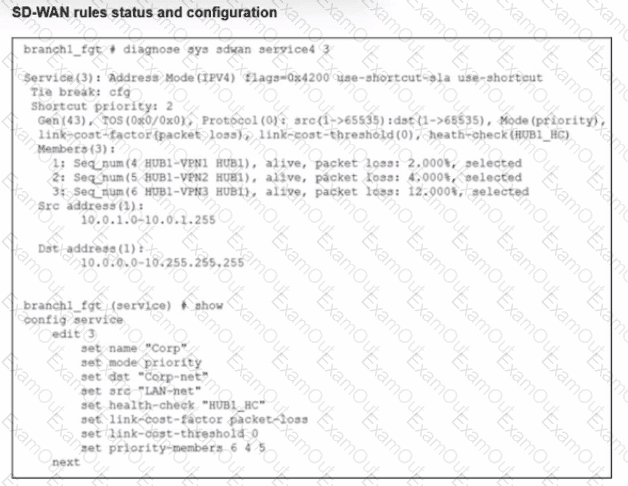

Refer to the exhibit, which shows the SD-WAN rule status and configuration.

Based on the exhibit, which change in the measured packet loss will make HUB1-VPN3 the new preferred member?

A.

When HUB1-VPN1 has 4% packet loss

B.

When HUB1-VPN1 has 12% packet loss

C.

When HUB1-VPN3 has 4% packet loss

D.

When all three members have the same packet loss

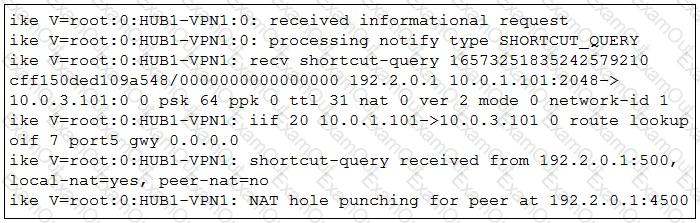

Refer to the exhibit.

Which statement best describe the role of the ADVPN device in handling traffic?

A.

This is a spoke that has received a direct shortcut query from a remote spoke.

B.

This is a hub, and two spokes, 192.2.0.1 and 10.0.3.101, establish a shortcut.

C.

This is a hub that has received a shortcut query from a spoke and has forwarded it to another spoke.

D.

This is a spoke that has received a shortcut query from a remote hub.

You have a FortiGate configuration with three user-defined SD-WAN zones and two members in each of these zones. One SD-WAN member is no longer in use in health-check and SD-WAN rules. You want to delete it.

What happens if you delete the SD-WAN member from the FortiGate GUI?

A.

FodiGate accepts the deletion and removes routes as required.

B.

FortiGate displays an error message. You must use the CLI to delete an SD-WAN member.

C.

FortiGate displays an error message. SD-WAN zones must contain at least two members

D.

FortiGate accepts the deletion and places the member in the default SD-WAN zone.

Refer to the exhibits.

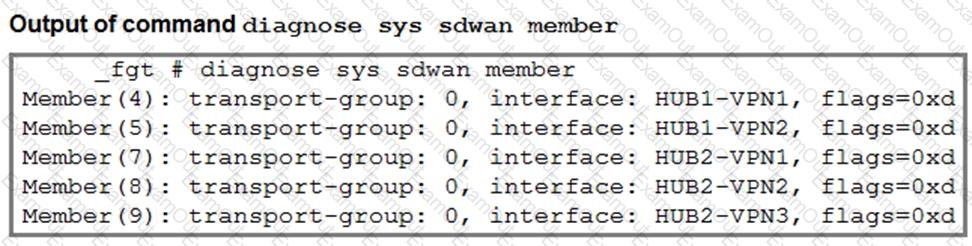

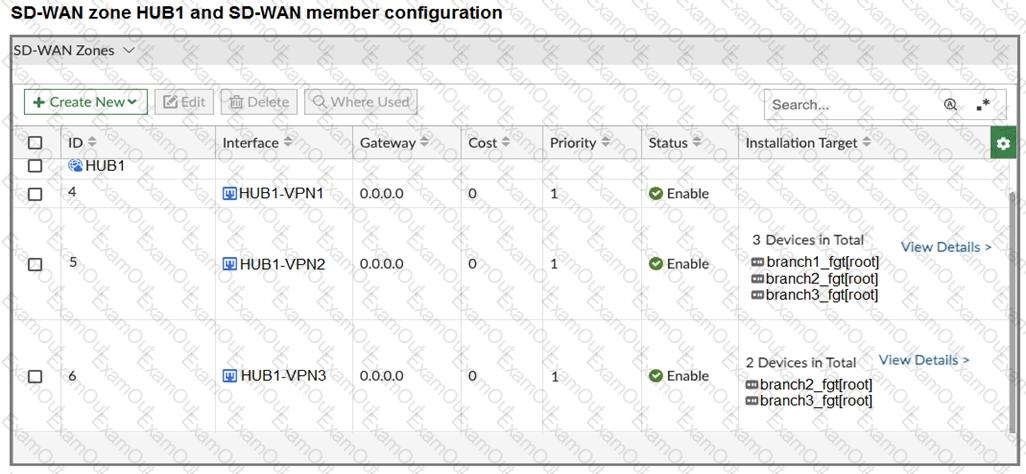

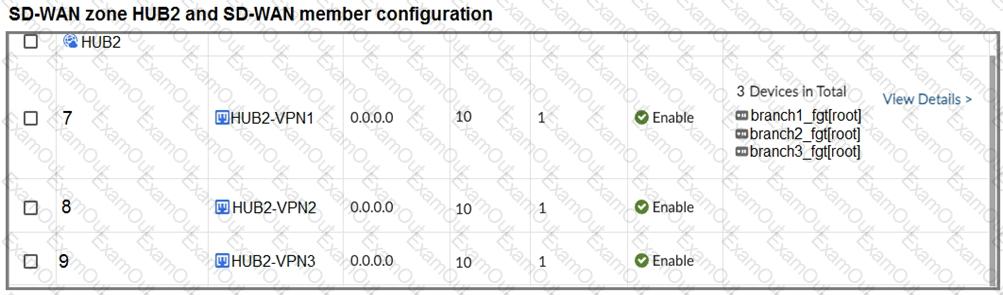

The first exhibit shows the SD-WAN zone HUB1 and SD-WAN member configuration from an SD-WAN template, and the second exhibit shows the output of command diagnose sys sdwan member collected on a FortiGate device.

Which statement best describes what the diagnose output shows?

A.

The diagnose output shows that HUB1-VPN1 and all HUBx-VPNy members are dead.

B.

The diagnose output does not correspond to a device configured with the SD-WAN template shown in the exhibit.

C.

The diagnose output was collected on the device branch2_fgt.

D.

The diagnose output was collected on the device branch1_fgt

Refer to the exhibit.

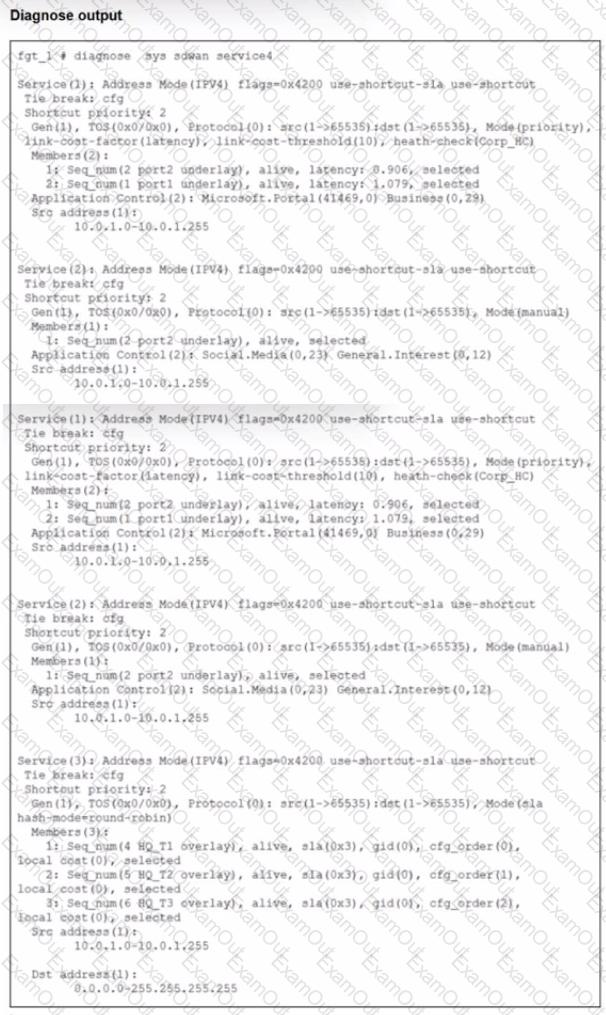

The exhibit shows output of the command diagnose sys adwan aervice4 collected on a FortiGate device.

The administrator wants to know through which interface FortiGate will steer traffic from local users on subnet 10.0.1.0/255.255.255.192 and with a destination of the social media application Facebook.

Based on the exhibits, which two statements are correct? (Choose two.)

A.

When FortiGate cannot recognize the application of the flow, it steers the traffic through the preferred member of rule 3, HQ_T1.

B.

There is no service defined for the Facebook application, so FortiGate appliesservice rule 3 and directs the traffic to headquarters.

C.

FortiGate steers traffic for social media applications according to the service rule 2 and steers traffic through port2.

D.

When FortiGate cannot recognize the application of the flow, it load balances the traffic through the tunnels HQ_T1. HQ_T2. HQ_T3.

Refer to the exhibits.

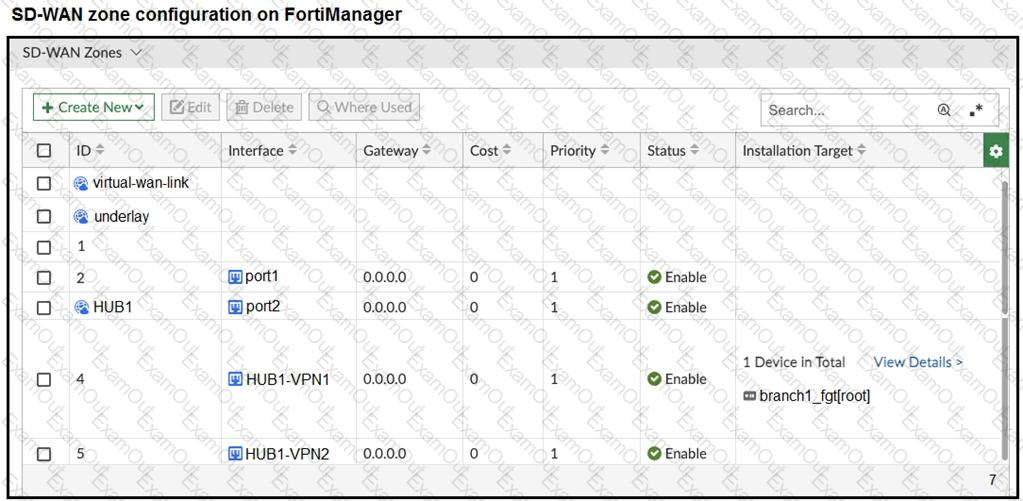

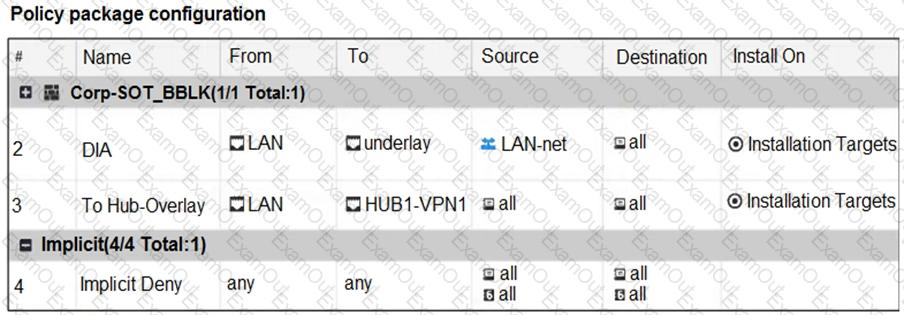

The exhibits show the SD-WAN zone configuration of an SD-WAN template prepared on FortiManager and the policy package configuration.

When the administrator tries to install the configuration changes, FortiManager fails to commit.

What should the administrator do to fix the issue?

A.

Configure branch1_fgt as the installation target for policy 3.

B.

Configure HUB1 as the destination of policy 3.

C.

Configure a normalized interface for the IPsec tunnel HUB1-VPN1.

D.

Configure both HUB1-VPN1 and HUB1-VPN2 as the destination of policy 3
