Free Practice Questions for Cisco 350-501 Exam

To reduce network usage and minimize leave latency for users connected to VLAN 76, the configurations should focus on efficient multicast traffic management. Option A likely involves enabling IPv6 MLD snooping, which restricts multicast traffic to only the ports that have members interested in receiving the traffic, thus reducing unnecessary network usage. Option C might include configuring fast-leave processing, which allows the switch to immediately stop forwarding multicast traffic to a port when the last member of a multicast group leaves, reducing leave latency.

References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

Option B is the correct answer because it meets all the given requirements. The configuration “snmp-server community comaccess ro 10” allows read-only access for all objects to members of Access-List 10 that use the comaccess community string. The “snmp-server host ABC.com informs version 2c public” command ensures SNMP authentication failure traps are sent to SNMPv2c and then to the host using SNMPv2c with the public community string.

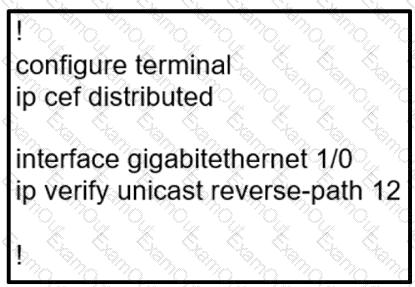

 The “show cef interface” command is used to display per-interface statistics about Unicast Reverse Path Forwarding (uRPF) drops and suppressed drops. uRPF is a feature that helps to mitigate problems caused by IP address spoofing, and the “show cef interface” command provides detailed information on the interfaces where uRPF is applied, including drop statistics.

To filter routes when redistributing OSPF into BGP, you should configure a route map and reference it with the redistribute command.

The route map allows you to apply filtering criteria to the routes being redistributed.

Example configuration:

router bgp 65000

redistribute ospf 1 route-map OSPF-TO-BGP

!

route-map OSPF-TO-BGP permit 10

match ip address prefix-list OSPF-TO-BGP-FILTER

!

ip prefix-list OSPF-TO-BGP-FILTER seq 10 deny 192.168.0.0/24

ip prefix-list OSPF-TO-BGP-FILTER seq 20 permit any

 A prefix segment identifier (PSID) is a unique identifier used in Segment Routing (SR) networks. It is locally significant within a specific SR domain. Each PSID corresponds to a specific segment (such as a node or an adjacency) in the SR domain. PSIDs are used to create segment lists that define the path a packet should follow through the network. Unlike globally unique identifiers, PSIDs are only meaningful within the context of a single SR domain.

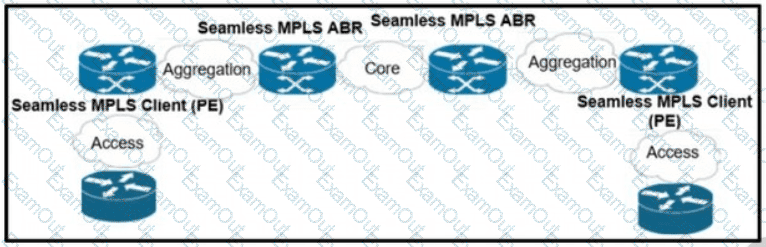

In Cisco Unified MPLS, BGP (Border Gateway Protocol) is used to transport labels along with network layer reachability information. RFC 3107 defines BGP/MPLS IP Virtual Private Networks (VPNs) and allows BGP to carry MPLS labels, enhancing scalability and flexibility in MPLS networks.

References

1: Cisco. “Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR).” Link

 The ip igmp join-group command is used on a router interface to simulate the presence of an IGMP host for a specific multicast group. By issuing the command ip igmp join-group 239.10.10.10, the router is configured to join the multicast group 239.10.10.10 and will receive multicast traffic for this group. This is useful for testing or when the router itself needs to receive the multicast stream.

 mVPN (Multicast Virtual Private Network) is designed to support the efficient transport of multicast streams across a Layer 3 VPN. It enables service providers to use their existing MPLS networks to transport multicast traffic, allowing for scalable and manageable multicast delivery without requiring a separate network infrastructure. References: Implementing and Operating Cisco Service Provider Network Core Technologies

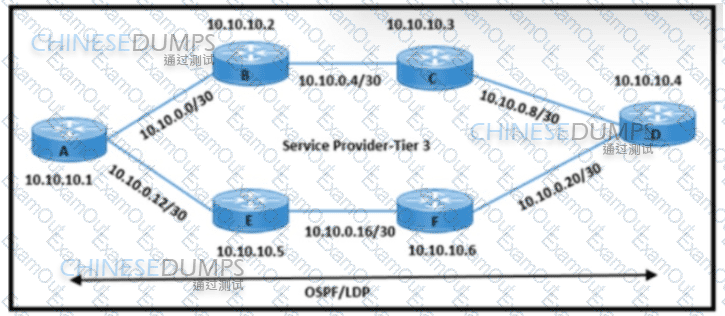

 Enabling MPLS LDP IGP Synchronization ensures that the IGP advertises a route only if there is a corresponding label binding from LDP. This synchronization helps prevent blackholing traffic when there is a direct link failure in the network. When the B-C link failed, the IGP could find an alternate path via routers E and F, but without LDP synchronization, the labels for MPLS were not available on this new path, leading to traffic loss. By enabling LDP IGP Synchronization, routers will only use paths for which a complete set of labels exists, ensuring label forwarding occurs on the alternate path.

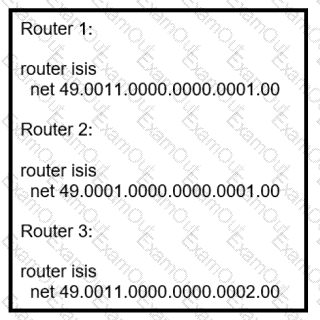

Router 4 must be in the same area as Router 1, so it should have the same area address which is “49.0111”. The system ID can be different to uniquely identify the router in that area, but since there is no option with a different system ID and the same area address, option B is correct as it has both the same area address and system ID as Router 1. References := Cisco

The Cisco MPLS TE forwarding adjacency feature allows a TE tunnel to be advertised into the IGP, effectively making the tunnel appear as a network link in the IGP topology. This integration helps in the optimal utilization of the TE tunnel by other routers for IP routing purposes.

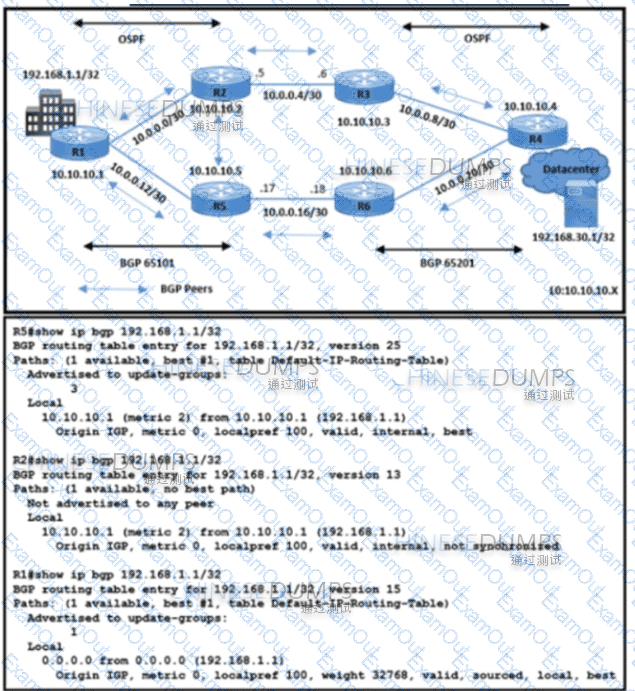

The issue described indicates that the preferred BGP path for traffic destined to 192.168.1.1/32 is not being used. By applying a route-map with a higher Local Preference (LP) on R1 for the prefix 192.168.1.1/32, the BGP path attributes can be manipulated to prefer the path through R2. Local Preference is a BGP attribute that determines the preferred exit path out of an AS. A higher Local Preference value is preferred over a lower one. Therefore, configuring the route-map High-LP with a higher Local Preference on R1’s BGP peering with R2 will influence the BGP path selection process, ensuring that traffic for 192.168.1.1/32 prefers the path R3-R2-R1 as expected.

 MPLS TE tunnels are designed to optimize the flow of network traffic by mapping it onto specific paths based on resource requirements. Two key characteristics of MPLS TE tunnels are:

RSVP for Bandwidth Reservation: MPLS TE tunnels use the Resource Reservation Protocol (RSVP) to reserve the necessary bandwidth for the tunnel, ensuring that the required resources are available for the data that will flow through it12.

Unidirectional Flow: These tunnels are unidirectional, meaning they are established from a source to a destination and do not inherently support traffic in the reverse direction. This is because each MPLS TE tunnel is associated with a label-switched path (LSP) that is specifically set up for traffic flowing in one direction
