Free Practice Questions for Cisco 350-401 Exam

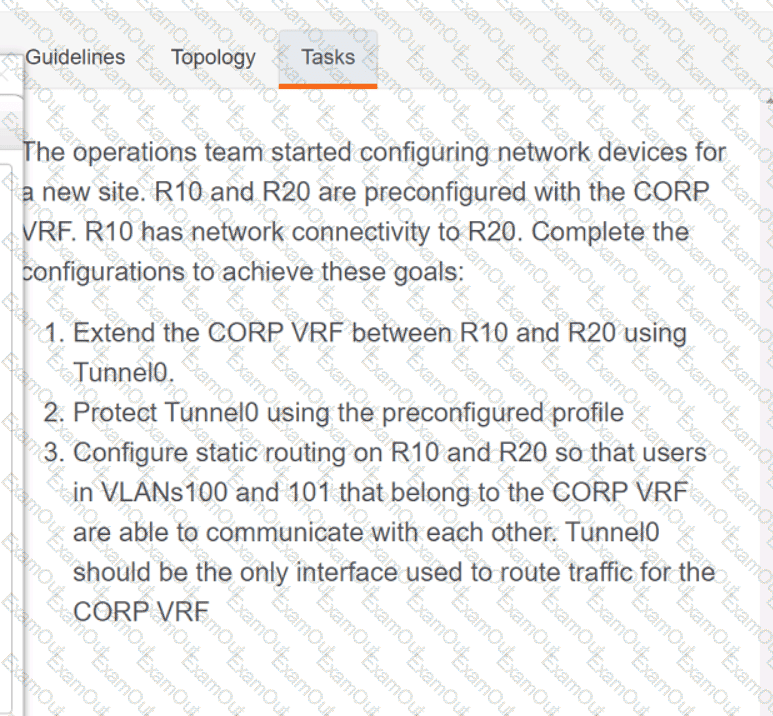

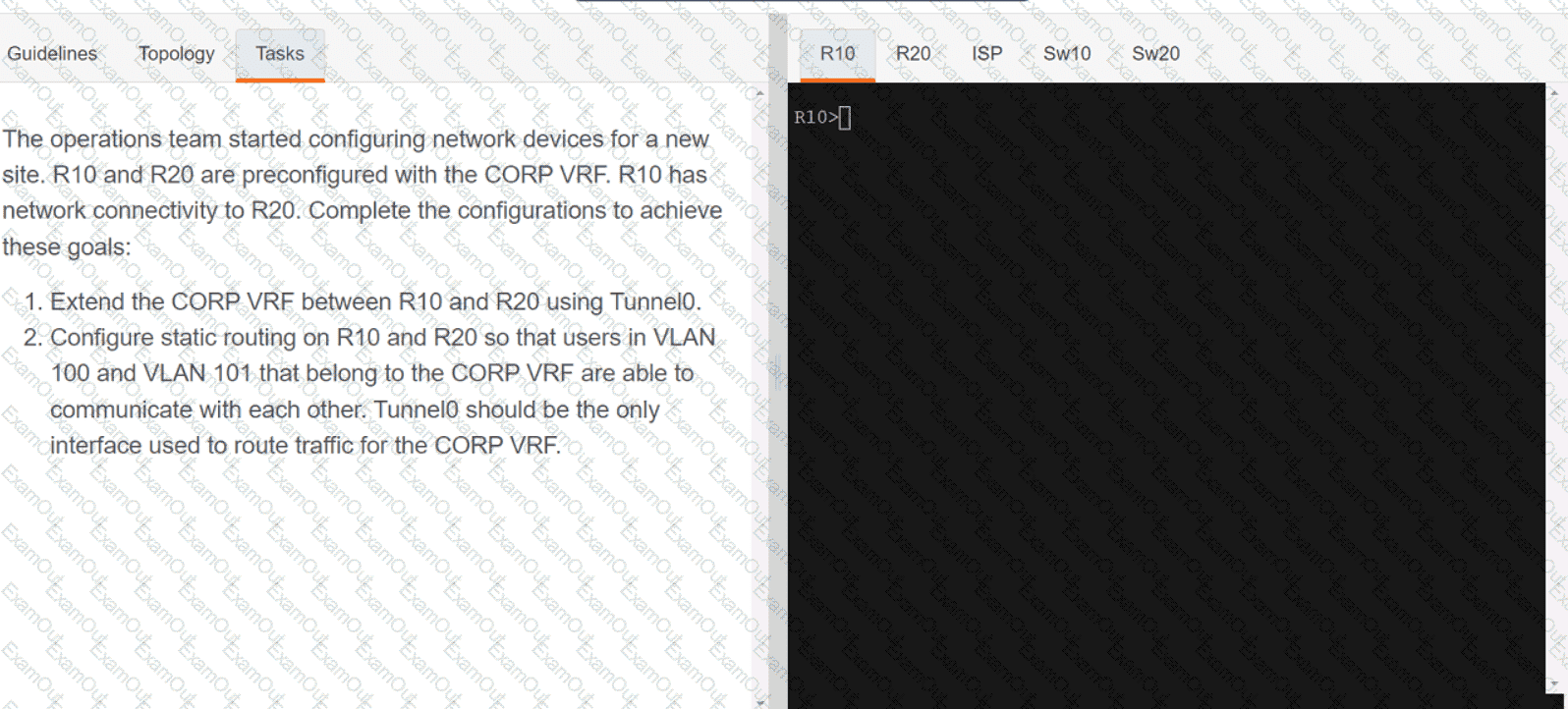

Solution:

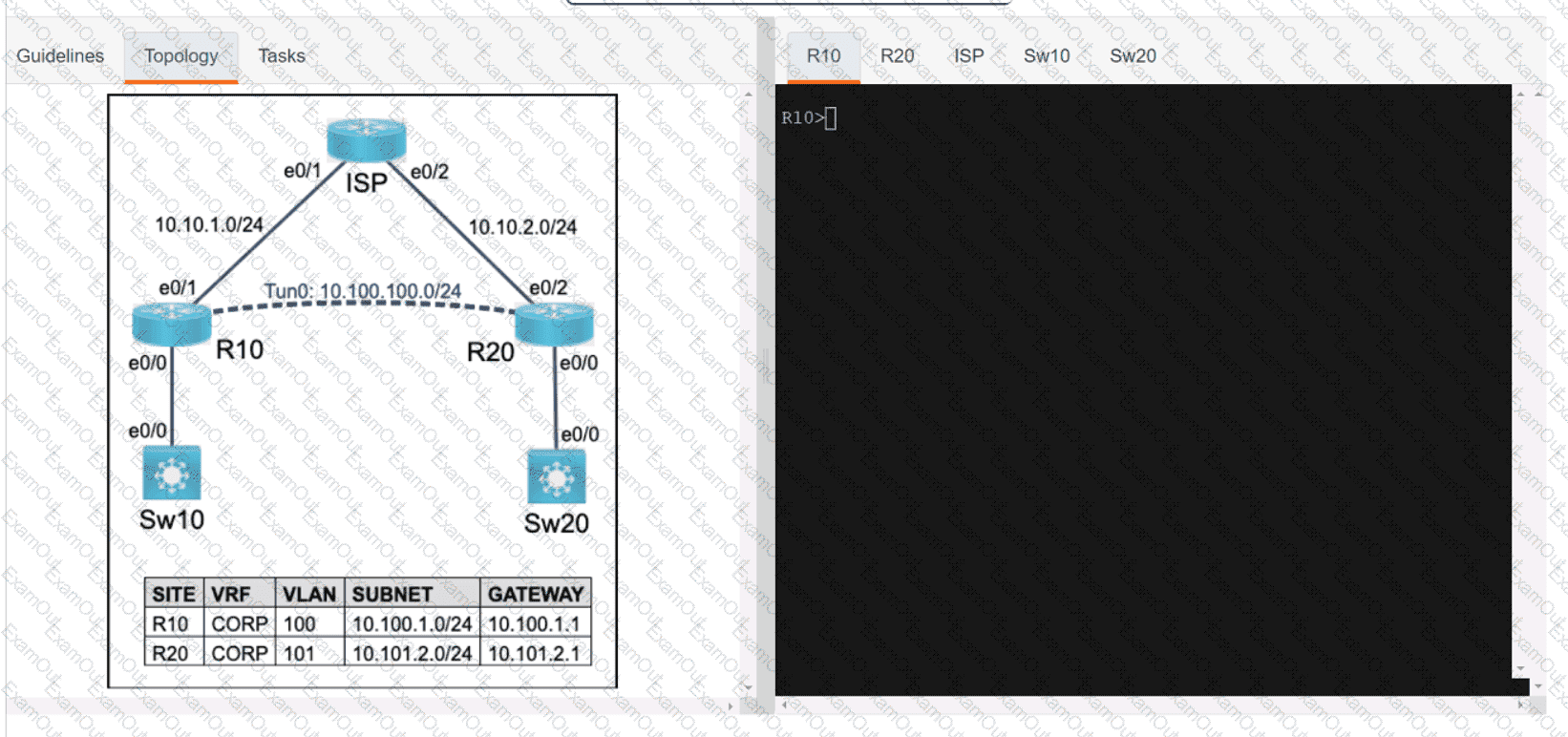

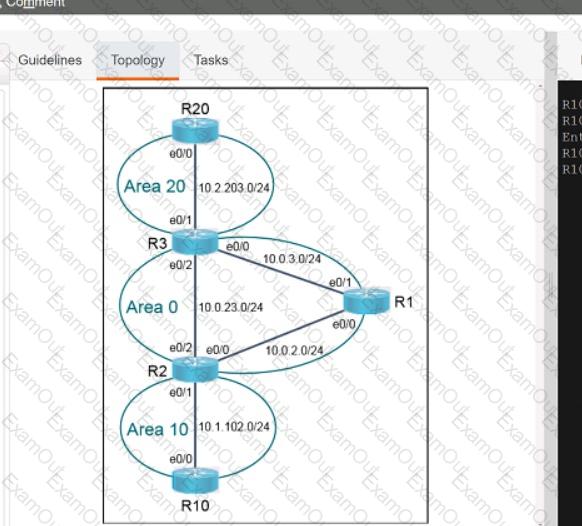

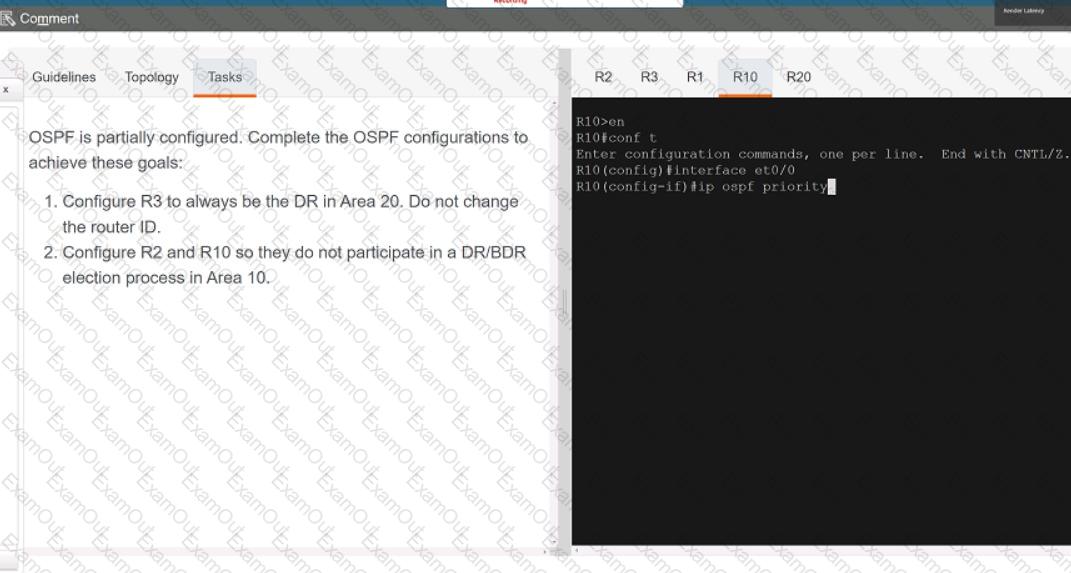

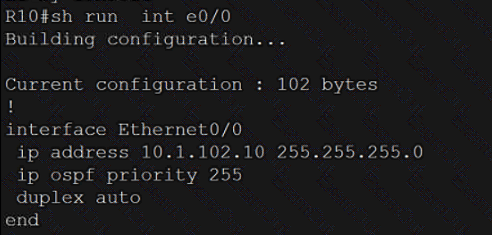

R10

Copy run start

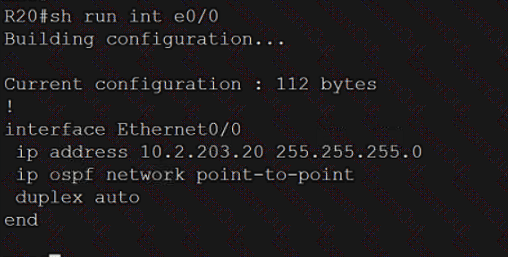

R20

Copy run start

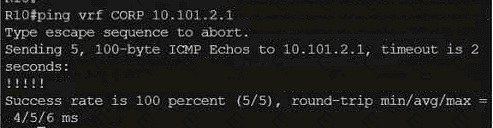

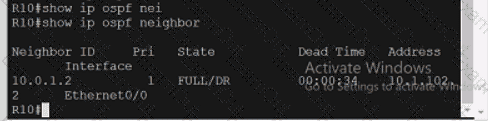

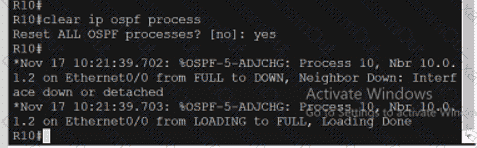

Verification:

Solution:-

Copy run start

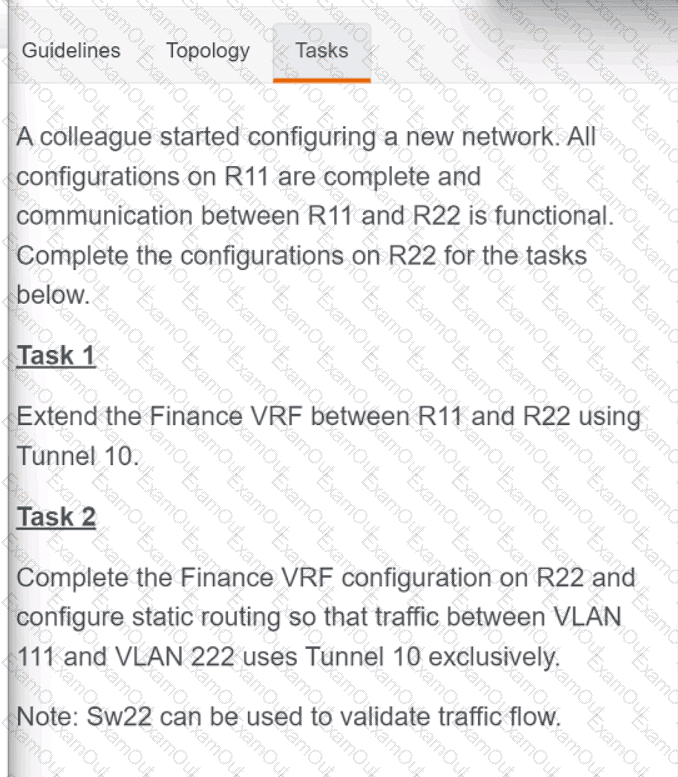

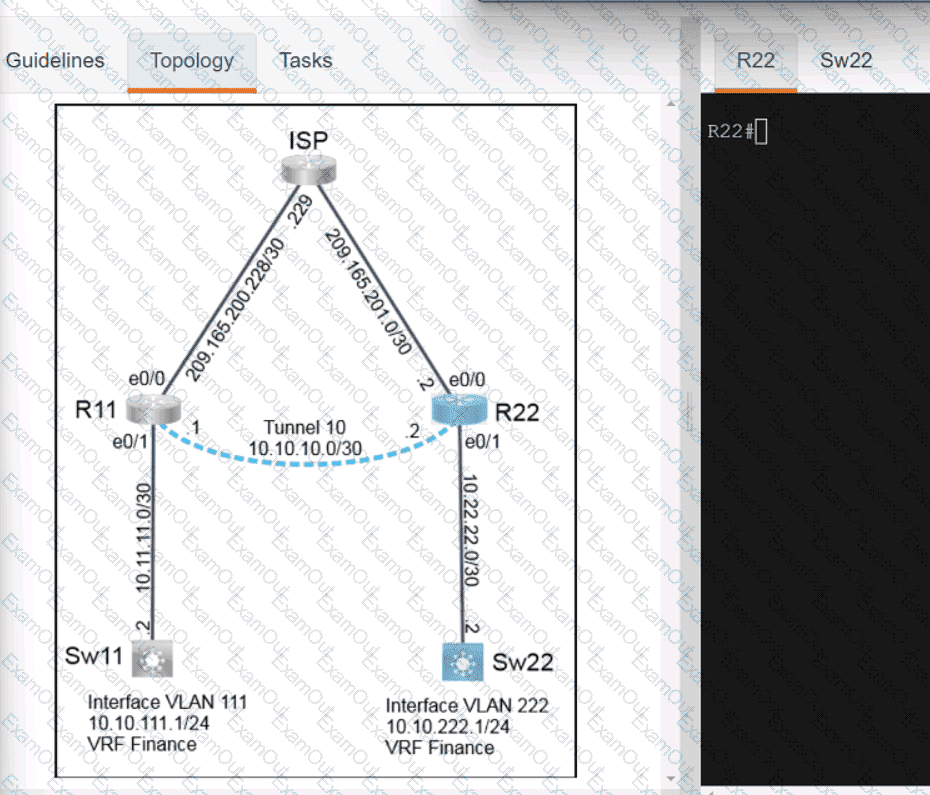

Solution:

R22

int tun0

vrf forwarding FINANCE

ip add 10.10.10.2 255.255.255.0

tunn source e0/0

tunnel dest 209.165.200.230

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

int et0/1

vrf forwarding FINANCE

ip address 10.22.22.1 255.255.255.252

wr

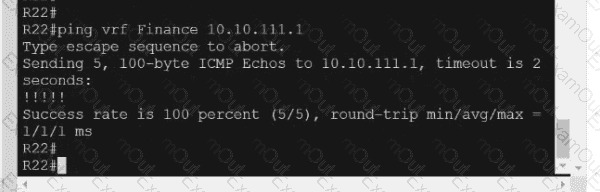

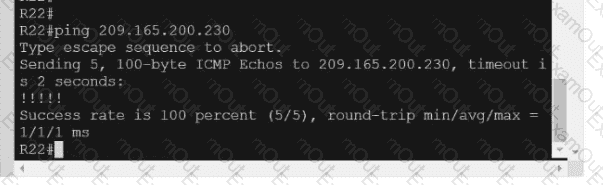

Verification:-

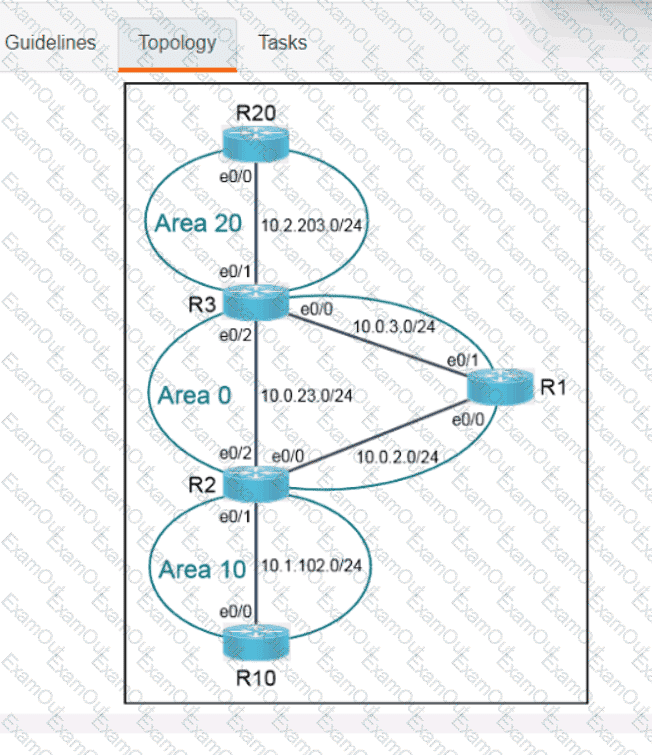

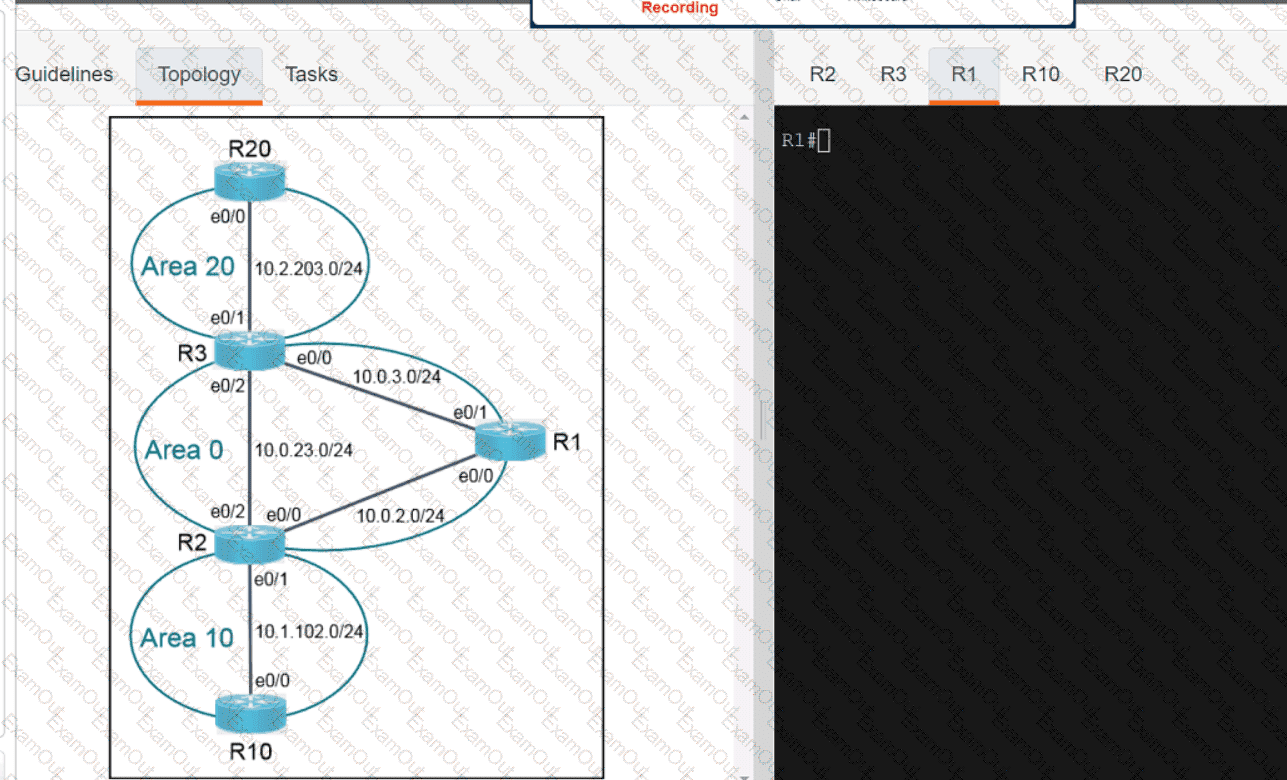

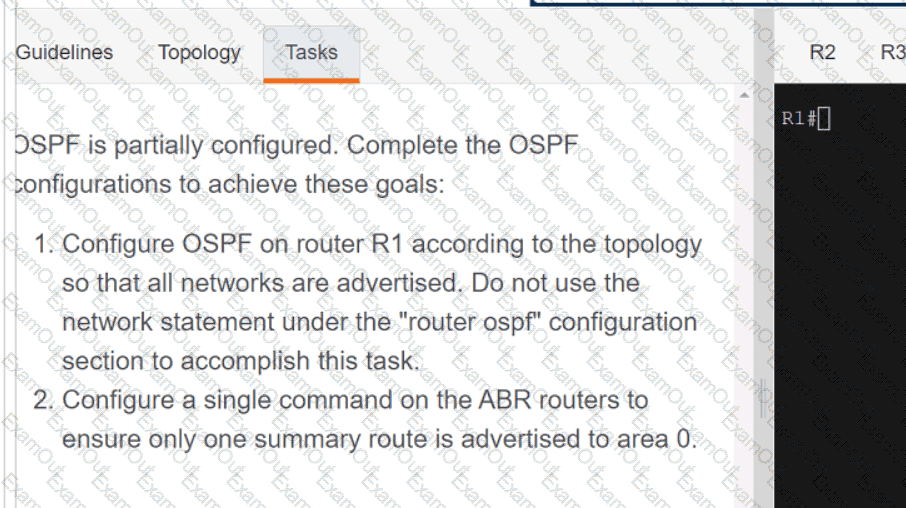

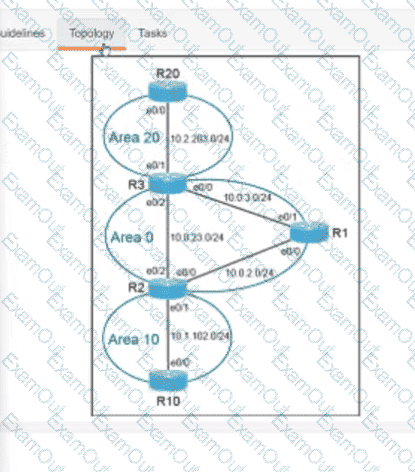

Solution:

R1

en

Conf t

Router ospf 10

Router-id 10.x.x.x – lo0 address

Int range lo0, e0/0-1

Ip ospf 10 area 0

Exit

wr

R2

Router ospf 10

Area 10 range 10.1.0.0 255.255.0.0

exit

wr

R3

Router ospf 10

Area 10 range 10.2.0.0 255.255.0.0

Exit

Wr

OR

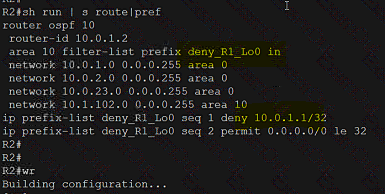

Solution:

R2

R3

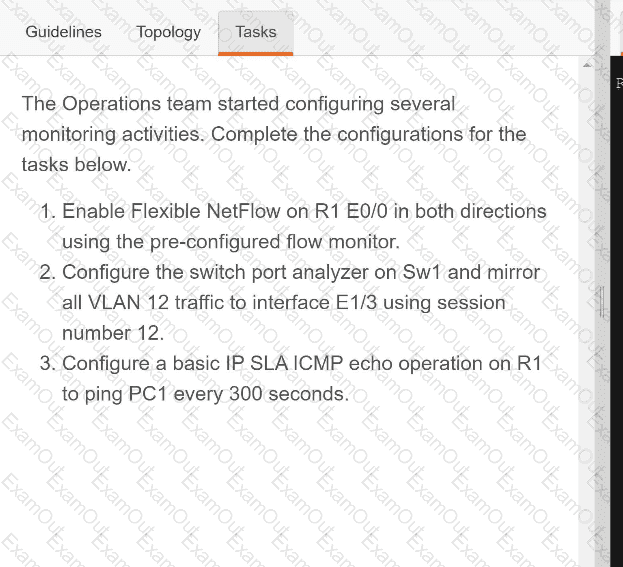

Solution:

R1

Config t

Int et0/0

Ip flow monitor Monitor-R1Flow input

Ip flow monitor Monitor-R1Flow output

Exit

Ip sla 1

Icmp-echo 10.12.1.2

Freq 300

Ip sla schedule 1 life foreve start-time now

Sw1

Config t

Monitor session 12 source vlan 12

Monitor session 12 destination interface et1/3

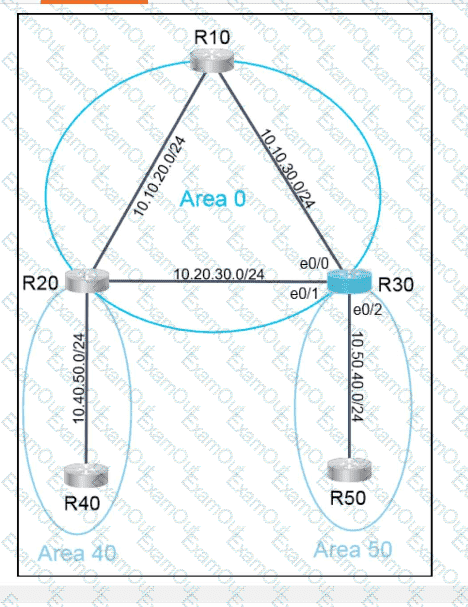

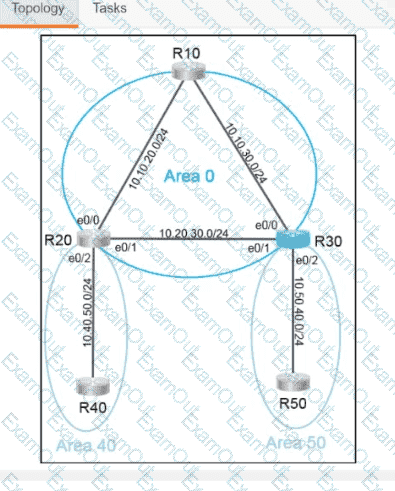

Solution:

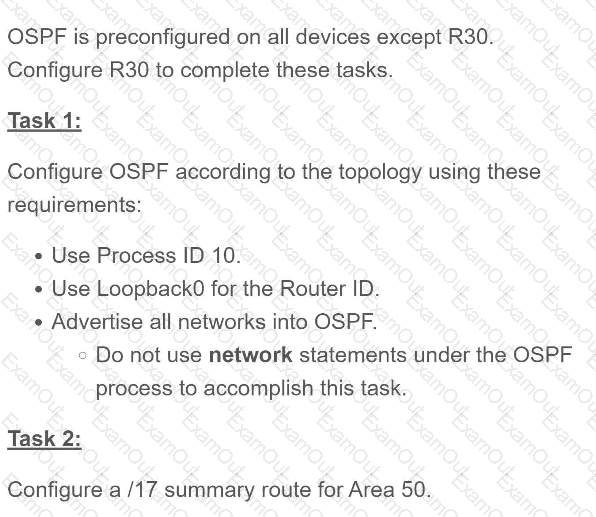

R30

Config t

router ospf 10

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 10 a 0

exit

int et0/2

ip ospf 10 a 50

exit

router ospf 10

area 50 range 10.10.0.0 255.255.128.0

area 50 range 10.50.0.0 255.255.128.0

end

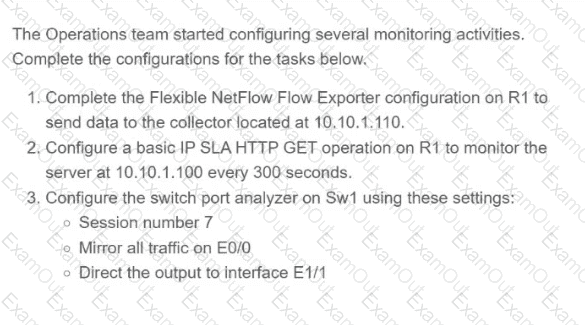

Solution:

R1

Config t

Flow exporter Export-NetFlowENCOR

destination 10.10.1.110

transport udp 2055

exit

flow moni Monitor-NetFlowENCOR

exit

ip sla 1

http gethttp://10.10.1.100

frequ 300

exit

ip sla schedule 1 life forever start-time now

wr

SW1

Config t

Monitor session 7 source interface e0/0

Monitor session 7 destination interface e1/1

End

Wr

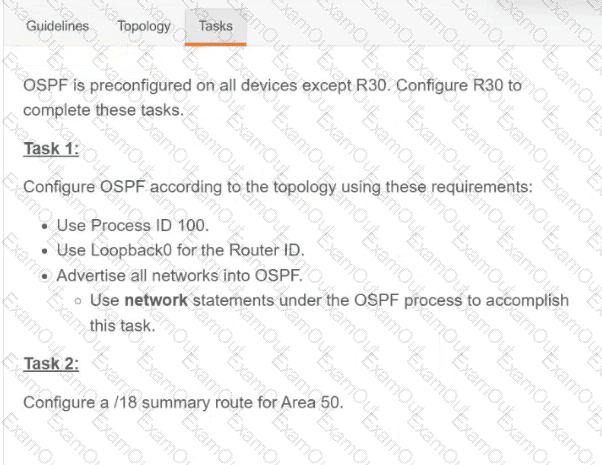

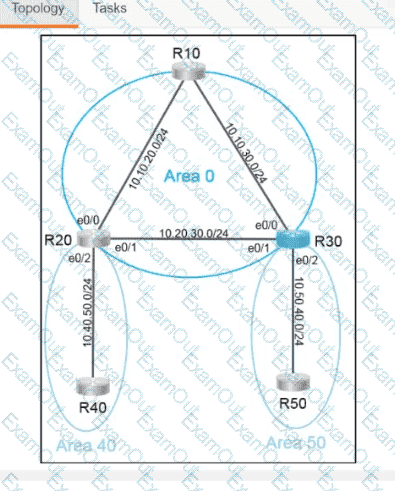

Solution:

R30

Config t

router ospf 100

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 100 a 0

exit

int et0/2

ip ospf 100 a 50

exit

router ospf 30

area 50 range 10.10.0.0 255.255.192.0

area 50 range 10.50.0.0 255.255.192.0

end

wr
