 To perform a Cisco ACI fabric upgrade that minimizes the impact on user traffic and allows only permitted users to perform an upgrade, the following configuration steps should be taken:

Divide Cisco APIC controllers into two or more maintenance groups: This step involves organizing the APIC controllers into separate maintenance groups to allow for a phased upgrade process, reducing the impact on user traffic5.

Divide switches into two or more maintenance groups: This step involves organizing the switches into separate maintenance groups, which allows for a controlled and phased upgrade process, minimizing the impact on the network during the upgrade5.

The scenario involves a Cisco ACI fabric with 10 standalone leaf switches, and the engineer must configure only the first two leaf switches (e.g., Leaf-1 and Leaf-2) in a Virtual Port Channel (vPC) configuration. The goal is to select the appropriate vPC protection type to achieve this specific pairing while leaving the other eight leaf switches standalone.

Requirement Analysis

In Cisco ACI, vPC is used to provide active-active link redundancy and load balancing between two leaf switches connected to the same set of endpoints (e.g., servers or external devices).

The fabric contains 10 standalone leaf switches, meaning no pre-existing vPC pairs are configured, and the task is to form a vPC specifically between the first two leaf switches.

The vPC protection type determines how the pair is defined and protected within the ACI fabric, ensuring the configuration is limited to the intended switches.

Option Evaluation

A. serial:

The "serial" protection type is not a valid vPC protection option in Cisco ACI. This term might be confused with serial link configurations or other networking contexts, but it does not apply to vPC in ACI.

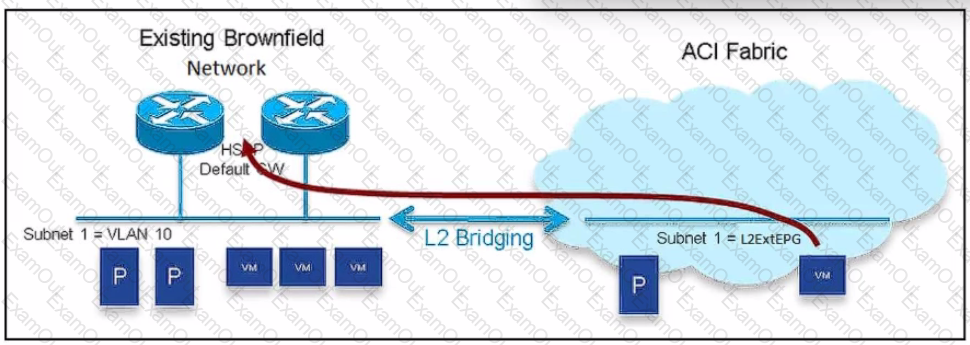

When extending EPG connectivity to an external network that houses the Layer 3 gateway and other end hosts, the ACI bridge domain configuration should use Forwarding: Custom, L2 Unknown Unicast: Hardware Proxy, L3 Unknown Multicast Flooding: Flood, Multi Destination Flooding: Flood in BD, and ARP Flooding: Enabled23. This configuration ensures that unknown unicast traffic is handled efficiently while still allowing ARP flooding, which is necessary for the ACI fabric to learn about endpoints on the external network23.

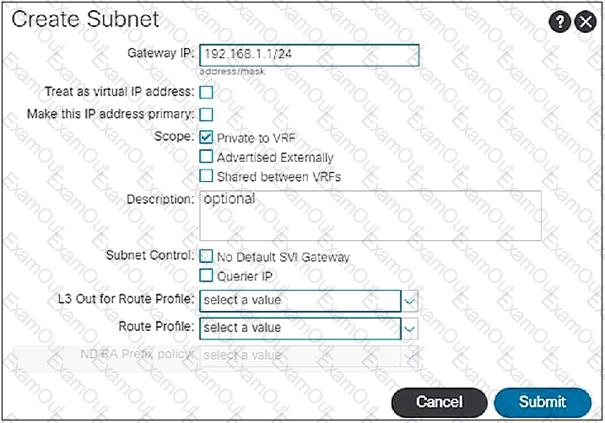

 In Cisco Application Centric Infrastructure (ACI), when a subnet is configured on a bridge domain, the gateway IP address is configured on the leaf switches where the bridge domain of the tenant is present. This configuration allows for localized routing within the fabric, providing efficient east-west traffic handling without requiring traffic to traverse up to the spine nodes unless necessary for north-south routing or policy enforcement.

The Cisco AV Pair resolves to a managed object class. In the context of Cisco ACI, the AV Pair is used to define specific attributes for RADIUS users, which then map to managed objects within the ACI fabric3.

 To configure a group of servers with a contract that uses TCP port 80 and requires an external Layer 3 cloud to initiate communication, the EPG that contains the web servers should be configured as a consumer of the contract, and the Layer 3 Out (L3Out) should be configured as the provider of the contract. This configuration establishes the direction of the contract and allows the external Layer 3 cloud to initiate communication with the web servers within the EPG.

https://community.cisco.com/t5/documentos-data-center/configuraci%C3%B3n-snmp-para-aci/ta-p/4680520

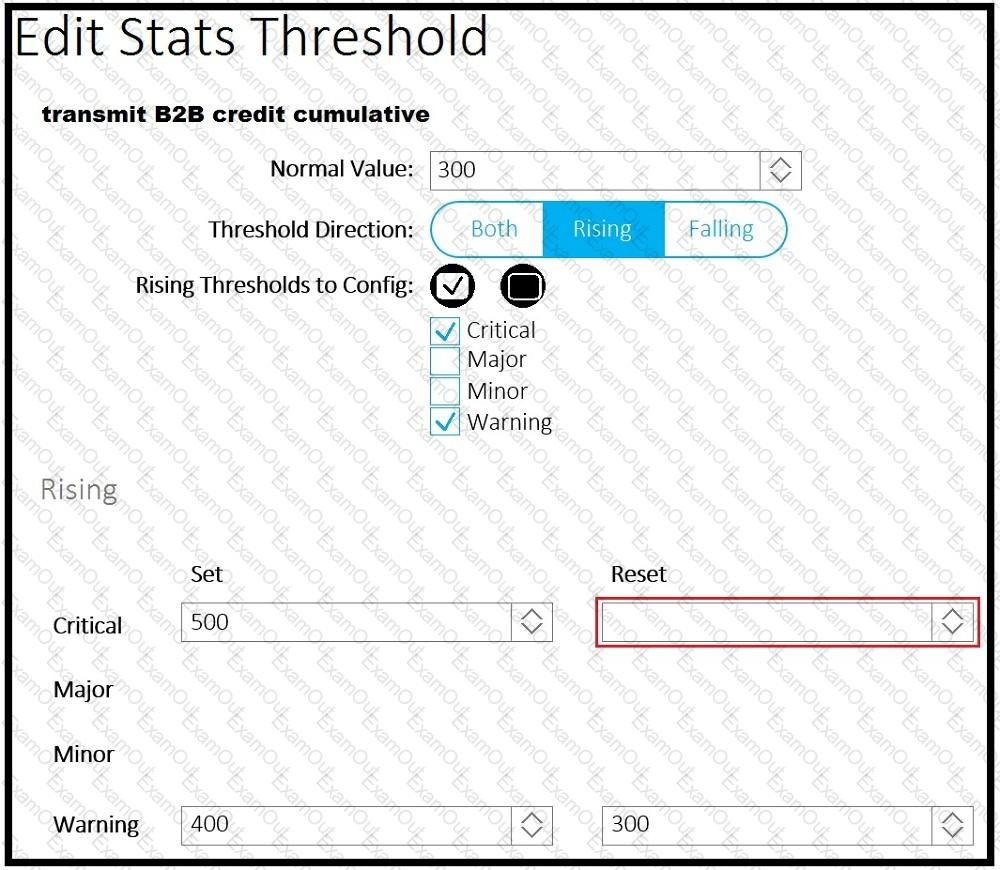

To clear the critical fault related to B2B credit oversubscription in the ACI domain connectivity to the fiber channel storage, the value that should be chosen is 5101. This value is set to address the issue of B2B credit oversubscription and clear the critical fault as reported by the client1.
