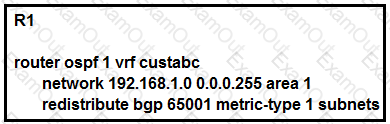

Refer to the exhibit.

Which statement describes the result of this configuration?

A.

R1 redistributes BGP routes into the OSPF process of VRF custabc as E1 routes.

B.

R1 redistributes BGP routes into the OSPF process of VRF custabc as E2 routes.

C.

R1 mutually redistributes routes between BGP 65001 and the OSPF process of VRF custabc.

D.

R1 redistributes BGP routes into the OSPF process of VRF custabc as OIA routes.

Which BGP feature causes to replace the AS number of originating router with the AS number of the sending router?

A.

route reflectors

B.

route dampening

C.

confederations

D.

AS override

Which condition must be met before an environment can support CSC?

A.

The CSC-PE and CSC-CE must each be able to ping an interface in its respective global routing table.

B.

The CSC-PE and the CSC-CE must support IPv6.

C.

The CSC-PE and CSC-CE devices must be able to send labels to one another using BGP.

D.

The CSC-CE must support OSPFv3.

You are writing the requirements for an MPLS L3VPN environment that uses MP-BGP between PE routers. In this environment, route targets and route distinguishers need to be advertised between the PE routers.

Which three operations meet these requirements? (Choose three.)

A.

mandatory creation of PE-to-PE BGP sessions between the outgoing interface IP addresses

B.

advertisement of standard communities, enabled on the PE-to-PE BGP neighbors

C.

creation of PE-to-PE BGP sessions between loopback IP addresses

D.

full mesh of IBGP sessions

E.

full mesh of EBGP sessions and partial mesh of IBGP sessions

F.

advertisement of extended communities, enabled on the PE-to-PE BGP neighbors

While implementing Layer 3 MPLS VPN, which feature should an engineer use at the PEs to transform the customer IPv4 prefixes into a unique 96-bit prefix

A.

RT

B.

VC ID

C.

RD

D.

PW ID

In Layer 3 MPLS VPN implementations, if some of the VPNv4 routes on one PE router do not appear on another PE router, what could be the problem?

A.

RD mismatch between the PE routers

B.

RT export and import configuration errors

C.

VRF name mismatch between the PE routers

D.

RD export and import configuration errors

Refer to the exhibit.

Which result occurs when PE1 learns a new MAC address and all three PEs are enabled with EVPN native?

A.

A system notification is sent to the network administrator that triggers the manual configuration of the new MAC address on PE2 and PE3.

B.

The new MAC address is sent by BGP to PE2 and PE3 as a Type 2 BGP route.

C.

The MAC address is entered into the CAM table and is classified for use on the native VLAN

D.

The MAC address is entered into the CAM table only if it is learned on the native VLAN.

Which mechanism reduces the network flooding caused by host ARP learning behavior?

A.

ARP suppression

B.

storm control

C.

root guard

D.

BPDU guard

What must match in the EVPN and L2VPN configuration mode when configuring EVPN native in a router?

A.

interface

B.

address family

C.

bridge domain

D.

EVI

An engineer is troubleshooting AToM on an IOS XE router and receives an error when creating the xconnect. Which command does he need to complete to create the xconnect in AToM?

A.

encapsulation mpls

B.

encapsulation 12tpv3

C.

protocol 12tpv3

D.

protocol none
