Free Practice Questions for Cisco 300-425 Exam

The sticky client issue occurs when a wireless client device clings to a suboptimal access point instead of roaming to a better one with a stronger signal. Enabling Optimize Roaming on the Cisco 9800 Series Wireless Controller can alleviate this issue. This feature prompts clients to roam by disassociating them when their signal strength drops below a threshold, encouraging them to seek a better connection.

 Interface groups allow for flexible WLAN to VLAN mappings by grouping multiple interfaces into a single entity. This enables a single WLAN to be mapped to multiple VLANs, providing scalability and flexibility in network design. AP groups are used to manage the configuration of multiple APs collectively, allowing for consistent WLAN to VLAN mappings across different APs in separate facilities.

 Mobility groups are created by configuring each Wireless LAN Controller (WLC) to use the same mobility domain name and defining each WLC as a peer in the static mobility members list of every other WLC in the group. This configuration allows WLCs to share information and support seamless roaming for wireless clients across different controllers within the same mobility group.

References := Chapter: Chapter 14 - Configuring Mobility Groups - Cisco

For high availability pairing of two Cisco WLCs for client SSO, it is essential that both controllers have the same number of licenses to ensure feature parity and seamless failover. Additionally, they must run the same operating system version to avoid compatibility issues during SSO operations.

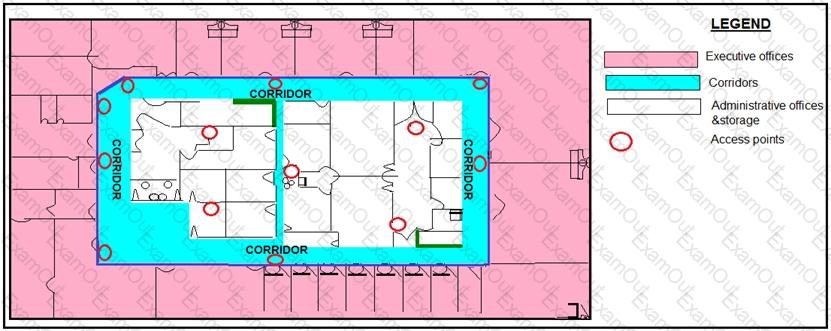

For accurate location services, it is recommended that each location-ready AP hears at least four other APs at a signal level of -75 dBm or better. This ensures sufficient signal overlap and triangulation accuracy for reliable client location tracking. References: Cisco’s guidelines on wireless network design for location services.

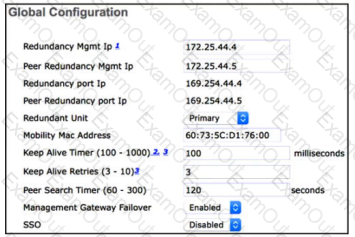

 For Stateful Switchover (SSO) to function correctly, the redundancy ports on both the primary and secondary controllers must be directly connected. This allows for the necessary state and configuration information to be synchronized between the two controllers, preventing the secondary controller from entering maintenance mode in the event of a failover.

 When a data path mobility tunnel fails to come up, one of the troubleshooting steps is to check if the necessary ports are open and not being blocked by any firewalls in the path. Since the mobility tunnel uses CAPWAP, which operates on UDP ports 16666 (control path) and 16667 (data path), establishing a Telnet connection to the firewall on port 16666 can help determine if the control path is open and if there are any issues that need to be addressed3.

 When configuring Cisco Prime Infrastructure, to represent the impact of a thick glass wall with an attenuation of 2dB on the RF signal, the obstacle that should be placed in the map editor is glass. This is because the material-specific attenuation values are used to model the RF signal’s behavior as it passes through different types of obstacles, and the thick glass wall’s impact is best represented by the glass obstacle in the map editor.

The data path being down while the control path is up indicates an issue with the data plane security configuration. The data-dtls setting on the AireOS 5520 WLC is responsible for enabling Datagram Transport Layer Security (DTLS) for the data plane, which encrypts the data traffic between the controllers. If this setting is disabled, the data path cannot be established securely, leading to the observed issue. Therefore, enabling data-dtls on the AireOS 5520 WLC is necessary to resolve the data path downtime.
