What is the role of a route distinguisher via a VRF-Lite setup implementation?

A.

It extends the IP address to identify which VFP instance it belongs to.

B.

It manages the import and export of routes between two or more VRF instances

C.

It enables multicast distribution for VRF-Lite setups to enhance EGP routing protocol capabilities

D.

It enables multicast distribution for VRF-Lite setups to enhance IGP routing protocol capabilities

Which statement about route distinguishers in an MPLS network is true?

A.

Route distinguishers allow multiple instances of a routing table to coexist within the edge router.

B.

Route distinguishers are used for label bindings.

C.

Route distinguishers make a unique VPNv4 address across the MPLS network.

D.

Route distinguishers define which prefixes are imported and exported on the edge router.

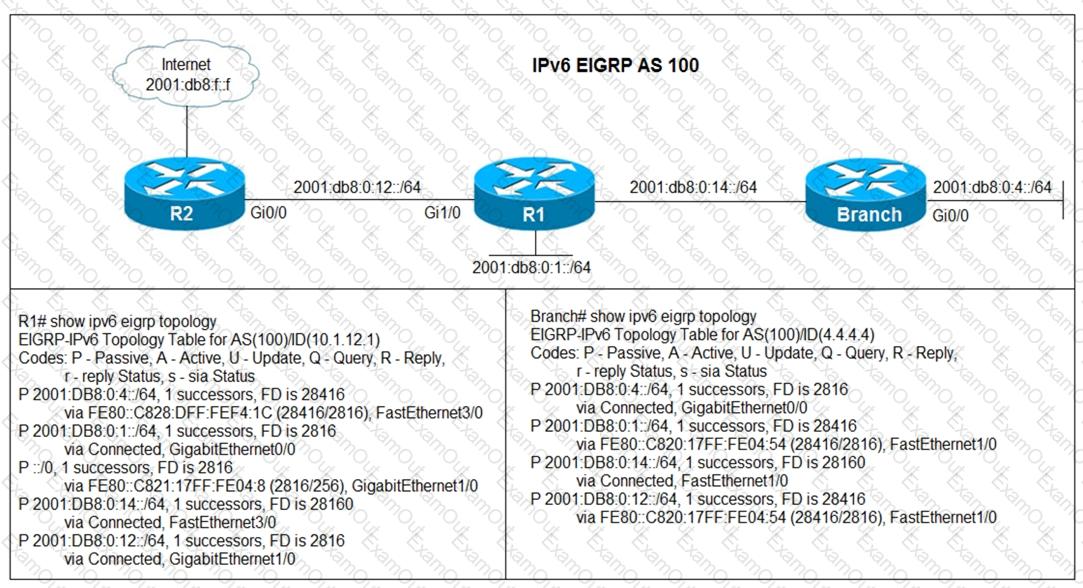

Refer to the exhibit.

Users in the branch network of 2001:db8:0:4::/64 report that they cannot access the Internet. Which command is issued in IPv6 router EIGRP 100 configuration mode to solve this issue?

A.

Issue the eigrp stub command on R1

B.

Issue the no neighbor stub command on R2.

C.

Issue the eigrp command on R2.

D.

Issue the no eigrp stub command on R1.

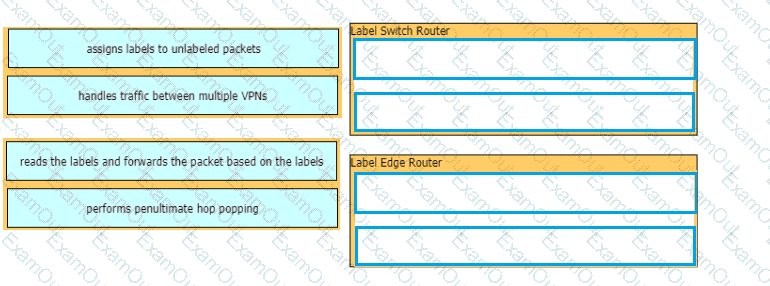

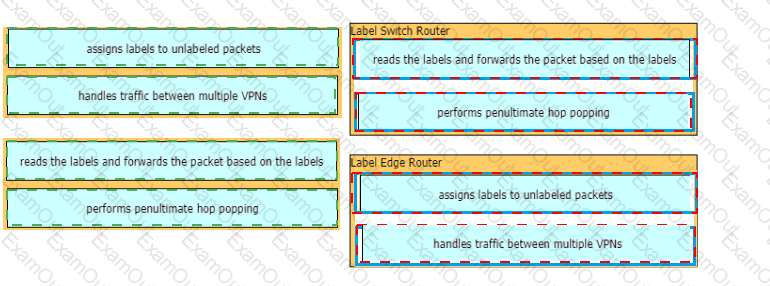

Drag and drop the operations from the left onto the locations where the operations are performed on the right.

What is an advantage of using BFD?

A.

It detects local link failure at layer 1 and updates routing table.

B.

It detects local link failure at layer 2 and updates routing protocols.

C.

It has sub-second failure detection for layer 1 and layer 3 problems.

D.

It has sub-second failure detection for layer 1 and layer 2 problems.

Refer to the exhibit.

Which routes from OSPF process 5 are redistributed into EIGRP?

A.

E1 and E2 subnets matching access list TO-OSPF

B.

E1 and E2 subnets matching prefix list TO-OSPF

C.

only E2 subnets matching access list TO-OSPF

D.

only E1 subnets matching prefix listTO-OS1

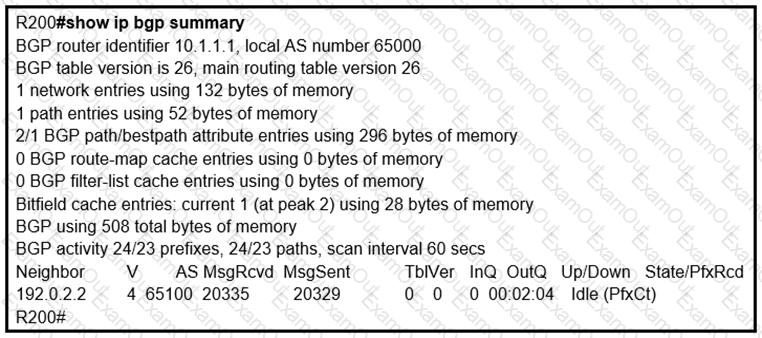

Refer to the exhibit.

In which circumstance does the BGP neighbor remain in the idle condition?

A.

if prefixes are not received from the BGP peer

B.

if prefixes reach the maximum limit

C.

if a prefix list is applied on the inbound direction

D.

if prefixes exceed the maximum limit

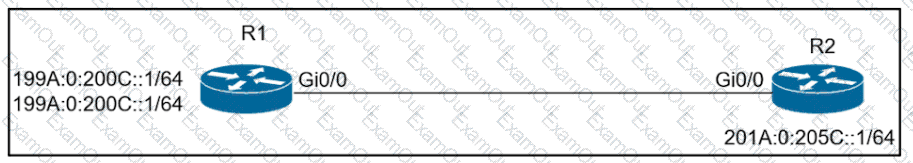

Refer to the exhibit.

Which configuration denies Telnet traffic to router 2 from 198A:0:200C::1/64?

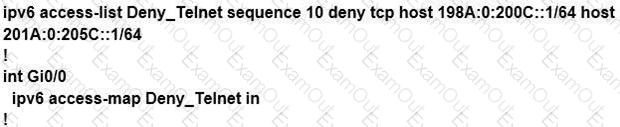

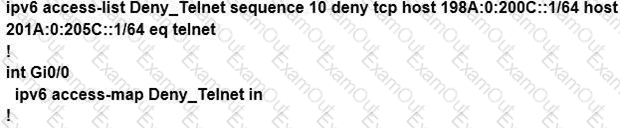

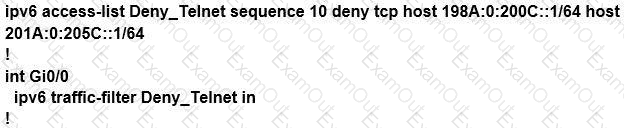

A)

B)

C)

D)

A.

Option A

B.

Option B

C.

Option C

D.

Option D

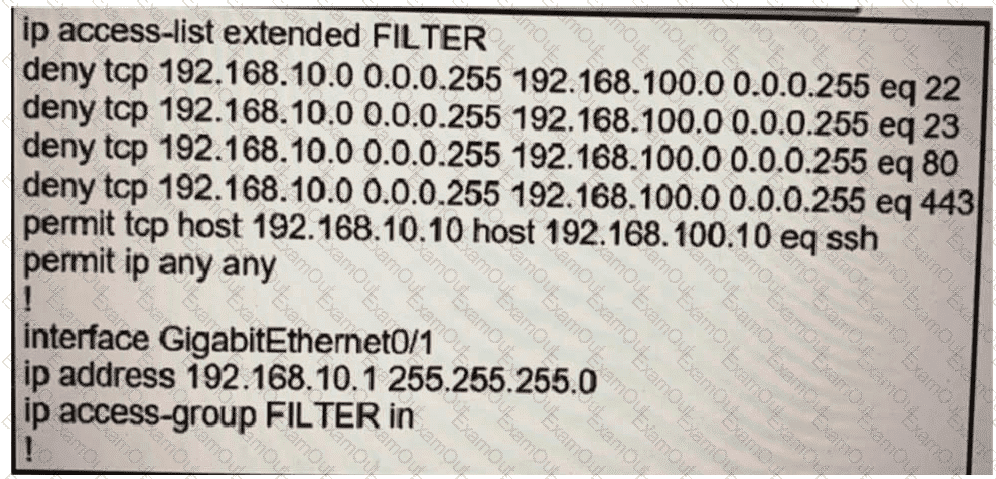

Refer to the exhibit.

The ACL is placed on the inbound Gigabit 0/1 interface of the router. Host

192.168.10.10cannot SSH to host 192.168.100.10 even though the flow is permitted. Which action

resolves the issue without opening full access to this router?

A.

Move the SSH entry to the beginning of the ACL

B.

Temporarily move the permit ip any any line to the beginning of the ACL to see if the flow works

C.

Temporarily remove the ACL from the interface to see if the flow works

D.

Run the show access-list FILTER command to view if the SSH entry has any hit statistic associated with it

Refer to the exhibit.

In which circumstance does the BGP neighbor remain in the idle condition?

A.

if prefixes are not received from the BGP peer

B.

if prefixes reach the maximum limit

C.

if a prefix list is applied on the inbound direction

D.

if prefixes exceed the maximum limit

A network engineer is investigating a flapping (up/down) interface issue on a core switch that is synchronized to an NTP server. Log output currently does not show the time of the flap. Which command allows the logging on the switch to show the time of the flap according to the clock on the device?

A.

service timestamps log uptime

B.

clock summer-time mst recurring 2 Sunday mar 2:00 1 Sunday nov 2:00

C.

service timestamps log datetime localtime show-timezone

D.

clock calendar-valid

Which two statements about redistributing EIGRP into OSPF are true? (Choose two)

A.

The redistributed EIGRP routes appear as type 3 LSAs in the OSPF database

B.

The redistributed EIGRP routes appear as type 5 LSAs in the OSPF database

C.

The administrative distance of the redistributed routes is 170

D.

The redistributed EIGRP routes appear as OSPF external type 1

E.

The redistributed EIGRP routes as placed into an OSPF area whose area ID matches the EIGRPautonomous system number

F.

The redistributed EIGRP routes appear as OSPF external type 2 routes in the routing table

Refer to the following output:

Router#show ip nhrp detail

10.1.1.2/8 via 10.2.1.2, Tunnel1 created 00:00:12, expire 01:59:47

TypE. dynamic, Flags: authoritative unique nat registered used

NBMA address: 10.12.1.2

What does the authoritative flag mean in regards to the NHRP information?

A.

It was obtained directly from the next-hop server.

B.

Data packets are process switches for this mapping entry.

C.

NHRP mapping is for networks that are local to this router.

D.

The mapping entry was created in response to an NHRP registration request.

E.

The NHRP mapping entry cannot be overwritten.

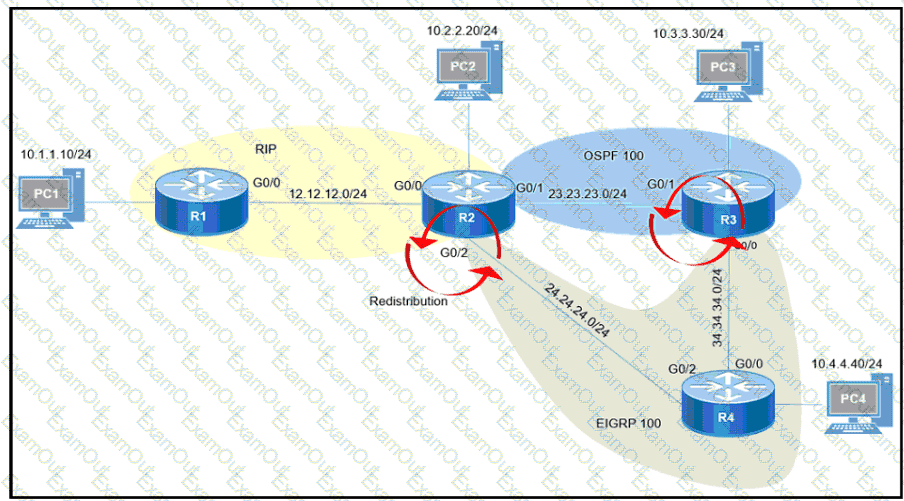

Refer to the exhibit.

Redistribution is enabled between the routing protocols, and nowPC2 PC3, and PC4 cannot reach PC1. What are the two solutions to fix the problem? (Choose two.)

A.

Filter RIP routes back into RIP when redistributing into RIP in R2

B.

Filter OSPF routes into RIP FROM EIGRP when redistributing into RIP in R2.

C.

Filter all routes except RIP routes when redistributing into EIGRP in R2.

D.

Filter RIP AND OSPF routes back into OSPF from EIGRP when redistributing into OSPF in R2

E.

Filter all routes except EIGRP routes when redistributing into OSPF in R3.

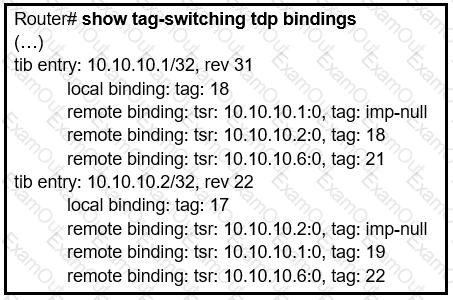

Refer to the exhibit.

What does the imp-null tag represent in the MPLS VPN cloud?

A.

Pop the label

B.

Impose the label

C.

Include the EXP bit

D.

Exclude the EXP bit
