What is the output of the following command:

show ip vrf

A.

Show's default RD values

B.

Displays IP routing table information associated with a VRF

C.

Show's routing protocol information associated with a VRF.

D.

Displays the ARP table (static and dynamic entries) in the specified VRF

An engineer configured a leak-map command to summarize EIGRP routes and advertise specifically loopback 0 with an IP of 10.1.1.1.255.255.255.252 along with the summary route. After finishing configuration, the customer complained not receiving summary route with specific loopback address. Which two configurations will fix it? (Choose two.)

A.

Configure access-list 1 permit 10.1.1.0.0.0.0.3.

B.

Configure access-list 1 permit 10.1.1.1.0.0.0.252.

C.

Configure access-list 1 and match under route-map Leak-Route.

D.

Configure route-map Leak-Route permit 10 and match access-list 1.

E.

Configure route-map Leak-Route permit 20.

Which protocol is used in a DMVPN network to map physical IP addresses to logical IP addresses?

A.

BGP

B.

LLDP

C.

EIGRP

D.

NHRP

Which statement about route distinguishers in an MPLS network is true?

A.

Route distinguishers allow multiple instances of a routing table to coexist within the edge router.

B.

Route distinguishers are used for label bindings.

C.

Route distinguishers make a unique VPNv4 address across the MPLS network.

D.

Route distinguishers define which prefixes are imported and exported on the edge router.

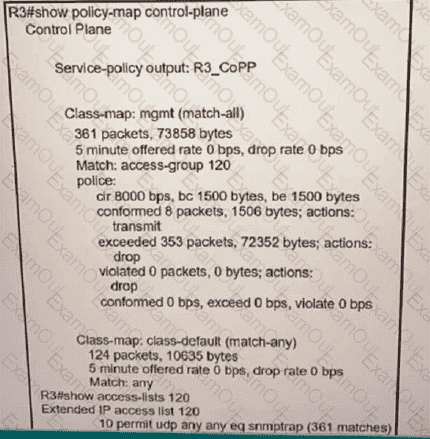

Refer the exhibit.

Which action resolves intermittent connectivity observed with the SNMP trap

packets?

A.

Decrease the committed burst Size of the mgmt class map

B.

Increase the CIR of the mgmt class map

C.

Add a new class map to match TCP traffic

D.

Add one new entry in the ACL 120 to permit the UDP port 161

When provisioning a device in Cisco DNA Center, the engineer sees the error message “Cannot select the device. Not compatible with template”.

What is the reason for the error?

A.

The template has an incorrect configuration.

B.

The software version of the template is different from the software version of the device.

C.

The changes to the template were not committed.

D.

The tag that was used to filter the templates does not match the device tag.

Which command allows traffic to load-balance in an MPLS Layer 3 VPN configuration?

A.

multi-paths eibgp 2

B.

maximum-paths 2

C.

Maximum-paths ibgp 2

D.

multi-paths 2

An engineer is trying to copy an IOS file from one router to another router by using TFTP. Which two actions are needed to allow the file to copy? (Choose two.)

A.

Copy the file to the destination router with the copy tftp: flash: command

B.

Enable the TFTP server on the source router with the tftp-server flash: command

C.

TFTP is not supported in recent IOS versions, so an alternative method must be used

D.

Configure a user on the source router with the username tftp password tftp command

E.

Configure the TFTP authentication on the source router with the tftp-server authentication local command

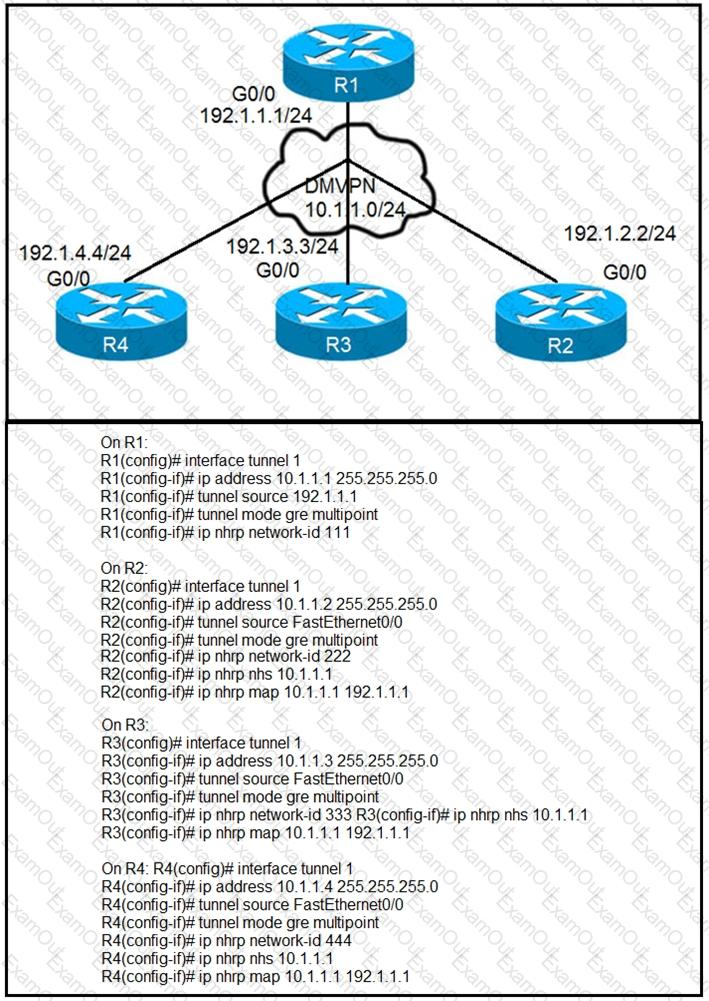

Refer to the exhibits.

Phase-3 tunnels cannot be established between spoke-to-spoke in DMVPN. Which two

commands are missing? (Choose two.)

A.

The ip nhrp redirect command is missing on the spoke routers.

B.

The ip nhrp shortcut command is missing on the spoke routers.

C.

The ip nhrp redirect commands is missing on the hub router.

D.

The ip nhrp shortcut commands is missing on the hub router.

E.

The ip nhrp map command is missing on the hub router.

Which protocol does MPLS use to support traffic engineering?

A.

Tag Distribution Protocol (TDP)

B.

Resource Reservation Protocol (RSVP)

C.

Border Gateway Protocol (BGP)

D.

Label Distribution Protocol (LDP)

Which transport layer protocol is used to form LDP sessions?

A.

UDP

B.

SCTP

C.

TCP

D.

RDP

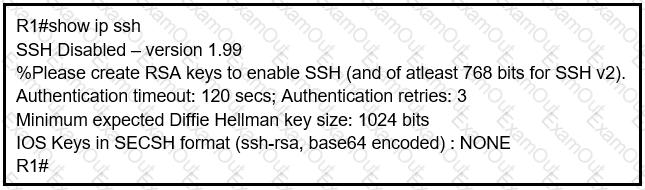

Refer to the exhibit.

An engineer is trying to connect to a device with SSH but cannot connect. The engineer connects by using the console and finds the displayed output when troubleshooting. Which command must be used in configuration mode to enable SSH on the device?

A.

no ip ssh disable

B.

ip ssh enable

C.

ip ssh version 2

D.

crypto key generate rsa

Refer to the following output:

Router#show ip nhrp detail

10.1.1.2/8 via 10.2.1.2, Tunnel1 created 00:00:12, expire 01:59:47

TypE. dynamic, Flags: authoritative unique nat registered used

NBMA address: 10.12.1.2

What does the authoritative flag mean in regards to the NHRP information?

A.

It was obtained directly from the next-hop server.

B.

Data packets are process switches for this mapping entry.

C.

NHRP mapping is for networks that are local to this router.

D.

The mapping entry was created in response to an NHRP registration request.

E.

The NHRP mapping entry cannot be overwritten.

Refer to the exhibit.

An engineer has configured DMVPN on a spoke router. What is the WAN IP address of another spoke router within the DMVPN network?

A.

172.18.46.2

B.

192.168.1.4

C.

172.18.16.2

D.

192.168.1.1

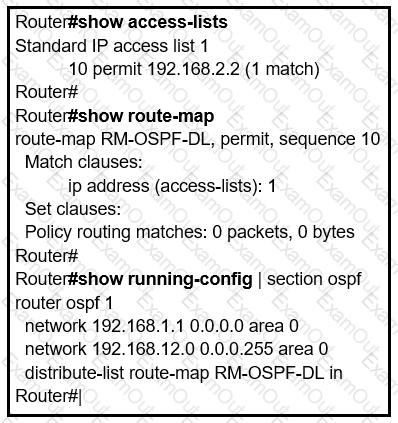

Refer to the exhibit.

An engineer is trying to block the route to 192.168.2.2 from the routing table by using the

configuration that is shown. The route is still present in the routing table as an OSPF route. Which action blocks the route?

A.

Use an extended access list instead of a standard access list.

B.

Change sequence 10 in the route-map command from permit to deny.

C.

Use a prefix list instead of an access list in the route map.

D.

Add this statement to the route map: route-map RM-OSPF-DL deny 20.
