OpenFlow and NETCONF are southbound interfaces because they are used between a controller or automation system and network devices. Southbound APIs carry instructions toward the infrastructure: switches, routers, and other forwarding devices. OpenFlow is the classic SDN example because it lets a controller influence forwarding behavior in network devices. NETCONF is also a southbound management protocol; it uses structured XML-based remote procedure calls to retrieve or modify device configuration and operational data. Thrift and CORBA are general distributed-computing technologies, not the CCNA-standard southbound networking answers here, and DSC is not a normal Cisco SDN southbound API in this context. Cisco CCNA v1.1 automation objectives expect the candidate to separate northbound and southbound communication. Northbound APIs face applications and orchestration systems. Southbound APIs face the managed network devices. Because both OpenFlow and NETCONF operate on the controller-to-device side, A and B are the correct selections.

The correct response is B. For 2.4-GHz Wi-Fi, the standard nonoverlapping channel plan uses channels 1, 6, and 11. Adjacent APs should be placed on nonoverlapping channels to reduce co-channel and adjacent-channel interference. For Cisco CCNA 200-301 v1.1, the important point is the mechanism, not a generic description of the technology. Grouping nearby APs on the same channel or physically adjacent overlapping channels increases contention and lowers performance. When this appears in a network, the symptom normally confirms the answer: the route installed, the state selected, the packet forwarded, the wireless client behaviour, or the management workflow will follow this rule. That is why this answer is the best fit for the scenario and not just a plausible networking term.

SNMP is the protocol associated with IOS MIB access and centralized network management. The Management Information Base is the structured set of managed objects that an SNMP manager can query or, where permitted, modify on an SNMP agent. In the context of backing up many router configurations globally, SNMP can be used by management software to interact with Cisco IOS MIB objects and trigger configuration-copy operations. CDP discovers directly connected Cisco neighbors; it is not a configuration backup protocol. SMTP is for mail transfer. ARP resolves IPv4 addresses to MAC addresses on a local segment. Cisco CCNA v1.1 IP Services includes device management protocols such as SNMP, syslog, and NTP. The important distinction is scope: SNMP gives a management station structured visibility and control through MIB objects across many devices. That is why the Cisco IOS MIB clue points directly to SNMP.

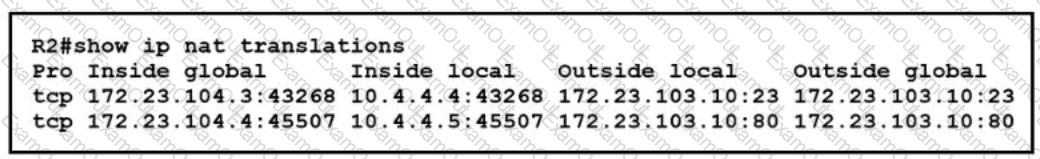

In a NAT translation table, the source address seen after inside-to-outside translation is the inside global address. The inside local address is the private address assigned to the internal host. The inside global address is the translated address that represents that internal host to the outside network. In the exhibit-based answer set, 172.23.104.4 is the address used as the translated source, so D is correct. This question is easy to miss if NAT terms are treated as labels instead of traffic direction. For outbound traffic, NAT changes the source from the inside local value to the inside global value. For return traffic, NAT reverses the operation and maps the destination back to the inside local host. Cisco CCNA v1.1 IP Services includes NAT concepts and configuration, so candidates must know inside local, inside global, outside local, and outside global. The tested idea is not merely public versus private; it is which translated field is used as the packet source.

The correct response is A. The data plane forwards transit traffic by comparing the destination IP address to forwarding information. A router uses the routing table or FIB result to decide the outgoing interface and next hop for a packet. For Cisco CCNA 200-301 v1.1, the important point is the mechanism, not a generic description of the technology. Routing protocols, NETCONF configuration changes, and locally generated ICMP replies are control or management-plane activities. When this appears in a network, the symptom normally confirms the answer: the route installed, the state selected, the packet forwarded, the wireless client behaviour, or the management workflow will follow this rule. That is why this answer is the best fit for the scenario and not just a plausible networking term.

Cisco Web Security Appliance, commonly referred to as WSA, is the Cisco platform associated with web proxy functions, web filtering, malware defense for web traffic, and proxy caching behavior. Proxy caching improves web performance by storing previously retrieved web objects so repeated requests can be served more efficiently. Firepower and FireSIGHT relate to firewall and threat defense visibility, while ASA is Cisco ' s Adaptive Security Appliance firewall platform. They are not the web proxy caching answer in this context. Cisco CCNA 200-301 v1.1 expects candidates to recognize basic security device roles: firewalls inspect and enforce traffic policy, WSA protects and optimizes web access, and AAA systems handle identity and authorization. The phrasing is direct: improve web traffic performance by proxy caching. That is a web security/proxy function, so WSA is the best match. The correct answer is A.

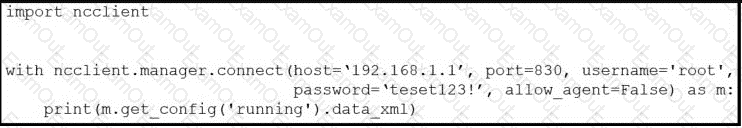

Answer B is the technically correct selection. NETCONF filtering is done by creating an XML filter and passing it to the get_config operation. NETCONF uses XML-encoded RPC messages, so an XML subtree or XPath-style filter reduces the returned configuration to the requested interface section. This aligns with Cisco CCNA 200-301 v1.1 because the exam blueprint requires engineers to recognize operational behaviour from configuration symptoms and topology requirements. Parsing with JSON or sending a JSON filter does not match NETCONF data encoding; parsing after retrieval does not reduce server response size. Treat the distractors carefully: most are real Cisco terms, but they solve a different problem or operate at a different layer. The selected answer is the one that would be used by an engineer on the device or in the design to produce the outcome stated in the question.

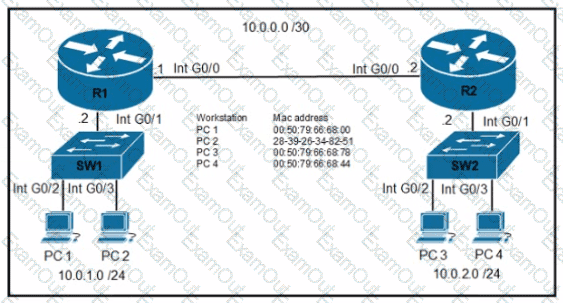

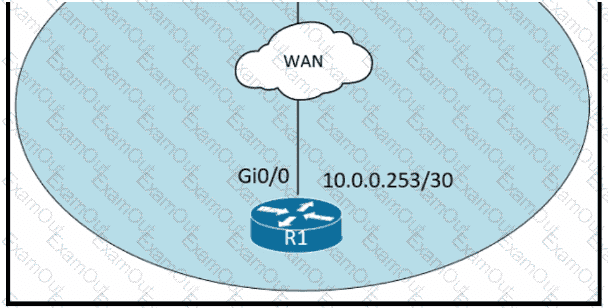

Answer A is the technically correct selection. CDP is disabled on a specific interface with the interface-level no cdp enable command. The requirement is to turn off CDP only on the port with the last usable address in the /30 subnet, so the correct interface must be selected and CDP disabled there. This aligns with Cisco CCNA 200-301 v1.1 because the exam blueprint requires engineers to recognize operational behaviour from configuration symptoms and topology requirements. clear cdp table only clears learned neighbors, advertise-v2 changes advertisement format, and no cdp run is a global command rather than an interface command in this context. Treat the distractors carefully: most are real Cisco terms, but they solve a different problem or operate at a different layer. The selected answer is the one that would be used by an engineer on the device or in the design to produce the outcome stated in the question.

Use C for this item. Overlapping Wi-Fi channels cause contention and interference, which reduces wireless performance. Clients and APs sharing overlapping spectrum must wait, retransmit, or deal with corrupted frames. In Cisco CCNA 200-301 v1.1, Network Access questions frequently test the practical boundary between similar features: what the feature does, where it is configured, and what problem it is meant to solve. Overlapping channels do not inherently change SSID visibility or create encryption exposure, but they do degrade throughput and reliability. A clean way to validate the answer is to map the wording of the scenario to the actual device function. If the feature supplies addressing, forwarding, authentication, trunking, route selection, or controller communication, the answer must match that function exactly rather than a nearby protocol name.

An IPv6-enabled router interface joins the all-nodes multicast group FF02::1 and the all-routers multicast group FF02::2. FF02::1 is used to reach all IPv6 nodes on the local link. FF02::2 is used to reach IPv6 routers on the local link. The interface also joins a solicited-node multicast group derived from its IPv6 address, but that specific group is not one of the answer choices. 2000::/3 represents global unicast space, FC00::/7 is unique local addressing, and 2002::/5 or similar values are not the required local multicast groups. The “FF” prefix is the key sign that the address is multicast, while the “02” scope means link-local scope. CCNA 200-301 v1.1 Network Fundamentals expects candidates to identify common IPv6 address types and multicast groups used by Neighbor Discovery and routing functions. Therefore the verified answers are D and E. Reference: Cisco IPv6 multicast addressing and IPv6 interface behavior.

Cisco DNA Center gathers operational information from network devices through multiple management and telemetry mechanisms, including SNMP, syslog, streaming telemetry, and other device communication methods depending on platform and configuration. It does not require every device to build an IPsec tunnel to exchange normal management data. The answer also is not a separate CU Analyzer tool; the point of DNA Center is centralized assurance, inventory, automation, and analytics. Cisco CCNA 200-301 v1.1 Automation and Programmability expects candidates to understand that controller-based platforms collect data continuously so they can build inventory, report health, detect issues, and drive policy-based changes. Traditional management often depends on manual checks across individual devices. DNA Center centralizes that work and consumes structured operational data from the network. The answer choice that correctly captures that model is A: network devices use services such as SNMP, syslog, and streaming telemetry to send data to the controller.

Answer D is the technically correct selection. A DNS lookup resolves a name query or reverse query by asking DNS infrastructure for the matching value. In normal client use, DNS translates a hostname into an IP address so the application can connect to the destination. This aligns with Cisco CCNA 200-301 v1.1 because the exam blueprint requires engineers to recognize operational behaviour from configuration symptoms and topology requirements. DNS does not ping the destination, act as an HA redirector by default, or merely define port 53 service behaviour. Treat the distractors carefully: most are real Cisco terms, but they solve a different problem or operate at a different layer. The selected answer is the one that would be used by an engineer on the device or in the design to produce the outcome stated in the question.

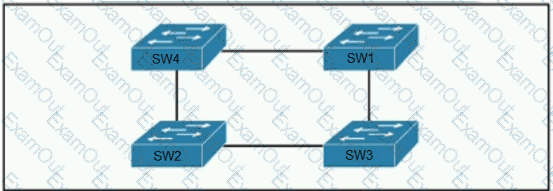

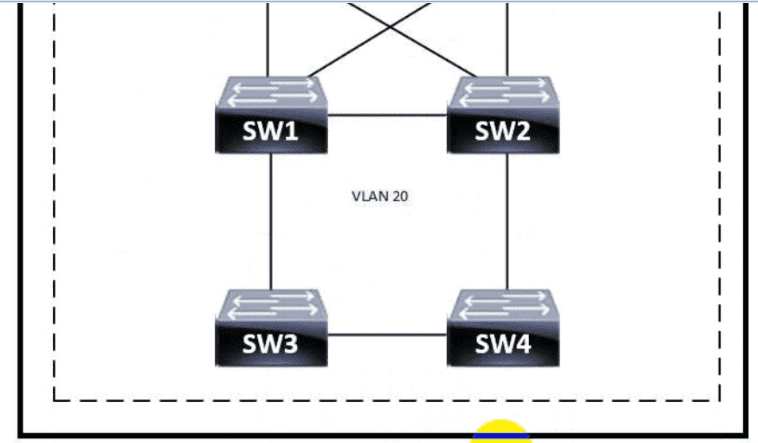

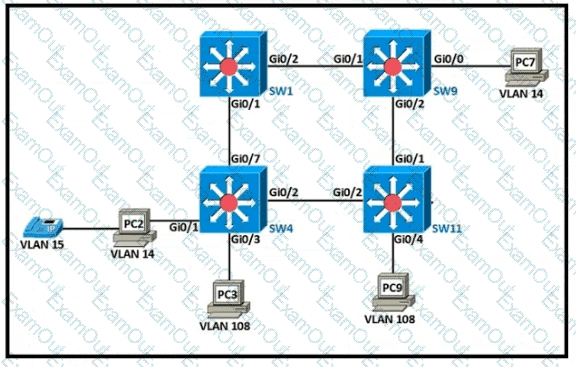

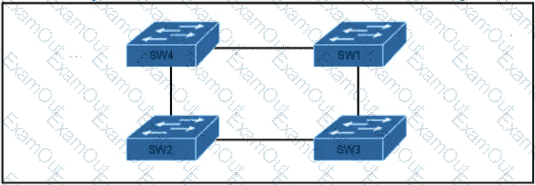

Spanning Tree elects the root bridge by comparing bridge IDs. The bridge ID is made from the bridge priority, the extended system ID, and the switch MAC address. The lowest bridge ID wins. If one switch has a lower priority than the others, it becomes root regardless of MAC address. If priorities are equal, the lowest MAC address breaks the tie. In this exhibit, SW3 has the best root-bridge election value, so it becomes the root bridge. Cisco CCNA 200-301 v1.1 Network Access expects engineers to be comfortable reading STP election data because the root placement affects forwarding paths and blocked ports. The decision is not based on physical position in the diagram, interface speed alone, or switch name. It is a deterministic comparison of STP identifiers. Once the root bridge is elected, every nonroot switch selects its root port based on lowest path cost toward that root. The elected root for this configuration is SW3.

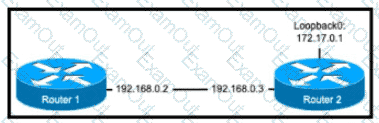

Router2(config)#ntp master 4. If Router1 is configured as an NTP client using the ntp server command, Router2 must provide time as an NTP server. On Cisco IOS, the command ntp master with an optional stratum value configures a router to act as an authoritative NTP source for other devices. The command ntp server points a device toward another time source; it does not make that device the server for Router1. Cisco CCNA 200-301 v1.1 IP Services requires candidates to separate NTP client configuration from NTP server behavior. In this scenario, Router1 already references 192.168.0.3 as its time source. Router2 must therefore be configured as the local master clock, and stratum 4 is a valid configured stratum. The correct configuration is ntp master 4.

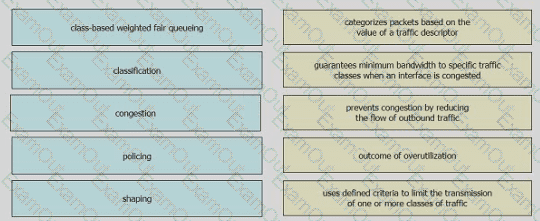

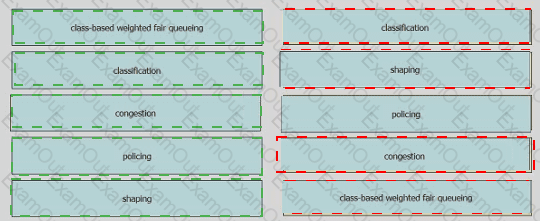

policing. IP services must be selected by their exact operational role: addressing, translation, time, monitoring, logging, redundancy, or traffic treatment. Cisco CCNA 200-301 v1.1 includes this under IP Services, where the expected skill is identifying the mechanism that actually satisfies the scenario. The wording usually gives the decisive clue: a protocol number, a route prefix, a control-plane role, a wireless security method, or a management command. The wrong options name real services or commands, but they solve a different infrastructure problem. In a real network, selecting the wrong option would usually produce a failed adjacency, broken client connectivity, insecure management access, or an incorrect forwarding path. The selected answer matches the Cisco behavior and configuration model required by the question, so it is retained as the verified answer for this item.

Answer B,C is correct: B. It uses northbound and southbound APIs to communicate between architectural layers; C. It moves the control plane to a central point.. Automation and controller-based networking require separating APIs, management-plane actions, data formats, and centralized control from traditional device-by-device configuration. Cisco CCNA 200-301 v1.1 includes this under Automation and Programmability, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The wrong options mix northbound and southbound roles, control and data plane functions, or automation outcomes with unrelated technologies. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.

Option B. IP services must be selected by their exact operational role: addressing, translation, time, monitoring, logging, redundancy, or traffic treatment. Cisco CCNA 200-301 v1.1 includes this under IP Services, where the expected skill is identifying the mechanism that actually satisfies the scenario. The wording usually gives the decisive clue: a protocol number, a route prefix, a control-plane role, a wireless security method, or a management command. The wrong options name real services or commands, but they solve a different infrastructure problem. In a real network, selecting the wrong option would usually produce a failed adjacency, broken client connectivity, insecure management access, or an incorrect forwarding path. The selected answer matches the Cisco behavior and configuration model required by the question, so it is retained as the verified answer for this item.

forwarding packets. In a controller-based network, ordinary forwarding devices still perform data-plane forwarding. The controller centralizes policy, management, and control decisions, but packets are still forwarded by the switches and routers in the infrastructure. Off-the-shelf switches do not provide the central view, do not normally make global routing policy decisions, and do not set the controller’s packet-handling policy. Cisco CCNA 200-301 v1.1 Automation and Programmability expects candidates to distinguish the data plane from the control and management planes. The corrected answer is forwarding packets. The controller tells the network what behavior is required, but the switch ASICs and interfaces continue to move frames and packets through the network. Confusing those roles is a common SDN misconception.

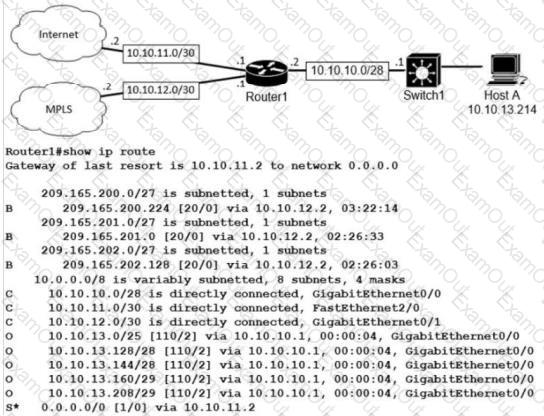

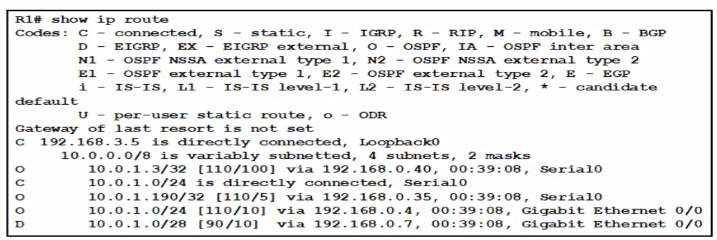

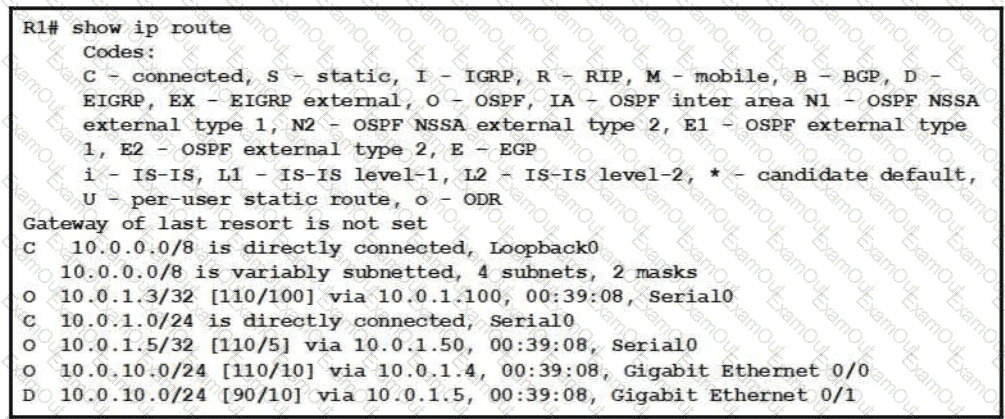

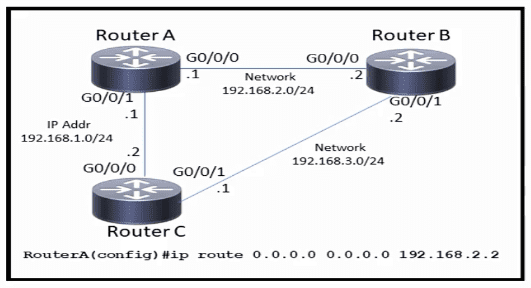

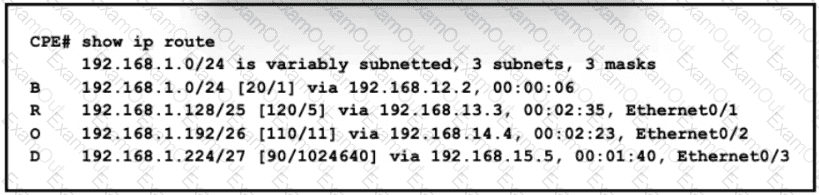

ip route 0.0.0.0 0.0.0.0 192.168.0.2 tracked. Cisco routers select forwarding paths by longest-prefix match first, then administrative distance and metric when comparable routes compete. Cisco CCNA 200-301 v1.1 includes this under IP Connectivity, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The wrong choices either do not match the destination, use the wrong next hop, or fail to provide the intended primary/backup behavior. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.

Software upgrades are performed from a central controller. Automation and controller-based networking require separating APIs, management-plane actions, data formats, and centralized control from traditional device-by-device configuration. Cisco CCNA 200-301 v1.1 includes this under Automation and Programmability, where the exam expects engineers to recognize the device behavior that actually produces the required outcome. The question is best solved by reading the operational clue rather than choosing a familiar acronym. The wrong options mix northbound and southbound roles, control and data plane functions, or automation outcomes with unrelated technologies. In a production network, the wrong choice would normally create an outage, leave a management or security gap, or send troubleshooting toward the wrong subsystem. The selected answer is the one that matches the control-plane, data-plane, wireless, security, services, or automation mechanism described in the question. That is why it remains the verified answer for this item.
