Free Practice Questions for VMware 3V0-25.25 Exam

To enable OSPF on a Tier-0 Gateway within a VMware Cloud Foundation (VCF) or NSX environment, an administrator must define the areas where the gateway will participate and the specific interfaces it will use for peering.

Based on the NSX Manager configuration interface, the two required items to be configured are:

Area Definition: This is necessary to define the OSPF area (e.g., Area 0) the Tier-0 gateway will participate in.

OSPF Configured Interfaces: OSPF must be explicitly configured on the relevant uplink interfaces to establish neighbor relationships and exchange routing information with physical routers.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the context ofVMware Cloud Foundation (VCF)networking, understanding how an ESXi host (acting as a Transport Node) handles East-West traffic is fundamental. East-West traffic refers to communication between workloads within the same data center, often on the same logical segment.

When a Virtual Machine sends a frame to another VM on the same logical segment, the ESXi host's virtual switch must determine the "location" of the destination MAC address to performframe forwarding. TheMAC Table(also known as the Forwarding Table or L2 Table) is the primary structure used for this decision. For each logical segment, the host maintains a MAC table that maps the MAC addresses of virtual machines to their specific "locations."

If the destination VM is residing on thesame host, the MAC table points the frame toward a specific internal port (vUUID) associated with that VM's vNIC. If the destination VM is on adifferent host(in an overlay environment), the MAC table entry for that remote MAC address will point to theTunnel End Point (TEP)IP of the remote ESXi host. While the TEP table (Option C) contains the list of known Tunnel Endpoints and the ARP table (Option A) maps IP addresses to MAC addresses, neither is the primary table used for the finalframe forwardingdecision.

TheMAC Tableis the authoritative source for Layer 2 forwarding. In an NSX-managed VCF environment, these tables are dynamically populated and synchronized via theLocal Control Plane (LCP), which receives updates from the Central Control Plane. This ensures that even as VMs move via vMotion, the MAC table remains updated across all transport nodes, allowing for seamless East-West connectivity without the need for traditional MAC learning (flooding) in the physical fabric.

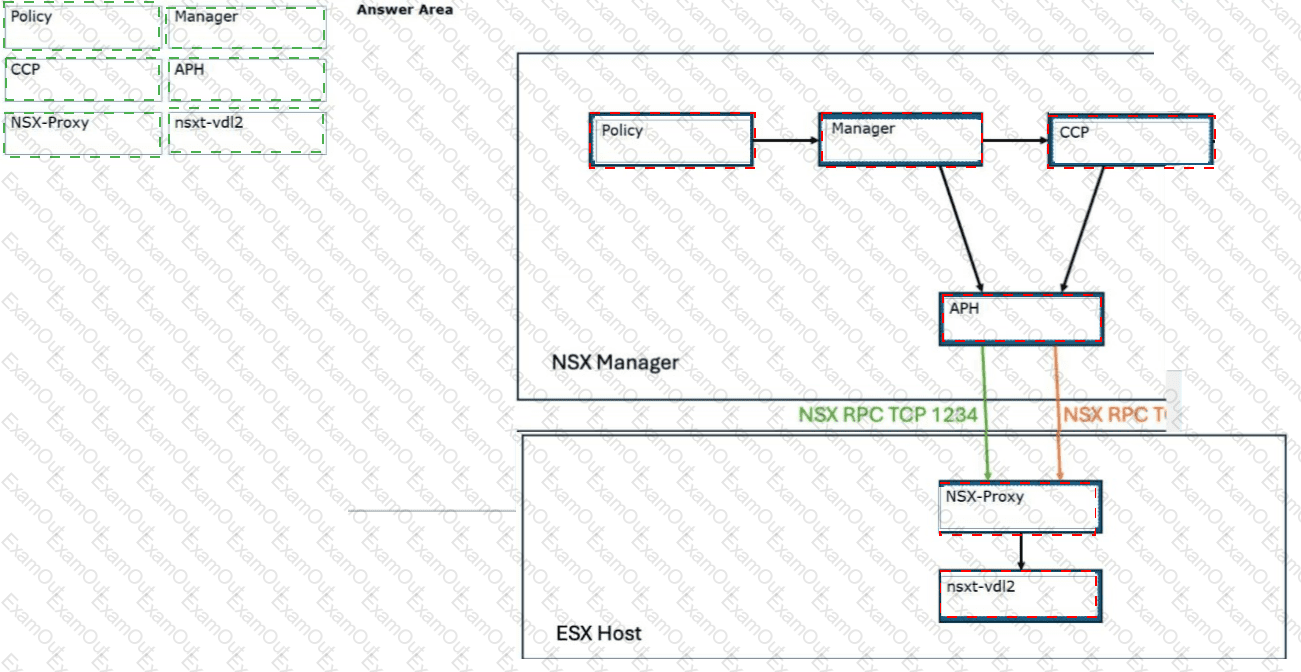

Answer Area Placement:

NSX Manager Top-Left Box:Policy

NSX Manager Top-Middle Box:Manager

NSX Manager Top-Right Box:CCP (Central Control Plane)

NSX Manager Bottom Box:APH (Asynchronous Proxy Handler)

ESXi Host Top Box:NSX-Proxy

ESXi Host Bottom Box:nsxt-vdl2

InVMware Cloud Foundation (VCF)and NSX architectures, the realization of a logical object (like a segment) involves a multi-step communication flow across different management and control plane layers.

The Management Plane (NSX Manager)

Policy:The entry point where the "Desired State" is defined by the user or automation.

Manager:Receives the policy, validates it, and stores it in the management database.

CCP (Central Control Plane):Processes the logical configuration and computes the actual instructions needed for the data plane.

APH (Asynchronous Proxy Handler):Acts as a broker on the NSX Manager, responsible for pushing these instructions down to the transport nodes viaNSX RPC TCP 1234(Management) andNSX RPC TCP 1235(Control).

The Local Control Plane (ESXi Host)

NSX-Proxy:A local agent on the ESXi host that maintains a persistent connection to the APH. It receives the instructions and ensures the "Local Control Plane" state matches the "Central Control Plane" intent.

nsxt-vdl2:The final component in the chain. It interacts directly with the ESXi kernel modules to program the Virtual Distributed Switch (VDS) and realize the segment on the host. Once this step is finished, the segment moves to the"Completed State"and is ready for use.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

TheNSX Edgeis the workhorse of the VMware Cloud Foundation networking stack, handling demanding tasks like Geneve encapsulation, NAT, Firewalling, and BGP routing. To achieve the throughput required for modern data centers—often exceeding 10Gbps or even 40Gbps per node—NSX leverages theData Plane Development Kit (DPDK).

Traditional packet processing in a standard Linux or Unix kernel is often a bottleneck. The kernel must handle interrupts, context switching between user space and kernel space, and complex buffer management for every packet. This "overhead" limits the speed at which a CPU can move packets.DPDKchanges this by bypassing the standard kernel networking stack entirely. It operates inUser Spaceand uses a "polling" mechanism rather than an "interrupt-driven" one.

In an NSX Edge VM or Bare Metal node, specific CPU cores are dedicated to the DPDK process (often called theDatapathorFP-Main). these cores "spin" at 100% utilization, constantly checking the NICs for new packets. Because there is no context switching and the process has direct access to the network hardware buffers, the Edge can process millions of packets per second (Mpps) with extremely low latency.

WhileNUMA(Option C) is a hardware architecture that NSX is "aware" of to optimize memory access, and Intel Speed Step/AMD Power Now (Options B and D) are power management features,DPDKis the actual software technology that enables the "fast packet processing" capability of the VCF networking solution. This is why VMware documentation emphasizes the importance of ensuring that Edge VMs are sized correctly with enough "High-Performance" cores to support the intended DPDK throughput.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

InVMware Cloud Foundation (VCF), the lifecycle of the NSX Manager cluster is strictly managed bySDDC Manager. During the initial deployment of a Management Domain or the creation of a new Workload Domain (if using a separate NSX instance), the administrator selects a "Form Factor" (Small, Medium, Large, or Extra Large) based on the expected scale of the environment.

As of current VCF versions (including 5.x), theForm Factoris a parameter defined during the deployment workflow that determines the resource reservations (CPU/RAM) and the disk partitioning of the appliance OVA. Unlike a standard virtual machine where you might simply adjust the vCPU and RAM settings in vCenter, the NSX Manager appliance is an opinionated system. Changing resources manually through vCenter (Option C) is not supported and can lead to stability issues or "Out of Sync" errors within SDDC Manager, as the database and internal services are tuned for the specific size selected at install.

There is currently no supported "in-place" upgrade or downgrade for the form factor of an existing NSX Manager node via the UI or API (Option B). To change the size, the administrator mustredeploythe manager nodes. In a VCF context, this often involves using SDDC Manager to delete the cluster or manually replacing nodes one by one—essentially deploying a new node of the correct size, joining it to the management cluster, syncing the data, and then removing the old, oversized node.

VCF Operations(formerly vRealize Operations) can provide "Right-sizing"recommendations(Option D), but it cannot execute the physical resizing of an NSX Manager appliance within the VCF framework. Therefore, the manual or orchestrated redeployment of the nodes is the only verified method to change the appliance footprint.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)stretched cluster or Multi-Availability Zone (Multi-AZ) architecture, the networking design must account for the fact that AZ1 and AZ2 typically reside in different Layer 3 subnets. While the NSX Overlay provides Layer 2 adjacency for virtual machines across sites, the underlyingTunnel Endpoints (TEPs)must be able to communicate over the physical Layer 3 network.

According to the VCF Design Guide for Multi-AZ deployments, when stretching a workload domain, each availability zone should have its own dedicatedTEP IP Pool. This is because TEP traffic is encapsulated (Geneve) and routed via the physical underlay. If the Edge nodes in AZ2 were to use the same IP pool as AZ1 (Option C), the physical routers would likely encounter routing conflicts or reachability issues, as the subnet for AZ1 would not be natively routable or "local" to the AZ2 Top-of-Rack (ToR) switches.

The failure during the SDDC Manager workflow occurs because the automated "Liveness Check" or "Pre-validation" step attempts to verify that the newly assigned TEP IPs in AZ2 can reach the existing TEPs in the environment. To resolve this and ensure a successful deployment, the administrator must define a uniqueAZ2-specific IP Poolin NSX. Furthermore, this pool must be associated with anUplink Profile(or a Sub-Transport Node Profile in VCF 5.x/9.0) that uses the specific VLAN tagged for TEP traffic in the second data center. This ensures that the Edge Nodes in AZ2 are assigned IPs that are valid and routable within the AZ2 underlay, allowing Geneve tunnels to establish correctly to the ESXi hosts in both sites without requiring a stretched Layer 2 physical network for the TEP infrastructure.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)architecture, theTier-0 Gatewayis the primary point of integration between the virtualized network and the physical world. When dealing with multiple upstream routers (multi-homing), administrators must influence the BGP path selection process to ensure traffic follows the desired path and avoids suboptimal routing or asymmetric flows.

AS-Path Prependis a common technique used to influenceinbound traffic(traffic coming from the physical network into the NSX environment). By repeating its own Autonomous System (AS) number multiple times in the BGP advertisement, the Tier-0 Gateway makes a specific path look "longer" and therefore less desirable to the upstream physical routers. Since BGP prefers the shortest AS-Path, the routers will favor the alternate link that does not have the prepended AS numbers. This is a critical tool in VCF designs to ensure that a primary link is utilized unless a failure occurs.

MED (Multi-Exit Discriminator)is an attribute that suggests to an adjacent external AS which path to take among multiple entry points to the same AS. Like AS-Path Prepend, it influences inbound traffic. A lower MED value is preferred over a higher one. In a VCF environment with multiple Edge Nodes or multiple Tier-0 uplinks, setting different MED values allows the administrator to prioritize specific entry points for traffic entering the SDDC.

BFD (Bidirectional Forwarding Detection)is not a BGP attribute; it is a detection protocol used to provide fast failure detection of the link between BGP neighbors. While it triggers faster convergence, it does not influence path selection based on attributes.Costis an OSPF attribute, not a native BGP attribute. Therefore, in the context of NSX Tier-0 BGP configuration, AS-Path Prepend and MED are the verified methods for path manipulation.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

InVMware Cloud Foundation (VCF), theNSX Manageruses the SFTP protocol to securely transfer configuration backups to an external repository. SFTP is built on top of the SSH protocol, which relies on a "Trust on First Use" (TOFU) model for verifying the identity of the remote host.

When an NSX Manager first connects to an SFTP server, it retrieves the server'sSSH Public Key Fingerprintand stores it in its local known_hosts equivalent database. This fingerprint ensures that future connections are made to the same, verified server, preventing man-in-the-middle attacks.

The error"Host KEY Verification Failed"occurs when the administrator changes the SFTP server (or if the SFTP server's OS was reinstalled/keys regenerated). Even if the IP address remains the same, the new server presents a different SSH fingerprint than the one currently cached in the NSX Manager configuration. Because the signatures do not match, the NSX Manager aborts the connection for security reasons.

To resolve this issue, the administrator mustUpdate the SSH fingerprint(Option B) within the NSX Manager backup settings. This involves:

Retrieving the new fingerprint from the SFTP server (e.g., via ssh-keyscan).

Navigating to System > Lifecycle > Backup & Restore in the NSX Manager.

Editing the File Server configuration and pasting the new fingerprint into the appropriate field.

Option A is incorrect as it does not address the SSH protocol handshake failure. Option C is incorrect because SFTP/SSH uses fingerprints, not SSL/TLS certificates. Option D is irrelevant as it changes the source/destination of the connection but does not fix the underlying trust mismatch. Therefore, updating the fingerprint is the verified operational step to restore the automated backup workflow in VCF.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

Designing for "five nines" (99.999%) availability in aVMware Cloud Foundation (VCF)environment requires a network architecture that minimizes convergence time and eliminates single points of failure. For a critical application sensitive to network changes, the connection between the virtualized SDDC and the physical network must be highly resilient and capable of near-instantaneous failover.

TheTier-0 Gatewayis the primary interface for North-South traffic. To meet high availability requirements, the Tier-0 should be configured witheBGP (External Border Gateway Protocol)to peer with physical Top-of-Rack (ToR) switches. By enablingECMP (Equal Cost Multi-Pathing), the architect allows the Tier-0 to utilize multiple active paths to the physical world simultaneously. This not only increases available bandwidth but also ensures that if one physical link or router fails, traffic is immediately redistributed across the remaining active paths without a protocol timeout.

To complement ECMP,BFD (Bidirectional Forwarding Detection)is essential. While BGP's default keepalive and hold timers are often measured in seconds (typically 60 and 180 seconds, respectively), BFD provides sub-second failure detection. In a VCF environment, BFD operates as a lightweight "heartbeat" between the Tier-0 Edge nodes and the physical ToR routers. If a path fails, BFD detects it within milliseconds and notifies BGP to pull the failed path from the routing table. This combination ofeBGP/ECMPfor path redundancy andBFDfor rapid detection is the verified standard for VCF designs requiring extreme uptime and sensitivity to network disruptions.

Static routes (Option A) are unsuitable for high-availability designs as they lack dynamic failure detection. While 100Gbps NICs (Option E) provide bandwidth, they do not inherently provide the protocol-level resilience needed to meet a 99.999% SLA.

===========
