Free Practice Questions for VMware 3V0-25.25 Exam

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

The process of transforming an existing, "brownfield" environment into a VCF-managed infrastructure is known asConvergence. In VCF 5.x and the advancements found in VCF 9.0, VMware provides theVCF Import Tool(often bundled or utilized alongside the VCF Installer/Cloud Builder) specifically for this purpose.

An environment runningvSphere 8 Update 1aandNSX 4.1.0.2is within the supported compatibility matrix for VCF 5.x convergence. The most direct and verified method (Option A) is to use theVCF Installerto "ingest" the existing vCenter and NSX Manager. During this process, the installer validates the current configuration, ensures the hosts are compatible, and then brings them under the management of a newly deployedSDDC Manager.

One of the significant advantages of this approach is that it avoids the need for a "rip and replace" of the existing networking. The VCF Installer identifies the existing NSX Manager and the logical networking constructs. Once the convergence is successful, the environment is treated as a standardVCF Workload Domain.

Options B and C are incorrect because VCF's design principle is to perform the convergence at a known stable and compatible versionbeforeusing the SDDC Manager’sLifecycle Management (LCM)to perform upgrades. Manually upgrading to version 9 prior to convergence can introduce configuration drifts that the VCF Installer may not be able to reconcile. Option D is incorrect asVCF Operations(formerly vRealize Operations) is a monitoring and optimization tool; it does not have the administrative capability to perform the structural convergence of the SDDC stack. Therefore, the automated convergence via the VCF Installer is the correct architectural path.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

With the introduction of theVirtual Private Cloud (VPC)consumption model inVCF 9.0and late 5.x releases, Role-Based Access Control (RBAC) has become more granular to support true multi-tenancy. A VPC is designed to be a self-contained "container" for a department's or user's networking resources.

To meet the specific requirement where a user can configure aspects of an individual VPC but is restricted from creating new subnets (which involves modifying the underlying network CIDR blocks and IPAM), a combination of specific roles is required.

VPC Admin:This is the primary role for the user within their assigned VPC. It allows the user to manage the overall VPC environment, including high-level settings and monitoring. However, the VPC Admin's power is often limited by the specific quotas and policies set by the Enterprise Admin.

Security Operator:This role allows the user to view security configurations and policies without having the permission to modify the network fabric or create new infrastructure components like subnets. It provides the "read-only" visibility into the security posture of the VPC.

Network Operator:Similar to the Security Operator, the Network Operator role provides visibility into the networking state—such as routing tables, segment status, and connectivity—without granting the "Write" permissions required to provision new subnets or alter the network topology.

AssigningNetwork Admin(Option B) orSecurity Admin(Option A) would grant too much privilege, as these roles typically include the ability to create, delete, and modify subnets and firewall policies at a structural level. By combining theVPC Adminrole withOperator-level roles, the administrator ensures the user has the necessary context to manage their assigned resources while strictly adhering to the restriction against creating new network subnets.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

NSX Federationis the architectural framework used withinVMware Cloud Foundation (VCF)to provide consistent networking and security across multiple sites. The core of this framework is the relationship between theGlobal Manager (GM)and one or moreLocal Managers (LMs).

The registration process is the critical first step in establishing this "parent-child" relationship. According to the "NSX-T Data Center Administration Guide" and Federation-specific documentation, the registration is initiated from theActive Global Manager.

Initiation and Credentials (Requirement E):The administrator logs into the Global Manager UI and navigates to the "System > Fabric > Locations" section. To add a new site, the GM-Active requires theIP address or FQDNof the target Local Manager and theAdmin credentials. This allows the GM to authenticate with the LM, exchange security certificates, and establish a secure thumbprint-verified connection.

Stable Communication Endpoint (Requirement C):For the ongoing management and synchronization of "Global Objects" (like Tier-0s or Security Groups), the GM must communicate with the LM cluster as a whole rather than a single individual node. Therefore, theLM Cluster Virtual IP (VIP)or aFQDNpointing to that VIP is provided. Using the VIP ensures that if the specific LM node that initially handled the registration fails, the GM can continue to communicate with the remaining nodes in the LM cluster without administrative intervention.

Option A is incorrect because the Global Manager typically manages the licensing for the federation, not the LM validating the GM. Option B is incorrect as an external load balancer is not a prerequisite for the native GM-LM registration handshake. Option D is incorrect because providing the IP of an individual node (one of the three) does not provide the high availability required for a production Federation environment. Thus, the use of theCluster VIPand theGM-Active's request for LM credentialsare the verified procedural requirements.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In theVMware Cloud Foundation (VCF) 9.0andNSX VPCarchitecture, theTransit Gateway (TGW)is the central routing element that interconnects VPCs to each other and to the provider's infrastructure (Tier-0 or VRF gateways). It acts as the "Project-level" gateway that aggregates North-South traffic.

To control the visibility of routes within a specific VPC, the administrator must utilizeRoute Filteringat the VPC's boundary. When a VPC is attached to a Transit Gateway, a logical interface is created. To prevent the data center's internal prefixes (such as management networks or other tenant subnets) from being seen by the VPC while still providing a path to the internet, a prefix list or route map should be applied to theVPC Transit Gateway. This policy will explicitly "Deny" specific internal CIDR ranges while "Permitting" the $0.0.0.0/0$ default route advertisement from the provider.

Applying the policy at theTier-1 gateway(Option B) is technically similar but in the VPC model, the "Tier-1" is often an obscured or automated component of the VPC itself; the Transit Gateway is the designed administrative point for inter-project and North-South policy enforcement. Applying it at theprovider Tier-0 neighbor(Option D) would be too global, affecting all VPCs or projects connected to that Tier-0, rather than the "new VPC" specifically. Therefore, the Transit Gateway provides the necessary granular control for multi-tenant isolation and routing optimization as per the VCF 9.0 networking model.

===========

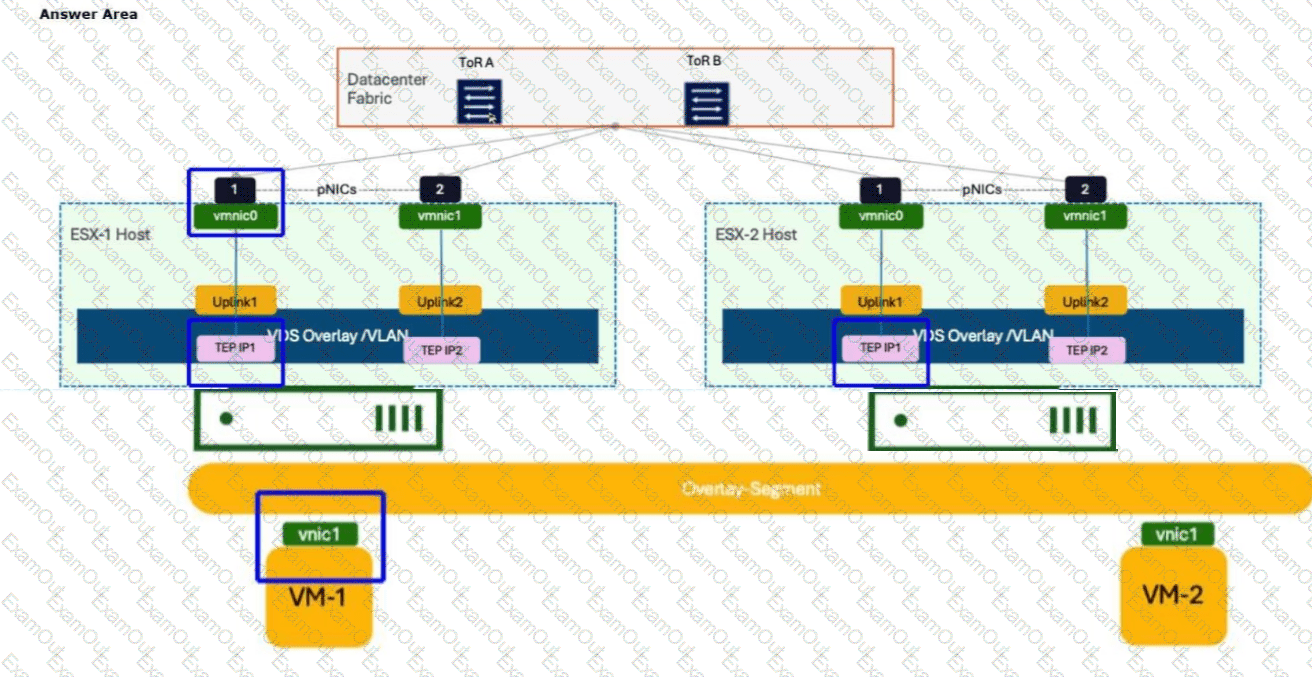

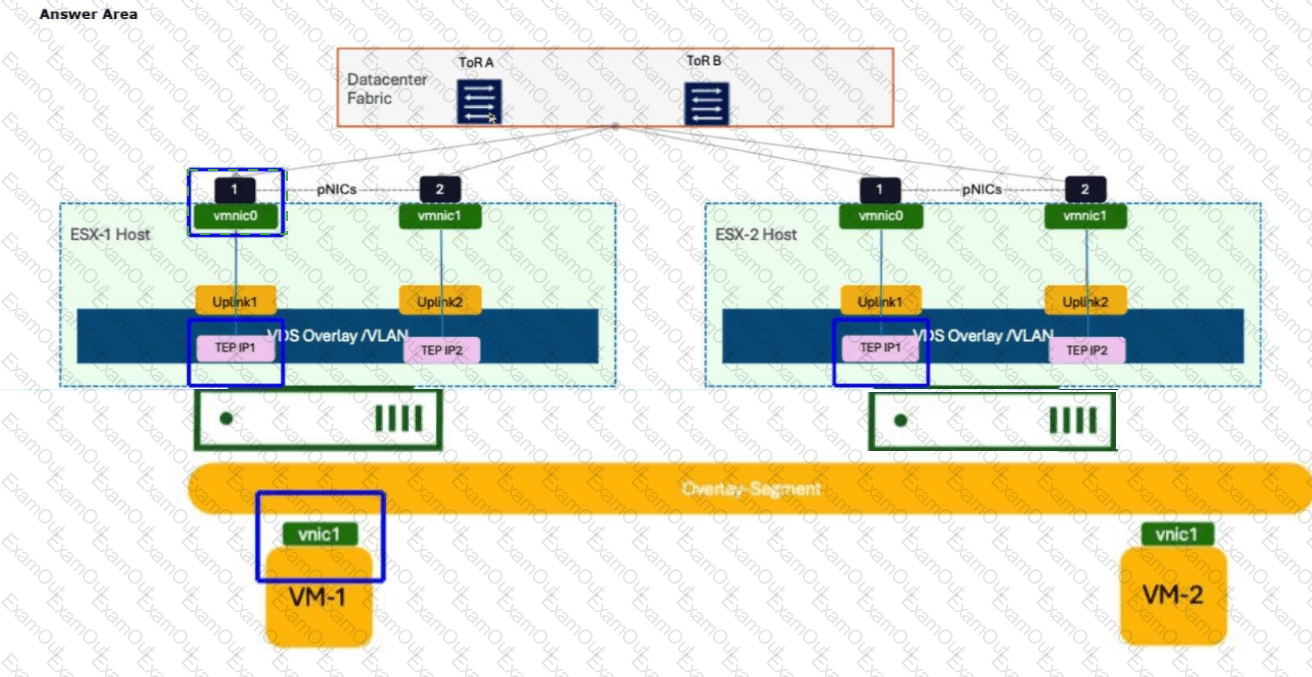

The administrator should click thevmnic0interface on theESX-1 Host.

In aVMware Cloud Foundation (VCF)environment, theGENEVE (Generic Network Virtualization Encapsulation)protocol is the industry-standard tunnel format used by NSX to create an overlay network. This protocol allows Layer 2 traffic from virtual machines to be "tunneled" over a Layer 3 physical IP fabric, enabling workloads to communicate as if they were on the same segment even when separated by physical routers.

When VM-1 on ESX-1 sends an ICMP request to VM-2 on ESX-2, the packet starts as a standard Ethernet frame at the virtual machine'svnic1. At this stage, the packet contains no encapsulation. As the frame enters theVirtual Distributed Switch (VDS)and hits theTunnel End Point (TEP), the host's kernel performs the encapsulation process. The TEP adds a GENEVE header, a UDP header (port 6081), and an outer IP header.

Thevmnic0(physical NIC) on the source host (ESX-1) is the specific "egress" point where this transformation is complete. A packet capture taken at this physical interface will show the "Outer IP" address of the source TEP and destination TEP, with the original ICMP packet hidden inside the GENEVE payload. If the administrator were to click on the VM's vnic, they would only see standard ICMP. By selecting thevmnic0, the administrator captures the traffic as it is placed onto the physical wire, which is the verified location to troubleshoot MTU issues, encapsulation errors, or physical fabric connectivity in a VCF environment.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)Multi-Site or Multi-Instance design, the requirement for "centralized security and networking policies" is fulfilled byNSX Federation. Federation introduces theGlobal Manager (GM), which provides a single pane of glass to manage objects that span across different VCF sites.

Historically, in early versions of NSX-T, Global Managers were deployed manually. However, within the VCF framework (VCF 4.x, 5.x, and 9.0), the deployment and lifecycle management of theGlobal Manager clusterare fully integrated intoSDDC Manager. According to the VCF Design Guide and "Deploying and Configuring NSX Federation" documents, the verified best practice is to use the SDDC Manager UI or API to trigger the GM deployment.

When an administrator usesSDDC Manager(Option C), the process is automated: SDDC Manager deploys the appliances, configures the virtual IP (VIP), handles the certificate management, and ensures that the GM is properly integrated into the VCF Bill of Materials (BOM). This automation is critical for maintaining supportability, as it ensures the GM version is perfectly aligned with the Local Managers (LMs) already present in the Management and Workload domains.

Option A is discouraged because manual deployments lead to configuration drift and issues with future automated upgrades. Option B is incorrect as VCF Operations is for monitoring, not deployment. Option D is incorrect because theVCF Installeris primarily used for the initial "bring-up" of the Management Domain; subsequent management components like GMs are handled by the SDDC Manager once the initial site is active. Thus, SDDC Manager is the authoritative tool for deploying the Global Manager cluster in a VCF multi-location environment.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

As organizations modernize their infrastructure withVCF 5.x and 9.0, IPv6 adoption becomes more prevalent.NAT64is a critical transition technology that allows IPv6-only hosts to communicate with IPv4-only resources by translating the packet headers.

In NSX, NAT64 is astateful service. Stateful services in the NSX architecture require a centralized point of processing to maintain the session state table. Because of this requirement, any gateway (Tier-0 or Tier-1) providing NAT64 servicesmust be configured in Active-Standby high availability mode. In Active-Active mode, asymmetric return traffic could hit a different Edge node that does not have the session information, causing the translation to fail. This is a fundamental design constraint for stateful NAT in NSX.

Furthermore, VMware NSX documentation specifies that NAT64 is a flexible service that can be implemented at multiple tiers of the logical routing hierarchy. It issupported on both Tier-0 and Tier-1 gateways. The choice of where to place the NAT64 service depends on the design requirements: placing it on the Tier-1 gateway allows for tenant-specific translation and offloads the Tier-0, while placing it on the Tier-0 provides a centralized translation point for all connected segments.

Option A is incorrect because NAT64 in NSX is stateful, not stateless. Option C is incorrect because it is not limited to Tier-1. Option E is incorrect because Active-Active mode does not support the stateful nature of the NAT64 engine. Consequently, the correct architecture requires anActive-Standbyconfiguration on either aTier-0 or Tier-1gateway to properly facilitate the translation between the IPv6 workloads and the IPv4 external world.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In theNSXmulti-tier routing architecture used by VCF, aTier-1 Gatewayis composed of two primary components: theDistributed Router (DR)and theService Router (SR). The DR runs as a kernel module on every ESXi host in the transport zone, facilitating East-West traffic. The SR resides on the NSX Edge nodes and provides centralized services like North-South connectivity and stateful services.

Communication between the DR (on the ESXi host) and the SR (on the Edge node) occurs over a hidden internal segment known as theRouter Link. This link is encapsulated inGenevejust like VM-to-VM traffic. When a VM attempts to reach an external destination, the packet is first routed by the DR on the local host. The DR then encapsulates the packet and sends it across the overlay to the TEP (Tunnel Endpoint) of the Edge node hosting the SR.

If theMTU (Maximum Transmission Unit)is misconfigured on the physical network or the virtual switches, large encapsulated packets will be dropped. However, small packets (like pings between VMs on the same host) might still succeed. In this scenario, the fact that the VM can ping the local DR butcannot reach the SR—and therefore cannot reach external networks—points to a failure in the transport between the host and the Edge.

If the Geneve-encapsulated packet containing the ping request to the SR's internal interface exceeds the physical network's MTU, it will fail. Since VCF 5.x/9.0 requires a minimum MTU of1600(ideally9000) for the overlay to account for the Geneve overhead, a mismatch anywhere in the fabric will break the DR-to-SR "backplane" communication. This prevents the Tier-1 from passing any traffic to its Tier-0 uplink, effectively isolating the workloads from North-South traffic.
