Free Practice Questions for VMware 3V0-23.25 Exam

Because the vSAN cluster uses vSphere Lifecycle Manager images, the least disruptive remediation method from the provided choices is to enable Quick Boot in the host remediation settings for images. Quick Boot reduces host remediation time by skipping the full hardware reboot, including the BIOS or UEFI firmware reboot. This reduces the amount of time each ESX host spends in maintenance mode and lowers operational disruption during patching. The documentation states that Quick Boot can be configured for clusters or standalone hosts managed with vSphere Lifecycle Manager images, and that it reduces reboot time during remediation. The baseline options are incorrect because the cluster is explicitly managed by images, not baselines. Disabling Quick Boot would increase disruption because hosts would require a full reboot path. Disabling HA admission control is not the least-disruption patching mechanism and is listed for baseline-oriented remediation behavior in the offered answer. In a vSAN cluster, hosts enter maintenance mode one at a time, so reducing each host’s maintenance window through Quick Boot is the appropriate method. Reference topics: vSphere Lifecycle Manager Images, Host Remediation Settings, Quick Boot, vSAN Cluster Remediation.

The available custom recovery steps are top-level commands, message prompts, and per-machine commands. VMware Live Site Recovery recovery plans operate like automated runbooks, and administrators can insert custom steps to match business continuity requirements. Broadcom TechDocs states that custom recovery steps can run commands or present messages to the user during a recovery. Command recovery steps are divided into two categories: top-level commands and per-virtual-machine commands. Top-level commands are inserted directly into the recovery plan and run on the VMware Live Site Recovery server. Per-machine commands are associated with individual recovered VMs and run before or after that VM is powered on, depending on placement in the workflow. Message prompts are interactive steps that pause the plan until an operator acknowledges the message, making them useful for manual validation, external approvals, or runbook checkpoints. IP reconfiguration is handled through recovery plan networking and guest customization, not as a custom step type. Writable storage snapshots are part of test recovery/storage behavior, not a custom recovery step. Reference topics: VMware Live Site Recovery Recovery Plans, Creating Custom Recovery Steps, Top-Level Commands, Message Prompts, Per-VM Commands.

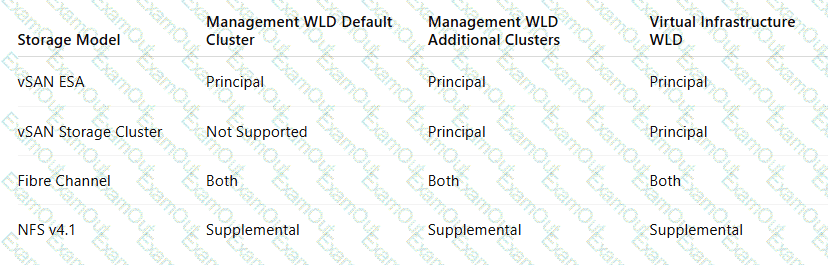

The correct mapping comes from the VCF 9.0 Principal and Supplemental Storage model. vSAN ESA is supported as principal storage for the Management Domain default cluster, Management Domain additional clusters, and VI Workload Domains. A vSAN Storage Cluster is not supported for the Management Domain default cluster because the initial management cluster requires a standard principal storage model, but it is supported as principal storage for Management Domain additional clusters and VI Workload Domains. Fibre Channel is supported as both principal and supplemental storage across all three domain or cluster categories, allowing either initial cluster creation or later datastore expansion. NFS v4.1 is supplemental-only across these categories. NFS can be principal only when using NFS v3; NFS v4.1 is used as supplemental storage after the domain or cluster exists. These statuses align with VCF’s distinction between principal storage, which is used during workload domain or cluster creation, and supplemental storage, which is added after creation for workloads or data-at-rest use cases. Reference topics: Storage Models, Principal Storage, Supplemental Storage, vSAN ESA, Storage Cluster, Fibre Channel, NFS.

The two most relevant causes are insufficient vCenter permissions and incorrect DNS resolution. The VMware Live Recovery appliance must register with vCenter as a managed extension and service endpoint, so the account used during the Configure Appliance workflow must have the required vCenter privileges. A user that can authenticate but lacks registration or administration privileges can still cause the appliance registration to fail. DNS is equally critical because appliance registration depends on stable FQDN resolution, certificate validation, Lookup Service communication, and service endpoint registration. Forward and reverse DNS records must resolve correctly between the VMware Live Recovery appliance and vCenter Server. Deploying the appliance to a non-vSAN datastore is not the primary reason for vCenter registration failure. DHCP is not inherently invalid if the resulting address and DNS records are correct, though static addressing is usually preferred. A local Photon OS account on the VCSA is not the correct account type, but the direct technical issue is the lack of required vCenter permissions. Reference topics: vSAN Data Protection, VMware Live Recovery Appliance Registration, vCenter Permissions, DNS Forward and Reverse Resolution.

With “Ensure Accessibility,” vSAN migrates only the minimum amount of data required to keep objects accessible while the host enters maintenance mode. This mode is faster than Full Data Migration, but it does not fully reprotect all objects. The documentation states that objects might no longer be fully compliant with their storage policy during this evacuation mode, meaning they might not have access to all replicas. Because the default policy is RAID-1 with FTT=1, each object can tolerate only one failure. While the first host is in maintenance mode, some VM objects are already running in a reduced-availability state. If a second host loses network connectivity during this window, affected objects can lose quorum or access to required components. vSAN does not immediately rebalance or fully rebuild objects simply because Ensure Accessibility was selected, and permanent data loss is not the expected result from a temporary network loss. The likely impact is that some VMs become inaccessible until either the maintenance host returns or the isolated host reconnects. Reference topics: vSAN Maintenance Mode, Ensure Accessibility, Default Storage Policy, RAID-1 FTT=1, Network Partition Handling.

Both vSAN OSA and vSAN ESA require a trusted key provider before Data-at-Rest Encryption can be enabled. With a standard external KMS, the configuration process includes adding the KMS to vCenter and establishing trust with the KMS. vCenter then provisions encryption keys from the key provider. The vSAN encryption workflow uses a Key Encryption Key from the KMS to protect Data Encryption Keys used by ESX hosts. This requirement applies to vSAN encryption generally and is not limited to a specific vSAN architecture. OSA supports external KMS integration, so the option stating that OSA does not support external KMS integration is incorrect. Trusted Platform Modules are not mandatory prerequisites for either OSA or ESA. The vSphere key provider requirements state that TPM is not required for a standard key provider or for vSphere Native Key Provider, although Native Key Provider availability can optionally be restricted to hosts with TPMs. Therefore, the mandatory prerequisite is a trusted KMS identity for both OSA and ESA. Reference topics: vSAN Data-at-Rest Encryption, Standard Key Provider, KMS Trust, OSA and ESA Encryption Support, TPM Requirements.

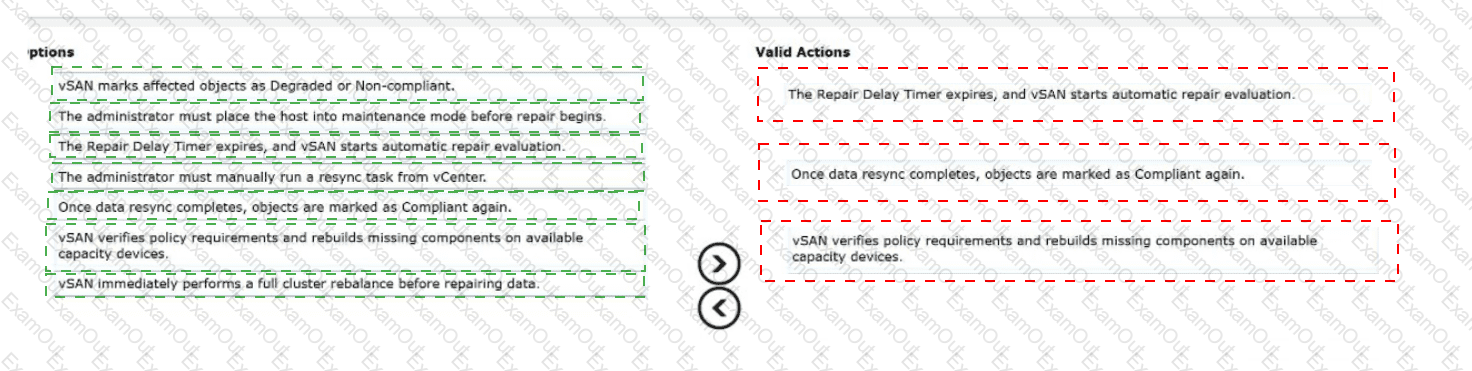

The Repair Delay Timer expires, and vSAN starts automatic repair evaluation.

Once data resync completes, objects are marked as Compliant again.

vSAN verifies policy requirements and rebuilds missing components on available capacity devices.

When a host goes offline unexpectedly, vSAN treats the missing components as absent and waits for the configured repair delay timer before initiating rebuild operations. This prevents unnecessary resynchronization when a host or device returns quickly. In this scenario, the host is offline for more than an hour, so the repair delay timer expires and vSAN begins automatic repair evaluation. vSAN then checks the assigned storage policies, available capacity, and fault-domain placement requirements to determine whether missing components can be rebuilt safely on available capacity devices. If sufficient capacity and fault domains exist, vSAN creates replacement components and starts resynchronization. When the resync process finishes and the affected objects again satisfy their assigned policies, the objects are marked Compliant. The administrator does not need to manually run a resync task from vCenter, and the host does not need to be placed into maintenance mode for automatic repair. A full cluster rebalance is a separate capacity-balancing operation and is not required before object repair. Reference topics: vSAN Repair Delay Timer, Object Compliance, Resynchronization, ESA Object Repair.

The two major contributors are RAID overhead and Operational Reserve. With the default policy set to FTT=1 using RAID-1 mirroring, vSAN stores two copies of protected data. The capacity planning guidance states that when Failures to tolerate is set to 1 failure with RAID-1 mirroring, virtual machines can use about 50 percent of raw capacity because each object consumes mirrored space. This is the largest capacity-impacting factor. The second contributor is Operational Reserve, which reserves capacity for vSAN internal operations such as policy changes, rebalancing, object movement, and other transient storage activities. Even when Host Rebuild Reserve is not activated, vSAN capacity monitoring still accounts for the operations threshold/reserve needed to keep the cluster functional during internal activity. Encryption overhead is typically not the primary reason for a 20% capacity difference. Host upgrade overhead is not a vSAN capacity category. VM swap can consume capacity, but it does not normally account for most unavailable raw capacity compared with RAID mirroring and operational reservation. Reference topics: vSAN Capacity Planning, RAID-1 FTT=1 Capacity Impact, Operations Reserve, Reserved Capacity.

A shallow rekey operation rotates only the Key Encryption Key (KEK). In vSAN Data-at-Rest Encryption, vCenter obtains or generates the KEK through the configured key provider, while ESX hosts use Data Encryption Keys (DEKs) to encrypt the actual disk or object data. The KEK is used to protect, or wrap, those DEKs. When a shallow rekey is performed, the underlying encrypted data does not need to be rewritten because the DEKs remain the same; only the KEK changes, and the existing DEKs are re-encrypted with the new KEK. This is why shallow rekey is faster and less disruptive than a deep rekey. A deep rekey generates both a new KEK and new DEKs, requiring re-encryption of data. The Host Key is used for encrypted core dumps, not datastore data encryption. Key Derivation Key is not the key rotated in this vSAN shallow rekey workflow. Reference topics: vSAN Data-at-Rest Encryption, Generate New Encryption Keys, Shallow Rekey, Deep Rekey, KEK and DEK lifecycle.
