In UML, when you need to reference an element from another package while inside a different package, you use the qualified name. A qualified name includes the package name followed by two colons and then the element name. This ensures that the reference is clear and unambiguous, especially when different packages may have elements with the same name.

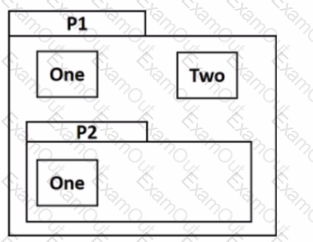

The correct syntax for referring to elementOneof PackageP1from inside PackageP2isP1::One, where::is the scope resolution operator used to separate the package name from the element name.

Therefore, the correct answer is:

D. P1::One

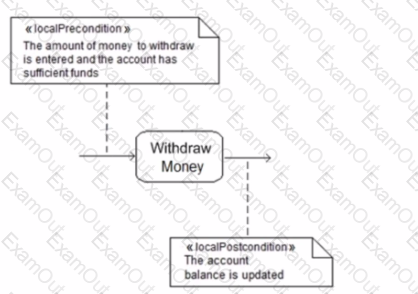

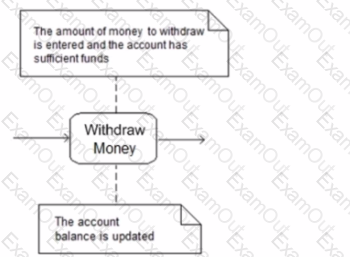

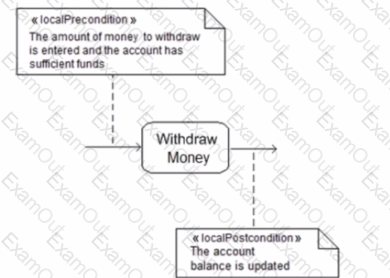

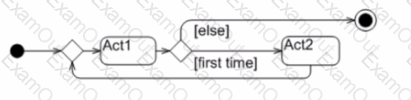

The correct answer is Option B. This diagram accurately depicts the scenario where activity Act1 is carried out first, followed by activity Act2, and then Act1 is performed again.

Here's why the other options are incorrect:

Option A: This diagram shows Act1 followed by Act2, but Act1 is not repeated.

Option C: Similar to Option A, this diagram depicts Act1 followed by Act2, without a repetition of Act1.

Option D: This diagram has conditional branches, which is not part of the given scenario where the activities are carried out sequentially.

Following the logic from the prompt: Act1 -> Act2 -> Act1, Option B visually represents this sequence with arrows connecting the activities in the specified order.

In UML use case diagrams, when specifying the number of actors involved in a use case, a multiplicity marker can be used. The multiplicity marker is a number placed near the actor symbol that denotes how many instances of the actor are involved in the use case.

Option C correctly uses a multiplicity marker of '2' next to the actor 'Player', which indicates that exactly two instances of 'Player' are involved in the "Play Tennis" use case.

Here is a brief explanation of why the other options are incorrect:

A) Option A shows two separate 'Player' actors involved in "Play Tennis" without a multiplicity marker, implying possibly different kinds of players, but does not specify that exactly two instances are required. B) Option B shows two 'Player' actors involved in "Play Tennis" without a multiplicity marker, also not specifying the exact number of instances required. D) Option D uses a multiplicity marker, but it is incorrectly placed near the 'Play Tennis' use case instead of the 'Player' actor, which does not follow UML notation for indicating actor multiplicity.

Therefore, the correct answer is:

C. Option C

State machines are ideal for modeling systems or objects that exhibit distinct states and transitions between them based on events or conditions. Let's analyze why option D is the best fit and why others are less suitable:

D - Transitions in a Physical System:The transitions between different states of matter (ice, water, steam) are governed by well-defined conditions (changes in temperature and pressure). State machines can effectively represent these states and the rules governing the changes between them.

Other Options:

A - Control of a Digital Watch: While a state machine could model some aspects of a watch (e.g. time display mode, set mode), interactions with buttons are better represented by event-driven models or user interface flow diagrams.

B - Client-Server Messaging: Sequence diagrams or communication diagrams are more suitable for modeling message exchanges, as they focus on the interaction between different components.

C - Office Automation Workflows: Business process modeling notations (BPMN) or data flow diagrams would be more appropriate for capturing the processes and data movements in an office system.

E - Distributed Medical Insurance System: A combination of sequence diagrams (for message exchanges), activity diagrams (for processes), and state machines (for behavior within individual system components) would likely be needed to model a complex system like this.

References:

UML Specification (Superstructure) Version 2.5.1: The section on state machines is a primary reference for their capabilities (https://www.omg.org/spec/UML/2.5.1 ).

Modeling Guides: Various resources on UML modeling techniques often provide insights into when different diagram types are most appropriate.

In the given UML package diagram fragment, various elements are listed with stereotypes indicating their nature («class», «interface»). Stereotypes are used in UML to extend the vocabulary of UML in order to create new kinds of building blocks. They are typically enclosed in guillemets (« »).

The last element, 'six', does not have a stereotype indicating whether it's a class, interface, or some other kind of element. This lack of a stereotype leads to ambiguity about the nature of 'six'. Therefore, the fragment is considered invalid due to this omission.

All the other options do not constitute an error in the UML fragment: A) A list of elements is allowed in a package body. B) Visibility is not required for every element, especially within package diagrams. C) Interfaces are allowed in packages. D) Private elements are allowed in a package. E) Protected elements are also allowed in a package.

Therefore, the correct answer is:

F. Element six is missing its stereotype.

In UML, basic types like byte, short, and long are represented as DataType elements. These are typically used to specify the types of attributes, parameters, or return values of operations in a model. Option A shows three separate classes named Byte, Short, and Long, which would represent these as distinct data types within the UML model.

Option B incorrectly uses stereotypes on objects, which is not the correct UML representation for data types. Option C shows a class with attributes of different types, but it does not define these types as basic types. Option D is incorrect because it uses stereotypes on DataType elements, which is not the standard way to represent basic types in UML.

According to the UML 2.5 specification, DataTypes are a kind of classifier that specifies a domain of values without identity (section 10.5.8). DataTypes are not classes; they do not have operations and cannot have instances that maintain an identity.

Here's a breakdown of why option D is correct and why the other options aren't:

FlowFinalNode Purpose:In UML activity diagrams, a FlowFinalNode represents a termination point for a specific control flow within an activity. It does not end the activity itself but rather the path along which it is placed.

Analysis of Other Options:

A. FlowFinalNodes do not appear in activities... This is incorrect. FlowFinalNodes are specifically defined for use in the context of activities.

B. FlowFinalNodes do not appear in activities; the proper element for this use is NoneEndEvent. NoneEndEvent is a concept from State Machine Diagrams. While it shares some similarities in terms of ending a flow of execution, it is a distinct concept from FlowFinalNode within the context of activity diagrams.

C. A token that reaches a FlowFinalNode causes all execution within the activity to cease. This is too broad. A FlowFinalNode only halts the specific control flow on which it's placed. Other activity flows continue unaffected.

References

UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams, FlowFinalNode. https://www.omg.org/spec/UML/2.5.1/

In UML, an Object Diagram is a type of static structure diagram that shows a snapshot of the detailed state of a system at a point in time. It focuses on some particular set of objects and attributes, and the links between them. When it comes to the number of instances that can be represented in an Object Diagram, it can range from zero (in cases where the diagram is used to show that no instances of a class exist under certain conditions) to many instances. Therefore, an Object Diagram can show 0 instances, 1 instance, or many instances, which is represented by the multiplicity notation 0..*.

Therefore, the correct answer is:

D. 0..*

Abstractions in a model are helpful because they can express or suppress detail as needed. This capability is essential in managing complexity in a model by focusing on the high-level, essential aspects of the system while omitting or simplifying the less critical details. This selective detail management aids in understanding and analyzing the system’s core functionality without getting overwhelmed by its intricacies. Abstractions facilitate clearer communication, more focused analysis, and more efficient system design by highlighting the most relevant aspects of the system in various contexts.
