The question asks to identify which object diagram corresponds to the provided class diagram. In order to verify which object diagram is correct, we must look at the class diagram to understand the relationships and multiplicities between the classes, and then match these with the objects and links in the object diagrams.

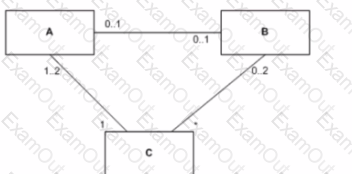

The class diagram (not visible in your query but implied to be the reference for the object diagrams provided) must contain three classes, A, B, and C, with specific multiplicity relationships among them. Here’s how we deduce the correct object diagram:

Multiplicity between A and C is "1..2", which means that for each instance of A there must be one or two links to instances of C.

Multiplicity between B and C is "0..2", which means that for each instance of B there are zero, one, or two links to instances of C.

Multiplicity between A and B is "0..1", which indicates that for each instance of A there can be zero or one link to an instance of B.

With these rules, we analyze the object diagrams:

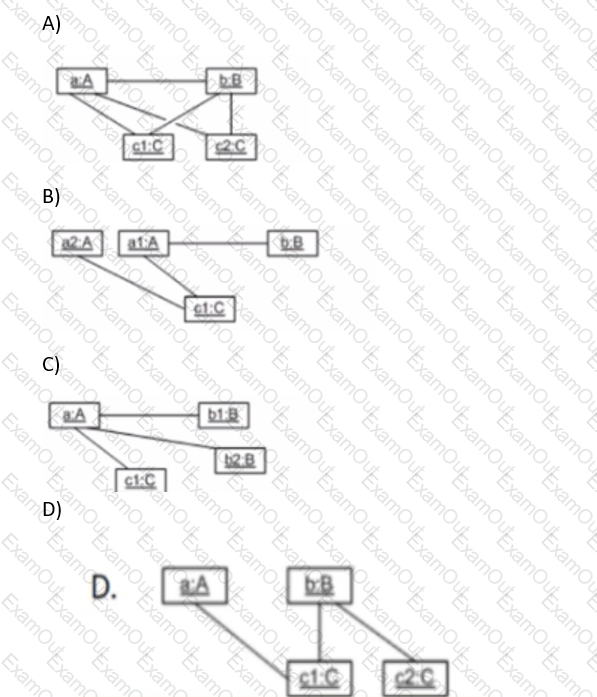

Option Ahas one instance of A linked to two instances of C, which is correct according to the "1..2" multiplicity. However, there are two instances of B (b1 and b2) each linked to a single instance of C (c1), which violates the "0..2" multiplicity rule because it implies there should be two links from c1 to the B instances (b1 and b2) but instead, there are two separate links to the same instance of C (c1), which is not allowed.

Option Bhas similar issues where two instances of A (a2 and a1) are linked to a single instance of C, which violates the "1..2" multiplicity rule.

Option Cshows each instance of A and B linked to their own separate instances of C. This violates the "1..2" multiplicity between A and C since there is only one link from A to C and does not show the possibility of two links which the multiplicity "1..2" would allow.

Option Dshows a single instance of A linked to two instances of C (c1 and c2), which satisfies the "1..2" multiplicity. Additionally, there is a single instance of B linked to one of the instances of C (c1), satisfying the "0..2" multiplicity. The A instance has no direct link to the B instance, which is allowed because the "0..1" multiplicity permits zero links between instances of A and B.

Based on this analysis, the only object diagram that satisfies all the multiplicity constraints of the class diagram isOption D.

The verification of the answer can be cross-checked with the UML 2 Foundation documentation, specifically in the section dealing with object diagrams and their correlation with class diagrams, which will confirm that object diagrams represent instances of classes and must comply with the multiplicities defined in the class diagram they are derived from. Multiplicity notation and interpretation are fundamental concepts in UML and are well documented in the UML specification by the Object Management Group (OMG).

For projects involving complex and strategic systems, a key advantage of developing models before starting implementation is that models help to establish a consensus among all the project stakeholders. Creating UML models in the early stages of a project provides a visual and conceptual representation of the system that can be easily understood by various stakeholders, including developers, managers, and clients. This facilitates discussions and negotiations about the system’s design and functionality, helping to ensure that all parties have a shared understanding and agreement on the project’s objectives and solutions before significant resources are invested in implementation.

In UML, an initial node is the starting point of an activity thread and represents the start of the flow in an activity diagram. According to the UML 2.5.1 specification, an initial node has no incoming edges and precisely one outgoing edge1. This means that onlyone activity can feed an initial node at the beginning of an activity thread, which aligns with option C.

The initial node is depicted as a filled circle and is used to show where the control starts within the activity. When the activity is invoked, control tokens are placed on the initial node and can then traverse the outgoing edge to the first action or activity node. The specification clearly states that there should be only one outgoing edge, ensuring that the flow of control is unambiguous at the start of the activity.

For further details and verification, you can refer to the UML 2.5.1 specification, particularly Chapter 15.7, which covers the Activity, ActivityFinalNode, InitialNode, and other related elements2. Additionally, the Object Management Group (OMG) provides resources and guidelines for the UML exams, including the types of questions that may appear and the knowledge areas covered3.

It’s important to note that while multiple initial nodes can exist within a single activity diagram, each initial node can only be the source of one outgoing edge, and thus, only one activity can feed each initial node.

In UML sequence diagrams, an execution specification is represented by a thin rectangle along a lifeline. It shows where in time the execution takes place, starting with the initiation of an operation or process and ending when that process is complete.

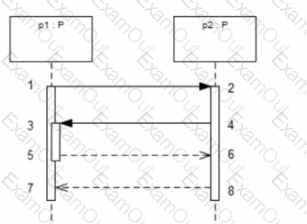

In the interaction diagram provided, we can see an execution specification on the lifelinep1: Pthat starts after the message corresponding to point 3 is received and ends just before the message corresponding to point 5 is sent. This means the execution specification is bracketed by points 3 and 5.

Points 1 and 2 represent message sends, 1 and 4 could represent a message send and receive for the same message, which doesn't typically represent the full execution specification. Points 2 and 3 don't represent a logical start and end of an execution specification because they're on different lifelines.

Therefore, the correct answer is:

D. 3, 5

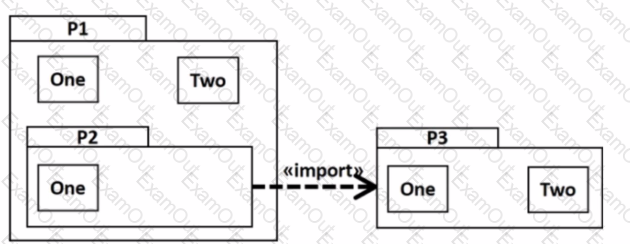

In UML, the<<import>>relationship indicates that the namespace of the target element (in this case,P3) is added to the namespace of the source (in this case,P2). However, it's important to distinguish between different types of imports. There are two types of import relationships:

Public Import: IfP2were to importP3publicly (using<<import>>), then all public members ofP3would become accessible toP2as if they were part ofP2.

Private Import: IfP2were to importP3privately (using<<access>>), then the public members ofP3are only accessible withinP2and not to elements that useP2.

Given the diagram, it seems thatP2is importingP3(the nature of the import, public or private, is not explicitly mentioned). Assuming it is a public import and considering thatP2itself is withinP1, which is the higher-level package, thenP1has visibility over its own contents as well as any elements imported intoP2.

ElementOneinP3has the same name asOneinP1, and typically in UML, when an element is imported into a namespace where an element with the same name exists, the imported element is not accessible without a qualified name to avoid ambiguity. However, sinceP2is withinP1, it could be argued thatOneinP3, when imported, would effectively "merge" withOneinP1, thereby makingOnevisible insideP2without a qualified name due to its presence in the higher-level packageP1.

Therefore, the correct answer is:

B. One

The diagram displays an activity labeled "Account Authentication".

There are two main paths branching from the start of the activity:

One path leads to an activity named "Validate Password".

The other path leads to an activity named "Send OTP".

Both paths converge into a decision diamond labeled "Authentication Successful?".

Depending on the outcome of the decision (Yes/No), the flow continues to either a "Grant Access" or "Deny Access" activity.

Explanation of why Option B is Correct:

This diagram accurately represents the scenario of account authentication where there are two alternative paths for validation: using a password or an OTP (One-Time Password). The decision point after these paths merges the flow for a final decision on granting or denying access based on successful authentication.

Comparison with Other Options:

Option A, C, and D show different activity sequences that don't align with the two initial validation paths (password vs. OTP) and the subsequent decision point based on authentication success.

References

UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams https://www.omg.org/spec/UML/2.4/Superstructure/PDF

A valuable model in UML and systems design is characterized by its usefulness rather than its complexity or how "correct" it is in an engineering sense. A model's primary objective is to effectively communicate the key aspects of a system or process, and simplicity often enhances this communication by making the model easier to understand and use. The value of a model thus comes from its ability to facilitate decision-making, problem-solving, and understanding among stakeholders. This perspective aligns with the principle of Occam's Razor in modeling, which suggests that simpler solutions are preferable when all other factors are equal. In UML, a model that provides clear insights with minimal complexity is considered more valuable because it is accessible to a wider audience and can be more readily applied to solve real-world problems.

In UML, when specifying the value of an attribute in an instance specification (which is what each of these boxes represents), the notation used is generally:

attributeName: Type = Value

Looking at each option provided, we see that they are different representations of numerical values for an attribute namedsalaryof typeReal. Here's how to interpret each representation:

A)-salary: Real = “$10,000.00”- This uses a string representation of the number, which is generally not how numerical values are assigned in UML, especially with the explicit typeReal.

B)-salary: Real = $20,000.00- This is more typical for showing a real number in UML, though the dollar sign is not part of the actual numerical value and should not be included.

C)-salary: Real = 30000.00- This is a correct numeric representation of a real number without unnecessary symbols.

D)-salary: Real = 40,000.00- This is also a correct representation and indeed has the highest numeric value among the options provided.

E)-salary: Real = 500 E 02- This is scientific notation, which is also a valid representation of real numbers in UML. The value represented here is 500 * 10^2, which equals 50,000.00.

After examining each option, the correct answer is D. Option D, because the instancefour:Employeehas the highest value properly assigned to asalaryslot according to the standard UML notation. However, there's a point to be clarified: while UML does not specify formatting of numbers with commas for thousands or currency symbols, it does accept scientific notation. So, if we were strictly interpreting the values as real numbers, Option E would represent the highest numerical value. But considering proper UML formatting and assuming the intent is to use standard decimal notation without currency symbols or commas, Option D is the best answer.

In the development of a domain model, the prime responsibility for decision-making should ideally rest with the users, as they are the ones who will be using the system operationally. Users have the most direct and frequent interactions with the system, making them best positioned to provide relevant insights into what the system should do and how it should behave to meet their needs effectively. While other stakeholders such as customers, project managers, and developers play significant roles, the users’ intimate knowledge of the domain processes and their requirements make them key contributors to ensuring that the domain model aligns closely with real-world application and utility.

Abstraction in UML and software modeling often incorporates the technique of information hiding. Information hiding is a principle that supports abstraction by ensuring that unnecessary details about software components are not exposed to other parts of the system. This encapsulation strengthens modularity and keeps various parts of the program independent of one another, which simplifies complexity in large systems. Abstraction and information hiding are closely related; abstraction focuses on the high-level structure of the system, while information hiding protects the internal states and functionality of components, allowing changes without extensive impact on other system parts.
