Which of the following statements are TRUE when discussing self-generated traffic QoS? (Choose two)

A.

In order to mark Layer 2 traffic, sgt-qos will set various ToS bits.

B.

DSCP bits can be set per application, per routing instance.

C.

The DSCP marking stays nc1 for all applications. Only the internal FC is manipulated across different applications.

D.

In order to mark Layer 2 self-generated traffic, network interfaces must be set to dot1Q.

E.

The internal forwarding class for self-generated traffic is set once and applied to the base router and all VPRN instances.

Which priority-mode queue parameter may influence both the profile marking, and scheduling priority of a queue?

A.

PIR

B.

CIR

C.

MBS

D.

burst-limit

For the Inter-AS model A VPRN, which of the following is TRUE when CE2 sends an IP packet to 192.168.1. J?

A.

PE2 pushes one label on the IP packet and label-switches it to ASBR2.

B.

ASBR2 forwards an unlabeled IP packet to ASBR1.

C.

ASBR1 pushes one label on the IP packet and label-switches it to PEL

D.

PE1 pops one label and forwards the IP packet to CE1.

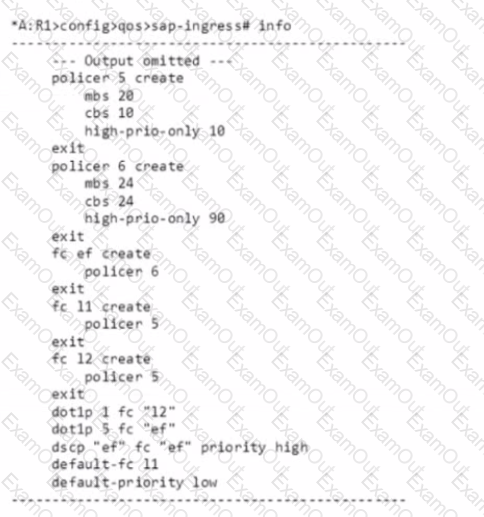

According to the SAP-ingress QoS policy shown, what needs to be the depth of the CIR bucket of policer 5, as a minimum, for forwarded packets to start being marked as out-of-profile?

A.

1,000 tokens

B.

2,000 tokens

C.

10,000 tokens

D.

20,000 tokens

Which of the following are the minimum requirements needed to classify traffic marked with DSCP AF11, AF12, and AF13 into the AF forwarding class and provide fair treatment to the drop precedence settings? (Choose three)

A.

Profile mode queues

B.

Priority mode queues

C.

1 queue

D.

3 queues

E.

3 forwarding classes

F.

1 forwarding class, with 2 subclasses

G.

1 forwarding class, with 3 subclasses

Which of the following statements about standalone pokers and CFHP policers is FALSE?

A.

A standalone policer has no parent arbiter, while a CFHP pohlicer has a parent arbiter.

B.

A standalone policer has a fixed PIR rate, while a CFHP poker's PIR rate can be dynamically adjusted by its parent arbiter.

C.

Both standalone and CFHP policers use the FIR bucket to gain access to their fair share of the available bandwidth.

D.

Both standalone and CFHP policers use a policer output queue to store packets before they are forwarded.

Which of the following QoS functions does the slope-policy perform?

A.

Classification

B.

Marking

C.

Queuing

D.

Congestion management

E.

Scheduling

Which of the following are examples of metrics for QoS?

A.

Signal degradation, attenuation, line loss

B.

Latency, FIFO, WRED

C.

Delay, jitter, packet loss

D.

SNR, queue depth, latency

E.

Attenuation, dispersion, latency

In which policies, on the Alcatel-Lucent 7750 SR. is classification performed? (Choose three)

A.

SAP-ingress policy

B.

SAP-egress policy

C.

IP-criteria policy

D.

Network-queue policy

E.

Slope policy

F.

Network policy

Which of the following are entities of the Alcatel-Lucent 7750 SR on which you can NOT apply a network-queue policy? (Choose three)

A.

Router interfaces

B.

Ingress MDA

C.

Ingress Ethernet network ports

D.

Egress Ethernet network ports

E.

Service SAPs

What is the purpose of the Nokia SR design that includes, for every ingress unicast queue, one hardware queue per destination forwarding complex (FFPC)?

A.

To utilize memory resources efficiently

B.

To avoid Head of Line blocking

C.

To achieve more granularity of QoS control

D.

To make hierarchical scheduling/policing possible

Which of the following are characteristics of DSCP? (Choose two)

A.

DSCP is part of the Layer 3 header.

B.

DSCP is a 6-bit field.

C.

DSCP specifies eight different priorities.

D.

DSCP specifies four precedence levels.

E.

DSCP is part of the Layer 2 header

F.

DSCP specifies 128 different per-hop behaviors.

At which points can traffic be marked or remarked on the Alcatel-Lucent 7750? (Choose two)

A.

SAP-ingress only

B.

SAP-egress only

C.

SAP-ingress and SAP-egress

D.

Network ingress

E.

Network egress

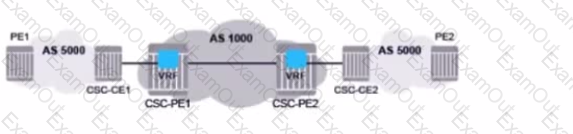

For the Carrier supporting Carrier (CSC) VPRN, which routes are advertised between CSC-PE1 and SCS-PE2?

A.

BGP IPv4 routes for all PE system addresses in AS 5000.

B.

VPN-IPv4 routes for all PE system addresses in AS 5000.

C.

BGP labeled IPv4 routes for all PE system addresses in AS 5000.

D.

LDP labeled routes for all PE system addresses in AS 5000.

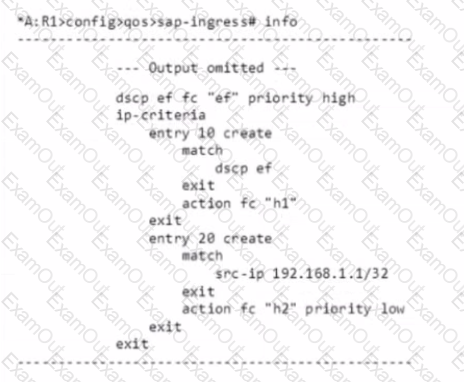

In the image shown above, the SAP-ingress policy is applied properly to a Nokia 7750 SR. A traffic stream is received from an IP address of 192.168.1.1 with DSCP set to EF. Which forwarding class and priority level is used for this traffic stream?

A.

FC H1, high

B.

FC EF, high

C.

FC H2, low

D.

FC EF, low
