To enable the LDP-over-RSVP feature, which of the following configurations is NOT required on an Alcatel-Lucent 7750 SR?

A.

Enable the Idp-over-rsvp feature on all PEs and ABRs along the LSP tunnel.

B.

Configure Link-LDP sessions between each PE-ABR and ABR-ABR pair.

C.

Configure RSVP-TE LSPs in each area between each PE-ABR and ABR-ABR pair.

D.

Configure T-LDP sessions with the tunneling option.

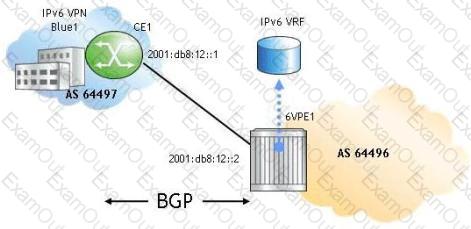

Click on the exhibit button below.

Which of the following is the correct configuration on 6VPE1 for a BGP peering session with CE1?

A.

PE1>config>service>vpm>bgp#info

---------------------------------------------------

group "toCE1"

family ipv6

export "mbgp-bgp"

neighbor 2001:db8:12::1

peer-as 64497

exit

exit

B.

PE1>config>service>vpm>bgp#info

---------------------------------------------------

group "toCE1"

family ipv6

export "mbgp-bgp"

neighbor 2001:db8:12:1

peer-as 64496

exit

exit

C.

PE1>config>router>bgp#info

---------------------------------------------------

group "toCEl"

family ipv6

export "mbgp-bgp"

neighbor 2001 db8:12::1

peer-as 64497

exit

exit

D.

PE1>config>router>bgp#info

---------------------------------------------------

group "toCE1"

family ipv6

export "mbgp-bgp"

neighbor 2001:db8:12::1

peer-as 64496

exit

exit

Click on the exhibit.

If the primary path goes down, which secondary LSP path will the head-end router select first?

A.

Secondary_Path-1

B.

Secondary_Path-2

C.

Secondary_Path-3

D.

Secondary_Path-4

A technician sitting in a Network Operations Center would like to set up a remote mirror on an Alcatel-Lucent 7750 Service Router to examine some data traffic ingressing a port at a remote site. Which of the following are required? (Choose 2)

A.

A mirror destination on the local and remote Alcatel-Lucent Service Router,

B.

A mirror source on the local and remote Alcatel-Lucent Service Router.

C.

A mirror source with the remote source specified on the remote Alcatel-Lucent Service Router.

D.

A mirror source with the remote source specified on the local Alcatel-Lucent Service Router.

E.

An SDP between the local and remote Alcatel-Lucent Service Routers.

How does a DMP inform the downstream routers that it has merged detour tunnels?

A.

The DMP sends the DMP_Object in each detour's PATH messages.

B.

The DMP summarizes PATH messages, giving each detour its own MSGJD.

C.

The DMP identifies itself as the previous hop in each detour's PATH message.

D.

The DMP sends a single PATH message containing the merged DETOUR_Objects.

Which of the following commands is used to configure a new MPLS SDP?

A.

configure router sdp sdp-id

B.

configure service sdp sdp-id create

C.

configure service mpls sdp sdp-id create

D.

configure service gre sdp sdp-id create

E.

configure service sdp sdp-id mpls create

Fragmentation is supported on a Layer 2 service

A.

TRUE

B.

FALSE

When configuring distributed services across a network, it is considered best practice to configure which of the following parameters as globally significant? (Choose 2)

A.

SDP ID

B.

Service ID

C.

Customer ID

D.

SAP ID

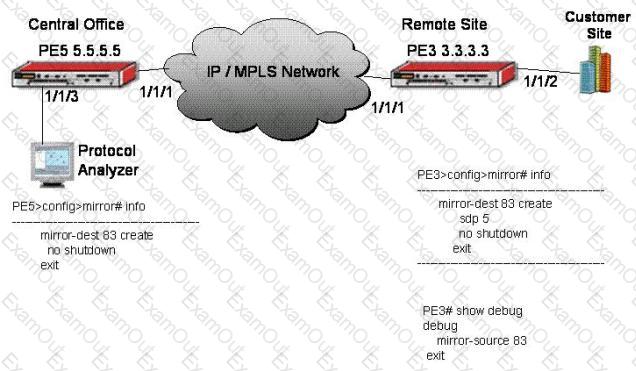

Click on the exhibit button below.

Assuming the customer only needs to monitor traffic from PE3 to the customer site, what two items are missing in the configuration of PE5, the Alcatel-Lucent 7750 Service Router in the Head Office? (Assume that the IP/MPLS network structure between the local and remote PEs is in place.)

A.

The mirror destination configuration on PE5 is missing the "remote-source" command.

B.

There needs to be a mirror source configuration on PE5 with the "remote-source" command.

C.

This is not possible since the protocol analyzer is located at the Central Office. It needs to be at the customer site.

D.

There needs to be a configuration command to put sap 1/1/3 on the mirror destination of PE5.

E.

There needs to be a configuration command to put sap 1/1/3 on the mirror source of PE5

FRF.5 is a standard that describes which of the following requirements?

A.

ATM to Frame Relay translation.

B.

Frame Relay to Ethernet translation.

C.

ATM tunneling over a Frame Relay core network.

D.

Frame Relay tunneling over an ATM core network.

E.

Frame Relay tunneling over an MPLS/IP core network

Which of the following statements is TRUE concerning the advertisement of VRF routes on a 7750 SR?

A.

By default, a 7750 SR does not advertise all routes in the VRF to a CE router.

B.

The default 7750 SR behavior describes all routes in a VRF that are advertised to other PE routers.

C.

By default, a 7750 SR does not advertise all routes in the VRF to other PE routers.

D.

By default, a 7750 SR advertises all routes in the VRF to a CE router.

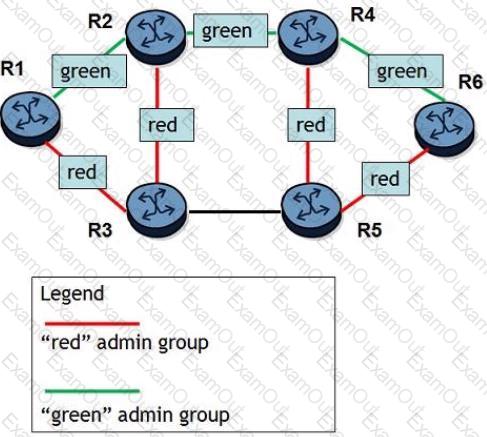

Click on the exhibit.

All links are of equal cost. A CSPF-enabled LSP is configured on R1 to R6. Its fully loose primary path is configured with an "include green" statement and the fully loose secondary path is configured with an "include red" statement.

Which paths will be taken by this LSP?

A.

No primary path is established. The secondary path will take R1-R2-R4-R6.

B.

The primary path will take R1-R3-R5-R6. The secondary path will take R1-R2-R4-R6.

C.

The primary path will take R1-R2-R4-R6. No secondary path is established.

D.

The primary path will take R1-R2-R4-R6. The secondary path will take R1-R3-R5-R6.

What can the sdp-ping command be used for? (Choose 2)

A.

To test the ability of reaching the far-end IP address of an SDP within the SDP encapsulation

B.

To determine the path MTU to the far-end IP address over an SDP.

C.

To determine the service MTU of the service using an SDP.

D.

To determine the presence of hosts using the service

On Alcatel-Lucent 7750 SR OS, routing information between the CE and PE can be exchanged using the following methods.

A.

ISIS, RIP, OSPF, static routes

B.

BGP, ISIS, RIP, OSPF, static routes

C.

BGP, RIP, OSPF, static routes, OSPF3

D.

ISIS, RIP, OSPF, static routes, OSPF3

Which of the following regarding label population is TRUE?

A.

Selected labels from the FIB are populated to the LFIB.

B.

Selected labels from the RIB are populated to the FIB.

C.

Selected labels from the LIB are populated to the FIB.

D.

Selected labels from the LIB are populated to the LFIB.
