When using an egress port scheduler, which scheduling loop priority are orphaned queues serviced on?

A.

1st

B.

8th

C.

9th

D.

17th

A SAP-ingress policy is configured so that ping traffic is classified as FC L1 and mapped to queue 3; however, all traffic is placed in queue 1. What is the most probable reason for this?

A.

The default forwarding class for ICMP traffic is BE and cannot be changed.

B.

The SAP has been shut down.

C.

Queue 3 has no PIR or CIR configured, and thus cannot hold any packets.

D.

The SAP-ingress policy has not been applied to the SAP.

Which ports on the same MDA share a buffer pool in a Nokia 7750 SR?

A.

Access ingress ports

B.

Access egress ports

C.

Network ingress ports

D.

Network egress ports

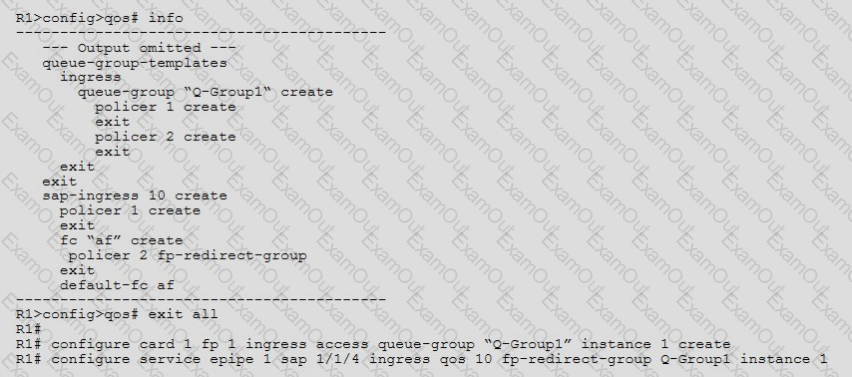

According to the SAP-egress policy configured and applied, which queue will forwarding class AF’s traffic use?

A.

Policer 2 on the queue-group Q-Group1 instance 1.

B.

Policer 1 on the queue-group Q-Group1 instance 1.

C.

The default policer 1.

D.

AF traffic is dropped.

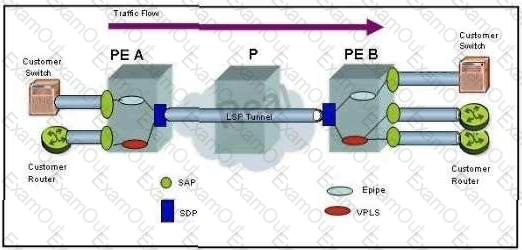

Click the exhibit button below. The service provider has both a VLL (epipe) service and a VPLS, as shown in the diagram below.

At router PE B, traffic arriving from both services will have the same network-queue policy applied.

A.

TRUE

B.

FALSE

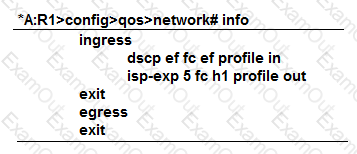

In the image shown above, the network QoS policy is applied properly to a Nokia 7750 SR. An MPLS packet with dot1p=1, EXP=4, and DSCP=AF is received. Which forwarding class and profile is assigned to this packet?

A.

EF, in

B.

H1, out

C.

BE, out

D.

L1, in

Where is a QoS network queue policy applied?

A.

Ingress SAP or egress SAP

B.

Egress port or ingress MDA

C.

Egress MDA or ingress network interface

D.

Egress network interface or ingress MDA

Real-time rate limiting on the service ingress is a feature that performs_____________. Traffic above the defined PIR is ______________.

A.

Policing, expedited

B.

Metering, marked discard eligible

C.

Marking, marked discard eligible

D.

Policing, discarded

E.

Shaping, discarded

How many bits does DSCP use to provide QoS marking options?

A.

8

B.

16

C.

6

D.

4

E.

3

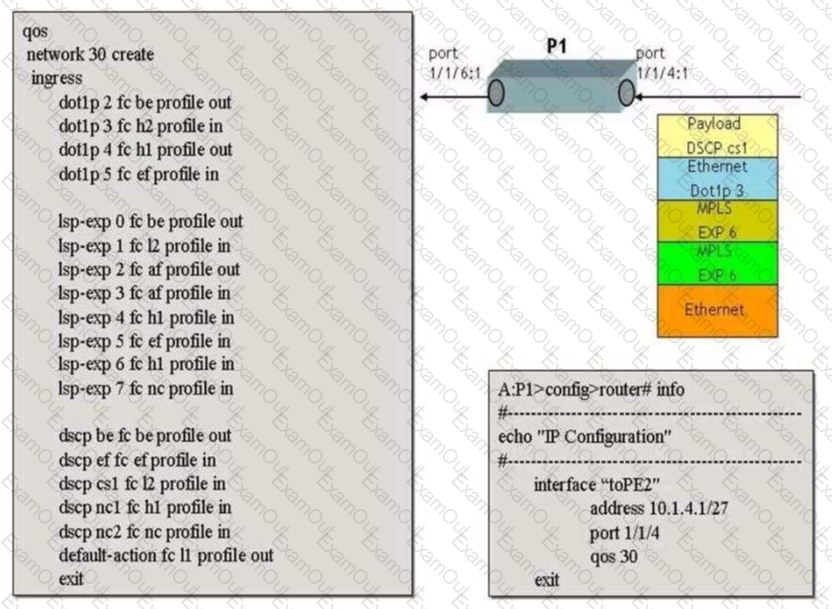

Click the exhibit button below.

Based on the configuration of the network policy (below), what will be the forwarding class associated with a MPLS encapsulated customer packet that arrives on a dotlQ encapsulated network port 1/1/4:1 on P1 with the following characteristics:

EXP value = 6

DSCP value = cs1

Dot1pvalue = 3

A.

EF

B.

H1

C.

L1

D.

H2

E.

L2
