Which of the following about BGP Site of Origin (SoO) is FALSE?

A.

The SoO attribute can be used to uniquely identify the site from which a PE learns routes.

B.

Before a PE redistributes a VPN-IPv4 route, it can assign an SoO attribute to the route.

C.

The SoO attribute can be used to prevent loops from a single site with multiple CE-PE connections.

D.

The SoO attribute can be used as matching criteria when redistributing routes from the CE to the PE.

A CE hub and spoke VPRN has two spoke sites; which of the following would be the best option to implement this topology at the hub site PE?

A.

One VPRN, one route distinguisher, and two route targets

B.

Two VPRNs, one route distinguisher, and three route targets

C.

Two VPRNs, two route distinguishers, and three route targets

D.

One VPRN, two route distinguishers, and three route targets

When configuring a VPRN service on an Nokia 7750 SR, where should the following policy be applied?

A.

On the CE under the RIP context

B.

On the PE under the BGP context

C.

On the PE under the RIP context

D.

On the CE under the BGP context

E.

This policy is not required

Which of the following is not an available option for Route Distinguisher assignment?

A.

One Route Distinguisher per VRF route

B.

One Route Distinguisher per VRF

C.

One Route Distinguisher per VRF per site

D.

One Route Distinguisher per VPN

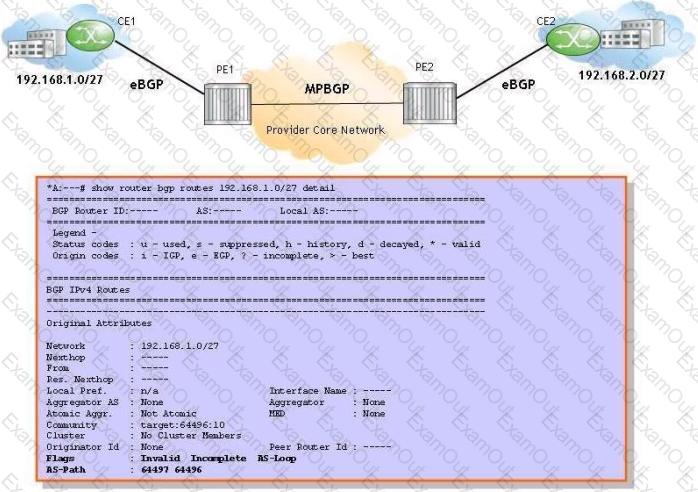

Click the exhibit.

According to the display, a BGP loop is detected for route 192.168.1.0/27. On which router is this command executed?

A.

CE1

B.

CE2

C.

PE1

D.

PE2

In a provider core consisting of 6 PE and 4 P routers, what is the minimum number of BGP sessions required in total for correct operation of VPRN services?

A.

0

B.

5

C.

10

D.

15

E.

45

Which command may be used on an Nokia 7750 SR to verify the number of VRF routes allowed, based on the maximum routes value configured in the service instance?

A.

Show service id base

B.

Show router bgp routes

C.

Show service id maximum-routes

D.

Show router status

Where are VPN-IPv4 addresses used in a VPRN?

A.

In the routing updates exchanged from CE to PE

B.

In the routing updates exchanged from PE to PE

C.

In the routing updates exchanged from P to PE

D.

In customer packets as they traverse the provider core

E.

In all route tables of the VPRN control plane

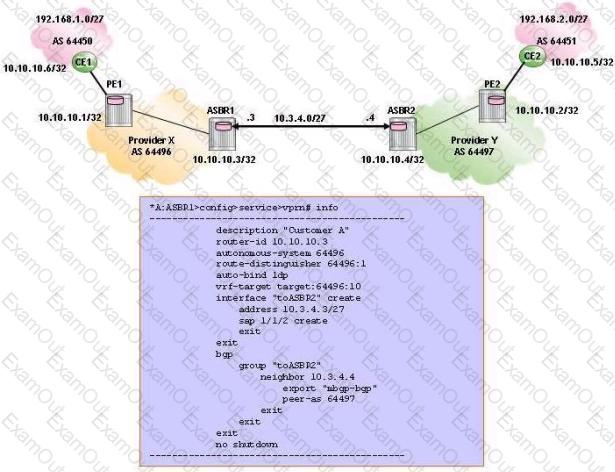

Click the exhibit.

Which of the following about the inter-AS model A VPRN configuration on ASBR1 is TRUE?

A.

The route-distinguisher value must be 64496:10 for successful VPRN operation.

B.

An export policy is not required for successful VPRN operation.

C.

The "family vpn-ipv4" command is required under the BGP configuration for successful VPRN operation.

D.

The neighbor address should be 10.10.10.4 under the BGP configuration for successful VPRN operation.

E.

The VPRN configuration on ASBR1 is correct.

Which of the following VPRN label allocation methods are supported by the Nokia 7750 SR?

A.

One label per VRF per route

B.

One label per VRF per next-hop

C.

One label per VRF

D.

All of the above

E.

A and C

F.

B and C
