Which of the following about the configuration of BGP Site of Origin (SoO) is TRUE?

A.

Each PE must implement a policy to apply a unique SoO attribute to the set of routes received from each customer site.

B.

A different BGP extended community is used on each PE that connects to a single site.

C.

An import policy on the PE rejects a route if the attached SoO matches the configured value.

D.

Import and export policies are applied on the PEs under the global BGP context.

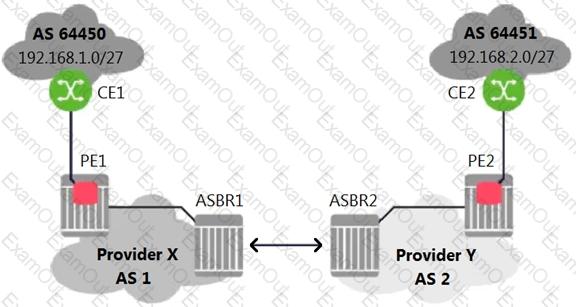

For the inter-AS model B VPRN, which of the following protocols is used to advertise routes between ASBR1 and ASBR2?

A.

iBGP

B.

eBGP

C.

MP-iBGP

D.

MP-eBGP

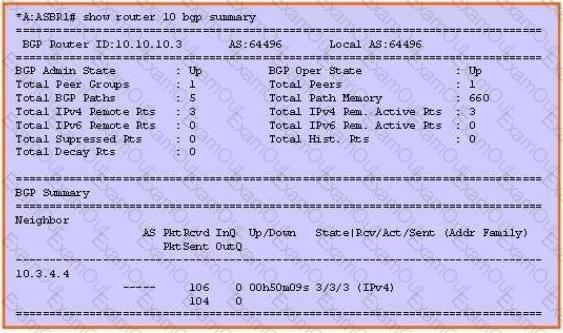

Click the exhibit.

The displayed output is from an ASBR supporting an inter-AS model A VPRN. Which of the following statements about this output is TRUE?

A.

The neighbor shown is an ASBR router.

B.

The address family between the peers should be VPN-IPv4 instead of IPv4.

C.

The neighbor address cannot be the interface address 10.3.4.4.

D.

The omitted AS number under "BGP summary" must be equal to 64496.

If Route Reflector 1 (RR1) is used for Internet routes, and Route Reflector 2 (RR2) is used for VPN routes, which of the following is TRUE?

A.

BGP sessions established between RR2 and the PEs support IPv4 and VPN-IPv4 address families.

B.

BGP sessions established between RR1 and the PEs support the IPv4 address family only.

C.

BGP sessions established between RR1 and the PEs support IPv4 and VPN-IPv4 address families.

D.

BGP sessions established between RR2 and the PEs support the IPv4 address family only.

For the data packets in a VPRN, how is the inner label in an MPLS packet signaled?

A.

Signaled via MP-BGP and used to identify the egress PE.

B.

Signaled via T-LDP and used to identify the customer VPRN.

C.

Signaled via MP-BGP and used to identify the customer VPRN.

D.

Signaled via RSVP and LDP and used to identify the egress PE.

E.

Signaled via RSVP and LDP and used to identify the customer VPRN.

When using the AS-override method to prevent BGP loops in VPRNs, where should the "as-override" CLI command be configured?

A.

On the PE facing the CE neighbor

B.

On the CE facing the PE neighbor

C.

On the P facing the PE neighbor

D.

On the PE facing the PE neighbor

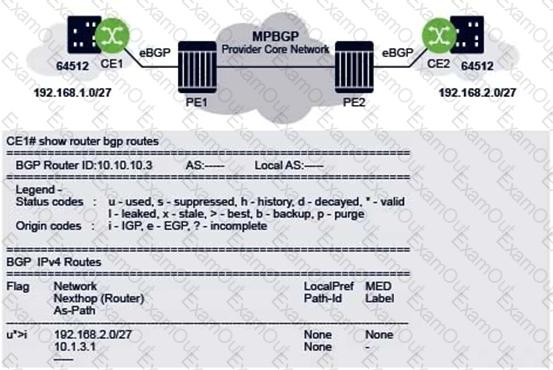

The CLI command “remove-private” is configured on PE1 to eliminate BGP loops in the VPRN.

For the displayed route, what is the value of the AS-Path field?

A.

64496 64512

B.

64512

C.

64496

D.

64512 64496

For a Carrier Supporting Carrier (CSC) VPRN where the customer carrier is a BGP/MPLS VPN service provider, which of the following is TRUE?

A.

The customer carrier network can be a pure IP network.

B.

The customer carrier can provide Layer 2 and Layer 3 services to its end-customers.

C.

If the customer carrier offers VPRN services, PE routers residing in different customer carrier sites must run iBGP between them to exchange IPv4 routes.

D.

If the customer carrier offers VPRN services, the network provider stores the end-customer routes in its CSC VPRN.

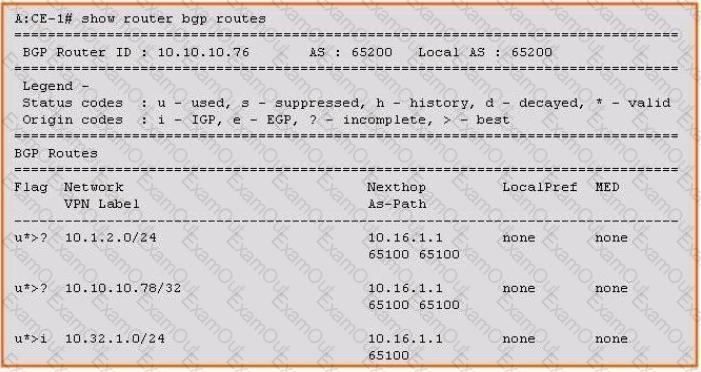

Click the exhibit.

Assuming that the as-override command is used, what is the most likely location of prefix 10.1.2.0/24?

A.

The prefix is located in an Autonomous System directly connected to this router.

B.

There is a single Autonomous System between the local AS and the AS that originated the prefix.

C.

There are two Autonomous Systems between the local AS and the AS that originated the prefix.

D.

The prefix is located in Autonomous System 65100.

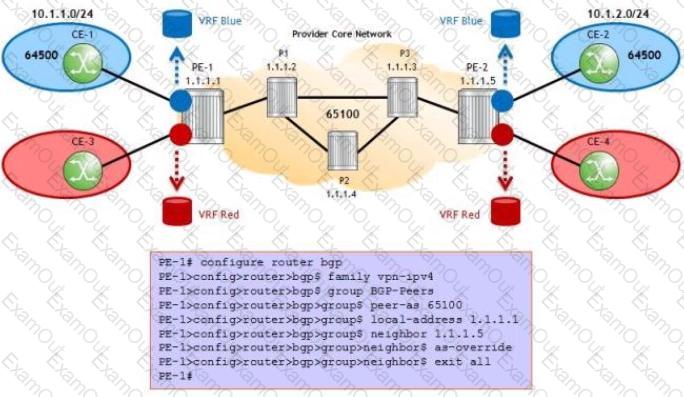

Click the exhibit.

The AS-override method is used to prevent BGP loops in the blue customer VPRN. Which statement about the configuration is TRUE?

A.

the configuration is complete and correct.

B.

'as-override' should be configured under the BGP context.

C.

'as-override' should be configured under the group context.

D.

'as-override' should not be part of this configuration.
