VPN-IPv4 addressing is made unique by defining an address structure consisting of:

A.

A 64-bit Route Target followed by a 32-bit IPv4 address.

B.

A 64-bit Route Distinguisher followed by a 32-bit IPv4 address.

C.

A 32-bit Route Distinguisher followed by a 32-bit IPv4 address.

D.

A 32-bit Route Target followed by a 32-bit IPv4 address.

Which of the following is NOT a viable option when implementing inter-AS VPRN?

A.

An MP-eBGP session between route reflectors in different autonomous systems to exchange IPv4 routes.

B.

An MP-eBGP session between ASBRs to exchange labeled IPv4 routes.

C.

An eBGP session between ASBRs to exchange IPv4 routes.

D.

An MP-eBGP session between ASBRs to exchange VPN-IPv4 routes.

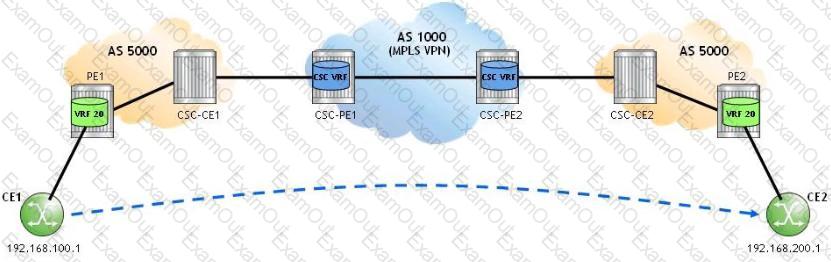

Click the exhibit.

A Carrier Supporting Carrier (CSC) VPRN is configured for a customer carrier who is a BGP/MPLS service provider. If CE1 sends an IP packet to 192.168.200.1, which of the following is FALSE?

A.

PE1 pushes a VPN label, a BGP label, and an LDP transport label on the IP packet.

B.

CSC-CE1 pops the LDP label and swaps the BGP label.

C.

CSC-PE1 pops the BGP label, swaps the VPN label, and pushes an LDP transport label.

D.

CSC-PE2 pops the LDP and VPN labels and pushes a BGP label.

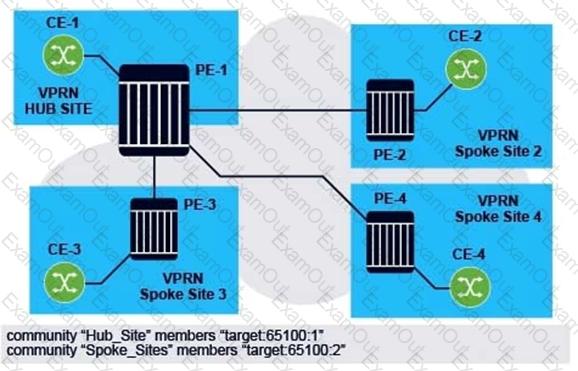

Community lists are configured for the PE hub and spoke VPRN.

Which communities should be imported by the VPRN service on PE1?

A.

“Spoke_Sites”

B.

“Hub_Site”

C.

“Spoke_Sites” and “Hub_Site”

D.

No communities should be imported.

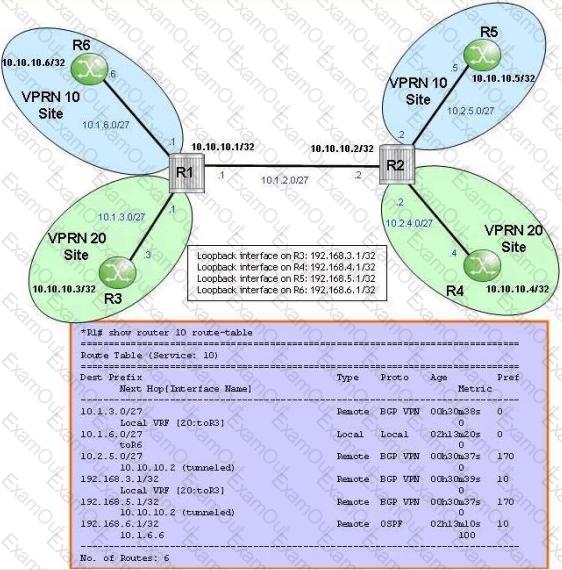

Click the exhibit.

Which VPRN type produces the output shown on router R1?

A.

A full mesh VPRN

B.

APE hub and spoke VPRN

C.

An extranet VPRN

D.

ACE hub and spoke VPRN

To enable full spoke-to-spoke connectivity for the CE hub and spoke VPRN, on which router(s) should the displayed static-route be configured?

A.

PE1

B.

CE1

C.

PE2 and PE3

D.

CE2 and CE3

Which of the following about inter-AS model C VPRN is FALSE?

A.

ASBRs exchange labeled IPv4 routes for the system addresses of PE routers.

B.

It requires a route reflector to be configured in each AS for successful operation.

C.

VPN-IPv4 routes are neither maintained nor distributed by the ASBRs.

D.

PE routers in different ASes exchange VPN-IPv4 routes directly between each other using MP-eBGP.

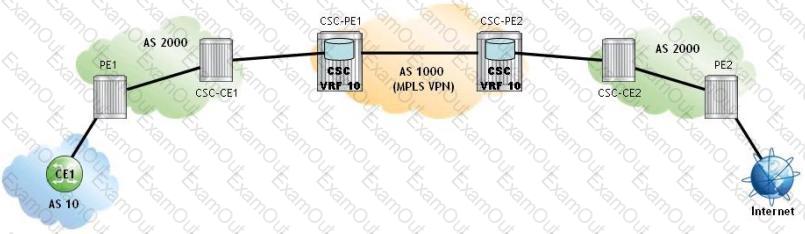

Click the exhibit.

A Carrier Supporting Carrier (CSC) VPRN is configured for a customer carrier who is an Internet Service Provider (ISP). Which of the following about route distribution is FALSE?

A.

The VRF 10 on CSC-PE1 includes PE1 and PE2's system addresses.

B.

The global routing table of PE1 includes PE2's system address.

C.

The VRF 10 on CSC-PE2 includes CEI'S address.

D.

The global routing table of PE2 includes CE1's address.

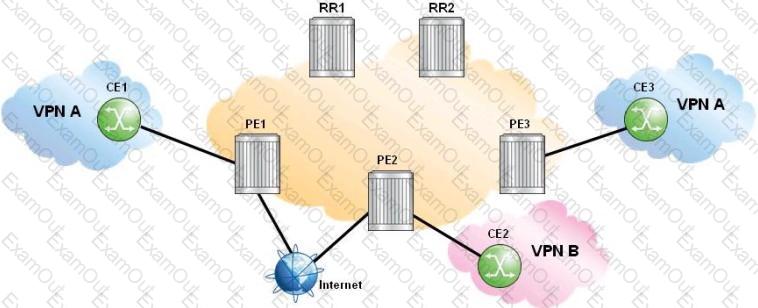

Click the exhibit.

All sites in the displayed network require Internet access. Route reflector 1(RR1) is used for Internet routes only and route reflector 2(RR2) is used for VPN routes only. Which of the following is FALSE?

A.

BGP sessions between RR1 and PE routers support only the IPv4 address family.

B.

BGP sessions between RR2 and PE routers support only the VPN-IPv4 address family.

C.

RR2 establishes BGP sessions with PEL PE2 and PE3.

D.

RR1 establishes BGP sessions only with PE1 and PE2.

Which of the following is NOT a requirement for eiBGP load balancing to be effective?

A.

The route distinguisher of the VPRN on the local PE must be different from the route distinguisher of the remote PEs.

B.

ecmp must be configured within the VPRN instance.

C.

eibgp-loadbalance must be configured within the VPRN instance.

D.

ibgp-multipath must be configured within the VPRN instance.
