An IPv4 MPLS provider network is being configured for 6VPE.BGP is being used for the PE-CE protocol to exchange IPv6 routes. Which of the following is FALSE?

A.

MP-BGP in the provider network needs to support the VPN-IPv6 address family.

B.

PE routers must be configured to run MP-BGP.

C.

PE-to-CE BGP sessions need to be configured to support IPv6.

D.

The provider network core must be configured to support IPv6.

Which of the following SAPs can be used so that only untagged frames and frames with a VLAN tag of 0 are accepted?

A.

sap 1/1/1:0

B.

requires both sap 1/1/1:0 and sap 1/1/1:*

C.

sap 1/1/1:0-4096

D.

sap 1/1/1:*

Click the exhibit button.

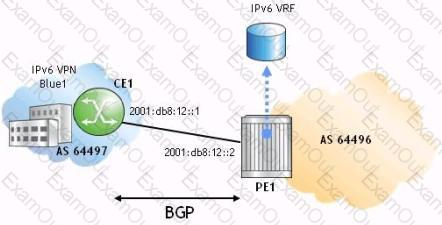

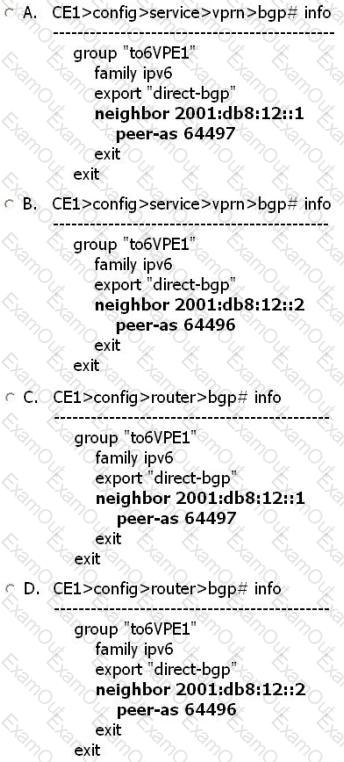

Part of a 6VPE deployment is shown. Which of the following is the correct configuration and context on router CE1 for a BGP peering session with 6VPE1?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Which of the following about SAPs is FALSE?

A.

A SAP can be associated with more than one service.

B.

A SAP is the subscriber's point of entry to the service network.

C.

A SAP is created by specifying a physical port and an encapsulation type.

D.

A SAP can only be created on a port configured as "access".

In a Layer 2 encapsulation using T-LDP, what does the first (top) label represent?

A.

Tunnel Label

B.

VC Label

C.

Operational Control Word

D.

UNI

E.

NNI

Click the exhibit.

Which of the following statements about the E-pipe service is TRUE?

A.

The service is a local service.

B.

The service requires a second spoke SDP on this router.

C.

The service's VC ID is 44.

D.

The service will accept VLAN tag 100.

On an Alcatel-Lucent 7750 SR, what is the recommended approach for making sure that MTUs between a VPLS and its spoke IES termination match?

A.

Set the service MTU of the VPLS to match the IES MTU.

B.

Set the ip-mtu of the IES to match the service MTU of the VPLS.

C.

Set the SDP MTU of the IES to match the SDP MTU of the VPLS.

D.

Set the MTU of the IES's network port to match the service MTU of the VPLS.

How many service labels must be signaled to bring up a fully-meshed VPLS among three PE routers?

A.

1

B.

3

C.

6

D.

12

Which of the following about the Isp-ping command on the Alcatel-Lucent 7750 SR is FALSE?

A.

An echo request is sent based on the LSP's label stack.

B.

Echo reply packets may not take the same path as the LSP.

C.

The IP destination address is used to initiate echo requests,

D.

The test fails if the LSP is not operationally up.

Click the exhibit.

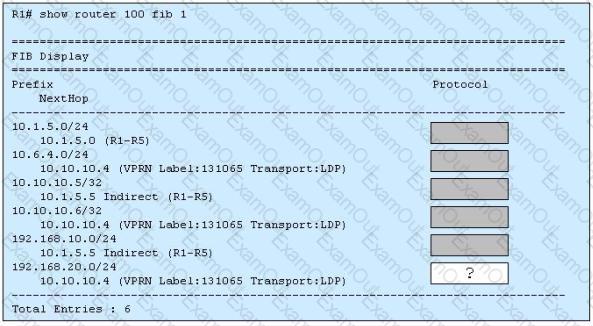

The output is from PE router R1about VPRN service 100.From which protocol did router R1learn the prefix 192.168.20.0/24?

A.

LDP

B.

BGP

C.

MP-BGP

D.

MPLS
