When using MP-BGP for an IPv4 VPRN service, what address family needs to be used for a PE-CE BGP session?

A.

The VPN-IPv4 address family.

B.

The IPv4 address family.

C.

Either IPv4 or VPN-IPv4 address families can be configured.

D.

The same address family must be used for the provider network and the PE-CE.

Which of the following about IES is FALSE?

A.

An IES provides a Layer 3 interface to a customer.

B.

A virtual routing/forwarding table is created per IES service.

C.

An IES supports QoS.

D.

An IES interface's IP address, if bound to a port, will appear in the routing table.

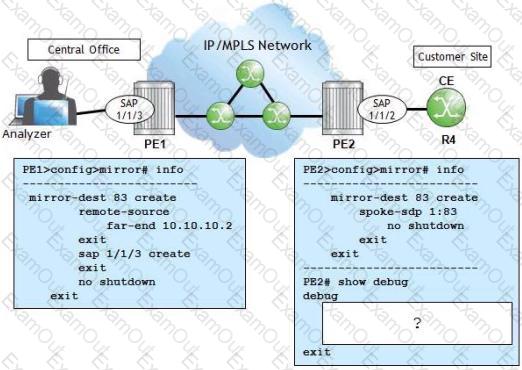

Click the exhibit.

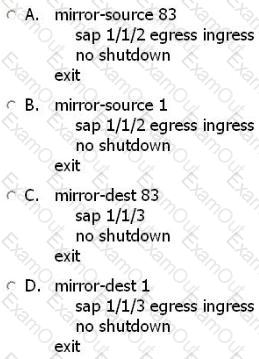

PE1 and PE2 are Alcatel-Lucent 7750 SRs.Which of the following is the missing configuration required on PE2 to complete the mirror?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

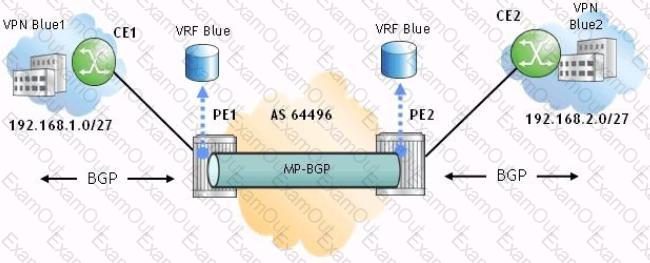

Click the exhibit.

Assuming CE1 exports its system address using BGP, is a routing policy required on PE1 to advertise CE1's system address to PE2?

A.

Yes, A routing policy is required to advertise routes between PE routers in a VPRN regardless of the CE-PE routing.

B.

Yes, A routing policy is required in this case because BGP is used as the PE-CE routing protocol.

C.

No, a routing policy is not required. By default, the Alcatel-Lucent 7750 SR will advertise all VPRN routes between PE routers.

D.

No, a routing policy is not required on PE1, but an import policy is required on PE2.

The SAP 1/1/1:2.3 receives an Ethernet frame with outer VLAN tag 2 and inner VLAN tag 5. Which of the following is TRUE?

A.

The matching outer tag is removed, and the frame is forwarded.

B.

The inner tag is removed, and the frame is forwarded.

C.

The inner tag is changed to match the SAP, and the frame is forwarded.

D.

The frame is dropped.

Which of the following about the Alcatel-Lucent 7750 SR svc-ping, when used in-band, is FALSE?

A.

It will show the hops taken between service endpoints.

B.

It will test the delay across the service.

C.

It will test the SDPs of a service in both directions.

D.

It will test the round-trip connectivity of the service.

A customer has sites on three different Alcatel-Lucent 7750 SRs. The customer requires a fully-meshed VPLS. Which of the following is TRUE?

A.

Each router requires 1 SDP.

B.

Each router requires 2 SDPs.

C.

Each router requires 3 SDPs.

D.

Each router requires 6 SDPs.

Which of the following about VPRN VRF tables is FALSE?

A.

VRF information is advertised between PEs using MP-BGP.

B.

VRF tables are used to forward traffic to CEs.

C.

P routers use VRF tables to maintain customer-specific information.

D.

VRF tables provide isolation between customers.

Which of the following about VPRN labels is FALSE?

A.

The outer label allows traffic to transit across the MPLS network.

B.

The inner label identifies the VPRN service.

C.

MP-BGP is used to signal VPRN labels.

D.

The VPRN service label contains the customer's IP address.

Which of the following about VPRN VRF tables is FALSE?

A.

Each VRF table contains routes for a single VPRN.

B.

Route targets are used to determine if a prefix belongs to a VRF.

C.

Routes in the VRF table are advertised to the core routers.

D.

VPN labels identify which VRF table should be used for a packet.
