Why must the MTU be changed when configuring an IES spoke termination to a VPLS?

A.

The default service MTU on a VPLS service is 1514 bytes.

B.

The default IP MTU of an IES is set based on the network port MTU.

C.

During VC label signaling, the VC MTU is verified and must match.

D.

All of the above.

A service has a null encapsulated SAP and a vc-type vlan' SDP. What happens when the SAP receives an untagged Ethernet frame?

A.

The frame is dropped.

B.

The service ID is added as the provider VLAN tag.

C.

A VLAN tag of 0 is added as the provider VLAN tag.

D.

The frame is forwarded with no provider VLAN tag.

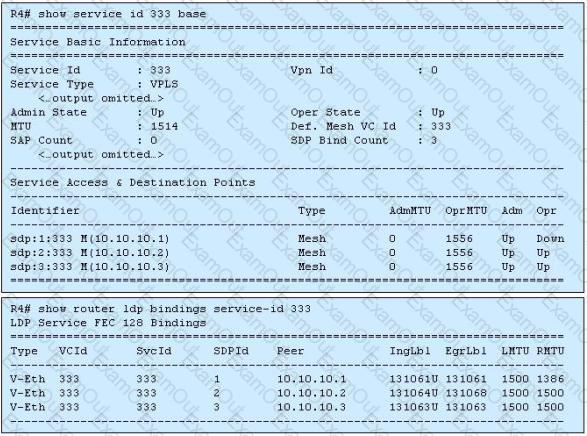

Click the exhibit.

Both clips of output are from router R4. The show service command indicates that an SDP is down. What might be the cause?

A.

The mesh SDP on router R4 has been shutdown.

B.

The mesh SDP on 10.10.10.1 has been shutdown.

C.

The service MTU on 10.10.10.1 has been set to a different value.

D.

The IngLbl and EgrLbl that router R4 has for 10.10.10.1 are identical.

Which protocol is used to signal the inner label for a L2-VPN service?

A.

RSVP

B.

IPCP

C.

TLDP

D.

PPP

E.

Either RSVP or LDP

F.

M-BGP

Consider an E-pipe service configured with SAP 1/1/1:5 and SAP 1/1/1:6. If the SAP 1/1/1:5accepts an ingress frame, which of the following is TRUE?

A.

The frame egresses from 1/1/1:6 with no VLAN tag.

B.

The frame egresses from 1/1/1:6 with VLAN tag 5.

C.

The frame egresses from 1/1/1:6 with VLAN tag 6.

D.

The frame egresses from 1/1/1:6 with an inner VLAN tag of 5 and an outer VLAN tag of 6.

An E-pipe is configured with a service MTU of 5000.What value will be derived for the VC-MTU?

A.

4078

B.

4986

C.

5014

D.

5022

An ES service can have both MAC and IP filters applied to it.

A.

TRUE

B.

FALSE

Which of the following represents a SAP on a physical port configured with Q-in-Q encapsulation?

A.

sap 1/1/1

B.

sap 1/1/1:5

C.

sap 1/1/1:5:5

D.

sap 1/1/1:10.100

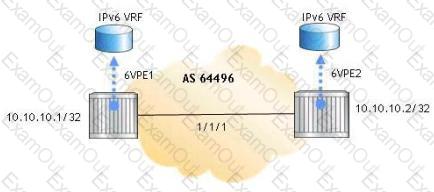

Click on the exhibit button below.

Which of the following is the correct configuration for an MP-BGP session on 6VPE1?

A.

PE1>config>router>bgp#info

--------------------------------------------

group "multi-bgp"

family vpn-ipv6

neighbor 10.10.10.2/32

local-address 10.10.10.1

peer-as 64496

exit

exit

B.

PE1>config>router>bgp#info

-------------------------------------------

group "multi-bgp"

family ipv6 vpn-ipv4

neighbor 10.10.10.2

local-address 10.10.10.1

peer-as 64496

exit

exit

C.

PE1>config>router>bgp#info

--------------------------------------------

group "multi-bgp"

family vpn-ipv6

neighbor 10.10.10 2

local-address 10.10.10.1

peer-as 64496

exit

exit

D.

PE1>config>router>bgp#info

--------------------------------------------

group "multi-bgp"

family ipv6 vpn-ipv6

neighbor 10.10.10.2/32

local-address 10.10.10.1

peer-as 64496

exit

exit

On Alcatel-Lucent 7750 SR OS, routing information between the CE and PE can be exchanged using the following methods.

A.

ISIS, RIP, OSPF, static routes

B.

BGP, ISIS, RIP, OSPF, static routes

C.

BGP, RIP, OSPF, static routes, OSPF3

D.

ISIS, RIP, OSPF, static routes, OSPF3
