Which of the following best describes an SDP?

A.

Acts as a logical way to direct traffic from one SAP to another on a single node.

B.

Acts as a logical way to direct traffic from one service to another on a single node.

C.

Acts as a logical way to direct traffic from one access port to another.

D.

Acts as a logical way to direct traffic from services on one router to services on another.

What must be configured before a SAP can be created on an E-pipe?

A.

The Ethernet port must be set to network mode, and the service must have a spoke SDP.

B.

The Ethernet port must be set to network mode.

C.

The Ethernet port must be set to access mode.

D.

The Ethernet port must be set to access mode, and the service must have a spoke SDP.

Which of the following statements best describes the main difference between an Ipipe and an Epipe interworking?

A.

An Ipipe is a point-to-point Layer 2 VPN capable of only carrying Ethernet payloads. An Epipe interworking refers to the transportation of ATM/FR traffic over an Epipe.

B.

An Ipipe is used for performing Ethernet interworking with ATM/FR/PPP using bridged-PDUs. An Epipe interworking is used for performing Ethernet interworking with ATM/FR/PPP using routed-PDUs.

C.

An Ipipe is used for performing Ethernet interworking with ATM/FR/PPP using routed-PDUs. An Epipe interworking is used for performing Ethernet interworking with ATM/FR/PPP using bridged-PDUs.

D.

None of the above.

Which of the following about SDPs is FALSE?

A.

All services bound to the same SDP must be the same service type.

B.

All services bound to the same SDP will have the same transport encapsulation.

C.

Any operation on an SDP will affect all services bound to that SDP.

D.

An SDP is used to direct traffic for a service from one router to another.

Which of the following about an E-pipe terminating on a VPLS is FALSE?

A.

The VC-IDs used between the E-pipe and VPLS must match.

B.

The E-pipe must maintain a MAC FDB in order to connect to the VPLS.

C.

The service ID of the E-pipe can be different from that of the VPLS.

D.

The service MTU of the VPLS and E-pipe must match.

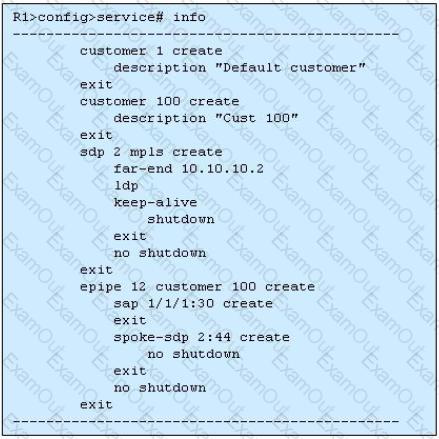

Click the exhibit.

Based on the output shown, what is the value of the service's VC ID?

A.

2

B.

12

C.

30

D.

44

E.

100

F.

The VC ID Cannot be determined from the output

Which of the following about the components of a service on the Alcatel-Lucent 7750 SR is FALSE?

A.

An SDP can be used by more than one service and customer.

B.

A SAP can only be created on an access port.

C.

A customer can have multiple services associated to it.

D.

A customer is only created on one site of a distributed service.

Consider a network that has four PE routers. If a customer wants a VPLS that has sites on only three of the PEs, how many mesh SDPs need to be configured for this service?

A.

3

B.

4

C.

6

D.

12

Which one of the following items CANNOT be used as a mirror source on an Alcatel-Lucent 7750 SR?

A.

IP filter

B.

MAC filter

C.

Egress label

D.

Ingress label

Which of the following about route distinguishes on the Alcatel-Lucent 7750 SR is TRUE?

A.

Route distinguishes are used to ensure that VPRN IP prefixes are globally unique.

B.

Route distinguishes are appended to IPv4 prefixes to form IPv6 prefixes.

C.

Route distinguishes are used to determine which routes a VPRN should import.

D.

CE routes use a route distinguisher to indicate which VPRN they are associated to.
