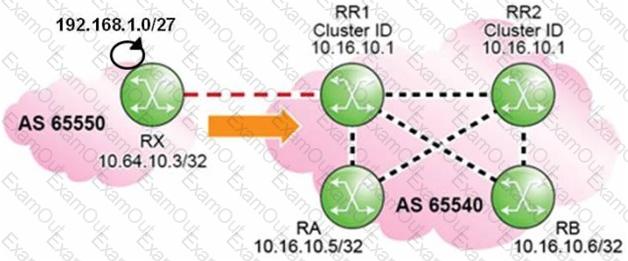

Click the exhibit.

Routers RR1 and RR2 are route reflectors with the same Cluster-ID. When the update for prefix

192.168.1.0/27 is received at router RA2, what are the Originator_ID and Cluster_List attributes?

A.

Originator_ID of RR1; and Cluster_List of 10.16.10.1.

B.

Originator_ID of RX; and Cluster_List of 10.16.10.1.

C.

Originator_ID of RR1; and the Cluster_List is not set.

D.

Neither the Originator_ID nor the Cluster_List is set.

The configuration of anNokia7750 SR is given below. Router Rl has established BGP sessions with routers R2 and R3. Which of the following is TRUE?

A.

Router R1forms an iBGP session with router R2, and aneBGP session with router R3.

B.

Router R1forms iBGP sessions with routers R2 and R3.

C.

Router R1forms eBGP sessions with routers R2 and R3.

D.

The types of BGP sessions with routers R2 and R3 cannot be determined.

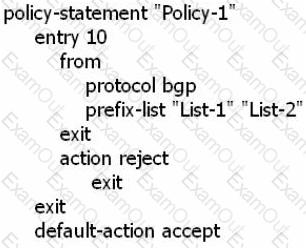

What isthe result of configuring the following policy statement as a BGP import policy on theNokia7750 SR?

A.

All BGP routes are accepted.

B.

All routes matching prefix lists "List-1" and "List-2" are rejected.

C.

BGP routes matching prefix lists "List-1" or "List-2" are rejected.

D.

BGP routes matching prefix lists "List-1" and "List-2" are rejected.

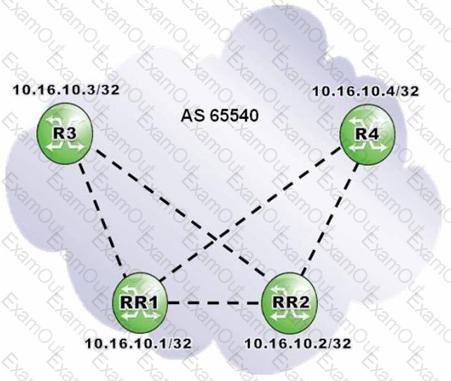

Click the exhibit.

Routers RR1 are RR2 are redundant route reflectors for clients R3 and R4. Which of the following is a valid configuration onrouter R3?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

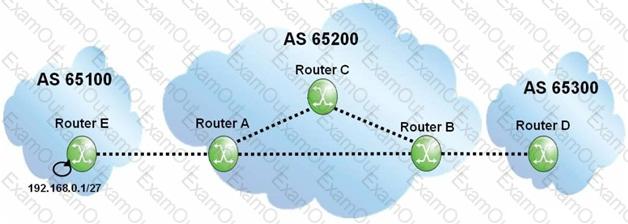

Click the exhibit.

Assuming that none of the routers within AS 65200 is configured with next-hop-self", what will the BGP update for the 192.168.0.1/27 prefix contain when it arrives at router B?

A.

AS Path of 65200 65100, Next Hop of router A.

B.

AS Path of 65200 65100, Next Hop of router E.

C.

AS Path of 65100, Next Hop of router E.

D.

AS Path of 65100, Next Hop of router A.

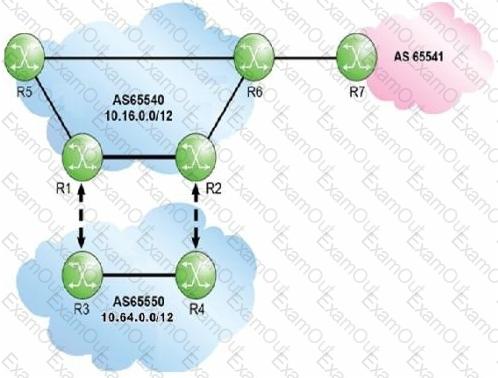

Click the exhibit.

AS 65550 owns CIDR block 10.64.0.0/12. Router R6 advertises the aggregate 10.64.0.0/12 toAS 65541 with "as-set" enabled. Which of the following is TRUE regarding the aggregate route received by router R7?

A.

The AS Path is set to 65540, and the Atomic Aggregate flag is set.

B.

The AS Path is set to 65540 65550, and the Atomic Aggregate flag is set.

C.

The AS Path is set to 65540 65550, and the Atomic Aggregate flag is not set.

D.

The AS Path is set to 65550, and the Atomic Aggregate flag is not set.

Which of the following is NOT considered an option of import policies?

A.

Preventing unwanted NLRI from entering the AS.

B.

Filtering NLRI based on AS Path or prefix-lists,

C.

Modifying the local preference of route advertisements.

D.

Setting MED values of route advertisements.

Click the exhibit.

Routers RR1 and RR2 are route reflectors with the same cluster-ID. How many updates for prefix 192.168.1.0/27 are received at router RR1?

A.

1

B.

2

C.

3

D.

4

Which of the following statements regarding BGP control plane convergence is FALSE?

A.

Core and edge node failure recovery depends on IGP convergence.

B.

Edge neighbor failure is detected by the eBGP session timeout.

C.

BGP control plane convergence is independent of number of affected prefixes.

D.

Upon BGP control plane convergence, an optimal path is installed in the FIB.

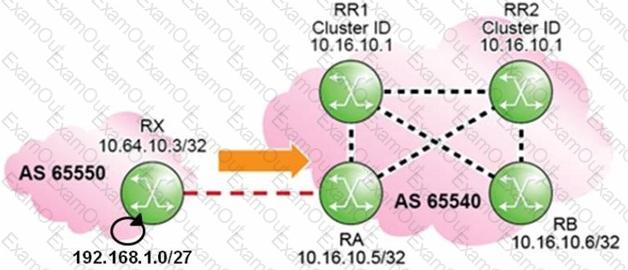

Click the exhibit.

Routers RR1 and RR2 are route reflectors with the same Cluster-ID. How does router RA treat the updates forprefix 192.168.1.0/27 received from routers RR1 and RR2?

A.

Router RA prefers the update received from router RR1.

B.

Router RA prefers the update received from router RR2.

C.

Router RA flags both updates as invalid.

D.

Router RA accepts bothupdates and flags them as used.
