Free Practice Questions for Juniper JN0-683 Exam

MAC Move Limiting:

MAC move limiting is a security feature used in network switches to detect and mitigate rapid changes in MAC address locations, which could indicate a network issue or an attack such as MAC flapping or spoofing.

When a MAC address is learned on a different interface than it was previously learned, the switch can take various actions to prevent potential issues.

Available Actions:

A. drop:This action drops packets from the MAC address if it violates the move limit, effectively blocking communication from the offending MAC address.

D. log:This action logs the MAC move event without disrupting traffic, allowing network administrators to monitor and investigate the event.

E. shutdown:This action shuts down the interface on which the MAC address violation occurred, effectively stopping all traffic on that interface to prevent further issues.

Other Actions (Not Correct):

B. filter:Filtering is not typically associated with MAC move limiting; it generally refers to applying ACLs or other mechanisms to filter traffic.

C. enable:This is not an action related to MAC move limiting, as it does not represent a specific reaction to a MAC move event.

Data Center References:

MAC move limiting is crucial for maintaining network stability and security, particularly in environments with dynamic or large-scale Layer 2 networks where MAC addresses might frequently change locations.

Understanding ERB Architecture:

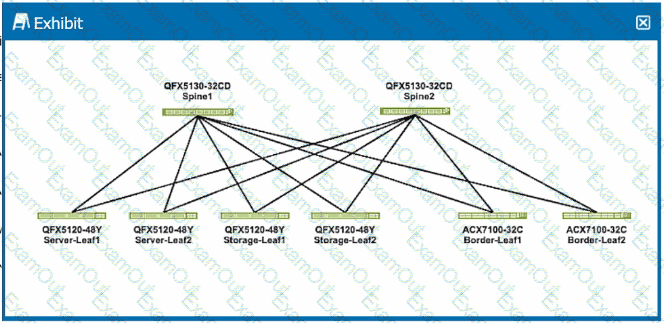

ERB (Edge Routed Bridging) architecture is a network design where the routing occurs at the edge (leaf devices) rather than in the spine devices. In a VXLAN overlay network with EVPN as the control plane, leaf devices typically act as both Layer 2 (L2) and Layer 3 (L3) VXLAN gateways.

Placement of VXLAN Gateways:

Option B:All leaf devices will have L2 VXLAN gateways to handle the bridging of VLAN traffic into VXLAN tunnels.

Option C:All leaf devices will also have L3 VXLAN gateways to route traffic between different VXLAN segments (VNIs) and external networks.

Option E:Spine devices in an ERB architecture generally do not function as VXLAN gateways. They primarily focus on forwarding traffic between leaf nodes and do not handle VXLAN encapsulation/decapsulation.

Conclusion:

Option B:Correct—All leaf devices will have L2 VXLAN gateways.

Option C:Correct—All leaf devices will have L3 VXLAN gateways.

Option E:Correct—Spine devices will not act as VXLAN gateways

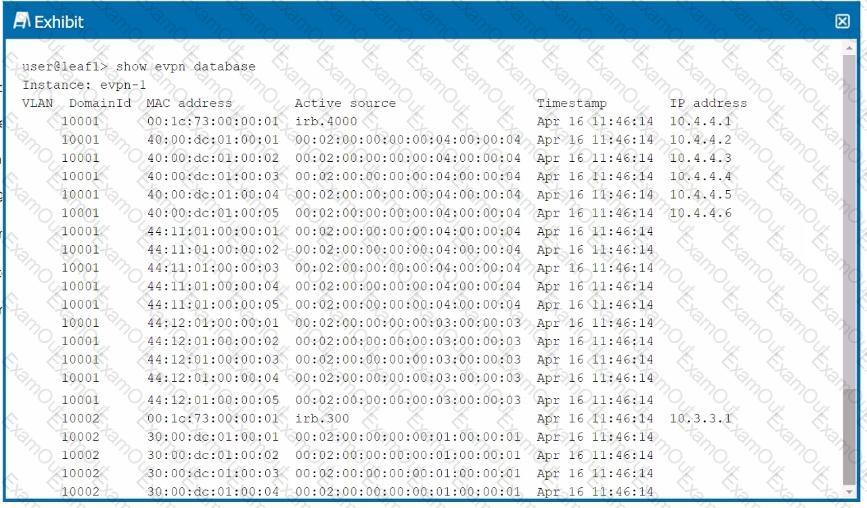

Understanding the Output:

The show evpn database command output shows the MAC address, VLAN, active source, timestamp, and IP address associated with various hosts in the EVPN instance.

Analysis of the MAC Address:

Option A:The MAC address 40:00:dc:01:00:04 is associated with the IP address 10.4.4.5, as indicated by the output in the IP address column. This confirms that this host has been assigned the IP 10.4.4.5.

Option D:The active source for the MAC address 40:00:dc:01:00:04 is listed as 00:02:00:00:00:04:00:04:00:00:04:00:04, which indicates that the host is connected via an ESI (Ethernet Segment Identifier) LAG (Link Aggregation Group). This setup is typicallyused in multi-homing scenarios to provide redundancy and load balancing across multiple physical links.

Conclusion:

Option A:Correct—The host with MAC 40:00:dc:01:00:04 is assigned IP 10.4.4.5.

Option D:Correct—The host is originating from an ESI LAG, as indicated by the active source value.

 EVPN-VXLAN Configuration:

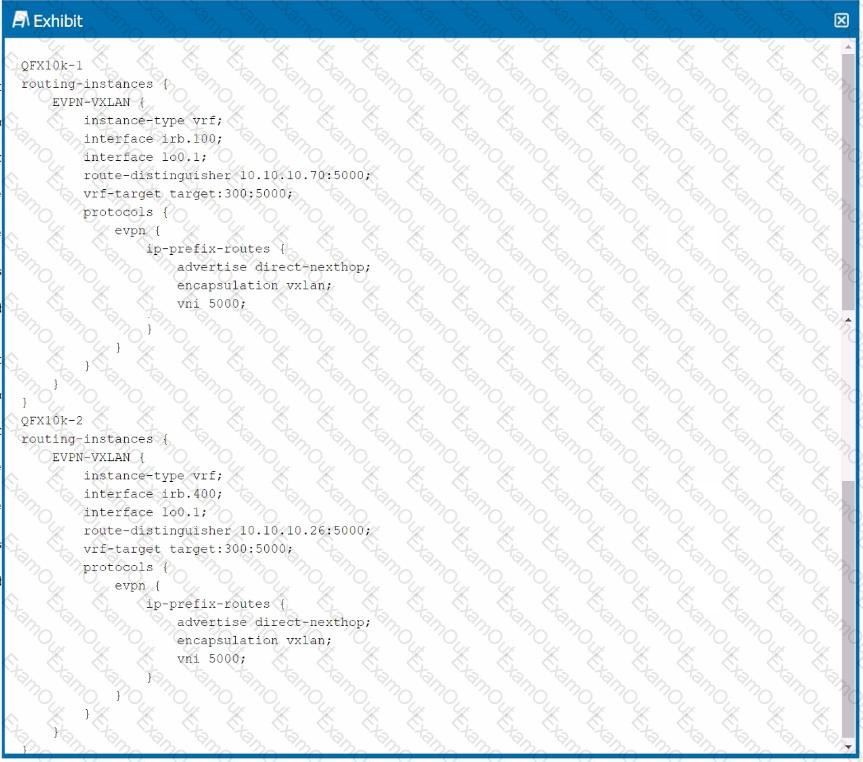

The configuration provided in the exhibit shows an EVPN-VXLAN setup where IP prefix routes are exchanged between two sites. The advertise direct-nexthop option and the VNI (Virtual Network Identifier) settings are crucial in this context.

 Advertise Direct-Nexthop:

Option A:The advertise direct-nexthop option ensures that the next-hop route is resolved using only the information carried in the EVPN Type 5 route. Type 5 routes are used for IP prefix advertisement in EVPN, which is key to enabling Layer 3 interconnectivity between different VXLAN segments.

 VNI Consistency:

Option C:For the same customer across different devices, the VNI must be consistent. This consistency ensures that all devices can correctly map traffic to the appropriate VXLAN segment, maintaining seamless Layer 2 and Layer 3 connectivity.

In this scenario, you want the border leaf device to advertise Type 5 EVPN routes to another border leaf in a different data center. Type 5 routes in EVPN are used to advertise IP prefixes, which means that for proper route advertisement, you need to configure the correct settings within the evpn hierarchy.

Step-by-Step Analysis:

Understanding EVPN Type 5 Routes:

EVPN Type 5 routes are used to advertise IP prefixes across EVPN instances, which allow different data centers or networks to exchange routing information effectively.

VRF Target Setting:

The vrf-target configuration is crucial because it defines the export and import policies for the VRF within the EVPN instance. For EVPN Type 5 routes to be advertised to other border leaf devices, the vrf-target needs to be correctly configured under the evpn hierarchy, not just within the routing instance.

Command to solve this:

move vrf-target target:65000:1 to evpn

Other Options:

Option B:Adding a VLAN configuration would not address the requirement to advertise Type 5 routes.

Option C:Adding VXLAN encapsulation may be necessary for other scenarios but does not directly address the Type 5 route advertisement.

Option D:Changing the route-distinguisher will differentiate routes but does not impact the advertisement of Type 5 routes to other data centers.

By moving the vrf-target to the evpn hierarchy, you enable the proper route advertisement, ensuring that the Type 5 routes for local networks are shared with other data center border leaf devices. This is aligned with best practices for multi-data center EVPN implementations, which emphasize the correct placement of routing policies within the EVPN configuration.

VXLAN Overview:

VXLAN (Virtual Extensible LAN) is a network virtualization technology that encapsulates Layer 2 Ethernet frames into Layer 3 UDP packets for transmission over an IP network. It allows the creation of Layer 2 overlay networks across a Layer 3 infrastructure.

Understanding VXLAN Components:

VTEP (VXLAN Tunnel Endpoint):A VTEP is responsible for encapsulating and decapsulating Ethernet frames into and from VXLAN packets.

VNI (VXLAN Network Identifier):A 24-bit identifier used to distinguish different VXLAN segments, allowing for up to 16 million unique segments.

Correct Statements:

C. Layer 2 frames are encapsulated by the source VTEP:This is correct. In a VXLAN deployment, the source VTEP encapsulates the original Layer 2 Ethernet frame into a VXLAN packet before transmitting it over the IP network to the destination VTEP, which then decapsulates it.

A. A VXLAN packet does not contain a VLAN ID:This is correct. The VXLAN header does not carry the original VLAN ID; instead, it uses the VNI to identify the network segment. The VLAN ID is local to the switch and does not traverse the VXLAN tunnel.

Incorrect Statements:

B. The VNI must match the VLAN tag to ensure that the remote VTEP can decapsulate VXLAN packets:This is incorrect. The VNI is independent of the VLAN tag, and the VLAN ID does not need to match the VNI. The VNI is what the remote VTEP uses to identify the correct VXLAN segment.

D. The VNI is a 16-bit value and can range from 0 through 16,777,215:This is incorrect because the VNI is a 24-bit value, allowing for a range of 0 to 16,777,215.

Data Center References:

VXLAN technology is critical for modern data centers as it enables scalability and efficient segmentation without the constraints of traditional VLAN limits.

Understanding the Scenario:

EVPN-VXLAN deployments often involve scenarios where multiple tenants or applications require overlapping VLAN IDs, which can be managed using the mac-vrf routing instance type. This allows you to segregate traffic within the same VLAN ID across different tenants.

Host-facing Interface Configuration:

A. Host-facing interfaces must be configured using a service-provider style configuration:This is correct. In mac-vrf configurations, host-facing interfaces (those connecting end devices) typically follow a service-provider style configuration, where each customer or tenant's traffic is isolated even if overlapping VLAN IDs are used.

B. Host-facing interfaces must be configured using enterprise-style configuration:This is incorrect for mac-vrf instances because enterprise-style configurations are more common in simpler, less segmented networks.

Routing Instance Service Type:

D. The routing-instance service type can be VLAN-based:This is correct. The service type in mac-vrf can indeed be VLAN-based, which is particularly useful in scenarios where VLAN ID overlap is needed between different tenants or services.

Data Center References:

The mac-vrf instance type is powerful for handling complex multi-tenant environments in EVPN-VXLAN, especially when dealing with overlapping VLAN IDs across different segments of the network.

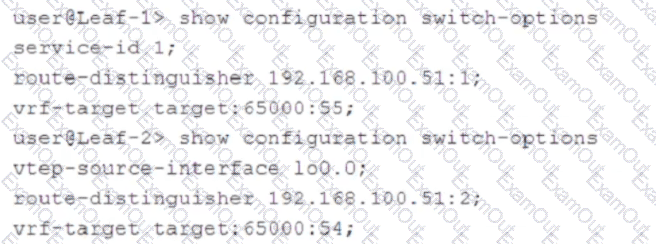

Understanding VRF and Routing Instances:

In an EVPN-VXLAN overlay network, multiple tenants are separated using unique VRF (Virtual Routing and Forwarding) instances. Each VRF instance maintains its own routing table, allowing for isolated routing domains within the same network infrastructure.

Role of Route Distinguisher:

Route Distinguisher (RD):The RD is a unique identifier used in MPLS and EVPN environments to distinguish routes belonging to different VRFs. The RD is prepended to the IP address in the route advertisement, ensuring that routes from different tenants remain unique even if they use the same IP address range.

Correct Property:

D. the route distinguisher value:This is the correct answer because the RD is crucial in determining which routing information belongs to which VRF instance. It ensures that each VRF’s routing table only contains relevant routes, maintaining isolation between tenants.

Data Center References:

The RD is a key element in MPLS and EVPN-based multi-tenant environments, ensuring proper routing segregation and isolation for different VRFs within the data center fabric.
