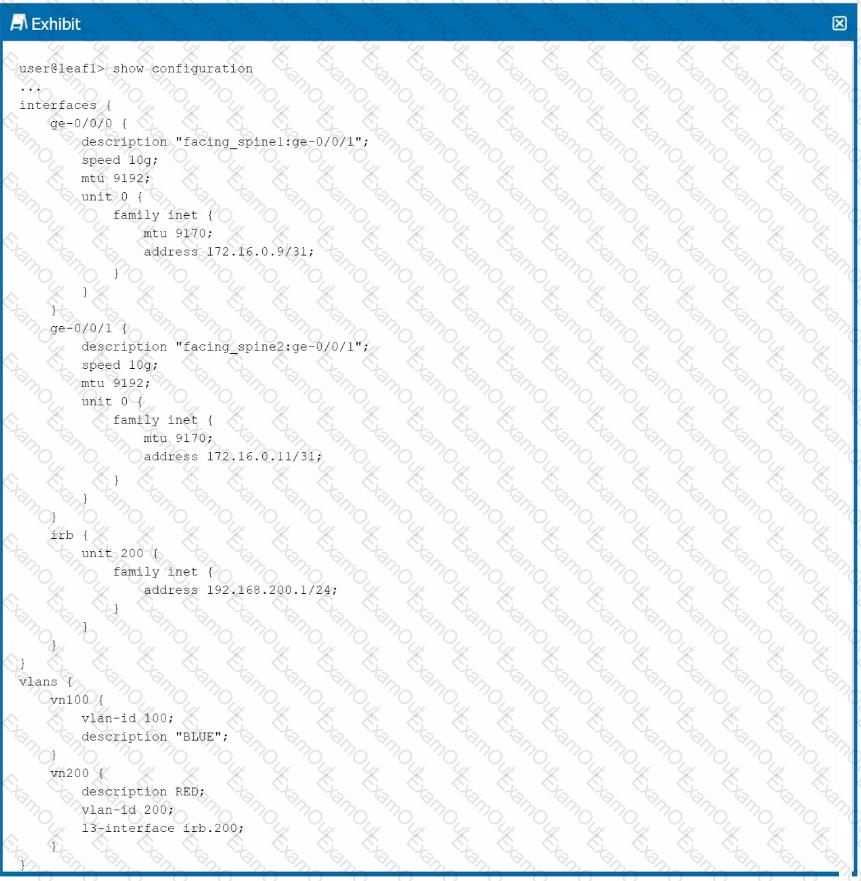

In the provided network configuration, Host A is in VLAN 100 and Host B is in VLAN 200. The issue arises because these two hosts are unable to communicate, which indicates that either the interfaces are not properly linked to their respective VLANs, or there is a missing static route required for inter-VLAN routing.

Step-by-Step Analysis:

VLAN Assignment:

The exhibit shows that irb.200 is correctly associated with VLAN 200 in the configuration. However, there is no corresponding irb.100 for VLAN 100. Without irb.100, the network lacks the logical interface to handle routing for VLAN 100. Thus, adding irb.100 to VLAN 100 is necessary.

Command to solve this:

set vlans vn100 13-interface irb.100

Static Route Configuration:

For inter-VLAN routing to occur, a static route needs to be configured that allows traffic to pass between different subnets (in this case, between VLAN 100 and VLAN 200). The command set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10 would add a static route that directs all traffic from VLAN 100 to the correct gateway (192.168.200.10), which is necessary to route traffic between the two VLANs.

Command to solve this:

set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10

Explanation of Incorrect Options:

Option A (delete vlans vn200 13-interface irb.200): This would remove the logical interface associated with VLAN 200, which is not desired because we need VLAN 200 to remain active and properly routed.

Option B (set interfaces irb unit 100 family inet address 192-168.100.1): This command would incorrectly assign an IP address that does not correspond with the subnet of VLAN 100 (192.168.200.1/24). This could create a misconfiguration, leading to routing issues.

Data Center References:

For a Data Center, proper VLAN management and static routing are crucial for ensuring that different network segments can communicate effectively, especially when dealing with separated subnets or zones like in different VLANs. This aligns with best practices in DCIM (Data Center Infrastructure Management) which stress the importance of proper network configuration to avoid downtime and ensure seamless communication between all critical IT infrastructure components.

Ensuring that the correct interfaces are associated with the correct VLANs and having the proper static routes in place are both essential steps in maintaining a robust and reliable data center network.

This detailed analysis reflects best practices as noted in standard data center design and network configuration guides​.

Understanding Pure IP Fabric:

A pure IP fabric is a network design where all devices operate at Layer 3, meaning that each device in the fabric is a router that makes forwarding decisions based on IP addresses.

Layer 2 Support:

In a pure IP fabric, traditional Layer 2 protocols such as Spanning Tree Protocol (STP) or VLANs are not supported. Instead, the network relies entirely on Layer 3 routing protocols to manage traffic between devices.

Routing Functionality:

Since devices in an IP fabric operate as Layer 3 routers, they handle IP routing and provide network services based on IP addresses, not on MAC addresses or Layer 2 switching.

Conclusion:

Option A:Correct—Devices in an IP fabric function as Layer 3 routers.

Option D:Correct—A pure IP fabric does not support traditional Layer 2 protocols, making it a purely routed environment.

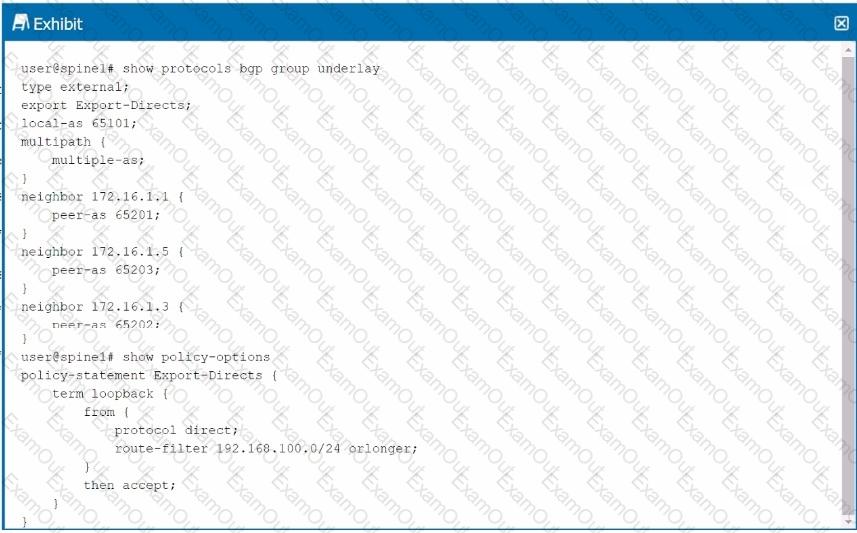

BGP in IP Fabric:

In an IP fabric, Border Gateway Protocol (BGP) is used to manage the routing between leaf and spine devices. Each device can have the same or different Autonomous System (AS) numbers depending on the network design.

Multipath Multiple-AS:

Option B:If every device in the fabric has a different AS number, then enabling Equal-Cost Multi-Path (ECMP) routing requires the multipath multiple-as statement. This configuration allows BGP to consider multiple paths across different AS numbers as equal cost, enabling efficient load balancing across the network.

Same AS Number Configuration:

Option A:It's possible for all leaf devices to use the same AS number in an IP fabric, which simplifies the configuration. EBGP (External BGP) will still function correctly in this setup because BGP considers the peering relationship rather than strictly enforcing different AS numbers in this specific use case.

Conclusion:

Option B:Correct—This statement is essential for enabling ECMP in a multi-AS environment.

Option A:Correct—Leaf devices can share the same AS number without needing special EBGP configuration.

Scenario Overview:

Converting an MX Series router from a VXLAN Layer 2 gateway to a VXLAN Layer 3 gateway involves transitioning the router's functionality from simply bridging traffic within a VXLAN segment to routing traffic between different segments.

Key Configuration Requirement:

IRB (Integrated Routing and Bridging) Interface:An IRB interface allows for both Layer 2 switching and Layer 3 routing. To enable routing for a specific VNI (VXLAN Network Identifier), the IRB interface must be associated with the routing function in the corresponding bridge domain.

Correct Command:

C. set bridge-domains VLAN-100 routing-interface irb.100:This command correctly binds the IRB interface to the bridge domain, enabling Layer 3 routing functionality within the VXLAN for VNI 100. This effectively transitions the device from operating solely as a Layer 2 gateway to a Layer 3 gateway.

Data Center References:

This configuration step is essential when converting a Layer 2 VXLAN gateway to a Layer 3 gateway, enabling the MX Series router to route between VXLAN segments.

ERB Architecture in EVPN-VXLAN:

ERB (Edge Routed Bridging) architecture is commonly used in data center networks where routing decisions are made at the network edge (leaf or border devices), while bridging (Layer 2 forwarding) is extended across the fabric. This architecture allows for efficient L3 routing while still enabling L2 services like VLANs to span across multiple locations.

VLAN and VNI Configuration:

The scenario specifies that a server on the Red VLAN needs to communicate with a server on the Green VLAN. Since these VLANs are in different data centers (DC and DC2), and given the use of EVPN-VXLAN, the communication between these VLANs will require atransit VNI(Virtual Network Identifier). This transit VNI will allow traffic to traverse the VXLAN tunnel across the DCI (Data Center Interconnect).

Interconnect between SRX Series Devices:

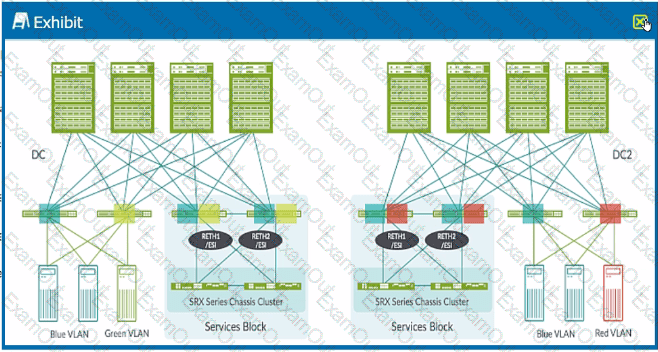

The exhibit shows SRX Series Chassis Clusters used as service devices (likely for firewalling or other security services). These devices need to be interconnected between the two data centers to ensure that VLANs can communicate effectively. The Blue VLAN needs to be stretched between DC and DC2 to maintain the same Layer 2 domain across both data centers.

Conclusion:

Option B:Correct—Interconnecting the SRX Series devices will ensure the necessary service chaining, while stretching the Blue VLAN and adding a transit VNI for the Red and Green VLANs will enable the required communication across the data centers.

Scenario Overview:

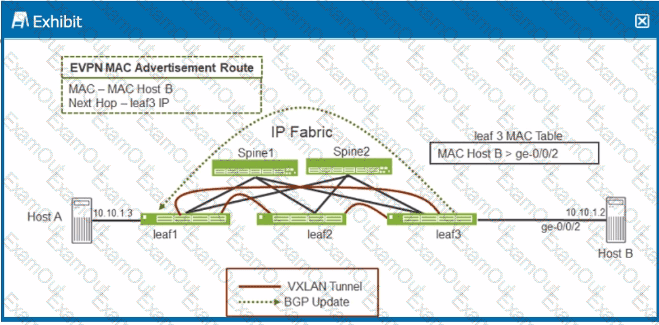

In the exhibit, Host A is trying to resolve Host B's IP address (10.10.1.2) through ARP (Address Resolution Protocol). Normally, an ARP request would be broadcasted over the network, and the host owning the IP address (Host B) would respond.

Role of Proxy ARP:

Option A:Proxy ARPallows a router or switch (in this case, leaf1) to respond to ARP requests on behalf of another host. Leaf1, knowing the MAC address of Host B through the EVPN MAC advertisement, can reply to Host A's ARP request directly without broadcasting the request across the entire network fabric. This feature reduces unnecessary traffic and increases network efficiency.

Conclusion:

Option A:Correct—Proxy ARP enables leaf1 to respond to Host A's ARP request for Host B's IP without broadcasting over the IP fabric, thus providing the ARP response locally.

Review of the Exhibit:

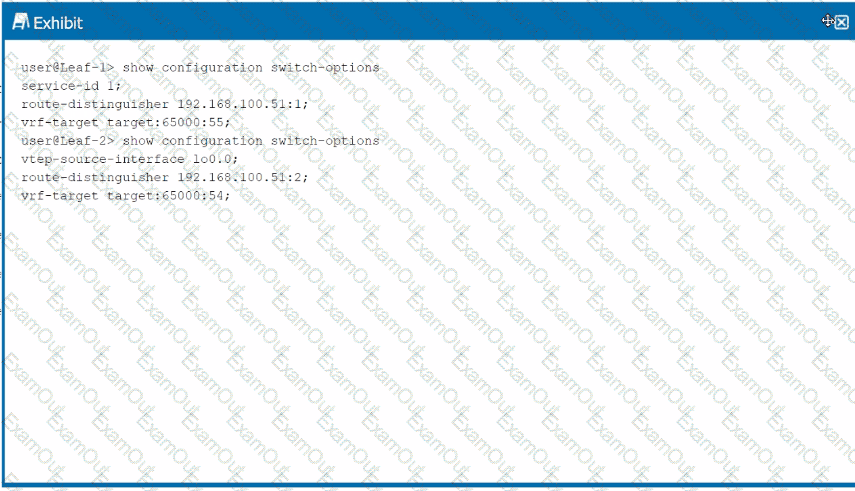

The exhibit shows the switch configuration for Leaf-1 and Leaf-2. The configurations include route distinguishers, VRF targets, and service IDs, all of which are crucial for ensuring proper operation in an EVPN-VXLAN environment.

Service-ID Consistency:

The service ID must be consistent across all participating leaf devices in the same EVPN instance to ensure that they are part of the same VXLAN overlay network.

VRF Target Consistency:

The vrf-target parameter must also be consistent across devices to ensure that VRFs (Virtual Routing and Forwarding instances) are correctly imported and exported between leaf nodes.

Conclusion:

Option B:Correct—Setting the same service-id on Leaf-2 ensures that it is part of the same VXLAN overlay as Leaf-1.

Option D:Correct—The vrf-target on Leaf-2 should match Leaf-1 to ensure consistent routing policies and proper route exchange.
