Free Practice Questions for Juniper JN0-664 Exam

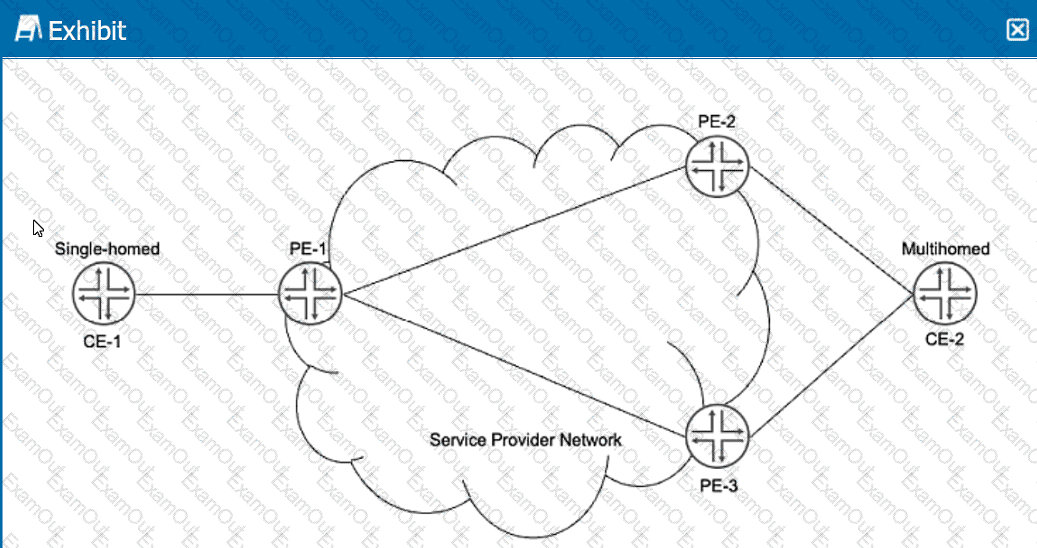

In the context of Ethernet VPN (EVPN) and the behavior described in the exhibit, it's essential to understand the different EVPN route types and their specific functionalities. Here, CE-2 is receiving unicast traffic on both of its multihomed links to PE-2 and PE-3, but broadcast traffic is received only on one of these links.

**Explanation of EVPN Route Types**:

1. **Type 1 (Ethernet Auto-Discovery Routes)**:

- These routes are used for auto-discovery of Ethernet segments and for advertising VLAN membership.

- They do not directly influence the behavior described in the question.

2. **Type 2 (MAC/IP Advertisement Routes)**:

- These routes are used to advertise MAC addresses and IP-to-MAC bindings within the EVPN.

- They handle unicast traffic forwarding and are crucial for populating the MAC address tables on the PE devices.

- While important, they do not explain the selective broadcast behavior.

3. **Type 3 (Inclusive Multicast Ethernet Tag Routes)**:

- These routes are used to build multicast distribution trees for delivering broadcast, unknown unicast, and multicast (BUM) traffic.

- They ensure that BUM traffic is sent only once per Ethernet segment, preventing duplicate frames from being sent to multihomed CEs.

- This aligns with the behavior described where CE-2 receives broadcast traffic on only one link to prevent duplication.

4. **Type 4 (Ethernet Segment Routes)**:

- These routes are used to advertise the presence of an Ethernet segment and are crucial for Designated Forwarder (DF) election processes in multihoming scenarios.

- While relevant to multihoming, they are not directly responsible for the selective broadcast behavior.

**Conclusion**:

The behavior described, where CE-2 receives broadcast traffic on only one of its multihomed links, is controlled by Type 3 routes. These routes are specifically designed to handle inclusive multicast and broadcast traffic efficiently in EVPN environments, ensuring that such traffic is not duplicated across multiple links to the same CE.

**References**:

- Juniper Networks EVPN Documentation: [EVPN Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/evpn-overview.html)

- RFC 7432, BGP MPLS-Based Ethernet VPN: [RFC 7432](https://tools.ietf.org/html/rfc7432) provides detailed descriptions of EVPN route types and their functions.

- Junos OS EVPN Configuration Guide: [Junos OS EVPN Configuration Guide](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/evpn.html)

Intermediate System to Intermediate System (IS-IS) is a link-state routing protocol used to move information efficiently within a computer network. It uses a series of Protocol Data Units (PDUs) to manage the network's topology and ensure consistency across all routers in the network. Specifically, Link State PDUs (LSPs), Complete Sequence Number PDUs (CSNPs), and Partial Sequence Number PDUs (PSNPs) play crucial roles in this process.

1. **PSNPs (Partial Sequence Number PDUs)**:

- **Acknowledge a received LSP**: PSNPs are used to acknowledge the receipt of LSPs. When a router receives an LSP, it sends a PSNP back to the sender to confirm that the LSP has been received.

- **Request a missing LSP**: PSNPs are also used to request missing LSPs. If a router identifies a missing LSP based on sequence numbers, it can send a PSNP to request the specific LSP from its neighbors.

2. **CSNPs (Complete Sequence Number PDUs)**:

- **Summarize LSPs**: CSNPs are used to summarize all the LSPs known to a router. They are typically sent at regular intervals to provide a complete list of LSPs in a database. They are not used to acknowledge or request specific LSPs but provide an overview of all LSPs for database synchronization.

Based on this understanding, let's evaluate the statements:

- **A. PSNPs are used to acknowledge a received LSP.**

- Correct. PSNPs serve the purpose of acknowledging LSPs received from other routers.

- **B. CSNPs are used to acknowledge a received LSP.**

- Incorrect. CSNPs are not used for acknowledging LSPs; they are used to provide a summary of all LSPs.

- **C. CSNPs are used to request a missing LSP.**

- Incorrect. CSNPs are not used to request missing LSPs; this is the role of PSNPs.

- **D. PSNPs are used to request a missing LSP.**

- Correct. PSNPs are used to request specific missing LSPs when a router detects that it is missing information.

**Conclusion**:

The correct statements about IS-IS are:

**A. PSNPs are used to acknowledge a received LSP.**

**D. PSNPs are used to request a missing LSP.**

**References**:

- Juniper Networks Documentation on IS-IS: [IS-IS Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/is-is-routing-overview.html)

- RFC 1195, Use of OSI IS-IS for Routing in TCP/IP and Dual Environments: [RFC 1195](https://tools.ietf.org/html/rfc1195) which details the operation and use of IS-IS, including the roles of PSNPs and CSNPs.

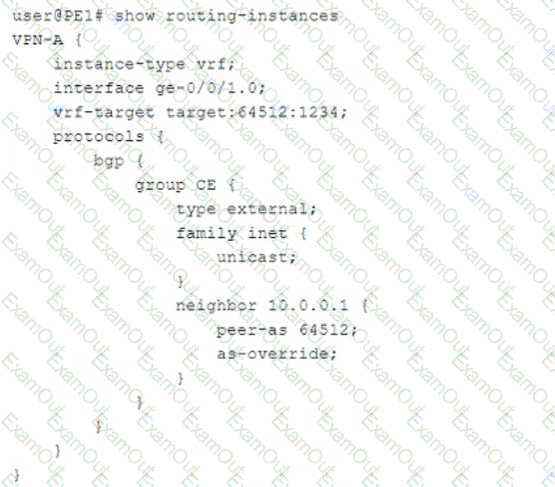

The provided configuration is for a routing instance named VPN-A on a Juniper PE (Provider Edge) router. Let’s break it down:

Instance Type: VRF

The instance-type vrf; statement indicates that this is a Layer 3 VPN (L3VPN) using MPLS VPNs (RFC 4364 – BGP/MPLS IP VPNs).

This confirms that Option D (A Layer 3 VPN is configured) is correct ✅.

VRF Target and Interface Association

The vrf-target target:64512:1234; defines the route target (RT) for importing and exporting VPN routes.

The interface ge-0/0/1.0; binds this interface to the VRF.

BGP Configuration for CE (Customer Edge) Peering

The group CE section configures external BGP (EBGP) (type external;).

The neighbor 10.0.0.1 is in AS 64512 (peer-as 64512;).

The as-override; statement is used.

Evaluating the Answer Choices

✅ Option B: "This VPN connects customer sites that use the same AS number."

The as-override; command allows multiple customer sites that use the same AS number (64512) to communicate over the service provider’s MPLS network.

Normally, BGP prevents routes with the same AS in the AS_PATH from being accepted. The as-override feature replaces the customer's AS number with the provider’s AS, ensuring proper route advertisement.

✅ This statement is correct.

❌ Option A: "This VPN connects customer sites that use different AS numbers."

If the customer sites had different AS numbers, there would be no need for as-override.

The as-override feature is specifically used when all customer sites share the same AS number, ensuring that BGP routes are accepted.

❌ This statement is incorrect.

❌ Option C: "A Layer 2 VPN is configured."

A Layer 2 VPN (L2VPN) configuration would typically use instance-type l2vpn; or EVPN/VPLS-related parameters (e.g., protocols l2vpn or protocols vpls).

Since this configuration uses instance-type vrf; and BGP with a VRF target, it is clearly a Layer 3 VPN (L3VPN).

❌ This statement is incorrect.

✅ Option D: "A Layer 3 VPN is configured."

The instance-type vrf; confirms this is an MPLS Layer 3 VPN (L3VPN).

VRFs, BGP, and route targets (vrf-target) are specific to Layer 3 VPNs.

✅ This statement is correct.

Final Answer:

✅ B. This VPN connects customer sites that use the same AS number.

✅ D. A Layer 3 VPN is configured.

Verification from Juniper Documentation:

Juniper BGP/MPLS Layer 3 VPNs Guide confirms that instance-type vrf is used for L3VPNs.

Juniper BGP Configuration Guide states that as-override is applied when customer sites use the same AS number.

RFC 4364 (BGP/MPLS IP VPNs) explains how route targets and VRFs are used in L3VPN deployments.

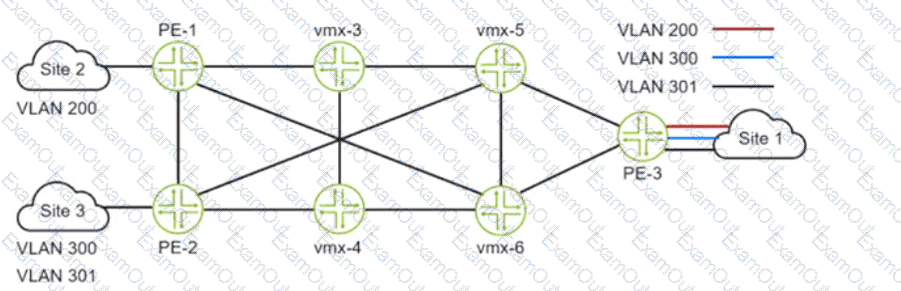

To allow Site 1 to access three VLANs that are located in Site 2 and Site 3, you need to configure three L2VPN routing instances on PE-1, one for each VLAN. Each L2VPN routing instance will have a different VLAN ID and a different VNI for VXLAN encapsulation. Each L2VPN routing instance will also have a different vrf-target export value to identify which VPN routes belong to which VLAN. This way, PE-1 can forward traffic from Site 1 to Site 2 and Site 3 based on the VLAN tags and VNIs.

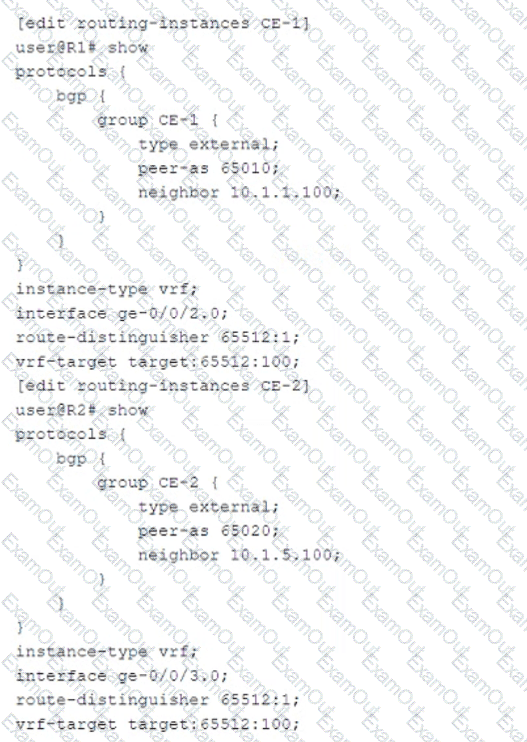

In the exhibit, we see two VRF (Virtual Routing and Forwarding) instances, CE-1 and CE-2, configured on a Juniper router. Each VRF is associated with a route-distinguisher (RD) and a vrf-target value.

Understanding the Role of vrf-target

The vrf-target is used to define Route Targets (RT), which control the import and export of VPN routes in MPLS Layer 3 VPNs (L3VPNs).

If two VRFs share the same RT, they will import each other's routes, allowing communication between them.

In this case, both VRFs have the same vrf-target:

vrf-target target:65512:100;

Since both CE-1 and CE-2 have the same RT (65512:100), they will import and export each other’s routes, enabling route sharing between them.

Understanding route-distinguisher (RD)

The RD (Route Distinguisher) only ensures uniqueness of overlapping IP prefixes within the MPLS network.

It does not control route sharing between VRFs.

In the exhibit, both VRFs have the same RD (65512:1), but this does not influence whether they share routes.

Correct Answer Selection

A (Correct): The vrf-target configuration enables route sharing between CE-1 and CE-2 since they have the same RT (65512:100).

B (Incorrect): The vrf-target does the opposite—it allows sharing, not blocking.

C (Incorrect): The route-distinguisher only provides unique route identification, but does not affect route sharing.

D (Incorrect): Again, route-distinguisher has no impact on route sharing.

Reference from Juniper Official Documentation

✅ Juniper Documentation - Junos MPLS VPNs Configuration Guide:

"Route targets (vrf-target) are used to control the import and export of VPN routes between different VRFs. VRFs with the same route target can import and export routes to each other, enabling inter-VRF communication."

Thus, the correct answer is:

✅ A. The vrf-target configuration will allow routes to be shared between CE-1 and CE-2.

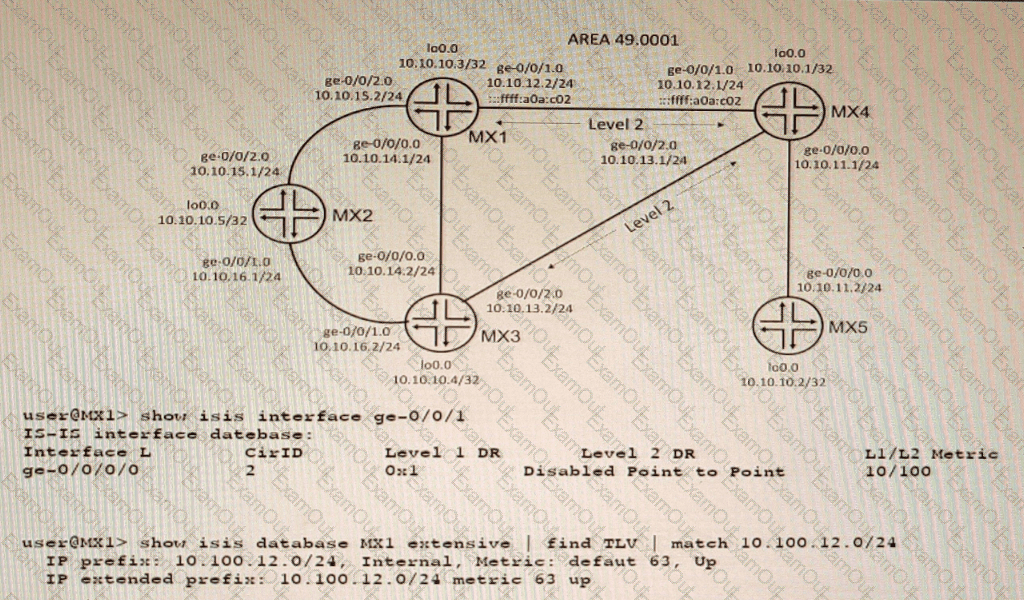

TLVs are tuples of (Type, Length, Value) that can be advertised in IS-IS packets. TLVs can carry different kinds of information in the Link State Packets (LSPs). IS-IS supports both narrow and wide metrics for link costs. Narrow metrics use a single octet to encode the link cost, while wide metrics use three octets. Narrow metrics have a maximum value of 63, while wide metrics have a maximum value of 16777215. If there are both narrow and wide metric devices in the topology, IS-IS will advertise two TLVs for each link: one with the narrow metric and one with the wide metric. This allows backward compatibility with older devices that only support narrow metrics12.

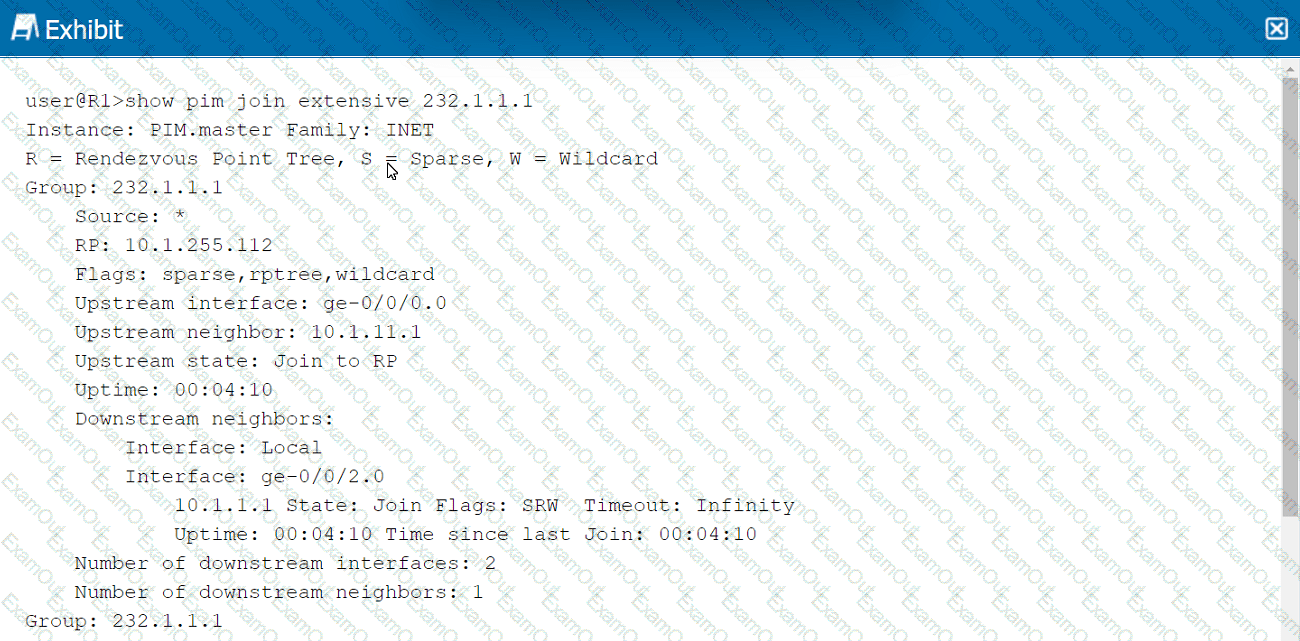

In the provided exhibit, the output of the `show pim join extensive 232.1.1.1` command is shown. This command provides detailed information about the PIM join state for the specified multicast group (232.1.1.1) on the router R1. To determine the correct statements regarding the multicast traffic, let's analyze the output and the terms involved:

1. **ASM vs. SSM**:

- **ASM (Any-Source Multicast)**: In ASM, receivers are interested in receiving multicast traffic from any source sending to a particular multicast group.

- **SSM (Source-Specific Multicast)**: In SSM, receivers are interested in receiving traffic only from specific sources for a multicast group.

- **Group Address Range**:

- ASM uses the range 224.0.0.0 to 239.255.255.255.

- SSM uses the range 232.0.0.0 to 232.255.255.255.

Since the group address 232.1.1.1 falls within the SSM range (232.0.0.0/8), there might be confusion. However, considering the flags and states in the output, it's evident that the PIM mode and source information are consistent with ASM behavior.

2. **Multicast Trees**:

- **RPT (Rendezvous Point Tree)**: Multicast traffic initially uses the RPT, where the Rendezvous Point (RP) acts as an intermediate point.

- **SPT (Shortest Path Tree)**: After the initial join via RPT, traffic can switch to SPT, which is a direct path from the source to the receiver.

3. **Output Analysis**:

- **Flags**:

- The flags `sparse, rp-tree, wildcard` indicate that the group 232.1.1.1 is currently using RPT. This is typical for ASM, where traffic initially goes through the RP.

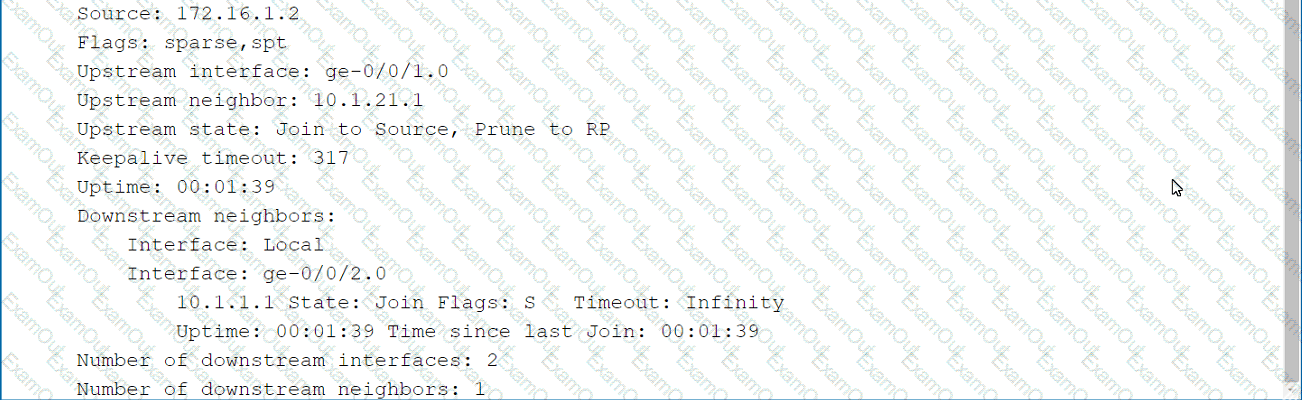

- The flags `sparse, spt` indicate that for the source 172.16.1.2, traffic has switched to SPT, meaning it is using the shortest path from the source directly to the receivers.

**Conclusion**:

Based on the analysis:

- **A. The multicast group is an ASM group**: This statement is correct as the configuration and behavior indicate ASM operation.

- **B. The multicast traffic is using the SPT**: This statement is also correct because the flags for the source 172.16.1.2 indicate that the traffic is using the SPT.

Thus, the correct answers are:

**A. The multicast group is an ASM group.**

**B. The multicast traffic is using the SPT.**

**References**:

- Juniper Networks PIM Documentation: [PIM Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/pim-overview.html)

- Junos OS Multicast Routing Configuration Guide: [Multicast Routing Configuration Guide](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/multicast-routing.html)
