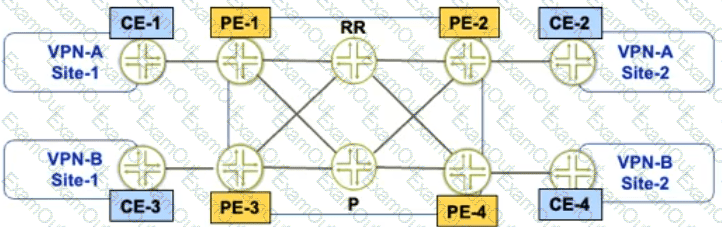

For a Layer 3 VPN to function correctly, an MPLS Label Switched Path (LSP) must be established between the Provider Edge (PE) routers. The MPLS LSP is necessary for the transport of VPN traffic across the service provider's backbone network. If the MPLS LSP is not established, the PE routers cannot forward the VPN traffic properly, causing the routes to be hidden in the BGP routing table.

Here’s a breakdown of why the other options are less likely:

A. The routes use overlapping IP addresses.

Overlapping IP addresses might cause issues with route advertisement and selection, but they would not typically cause routes to be hidden in the bgp.l3vpn.0 table.

C. There is a routing loop in the service provider backbone.

While routing loops are problematic, they would not specifically cause the routes to be hidden in the bgp.l3vpn.0 table. Routing loops would more likely result in dropped packets or increased latency.

D. Route targets are not configured.

Incorrect or missing route target configuration would prevent routes from being imported into the correct VRF, but it would not usually result in the routes being hidden. Instead, they would simply not appear in the relevant VRF.

Thus, the absence of an established MPLS LSP is the most plausible cause for the routes being hidden.

The `vrf-target` statement in a Layer 3 VPN configuration is used to control the import and export of VPN routes by attaching a target community to the routes. This helps in defining which VPN routes should be imported into or exported from a particular VRF (Virtual Routing and Forwarding) instance.

1. **Understanding VRF Target**:

- The `vrf-target` statement specifies the extended community attributes (route targets) that are used to control the import and export of routes in a VRF.

- These attributes help in identifying which routes should be shared between different VRFs, particularly across different PE (Provider Edge) devices.

2. **Statements Analysis**:

- **A. This value is used to identify BGP routes learned from the local CE device.**

- Incorrect. The `vrf-target` attribute is not used to identify routes learned from the local CE device. It is used to manage routes between PE devices and within the provider's MPLS network.

- **B. This value is used to identify BGP routes learned from the remote PE device.**

- Correct. The `vrf-target` value helps in identifying which routes from remote PE devices should be imported into the local VRF. It essentially acts as a filter for importing BGP routes with matching target communities.

- **C. This value is used to add a target community to BGP routes advertised to the local CE device.**

- Incorrect. Routes advertised to the local CE device do not use the `vrf-target` attribute. Instead, these routes are typically managed within the local VRF routing table.

- **D. This value is used to add a target community to BGP routes advertised to the remote PE device.**

- Correct. When advertising routes from the local PE to remote PE devices, the `vrf-target` value is added to these routes. This target community ensures that the correct routes are shared across the VPN.

**Conclusion**:

The correct statements about the `vrf-target` configuration in a Layer 3 VPN scenario are:

**B. This value is used to identify BGP routes learned from the remote PE device.**

**D. This value is used to add a target community to BGP routes advertised to the remote PE device.**

**References**:

- Juniper Networks Documentation on VRF Target: [VRF Target Configuration](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/layer-3-vpns.html)

- MPLS and VPN Architectures by Ivan Pepelnjak and Jim Guichard

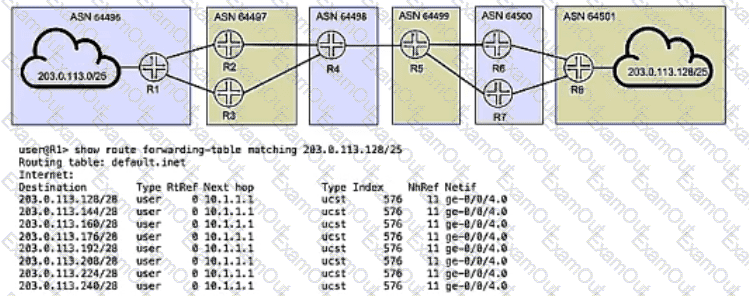

https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/topic-map/load-balancing-bgp-session.html

BGP route target filtering can be configured on PE devices or on route reflectors (RRs). Configuring BGP route target filtering on RRs is more efficient and scalable, as it reduces the number of BGP sessions and updates between PE devices. To configure BGP route target filtering on RRs, the following steps are required:

Configure the family route-target statement under the BGP group or neighbor configuration on the RRs. This enables the exchange of the route-target address family between the RRs and their clients (PE devices). Configure the resolution rib bgp.l3vpn.0 resolution-ribs inet.0 statement under the routing-options configuration on the RRs. This enables the RRs to resolve next hops for VPN routes using the inet.0 routing table.

In IS-IS (Intermediate System to Intermediate System) routing, each router is identified by a unique ISO (International Organization for Standardization) address, also known as a Network Entity Title (NET). The NET consists of three parts:

1. **Area Identifier**: Indicates the area to which the router belongs.

2. **System Identifier**: Uniquely identifies the router within the area.

3. **NSAP Selector (NSEL)**: Typically set to 00 for a router, indicating the Network Service Access Point.

The format of the ISO address is `49.XXXX.YYYY.YYYY.ZZZZ.ZZZZ.00`, where:

- `49` is the AFI (Authority and Format Identifier) indicating a private address.

- `XXXX` is the Area Identifier.

- `YYYY.YYYY.YYYY` is the System Identifier.

- `ZZZZ.ZZZZ` is the NSAP Selector.

Given the address `49.0001.00a0.c96b.c490.00`:

- **Area Identifier**: `49.0001`

- **System Identifier**: `00a0.c96b.c490`

- **NSAP Selector**: `00`

**Explanation**:

- **A. 00a0.c96b.c490 is the system identifier**:

- Correct. The System Identifier in an ISO address is a 48-bit (6-byte) field used to uniquely identify the router. In this address, `00a0.c96b.c490` is the correct 6-byte System Identifier.

- **B. 0001.00a0.c96b.c490 is the system identifier**:

- Incorrect. This includes the Area Identifier as part of the System Identifier, which is not correct.

- **C. c96b.c490 is the system identifier**:

- Incorrect. This is only part of the System Identifier. The full System Identifier must be 6 bytes long.

- **D. c490 is the system identifier**:

- Incorrect. This is an incomplete and incorrect part of the System Identifier.

**Conclusion**:

The correct part of the address that represents the System Identifier is:

**A. 00a0.c96b.c490 is the system identifier.**

**References**:

- Juniper Networks Documentation on IS-IS: [IS-IS Configuration](https://www.juniper.net/documentation/en_US/junos/topics/task/configuration/isis-configuring.html)

- ISO/IEC 10589, the IS-IS routing protocol standard.

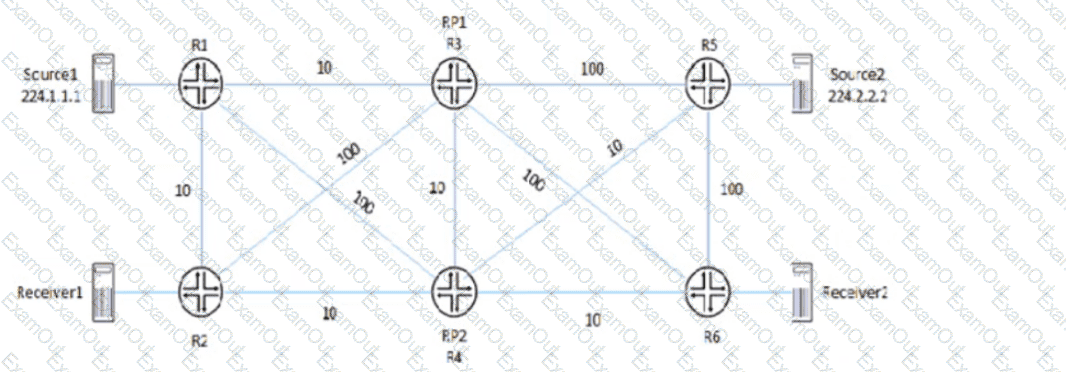

In PIM-SM (Protocol Independent Multicast - Sparse Mode), the Designated Router (DR) plays a crucial role in multicast forwarding. The DR is responsible for various tasks depending on whether it is connected to the source or the receiver. Let's analyze each statement regarding the PIM DR in a PIM-SM domain.

1. **Statement A: The source DR sends PIM register messages from the source network to the RP.**

- Correct. In PIM-SM, the DR on the source's local network is responsible for encapsulating multicast packets in PIM Register messages and sending them to the Rendezvous Point (RP). This process ensures that the RP is aware of active sources.

2. **Statement B: If the DR priorities match, the router with the lowest IP address is selected as the DR.**

- Incorrect. The correct rule is that if the DR priorities match, the router with the **highest** IP address is selected as the DR. The election process first compares priorities; if priorities are equal, the IP addresses are compared to select the DR.

3. **Statement C: The receiver DR sends PIM join and PIM prune messages from the receiver network toward the RP.**

- Correct. In PIM-SM, the DR on the receiver's local network sends PIM Join messages toward the RP to join the multicast distribution tree. Similarly, it sends PIM Prune messages to leave the tree when there are no interested receivers.

4. **Statement D: By default, PIM DR election is performed on point-to-point links.**

- Incorrect. By default, PIM DR election is performed on multi-access networks (e.g., Ethernet). On point-to-point links, there is no need for a DR election as there are only two routers involved.

**Conclusion**:

The correct statements regarding the PIM DR in a PIM-SM domain are:

**A. The source DR sends PIM register messages from the source network to the RP.**

**C. The receiver DR sends PIM join and PIM prune messages from the receiver network toward the RP.**

**References**:

- Juniper Networks Documentation on PIM-SM: [PIM-SM Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/pim-sparse-mode-overview.html)

- RFC 7761, Protocol Independent Multicast - Sparse Mode (PIM-SM): [RFC 7761](https://tools.ietf.org/html/rfc7761) which details the PIM-SM protocol, including DR roles and election procedures.

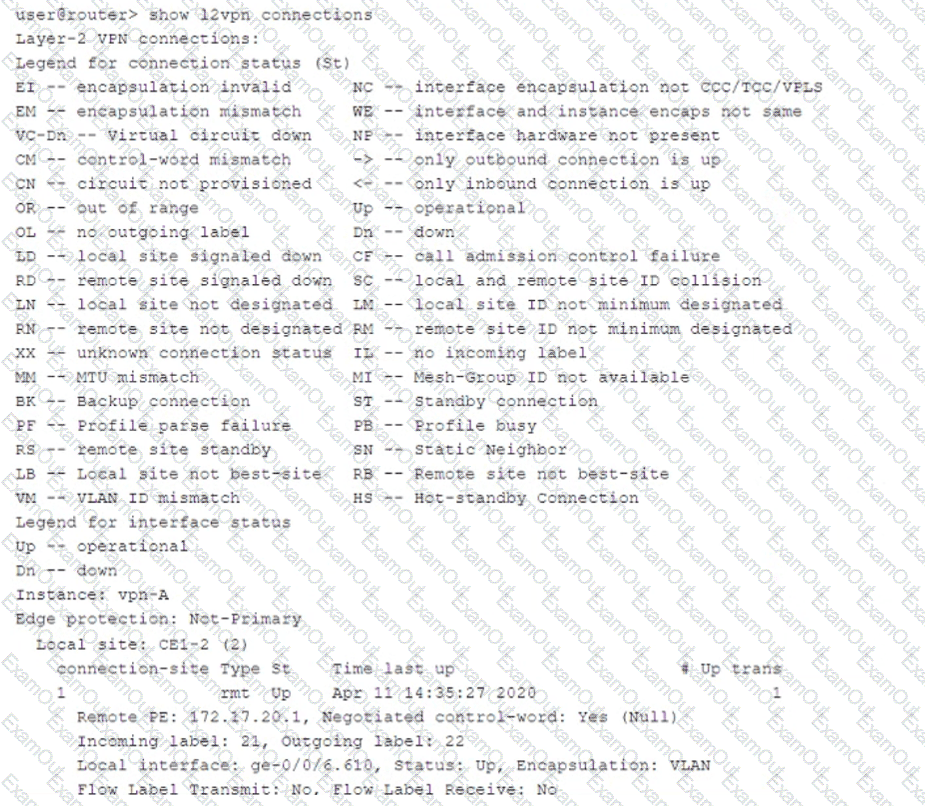

The output is from the show l2vpn connections command on a Juniper router. This command is used to verify the status of Layer 2 VPN (L2VPN) pseudowires between Provider Edge (PE) routers.

Breakdown of Key Information:

Instance: vpn-A

This is the L2VPN instance being monitored.

Connection Status (St)

The connection status is "Up", meaning the pseudowire is operational.

Local Site: CE1-2 (2)

The PE router is attached to a single local site (CE1-2).

Uptime & Connection Flaps

The output shows the last time the connection was up:

Time last up: Apr 11 14:35:27 2020

The "# Up trans" value is 1, meaning this connection has been established once and has not flapped since it was initiated.

VLAN ID Mismatch Check

The legend includes "VM – VLAN ID mismatch", but this status is not present in the connection output.

This means there is NO VLAN ID mismatch.

Flow Labels

The Flow Label Transmit is No, and the Flow Label Receive is No.

This means the PE router does NOT have the capability to pop flow labels.

A sham link is a logical link between two PE routers that belong to the same OSPF area but are connected through an L3VPN. A sham link makes the PE routers appear as if they are directly connected, and prevents OSPF from preferring an intra-area back door link over the VPN backbone. A sham link creates an OSPF multihop neighborship between the PE routers using TCP port 646. The PEs exchange Type 1 OSPF LSAs instead of Type 3 OSPF LSAs for the L3VPN routes, which allows OSPF to use the correct metric for route selection1.

Class of Service (CoS) in networking is used to manage traffic by classifying, scheduling, and sometimes modifying packets to ensure network performance and Quality of Service (QoS). Different CoS components are used to achieve these goals. Let's analyze each option to determine which CoS component allows you to alter class-of-service values on the outbound interface of an edge router.

1. **Output Policer**:

- Policing is used to control the rate of traffic sent to or from a network interface. It can drop or remark traffic that exceeds a certain rate.

- Policing is not typically used to alter CoS values but to enforce traffic limits.

2. **Scheduler**:

- A scheduler is responsible for managing the order in which packets are transmitted out of an interface based on their CoS markings. It can allocate bandwidth and prioritize traffic.

- The scheduler manages how packets are queued and sent but does not alter the CoS values of packets.

3. **Rewrite Rules**:

- Rewrite rules are used to modify the CoS values of packets, such as DSCP (Differentiated Services Code Point) or 802.1p bits, as they exit an interface.

- Rewrite rules can alter the class-of-service values in the packet headers to match the desired policies of the outbound interface.

- Therefore, rewrite rules are the correct component for altering CoS values on an outbound interface.

4. **Forwarding Classes**:

- Forwarding classes are used to categorize packets into different traffic classes within a router for QoS handling.

- They help in defining how packets should be treated by the scheduler but do not directly modify the CoS values.

**Conclusion**:

To alter class-of-service values in packets on the outbound interface of an edge router, the correct CoS component to use is:

**C. rewrite rules**

**References**:

- Juniper Networks Documentation on CoS: [Class of Service Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/class-of-service-overview.html)

- Junos OS CoS Configuration Guide: [Rewrite Rules](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/class-of-service-rewrite-rules.html)

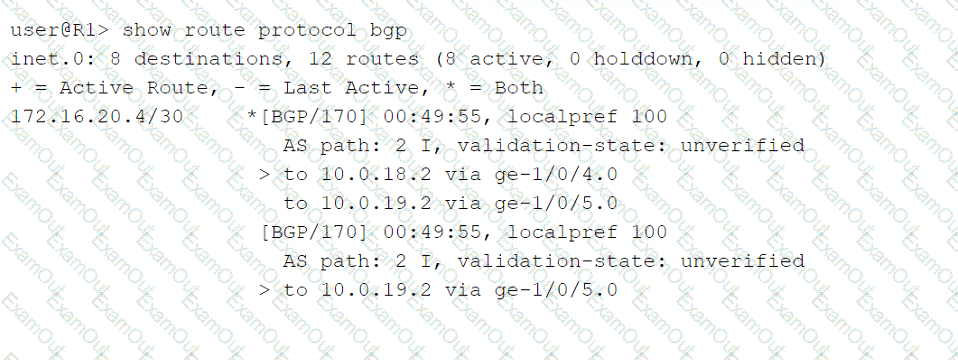

In the exhibit, the output of the `show route protocol bgp` command is shown for the prefix `172.16.20.4/30`. Let's analyze the provided BGP routing table to determine which statements are correct.

1. **AS Path Analysis**:

- The AS path for the route `172.16.20.4/30` is shown as `2 I`.

- This indicates that the route was learned from AS 2 and it is an internal (iBGP) route within the same AS.

2. **Multiple Paths**:

- The route has two next-hop IP addresses: `10.0.18.2` via interface `ge-1/0/4.0` and `10.0.19.2` via interface `ge-1/0/5.0`.

- This indicates that BGP multipath is configured, which allows multiple equal-cost paths to be used for load balancing.

- BGP multipath must be explicitly configured to use multiple paths for the same prefix.

3. **Multihop vs. Multipath**:

- **Multihop Configuration**: This is typically used for establishing BGP sessions with peers that are not directly connected. It is not related to load balancing.

- **Multipath Configuration**: This is used to enable load balancing across multiple paths for the same prefix, which is the case here.

**Conclusion**:

Given the above analysis:

- **C. This route is learned from the same AS number**: Correct. The AS path `2 I` indicates the route was learned from the same AS number (AS 2).

- **D. The multipath configuration is used for load balancing**: Correct. The presence of multiple next-hops indicates that BGP multipath is configured for load balancing.

Thus, the correct answers are:

**C. This route is learned from the same AS number.**

**D. The multipath configuration is used for load balancing.**

**References**:

- Junos OS BGP Multipath Documentation: [Junos OS BGP Multipath](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/bgp-multipath.html)

- Junos OS BGP Configuration Guide: [Junos OS BGP Configuration](https://www.juniper.net/documentation/en_US/junos/topics/concept/bgp-routing-overview.html)
