Free Practice Questions for Juniper JN0-481 Exam

In Apstra 5.1, the worker node’s primary purpose is to add scalable runtime capacity to an Apstra cluster by hosting off-box services that would otherwise consume resources on the controller. Specifically, worker nodes run containerized services such as off-box device agents (used to communicate with and manage devices) and Intent-Based Analytics (IBA) components (such as probes and analytics-related services). This design keeps the controller node focused on cluster management and control-plane functions (API handling, cluster-wide state, blueprint control workflows), while shifting resource-intensive operational services to worker nodes.

As your fabric grows—more switches, more telemetry, more devices requiring agent connectivity—CPU and memory demand increases notably, especially when IBA is enabled. Adding worker nodes allows you to scale those container workloads horizontally without redesigning the fabric or reducing analytics coverage. In a Juniper data center built on EVPN-VXLAN with Junos v24.4 leaf-spine roles, this separation helps ensure that Apstra can continuously validate intent, process streaming telemetry, and maintain device communications reliably at scale. Worker nodes therefore exist primarily to offload and scale operational agents and IBA services, improving performance and resilience for larger deployments.

Apstra 5.1 provides multiple reference designs that define how intent is modeled and how configuration is produced. In the Freeform reference design, the network designer is responsible for creating and validating the device configurations using constructs such as device contexts, property sets, and config templates. Because configuration is authored rather than generated from a fixed data-center abstraction set, Freeform inherently requires practical knowledge of the device’s configuration model and operational behavior—on Juniper platforms, that means being comfortable with Junos-style configuration and show/verification workflows. This makes statement A correct.

Freeform in Apstra 5.1 is also limited to Juniper devices (Junos and Junos Evolved families). In other words, Freeform blueprints do not provide multi-vendor device onboarding and deployment in that reference design at this software level. That makes statement D correct as written in the question’s choices.

By contrast, the data center reference design in Apstra 5.1 is not limited to Junos-only device families; Apstra qualifies multiple NOS families for data center operation via device profiles and packages, and it renders intent accordingly. Therefore statement B is not correct. Finally, while CLI knowledge is always useful for troubleshooting, the data center reference design does not fundamentally require an operator to hand-author device CLI to deploy a standards-based EVPN-VXLAN fabric; that’s one of the core benefits of the intent-based data center reference design.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/freeform.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-freeform-4.2.1/apstra-freeform-guide/topics/concept/freeform-overview-and-design.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/task/device-profile-import-freeform.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/devices-qualified.html

In Juniper Apstra 5.1, the Event Log is a centralized record used for auditing and operational visibility. It includes audit events (user/system actions) and anomaly-related alerts (events generated when Apstra detects abnormal conditions). In Apstra documentation, anomaly entries are explicitly treated as “Alert” records with high severity, meaning the Event Log is a valid place to review anomaly notifications and their associated details. Therefore, the statement that the Event Log stores alerts for anomalies is correct.

The other options do not match the Event Log function. Viewing a device’s configuration is handled in device configuration and blueprint operational views, not as the primary purpose of the Event Log. Export behavior, where supported, is described for formats such as CSV rather than PDF, and exporting dashboards is a separate capability from event logging. Finally, while worker nodes are used to offload operational services (such as off-box agents and IBA components), the Event Log is a platform logging feature exposed through the controller UI/API rather than something described as “running on the worker node” as its defining trait.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/event-log.html

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/event-log.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/syslog-config.html

In Junos EVPN, the service type determines how VLANs (broadcast domains) are mapped into EVPN constructs. With VLAN-based service, the mapping is one-to-one: a single VLAN (single broadcast domain) maps to a single EVPN instance (EVI), resulting in a separate bridge table per VLAN. When you implement EVPN-VXLAN in a bridged overlay (L2 extension over an L3 underlay), leaf devices act as VTEPs and encapsulate VLAN traffic into VXLAN using the associated VNI, but the service-type mapping rule still applies.

At the MAC-VRF hierarchy, you configure the EVPN-VXLAN parameters and choose the service type for that EVPN instance. If the service type selected is VLAN-based, then the EVI represents exactly one VLAN at that EVPN instance level. If you need multiple VLANs under the same MAC-VRF/EVI construct, Junos provides alternative service types (for example, VLAN-aware or VLAN-bundle) specifically intended to associate multiple VLANs with a single EVPN instance; that is not what VLAN-based service does.

Therefore, in a bridged overlay EVPN-VXLAN design using VLAN-based service at the MAC-VRF EVPN instance level, the correct answer is one VLAN. This remains true regardless of how many total VLANs exist across the fabric; each VLAN-based EVI handles a single VLAN.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/junos/evpn/topics/concept/evpn-based-services.html

https://www.juniper.net/documentation/us/en/software/junos/evpn/topics/concept/mac-vrf-routing-instance-overview.html

In Apstra 5.1, off-box agents and analytics services are delivered as containerized workloads that consume CPU and memory within the Apstra cluster. When these workloads are concentrated on the controller node, the controller can become resource-constrained, impacting overall responsiveness and scaling limits. The supported architectural solution is to add a worker node (worker VM) and allow Apstra to place offbox (and, if applicable, iba) containers on that worker. This increases cluster capacity and shifts runtime load away from the controller, which should remain focused on core control-plane and management functions.

Juniper’s sizing guidance also treats worker nodes as the scalable unit for off-box agent growth: each VM node (controller or worker) supports a bounded number of off-box agents, and when one VM is insufficient, the prescribed approach is to increase capacity by adding worker nodes to the Apstra VM cluster. This method scales horizontally and avoids overloading the controller with operational containers.

While increasing CPU/memory on the controller might help temporarily, the documented design pattern for sustained growth is to distribute the off-box workloads across worker nodes. Switching to on-box agents is a different operational model and not the direct remediation for controller resource pressure in an off-box deployment.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-install-upgrade/topics/ref/apstra-server-resources.html

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/apstra-cluster-nodes.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/topic-map/apstra-cluster-nodes.html

A three-stage Clos (leaf–spine) data center fabric separates roles to keep forwarding predictable and scalable. The leaf layer is the attachment point for endpoints, so servers connect to leaf devices. This is where the fabric accepts workload traffic, applies edge policies, and provides tenant/service constructs (for EVPN-VXLAN fabrics, the leafs typically act as VTEPs and host IRB gateways as required). The spine layer provides the non-blocking transit core between leafs using L3 underlay routing and ECMP, but it is not the place where servers attach directly.

For north-south connectivity, a typical three-stage Apstra data center architecture includes border leaf switches. These border devices provide the controlled connection point between the fabric and external networks (Internet/WAN/DCI or upstream services). As a result, fabric traffic enters and exits the border devices, not the spines. This design keeps the spines dedicated to high-speed east-west transit and simplifies operations: external routing policies, security controls, and inter-domain handoffs are concentrated at the border, while the spines remain a uniform L3 transit tier. In Junos v24.4 EVPN-VXLAN deployments, this separation also helps maintain clean overlay boundaries and consistent underlay behavior across the fabric.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/juniper-data-center-assurance/user-guide/topics/concept/dc-network-topology-on-dc-assurance.html

https://www.juniper.net/documentation/us/en/software/jvd/jvd-3-stage-datacenterdesign-with-juniper-apstra/solution_architecture.html

https://www.juniper.net/content/dam/www/assets/white-papers/us/en/design-considerations-for-spine-and-leaf-ip-fabrics.pdf

Juniper Apstra describes data center fabric management as a full lifecycle that spans three core phases: Design (Day 0), Deployment (Day 1), and Operations (Day 2). These phases map directly to how Apstra applies intent-based networking to a data center fabric.

In the Design phase, you model the intended architecture—templates (3-stage or 5-stage), rack types, logical devices, interface maps, resource pools, and high-level constructs such as routing zones and virtual networks. The objective is to capture intent in a vendor-agnostic way while ensuring consistency and validation before anything is pushed.

In the Deployment phase, Apstra turns the modeled intent into device-level implementation. This includes onboarding systems, assigning device profiles, allocating resources, rendering configurations, and pushing the resulting configuration to switches so the IP fabric becomes operational. This is where Junos v24.4 leaf/spine nodes receive underlay and overlay configuration generated from the blueprint.

In the Operational phase, Apstra continuously validates the running network against intent using telemetry and analytics (IBA), detects deviations and anomalies, supports maintenance workflows (such as drain), and provides troubleshooting tools (queries, time-series utilization, and configuration compliance).

“Configuration” and “installation” are activities that occur within the lifecycle, but the lifecycle phases themselves are Design, Deployment, and Operations.

In Apstra IBA, a probe is a directed graph made of stages (data you can inspect) and processors (operations that transform/aggregate data). While stages can be inspected during probe construction, the simplest operational way to make probe results readily consumable by day-2 operators is to publish them through widgets that can be placed on Analytics dashboards. A dashboard widget is the visualization and presentation object that renders either (1) counts of anomalies or (2) the outputs produced by stages and processors in a probe. Creating a widget tied to the probe output means the operator can open a dashboard and immediately see the metric trends, tables, or anomaly indicators without navigating into probe internals.

A predefined probe is optional content (a starting template) and is not required for visibility. Processors and stages are internal probe building blocks, but they do not, by themselves, create an operator-friendly view in the UI. In a Junos v24.4 EVPN-VXLAN fabric, this is especially useful for link utilization, drops, latency signals, or any custom telemetry pipeline: you build the probe logic once, then expose the key results in a widget that persists across operational workflows and can be shared on standardized dashboards for capacity planning and troubleshooting.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/concept/widgets.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/topic-map/widget-stage-create.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/concept/probes.html

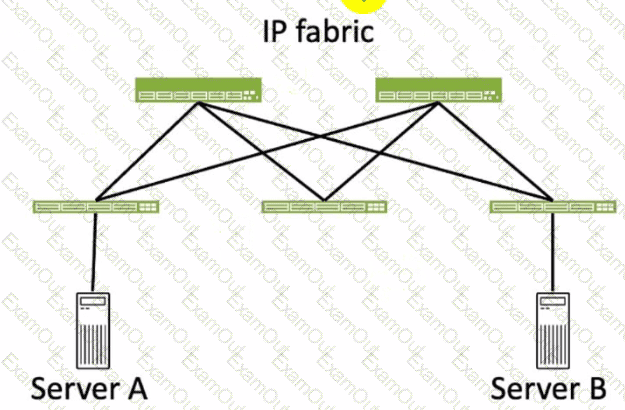

Referring to the exhibit, the image shows a simplified diagram of an IP fabric network connecting two servers, labeled as Server A and Server B. The IP fabric is a network architecture that uses a Clos topology to provide high bandwidth, low latency, and scalability for data center networks. The IP fabric consists of spine and leaf devices that use BGP as the routing protocol and VXLAN as the overlay technology1.

A broadcast domain is a logical portion of a network where any device can directly transmit broadcast frames to other devices at the data link layer (OSI Layer 2). A broadcast frame is a frame that has a destination MAC address of all ones (FF:FF:FF:FF:FF:FF), which means that it is intended for all devices in the same broadcast domain. A broadcast domain is usually bounded by a router, which does not forward broadcast frames to other networks2.

In the exhibit, there are two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The first broadcast domain is the one that contains Server A and the leaf device that it is connected to. The second broadcast domain is the one that contains Server B and the leaf device that it is connected to. The IP fabric itself is not a broadcast domain, because it uses IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network. Therefore, the statement C is correct in this scenario.

The following three statements are incorrect in this scenario:

A. 1. This is not true, because there are not one, but two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The IP fabric itself is not a broadcast domain, because it uses IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network.

B. 4. This is not true, because there are not four, but two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The spine devices and the leaf devices that are not connected to the servers are not part of the broadcast domains, because they use IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network.

D. 3. This is not true, because there are not three, but two broadcast domains that an Ethernet frame will pass through when traversing the IP fabric from Server A to Server B. The IP fabric itself is not a broadcast domain, because it uses IP routing and VXLAN encapsulation to transport the Ethernet frames over the Layer 3 network.
