Free Practice Questions for Juniper JN0-336 Exam

The correct answers are B and C . A redundant Ethernet interface, or reth , is a logical interface used in an SRX chassis cluster to provide interface redundancy across node0 and node1. Juniper states that a reth interface must include matching physical Ethernet interface types and speeds on both cluster nodes. In practical terms, you cannot build one reth bundle by mixing Fast Ethernet with Gigabit Ethernet, or by mixing different speed members inside the same redundant Ethernet interface. Juniper’s chassis cluster documentation explicitly states that mixed Ethernet interface types or speeds within a single reth interface are not supported.

Option B is correct because all member interfaces must use the same media/interface type, such as Fast Ethernet with Fast Ethernet or Gigabit Ethernet with Gigabit Ethernet. Option C is correct because the child interfaces must also operate at the same speed. Option A is wrong because speed mismatch is unsupported and can prevent a child link from joining the reth bundle. Option D is wrong because different media types are not valid within the same reth interface. Reference topics: HA Clustering, redundant Ethernet interfaces, reth child interfaces, interface type and speed requirements.

The correct answers are A and C. Juniper ATP Cloud uses a malware-analysis pipeline. When a file is submitted, the first step is a cache lookup based on the file hash. Juniper explains that if the file has already been analyzed, the stored verdict is returned to the SRX Series Firewall and there is no need to re-analyze the file. That directly supports C and eliminates B, because analysis does not continue when a cached verdict is found.

If the cache lookup does not return a verdict, the remaining ATP Cloud analysis techniques are used. Juniper describes the pipeline model in which each analysis technique creates a verdict number, and those verdicts are combined into a final verdict score from 0 to 10. That final threat score is what the SRX compares against ATP Cloud policy settings to permit or block the session.

Option D is wrong because ATP Cloud does not simply return the first score generated by any one feature. The expected behavior is cumulative/final scoring across the remaining analysis pipeline. Reference topics: Juniper ATP Cloud, malware analysis pipeline, cache lookup, verdict number, threat score, SRX enforcement.

The correct answers are B and C. In Junos route-based IPsec VPNs, the default proxy ID is broad: local 0.0.0.0/0, remote 0.0.0.0/0, and service any. This default behavior allows routed traffic entering the secure tunnel interface to determine what is protected by the VPN rather than requiring a narrow policy-based encryption domain. Juniper’s IPsec VPN configuration guidance also states that proxy IDs are used in Phase 2 negotiations, and that a proxy ID mismatch is one of the common causes of Phase 2 failure. For interoperability with some third-party VPN peers, Juniper notes that proxy IDs may need to be manually configured to match the peer.

Option A is wrong because proxy IDs can override default route-based behavior when manually configured, especially when a peer requires specific local and remote protected subnets. Option D is wrong because proxy IDs are not created during IKE Phase 1. Phase 1 builds the secure IKE channel; proxy IDs belong to Phase 2/IPsec SA negotiation, where the peers agree on traffic selectors for encrypted traffic. Reference topics: IPsec VPN, route-based VPNs, proxy IDs, Phase 2 negotiation, traffic selectors, third-party VPN interoperability.

The correct answer is A. It supports a maximum of two domains. Juniper’s Active Directory identity-source configuration guidance states that an SRX Series Firewall using the integrated user firewall/Active Directory identity source can be configured for a maximum of two domains. That is the exact limit relevant to this question. The same Juniper configuration page separately states that a maximum of 10 domain controllers can be configured, which directly eliminates option C because the supported figure is not 20 Active Directory servers per domain.

Option B is wrong because Active Directory identity source is not presented as a logical-systems feature in the JNCIS-SEC identity-aware firewall context. Option D is wrong because the primary Active Directory mechanism reads Windows domain controller event logs and uses WMI/DCOM plus LDAP to build IP-to-user and group mappings. Juniper describes the SRX as reading and monitoring the Windows event log on the domain controller, then using LDAP to obtain user/group information. Non-domain or non-Windows cases typically require alternate authentication behavior such as captive portal, not native Active Directory event-log tracking.

Reference topics: Identity-Aware Security Policies, Active Directory identity source, integrated user firewall, domain limits, domain controllers, WMIC, LDAP mapping.

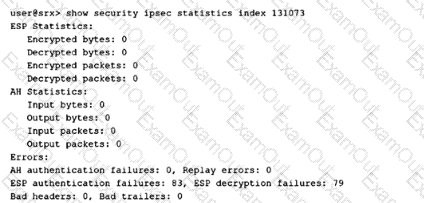

The correct answers are C and D. The exhibit shows ESP encrypted bytes = 0, ESP decrypted bytes = 0, encrypted packets = 0, and decrypted packets = 0. That means no traffic is successfully passing through the IPsec tunnel. Juniper’s show security ipsec statistics command displays ESP encrypted/decrypted packet and byte counters, so zero values on these counters indicate that the tunnel is not successfully carrying protected ESP traffic.

Option C is also correct because the output shows ESP authentication failures and ESP decryption failures. Since ESP is the IPsec protocol responsible for encrypted payload handling, failures in ESP authentication/decryption point to an ESP/IPsec Phase 2 mismatch or incorrect configuration, such as mismatched authentication algorithm, encryption algorithm, keys, proposal parameters, or incompatible negotiated SA settings. Juniper’s IPsec overview explains that Phase 2 negotiates the IPsec SA used to authenticate traffic flowing through the tunnel, so ESP-related failures belong to the IPsec/ESP configuration path rather than AH.

Option A is wrong because the AH counters and AH authentication failures are zero; the evidence is not pointing to AH. Option B is unsupported because the output does not show peer reboot behavior. Reference topics: IPsec VPN, ESP statistics, Phase 2/IPsec SA negotiation, ESP authentication failures, ESP decryption failures.

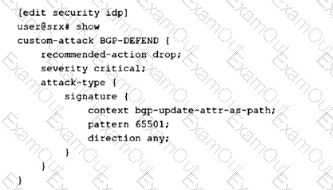

The correct answer is A. the action taken is defined in the IDP policy that includes this attack object. The exhibit defines a custom attack object named BGP-DEFEND under the security idp custom-attack hierarchy. The custom object includes metadata such as recommended-action drop, severity critical, and signature match conditions such as BGP update AS-path context and pattern 65501. However, an attack object by itself does not determine the final enforcement behavior. The attack object defines what to match; the IDP policy rule that references the object defines what action to take when that match occurs. Juniper describes attack objects as objects used inside IDP rules to identify malicious activity, while IDP rules include rule actions such as drop-packet, drop-connection, close-client, close-server, recommended, and others.

Option B is wrong because the firewall security policy enables IDP inspection by applying an IDP policy, but the IDP action is not selected directly by the normal security policy. Options C and D are too absolute. Even though the custom object shows recommended-action drop, that is only used if the IDP rule action invokes recommended behavior. Without seeing the IDP policy rule action, you cannot conclude reject or drop. Reference topics: IDP custom attack objects, IDP policy rule actions, recommended action, signature-based attack matching.

The correct answers are A and D. Juniper ATP Cloud reduces inspection delay in two practical ways: trusted allowlists and cache lookup. An allowlist contains known trusted IP addresses, hashes, email addresses, and URLs; Juniper states that content downloaded from locations on the allowlist does not have to be inspected for malware. That eliminates unnecessary cloud-analysis cycles for known trusted sources or objects.

Option D is also correct because ATP Cloud performs a real-time cache lookup before deeper analysis. Juniper explains that when a file is uploaded, ATP Cloud first checks whether the file has been analyzed before; if it has, the stored verdict is returned to the SRX Series Firewall and there is no need to re-analyze the file. This directly reduces inspection delay and enables faster enforcement. Option B is wrong because ATP Cloud does not rely on a single antivirus engine; it uses a pipeline that can include cache lookup, antivirus, static analysis, dynamic analysis, and machine learning. Option C is wrong because inspection bypass is not delegated to end users. Reference topics: ATP Cloud, allowlists, file inspection workflow, cache lookup, malware analysis pipeline.

The correct answers are C and D. The cSRX is Juniper’s containerized SRX firewall, intended for lightweight virtual and container environments where rapid deployment and high density matter. Juniper’s cSRX documentation lists supported security capabilities including basic firewall policy, NAT, Intrusion Detection and Prevention, content security/UTM functions, ATP Cloud, SSL Proxy, AppID, AppFW, and AppTrack. That supports option C, because cSRX provides SRX security services in a containerized footprint rather than requiring a full VM-based firewall appliance.

Option D is also correct because Juniper identifies the cSRX’s small footprint and minimum resource reservation requirements as key benefits; it is designed to scale more densely than VM-based firewall options. Juniper’s Day One cSRX guide specifically identifies faster deployment, a small footprint, and reduced resource consumption as major benefits. Option A is not the best answer for this exam item because the question asks for cSRX deployment benefits, not merely forwarding-mode support. Option B is wrong because the tested cSRX advantage is not a default three-zone configuration. Reference topics: cSRX container firewall, virtual SRX deployment, firewall/NAT/IPS/UTM services, lightweight resource footprint.

The correct answers are A and C. To log denied traffic on an SRX Series Firewall, the security policy must deny the traffic and must generate a log at session initiation. Juniper’s security policy monitoring documentation states that to view logs from denied connections, you enable logging on session-init. Juniper’s traffic-logging guidance also states that for a security policy with a deny action, traffic logs must be generated when a session starts.

Option C is required because the policy action must be deny; otherwise the traffic is not denied by that policy. Option A is required because denied traffic does not complete a normal permitted session lifecycle, so session-init is the correct logging stage for denied connection attempts. Option B, session-close, is used to log permitted sessions after teardown or conclusion; it is not the required parameter for denied traffic. Option D, count, increments policy counters but does not create traffic logs. The correct configuration concept is: match the unwanted traffic, apply then deny, and enable then log session-init. Reference topics: SRX security policies, deny action, session-init logging, traffic log generation, policy counters.

The correct answers are A and B. In an SRX chassis cluster, the cluster ID identifies the chassis cluster itself, while the node ID identifies the individual SRX device inside that two-node cluster. Juniper states that a cluster is identified by a cluster-id value from 1 through 255, and that setting the cluster ID to 0 is equivalent to disabling clustering. Therefore, option A is correct and option C is wrong.

Option B is also correct because Juniper states that a cluster node is identified by a node ID specified as a number from 0 through 1. A normal SRX chassis cluster has two nodes: node0 and node1. The two devices must use the same nonzero cluster ID so they belong to the same cluster, but each device must use a different node ID so Junos can apply node-specific configuration, interface numbering, redundancy-group ownership, and management settings correctly. Option D is wrong because node IDs do not range from 1 through 255; that range applies to cluster IDs, not node IDs. Reference topics: HA Clustering, cluster ID, node ID, chassis cluster formation, node0/node1 identification.
