Free Practice Questions for Juniper JN0-281 Exam

Spine and leaf architectures improve data center scalability by using a consistent, modular building block. When you need more server ports, you add leaf switches. When you need more fabric capacity, you add spine switches. This horizontal growth model avoids the limitations of traditional three-tier designs that often require larger aggregation devices or complex expansion. Because each leaf connects to every spine, the fabric naturally provides many parallel paths and can use equal-cost multipath forwarding across all uplinks. These properties deliver better scaling characteristics in both bandwidth and port count, which is why option B is correct.

Option C is also correct because spine and leaf fabrics provide low and predictable hop counts. Traffic between endpoints on different leaves typically crosses the fabric with a consistent number of hops, usually one spine hop in a two-tier fabric. This predictability reduces latency variance and improves application performance, especially for east-west traffic patterns common to distributed systems, storage, and microservices. Predictable paths also simplify troubleshooting and capacity planning.

Container and hypervisor management is primarily an orchestration and operations topic rather than a direct network architecture advantage. Finally, making all broadcast domains reachable is not an inherent benefit; modern data centers usually limit Layer 2 flooding domains and prefer routed underlays with overlays for segmentation, rather than expanding broadcast reachability everywhere.

Qualified next hop is the Junos mechanism that lets you configure more than one next hop for the same static route and control which one is preferred. This is most commonly used to build primary and backup forwarding behavior with deterministic selection. You configure a primary next hop and then add one or more qualified next hops with a different preference value. The route installs the best, lowest preference next hop as active, while keeping the alternate next hop available as standby. If the primary next hop becomes unusable, Junos can switch to the qualified next hop so traffic continues to flow.

This approach is widely used in data center edge and services routing, for example toward management networks, service appliances, or external gateways where you want a static default or summary route with predictable failover. It is not the same as resolving a non-directly-connected next hop. That scenario is handled by recursive resolution behavior, not by qualification. Qualified next hop also does not depend on any specific routing protocol, and it is not limited to link-state environments.

Finally, qualified next hop does not rely on sending pings to test reachability. Health tracking can be achieved through other mechanisms such as interface state, next hop resolution changes, or integration with failure detection features, but the qualified next hop feature itself is about preference-ranked redundancy for static routes.

In Junos BGP configuration, export policy can be applied at multiple levels, including the BGP group level and the individual neighbor level. When an export policy is configured directly under a specific neighbor, that policy is explicitly associated with advertisements sent to that neighbor and is therefore the policy that applies to that neighbor. In the exhibit, neighbor 172.16.1.101 has an export statement configured within the neighbor stanza, and that statement references the advertise-ospf policy. This is the most specific policy attachment in the configuration because it is tied to a single peer rather than to the entire group or the whole BGP process.

Group-level export policies, such as advertise-aggregate configured under the group, apply broadly to all neighbors in that group unless a neighbor has additional neighbor-specific policy. A BGP-level export policy configured outside the group applies as a more general export policy scope. However, the question asks which export policy applies to the specific neighbor, and the correct selection is the neighbor-specific export policy that is explicitly configured for that peer.

Operationally, this allows data center engineers to advertise different route sets to different peers, for example exporting OSPF-derived infrastructure routes to one neighbor while exporting aggregates or static routes to another, all while keeping a consistent group template for shared settings such as peer AS and session type.

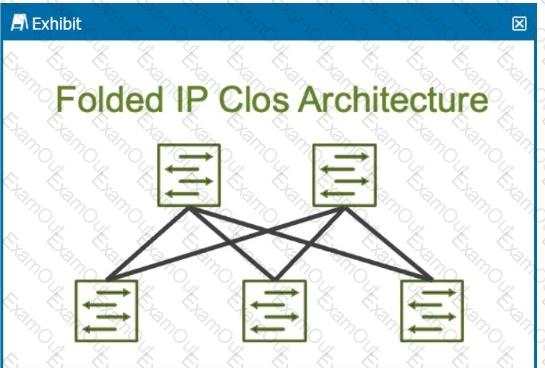

The exhibit shows a Folded IP Clos Architecture, which is also referred to as a 3-stage Clos network design. This architecture typically consists of two layers of switches:

Spine Layer: The top row of switches.

Leaf Layer: The bottom row of switches.

Step-by-Step Breakdown:

Clos Architecture:A 3-stage Clos network has two types of devices: spine and leaf. In this design, each leaf switch connects to every spine switch, providing a high level of redundancy and load balancing.

Stage Explanation:

Stage 1: The first set of leaf switches.

Stage 2: The spine switches.

Stage 3: The second set of leaf switches.

The Folded Clos architecture shown here effectively "folds" the 3-stage design by combining the ingress and egress leaf layers into one, reducing it to two visible layers, but still maintaining the overall 3-stage architecture.

Juniper Reference:

IP Clos Architecture: The 3-stage Clos design is commonly used in modern data centers for high availability, redundancy, and scalability.

A link aggregation group combines multiple physical Ethernet interfaces into one logical link layer interface, called an aggregated Ethernet interface on Junos. The primary purpose is to improve availability and increase usable bandwidth between two devices without changing the logical topology. If one member link fails, the aggregate can remain up and continue forwarding traffic over the remaining active members, providing redundancy at the link layer. This is especially valuable in data center designs where loss of a single optic or cable should not interrupt server connectivity, leaf to spine uplinks, or connections to service appliances.

LAG also enables load balancing. Instead of forcing all traffic over one physical link, the forwarding plane distributes flows across member links using a hashing algorithm. This allows the aggregate to use the sum of member bandwidth for multiple concurrent flows while keeping packets for a given flow in order. In leaf spine fabrics, this complements ECMP at Layer 3 by delivering parallelism both at the routed path level and within a single adjacency when multiple physical links exist.

LAG does not encrypt traffic. Encryption is provided by separate security features and protocols. It also does not increase the speed of a single physical interface; rather, it increases the total capacity of the logical bundle across multiple links. Finally, it does not assign IP addresses, which is the role of services like DHCP, not link aggregation.

In Junos, the default export policy for OSPF is to reject all routes from being exported.

Step-by-Step Breakdown:

Default Export Policy:By default, OSPF in Junos does not export any routes to other routing protocols or neighbors. This is a safety mechanism to prevent unintended route advertisements.

Custom Export Policies:

If you need to export routes, you must create a custom export policy that explicitly defines which routes to advertise.

Example: You can create an export policy to redistribute static or connected routes into OSPF.

Juniper Reference:

OSPF Export Behavior: In Juniper devices, the default policy for OSPF is to reject route advertisements unless explicitly configured otherwise through custom policies.

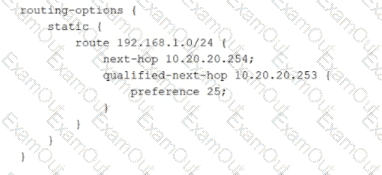

The configuration defines a static route for 192.168.1.0/24 with a primary next hop of 10.20.20.254 and a qualified-next-hop of 10.20.20.253 with preference 25. In Junos, qualified next hop is used to create preference-ranked redundancy for a static route, typically primary and backup forwarding. The key behavior is that the best, lowest preference path is selected as active. For static routes, the default preference for the route and its primary next hop is lower than 25 unless you explicitly raise it. Because the qualified-next-hop is configured with preference 25, it is less preferred than the primary next hop, so 10.20.20.254 remains the selected next hop during normal operation.

This is not load balancing. Junos does not automatically install both next hops for forwarding simply because more than one next hop is configured when one is qualified with a higher preference. Instead, the qualified next hop is held in reserve and is used only when the primary next hop becomes unusable, such as when it is no longer resolvable or the associated forwarding condition fails. Therefore, the route is expected to be installed and active using 10.20.20.254 under normal conditions, with 10.20.20.253 acting as a backup path.

Nonstop active routing is the Junos high availability capability that focuses on preserving routing protocol operation and routing information across a Routing Engine switchover. In platforms with redundant Routing Engines, a failure of the primary Routing Engine can otherwise reset routing protocol processes, tear down adjacencies, and trigger reconvergence. NSR mitigates this by synchronizing routing protocol state so that the backup Routing Engine can continue routing protocol operations with minimal disruption. This includes maintaining protocol session continuity and keeping the routing information base stable, which directly protects traffic that depends on those routes.

In data center environments, this is particularly important for routed fabrics where BGP or OSPF underlay reachability supports overlay services and east west application traffic. By keeping routing information consistent during the control-plane transition, NSR reduces route churn and helps avoid transient blackholing or microbursts caused by reconvergence.

GRES is closely related but addresses a different scope. GRES helps the forwarding plane continue forwarding during a Routing Engine switchover by preserving certain system and interface states. However, GRES alone does not guarantee that routing protocol sessions and routing information remain uninterrupted. BFD and LACP are valuable availability tools, but they are not Routing Engine redundancy features and do not preserve routing state during a Routing Engine failover.

A Layer 2 switch builds its Ethernet switching table through a learning process based on the source MAC addresses of incoming frames. When a frame arrives on an interface within a VLAN or bridge domain, the switch examines the source MAC address and associates it with the ingress interface and VLAN context. If the MAC address is new, the switch creates a new entry; if it already exists but is seen on a different interface, the switch updates the entry to reflect the new location. This dynamic learning is fundamental to efficient unicast forwarding and is why option A is correct.

Once the switch has learned MAC-to-port mappings, it can forward subsequent frames destined to those MAC addresses as known unicast out the specific egress interface rather than flooding them. If the destination MAC is unknown, the switch typically floods the frame within the VLAN or bridge domain to discover the correct destination. When the destination replies, the switch learns that MAC as a source, completing the learning cycle.

Spanning Tree Protocol does not provide a MAC table and there is no concept of downloading an Ethernet switching table from a root bridge. STP’s role is loop prevention and topology control at Layer 2, not MAC learning distribution. Firewall filters can enforce policy but do not create the switching table. Recording destination MAC addresses would not correctly learn endpoint locations because the destination can be unknown when the first frames are sent; source learning is reliable because every received frame carries the sender’s MAC address.
