Free Practice Questions for Juniper JN0-281 Exam

In Junos OS, direct routes are the most preferred routes in the routing table, having the highest priority.

Step-by-Step Breakdown:

Direct Routes:

Direct routes represent networks that are directly connected to the router's interfaces. Since these routes are directly accessible, they are assigned the highest priority and always take precedence over other types of routes.

Preference Values:

Direct routes have a preference of 0, which is the most preferred in Junos. Static routes, OSPF routes, and BGP routes have higher preference values and will only be used if there are no direct routes to the destination.

Juniper Reference:

Direct Route Preference: In Junos, direct routes are always preferred over other routes, ensuring that the router forwards traffic through locally connected networks.

Nonstop active routing is the Junos high availability feature designed to keep routing protocol operation and routing information continuous across a Routing Engine switchover on platforms with redundant Routing Engines. With NSR enabled, the control-plane routing state is replicated so that protocol sessions and routing information can remain stable when the device transitions from the primary to the backup Routing Engine. The goal is a transparent switchover that minimizes or eliminates routing reconvergence caused by a Routing Engine failure.

This is especially important in data center environments where routing stability underpins EVPN VXLAN control-plane operation, underlay BGP or OSPF adjacencies, and service reachability. By maintaining the routing protocol process state across the switchover, NSR helps prevent neighbor resets and reduces churn in the routing table, which directly protects application traffic paths from disruption that would otherwise occur during a control-plane restart.

GRES is closely related but has a different focus: it preserves forwarding and certain kernel and interface states so that packet forwarding can continue, but by itself it does not preserve the full routing protocol control plane. That is why NSR is the best match when the requirement explicitly includes routing information continuity in addition to traffic continuity. LACP and BFD are valuable availability tools, but they address link bundling and fast failure detection, not Routing Engine stateful failover.

In a leaf spine IP fabric, spines form the high-speed transit layer and leaves provide the attachment points for servers, services, and edge connectivity. The defining physical topology rule is that every spine connects directly to every leaf. This design creates consistent one-hop transit through a spine for traffic between any two leaves, which keeps latency predictable and simplifies capacity planning. It also enables equal-cost multipath routing across all available spine links, allowing the fabric to use bandwidth efficiently and recover quickly from failures by shifting traffic to remaining paths.

Spine-to-spine connections are not required in a classic two-tier leaf spine fabric. Adding spine-to-spine links can create unnecessary complexity and does not improve the standard forwarding model, because spines are intended to provide transit between leaves, not to act as an additional meshed layer. Likewise, there is no inherent requirement that each spine must have two or more physical links to each leaf. Many fabrics start with one link per spine-leaf pair and scale capacity by adding more spines or adding additional parallel links as demand grows. The redundancy objective is achieved primarily by multiple spines and multiple available routed paths, not by mandating multiple links between every spine and every leaf from the outset.

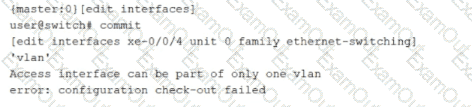

The commit error indicates that the interface is being treated as an access port while the configuration attempts to associate it with more than one VLAN. In Junos Ethernet switching, an access mode interface represents a single untagged VLAN membership. Because access ports accept and transmit frames without 802.1Q tags, the switch must map all ingress untagged traffic to exactly one VLAN. For that reason, Junos enforces the rule that an access interface can be part of only one VLAN, and it rejects configurations that try to add multiple VLAN members under access mode.

There are two valid ways to resolve this, depending on the intended design. First, if the port truly connects to a single endpoint that should live in only one broadcast domain, configure the interface as a member of only one VLAN. This aligns with access port semantics and eliminates the conflict that causes the commit to fail.

Second, if the endpoint or downstream device needs to carry multiple VLANs over the same physical link, change the interface to trunk mode. A trunk port is designed to transport multiple VLANs using 802.1Q tagging, so multiple VLAN members are valid and expected. In data center environments, trunking is common for server virtualization hosts, appliance uplinks, and switch-to-switch links.

Connecting the interface to the network does not affect configuration validation, and logical unit numbering is unrelated to VLAN membership rules for access ports.

Traditional data center networks are often built using a layered three-tier design with access, aggregation, and core. These designs frequently rely on Layer 2 domains and spanning tree to prevent loops. One major drawback is inefficient resource usage. Spanning tree typically blocks redundant links, which means installed bandwidth and expensive uplinks can sit idle during normal operation. To compensate, organizations overbuild capacity or use complex workarounds, raising cost and operational burden. In addition, scaling tends to be vertical, adding bigger chassis or more complex aggregation, which can concentrate risk and reduce flexibility.

Another common challenge is increased latency. In a three-tier model, traffic between servers in different access blocks often traverses multiple tiers, adding hops and delay. Even when traffic stays within the same facility, the path is not consistently short, and application performance can suffer, especially for east-west workloads such as distributed databases and microservices where frequent server-to-server communication is normal. Modern leaf spine IP fabrics reduce these issues by using a routed underlay with predictable one-spine-hop paths between leaves and by keeping all links active with multipath routing.

While traditional architectures can also experience suboptimal path behavior, the most consistently cited challenges are idle capacity due to blocked links and additional hop count that increases latency.

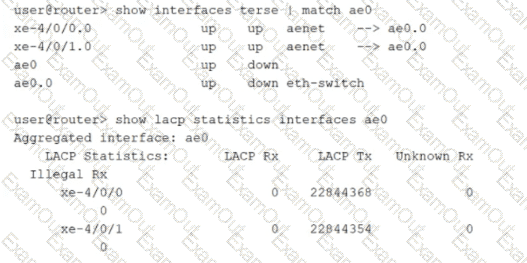

The exhibit shows the physical member interfaces xe-4/0/0 and xe-4/0/1 are up, but the aggregated Ethernet interface ae0 is down. This commonly indicates that the bundle is not successfully forming at the link aggregation control plane level, even though the physical links are operational. The key evidence is in the LACP statistics. The local device is transmitting LACP packets at a very high count on both member links, but the LACP receive counters remain at zero. That means the local system is actively sending LACP Data Units but is not receiving any LACP Data Units back from the far end.

When an LACP-based bundle is configured, the two sides must exchange LACP control packets to negotiate membership and move the links into collecting and distributing state. If the remote side is not configured for LACP, or is configured for a static aggregate without LACP, it will not send LACP packets. In that situation, the Junos device continues transmitting LACP but never receives a response, and the aggregate does not come up, leaving the logical ae interface down even though the member links are physically up.

Therefore, the cause is that the remote device does not have LACP configured. The routing protocol choices on either side are irrelevant to LACP negotiation, and the local device clearly has LACP enabled because it is transmitting LACP packets.

In Junos Ethernet switching, a VLAN is a Layer 2 broadcast domain and can include any set of switch ports that you assign to it. There is no generic rule that limits a VLAN to only half of a switch’s physical ports. Practically, a single VLAN can include all physical ports on the switch if that is how the environment is designed, for example in a flat Layer 2 segment for a specific purpose or during a migration. This makes statement C correct.

For interface mode behavior, access mode is the default expectation for endpoint-facing Layer 2 ports where traffic is normally untagged. In Junos, when an interface is configured for Ethernet switching and no explicit trunk configuration is applied, the operational intent aligns with access behavior: the port is associated with a single VLAN and forwards frames as untagged on the wire. Trunk mode must be explicitly configured when the link needs to carry multiple VLANs using 802.1Q tagging, such as switch-to-switch uplinks or server connections that tag multiple VLANs. Therefore, statement D is correct and statement A is incorrect because trunk mode is not the default behavior.

This distinction is important in data center operations because misidentifying an access port as a trunk can lead to dropped traffic, VLAN mismatch, or unexpected flooding behavior.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/topic-map/bridging-and-vlans.html

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/task/interfaces-configuring-ethernet-switching-access.html

On Junos switching platforms used in data centers, a VLAN is a Layer 2 broadcast domain. To make a VLAN functional for user traffic, you define the VLAN with a name and typically a VLAN ID, and you associate Layer 2 interfaces with that VLAN so frames arriving on those interfaces are placed into the correct broadcast domain. Without interface membership, the VLAN exists as configuration but does not carry endpoint traffic because no ports participate in it. This is why assigning a VLAN name or ID and associating Layer 2 interfaces to the VLAN is a correct requirement.

Trunk mode interfaces are designed to carry multiple VLANs over a single physical link using 802.1Q tagging. In a data center, trunks are common on leaf-to-spine uplinks, switch-to-switch connections, and server connections where the host or hypervisor tags multiple VLANs. Therefore, assigning one or more VLANs to a trunk port is correct.

An IRB interface is not required for every VLAN. IRB is only needed when the VLAN requires Layer 3 gateway functionality, such as inter-VLAN routing or default gateway services for that subnet. Pure Layer 2 VLANs do not need IRB. Also, an access mode interface is intended to belong to a single VLAN and typically carries untagged traffic, so assigning multiple VLANs to an access mode interface is not correct in standard Ethernet switching behavior.

In a Virtual Chassis (VC) configuration, multiple Juniper switches are interconnected to form a single logical device. Each member switch in the Virtual Chassis plays a specific role.

Step-by-Step Breakdown:

1.     Line Card Role:

o   Member switches acting as line cards provide additional ports for traffic forwarding but do not perform control or routing functions. These switches depend on the routing engine to handle control-plane tasks.

2.     Routing Engine Role:

o   A switch in the routing-engine role is responsible for control-plane operations such as routing protocol management and control of the Virtual Chassis.

3.     Virtual Chassis Roles:

o   Master Routing Engine: Handles control-plane functions and manages the entire Virtual Chassis.

o   Backup Routing Engine: Takes over if the master fails.

o   Line Card: Provides additional ports and handles data-plane operations.

Juniper Reference:

·        Virtual Chassis: In a five-member Virtual Chassis, multiple switches act as line cards, while one or more switches are designated as the routing engines (master and backup).

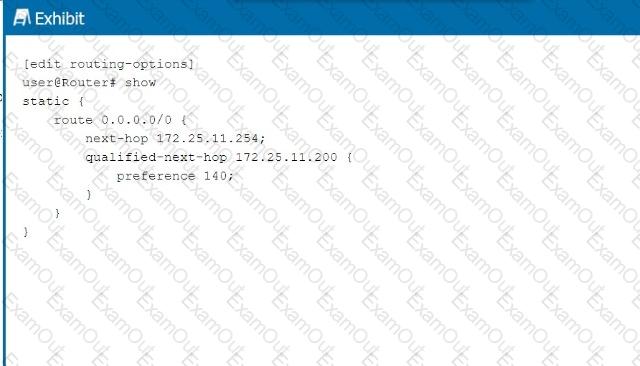

In the exhibit, we see two next-hop addresses for the default static route (0.0.0.0/0):

The first next hop is 172.25.11.254, with no specified preference.

The second next hop is 172.25.11.200, with a specified preference of 140.

Step-by-Step Breakdown:

Default Static Route Preference:If no preference is explicitly set for a next hop in Junos, it defaults to 5 for static routes.

Determining Preference:In this case, the next hop 172.25.11.254 does not have an explicit preference defined, so it will use the default value of 5. The second next hop has a preference of 140, which is higher, meaning it will only be used if the primary next hop is unavailable.

Juniper Reference:

Static Route Preference: In Junos, the default preference for static routes is 5, and this value is applied unless overridden by the preference parameter.
