The Local-Preference attribute is used within an AS to influence outbound traffic paths. The default value is 100, and it is a well-known discretionary attribute, meaning it is not mandatory and does not travel across AS boundaries ​.

An IP prefix filter is designed to match both the IP address and its prefix length, making it suitable for filtering routing information rather than data packets. Options A and D are incorrect because IP prefix filters do not work directly on data packets, and they can match both prefix numbers and lengths ​.

Comprehensive and Detailed Step-by-Step Explanation:

OSPF Route Preference Hierarchy:

OSPF uses the following preference order for route types when the prefix is the same:

Intra-area routes (D): Routes within the same OSPF area have the highest priority.

Inter-area routes (B): Routes between different OSPF areas are preferred after intra-area routes.

Type 1 external routes (A): External routes redistributed into OSPF, considering the internal OSPF cost to the ASBR.

Type 2 external routes (C): External routes redistributed into OSPF, ignoring the internal OSPF cost to the ASBR.

Lowest Priority:

Type 2 external routes (C) are given the lowest priority because they represent external information that does not consider internal OSPF costs.

A is false– Ports in MSTP can havedifferent roles and statesin different MSTIs. Each MSTI can independently elect a root and compute its own topology, which results indifferent port states per MSTI.

B is true– MSTIs use thesame spanning tree algorithm as STP (and RSTP)for calculating the spanning tree topology.

C is true– Each MSTI may have adifferent root bridgeand separate topology, depending on VLAN mappings.

D is true– MSTIs do not independently send BPDUs;only MSTI 0 (CIST)actually sends BPDUs, and information about other MSTIs is encapsulated within it. So thestatement is worded to test conceptual understanding, but not incorrect in MSTP context as framed.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“MSTP allows different MSTIs to have different topologies. A port may be forwarding in MSTI 1 but blocking in MSTI 2. This independence improves VLAN-based traffic engineering.”

(Chapter: MSTP Concepts – Section: MSTI Behavior and Port Roles)

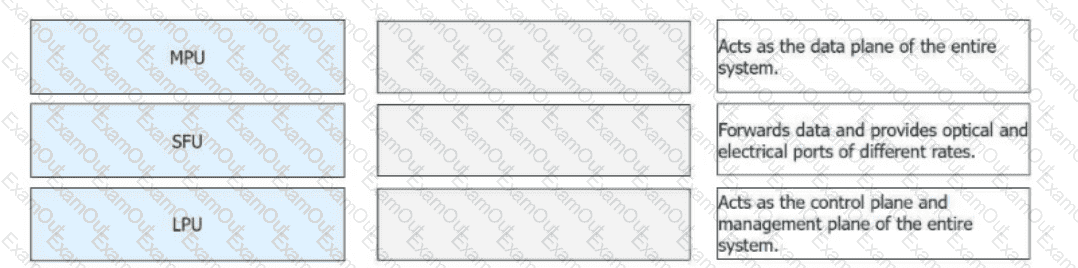

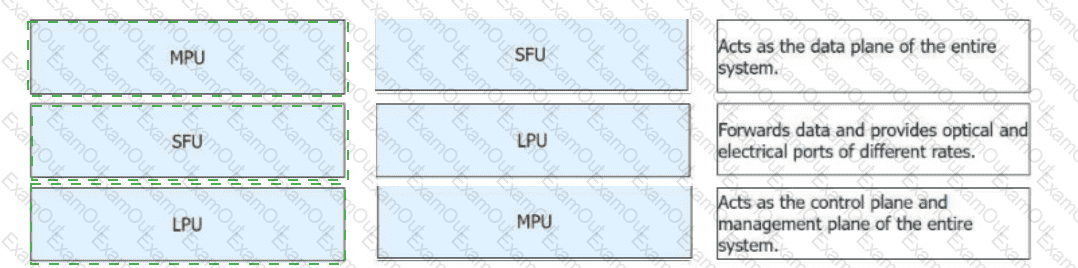

The hardware modules of Huawei modular devices and their functions are:

Main Processing Unit (MPU):Provides control and management planes for the entire system, responsible for protocol processing, system security, and software upgrades.

Switch Fabric Unit (SFU):Provides the data plane, enabling high-speed data switching between service modules.

Line Processing Unit (LPU):Manages data forwarding, offering various interfaces (optical and electrical) for data access​​.

IPv4 supports three main transmission modes:

Unicast: One-to-one communication.

Broadcast: One-to-all communication within a network.

Multicast: One-to-many communication to a group of interested receivers.Anycast is not a native IPv4 mode but is introduced in IPv6 ​.

The forwarding plane of a switch consists of data forwarding hardware, such as line cards or forwarding engines, and is responsible for tasks like encapsulating/decapsulating packets, providing high-speed data channels, and collecting packet statistics. However, main control boards are part of the control plane, not the forwarding plane. This distinction ensures a separation of data forwarding and control functionalities ​.

Application Specific Packet Filtering (ASPF) is a feature that allows the firewall to understand and handle multi-channel protocols such as FTP, H.323, and SIP. ASPF inspects the controlchannel to dynamically create temporary rules for the data channels, enabling the firewall to secure and manage complex application protocols. This feature ensures that appropriate security policies are applied to these multi-channel applications ​.

In the given topology, the route from R4 to 10.0.2.2/32 traverses R3, which performs route leaking from Level-2 to Level-1. The cost is calculated as follows: R4 to R3 (40) + R3 to R2 (10) + R2 to the destination (30), resulting in a total cost of 80 ​.
