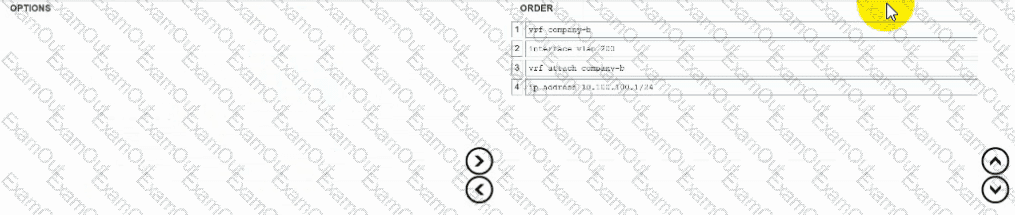

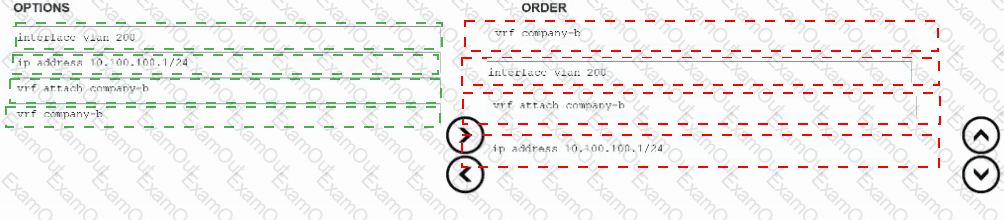

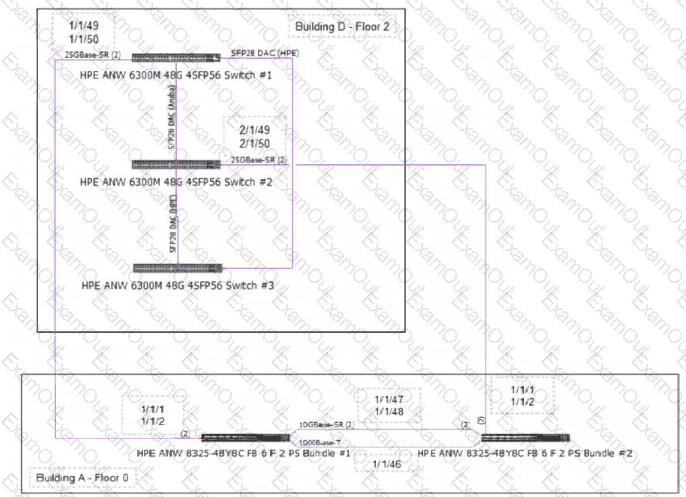

The exhibit illustrates a high-availability design involving an AOS-CX 8325 VSX core pair and an AOS-CX 6300M VSF access stack. To determine the necessary change, we must evaluate the bandwidth relationship between the Inter-Switch Link (ISL) and the Access Uplinks .

VSX ISL Bandwidth Best Practice: A fundamental rule in Aruba VSX design is that the ISL (Inter-Switch Link) bandwidth should be equal to or greater than the bandwidth of the highest-speed uplink or the aggregate bandwidth of the downstream access connections. This ensures that in the event of a link failure (where traffic must traverse the ISL to reach its destination), the ISL does not become a bottleneck, causing packet loss or increased latency.

Analyzing the Current Topology:

The Access Uplinks from the CX 6300 stack to the CX 8325 core are utilizing 25GBase-SR (25 Gbps) connections.

The VSX ISL (ports 1/1/47 and 1/1/48 on the CX 8325s) is currently configured with 10GBase-SR (10 Gbps) optics.

This creates a " bottleneck " scenario where the core synchronization and failover path (10G) is significantly slower than the access path (25G).

Hardware Capabilities:

The AOS-CX 8325-48Y8C features 48 ports that support SFP/SFP+/SFP28 (1G/10G/25G).

Ports 1/1/47 and 1/1/48 are SFP28 capable. To adhere to best practices and match the 25G speed of the downstream 6300 uplinks, these ISL ports must be upgraded from 10G (SFP+) to 25G (SFP28) .

Evaluating Other Options:

Option B is incorrect because the CX 8325 does not support SFP56 (50G) transceivers; SFP56 is typically found on the CX 6300/6400 series.

Option C is incorrect because the CX 6300M does not have QSFP28 (100G) ports; it uses SFP56 for its high-speed uplinks.

Option D is incorrect because the 6300 is already using 25G. While it could support SFP56, upgrading the access side to 50G while leaving the Core ISL at 10G would only exacerbate the bandwidth mismatch.

Therefore, the most critical architectural correction is upgrading the 8325 ISL ports to SFP28 to ensure the ISL bandwidth matches the 25G access uplinks.

If interfaces 1/1/53 and 1/1/54 connected to the primary VSX switch are disconnected and Client A experiences disruptions, configuring VSX shutdown on-split on SW-A (the primary) is necessary to prevent traffic forwarding during a split-brain scenario. This feature ensures that in case of link failure, the switch does not continue forwarding traffic independently, avoiding network loops or inconsistent states.

Configuring keepalive VLANs on downstream or upstream lags helps in monitoring but does not prevent traffic disruption.

VSX shutdown on-split must be configured on the affected primary switch to protect network integrity.

(Note: Corrected the typo in the original prompt where " Online " was used instead of " Only " .)

Redistribution between an Exterior Gateway Protocol (BGP) and an Interior Gateway Protocol (OSPF) is a high-risk operation on AOS-CX switches that requires careful planning.

Scale and Performance: BGP is designed to carry thousands (or even millions) of routes. OSPF is a link-state protocol that requires every router in an area to maintain an identical Link State Database (LSDB). If you were to redistribute a full BGP table into OSPF, the resulting flood of Type 5 LSAs would likely crash the OSPF process, consume all available switch memory, and cause network-wide instability.

The " Only Defined Routes " Rule: Aruba best practices dictate that you should use Route Maps to strictly control (define) which specific BGP prefixes are allowed into the OSPF domain. This ensures only necessary destination networks (like a remote branch office) are advertised to the campus routers, protecting the OSPF area ' s resources.

Evaluating Other Options:

Option A: While redistributing only a default route is a very safe strategy, it isn ' t a " universal truth " because some designs require specific internal subnets to be shared.

Options B and C: Choosing between External Type 1 (E1) and External Type 2 (E2) is a design choice regarding how costs are calculated (E1 adds internal path cost, E2 stays constant). Neither is an " always " requirement; the primary concern is the volume and definition of the routes being moved.

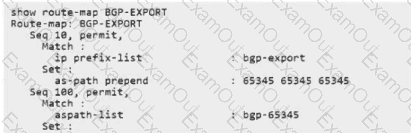

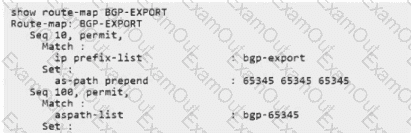

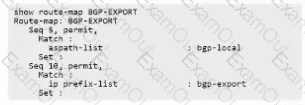

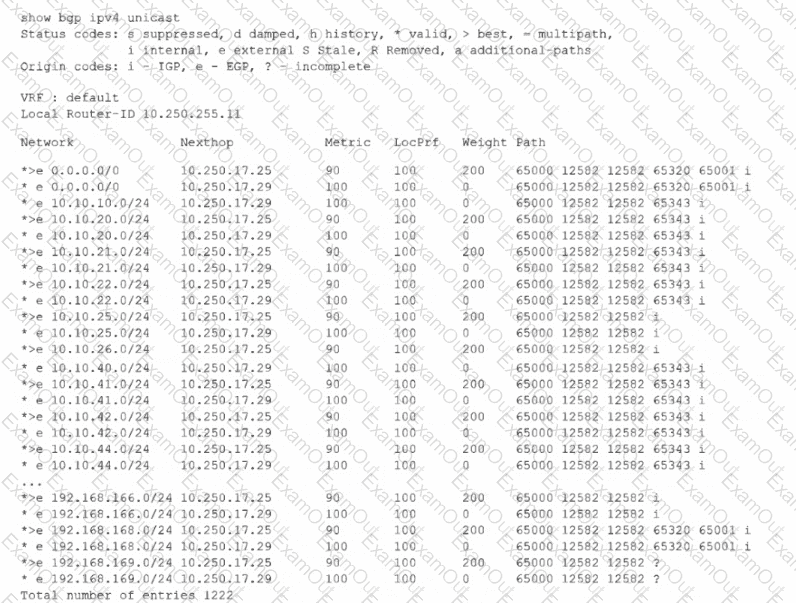

The exhibit shows a configuration for a Route Map named BGP-EXPORT. To identify the correct statement, we must analyze the specific BGP attributes being manipulated in the sequence entries.

Analyzing Sequence 10:

Match: It looks for network prefixes defined in an IP prefix-list named bgp-export.

Set: It executes the command as-path prepend 65345 65345 65345.

AS Path Prepending: In BGP, the " Shortest AS Path " is one of the primary decision factors in the Best Path Selection Algorithm. AS Path Prepending is a technique used by network administrators to make a specific route appear " less desirable " to external neighbors. By adding multiple instances of an AS number (in this case, AS 65345 is added three times) to the existing AS Path, the switch artificially increases the length of the path.

Conclusion for Statement B: Because the route map prepends the AS path for the matched prefixes, the resulting BGP update sent to neighbors will contain an AS path that is significantly longer than the default (which would normally just include the local AS). Therefore, statement B is true.

Evaluating other options:

Option A: This is technically incorrect syntax. Route maps are applied to BGP neighbors using the command neighbor [IP] route-map BGP-EXPORT out (for export) or in (for import). There is no " remote-as export " command for binding route maps.

Option C: There is no set metric or set med command visible in the output. MED (Multi-Exit Discriminator) is a different attribute used to influence inbound traffic from an adjacent AS.

Option D: This is a conceptual error. IP prefix-lists are used to match IP addresses and subnet masks (the " prefixes " ). AS Path Lists (as seen in Seq 100) or regular expressions are used to match AS paths. You do not configure the path itself inside a prefix-list.

In the world of IP Multicast, the address range is strictly categorized by the IANA. Understanding these boundaries is a core requirement for the ACP-S switching exam.

Link-Local Multicast (224.0.0.0/24): The address used in the scenario, 224.0.0.100 , falls within the " Local Network Control Block " (224.0.0.0 to 224.0.0.255). These addresses are reserved for protocol traffic that is intended to stay within a single broadcast domain (Layer 2). Examples include OSPF (224.0.0.5) and RIPv2 (224.0.0.9).

The Routing Restriction: By design and industry standard, Layer 3 switches and routers do not forward traffic addressed to the 224.0.0.0/24 range. This is a hard-coded behavior to prevent control plane protocols from leaking into other parts of the network. Even if you enable PIM (Protocol Independent Multicast) and IGMP on all SVIs, the switch will drop these packets at the Layer 3 boundary.

The Solution: To route multicast traffic between VLAN 100 and VLANs 200/300, the application must use a group address from the administratively scoped or globally scoped ranges (e.g., 239.0.0.0/8 or 224.0.1.0 and above).

Why Option D is insufficient: While enabling IGMP and PIM on the SVIs is a necessary step for routable multicast, it will not overcome the fundamental architectural block placed on the 224.0.0.0/24 link-local range.

OSPF route summarization is a critical technique for managing the size of the Link State Database (LSDB) and the routing table by consolidating multiple specific routes into a single aggregate advertisement.

Summarization Point: In OSPF, inter-area summarization (consolidating Type 1 and Type 2 LSAs into a single Type 3 Summary LSA) can only be performed on an Area Border Router (ABR) .

Configuring the Area of Origin: A fundamental rule of OSPF summarization is that the range command must be applied to the Area where the specific routes originate . In the exhibit, the /24 subnets (10.1.0.0/24 through 10.1.255.0/24) are located in Area 2 . Therefore, the ABR must be configured under area 2.

AOS-CX Syntax: On HPE Aruba Networking CX switches, the command to summarize internal routes is area < AREA-ID > range < IP-ADDR/MASK > type inter-area.

The type inter-area keyword specifies that the ABR should take the internal routes from the specified area and advertise them as an Inter-Area (Type 3) summary to other connected areas (like the Backbone Area 0).

Analyzing the Options:

Option A and D: These are incorrect because they apply the range to Area 0 . This would only work if the routes originated in Area 0 and you wanted to summarize them for Area 2.

Option B: This is incorrect because summary-only is not the standard keyword for OSPF summarization in the AOS-CX CLI. While similar concepts exist in other protocols (like BGP) or other vendors, AOS-CX uses type inter-area to define the summary behavior.

Option C (Correct): It correctly identifies Area 2 as the source and uses the proper AOS-CX syntax to generate a 10.1.0.0/16 summary route, which covers the entire 10.1.x.x range shown in the exhibit.

Aruba Central utilizes a " Top-Down " management model for UI Groups . To maintain the integrity of the network and ensure that the central dashboard remains the " Source of Truth, " specific logic is applied during the onboarding process.

Configuration Conflict Prevention: If a group in Central already has a configuration defined (VLANs, DNS, NTP, etc.), and you add a switch that has its own local startup-configuration , Central detects a conflict. It does not know whether to trust the local switch settings or the group settings.

The Factory Default Rule: To protect the network from unintended configuration overwrites, Central will only automatically sync and push group settings to a switch that is in a Factory Default state. If the switch has an existing configuration, Central marks it as having a " Config Conflict " and stops the synchronization process until an administrator manually intervenes to choose which configuration should " win. "

Evaluating other options:

Option B: If Central weren ' t enabled, the switch wouldn ' t even show up as " connected " or " online " in the dashboard, let alone fail a sync within a group.

Option C: Central supports VSX monitoring and management (particularly through Template groups or specific UI workflows).

Option D: Authorization happens at the " Device Inventory " level. If you have already added it to a group, the device is already authorized.

The Link Layer Discovery Protocol (LLDP) is used by Aruba switches to share identity and capability information with neighbors. By default, AOS-CX switches often advertise the IP address of the dedicated Out-of-Band (OOB) management port.

The Management-Address TLV: Neighbors use the " Management Address " Type-Length-Value (TLV) to know which IP they should use to manage the remote device (e.g., for SSH or Web UI access).

Changing the Source: In some designs, you want the switch to be managed through an " In-Band " VLAN interface rather than the physical management port.

AOS-CX Command Syntax: To specify which local interface ' s IP should be placed into the LLDP advertisement, AOS-CX uses the global command:

lldp management-ipv4-address vlan < VLAN-ID >

This tells the LLDP process: " Look at the IP assigned to SVI 5, and use that as our management identity in all LLDP frames sent out of all ports. "

Evaluating the Options:

Option D (Correct): Matches the specific AOS-CX syntax for selecting a VLAN-based management address.

Option B: This syntax is more common in the legacy AOS-S (ProCurve) software, whereas CX uses the management-ipv4-address keyword to distinguish between address families.

Option A: While intuitive, LLDP management address selection is a global process control in AOS-CX, not an interface-level trigger on the SVI itself.

Option C: While you can manually set the address using lldp management-address < IP > , there is no standalone lldp configuration context in the AOS-CX CLI.

Using the command copy checkpoint 20240722 running-config exemplifies the Replace configuration troubleshooting methodology. This involves replacing the current running configuration with a known good checkpoint to restore proper operation.

Divide and conquer isolates faults by segment.

Top-down/Bottom-up analyzes layer by layer.

Spot the difference compares configurations.

Replacing the config is a straightforward rollback approach.
