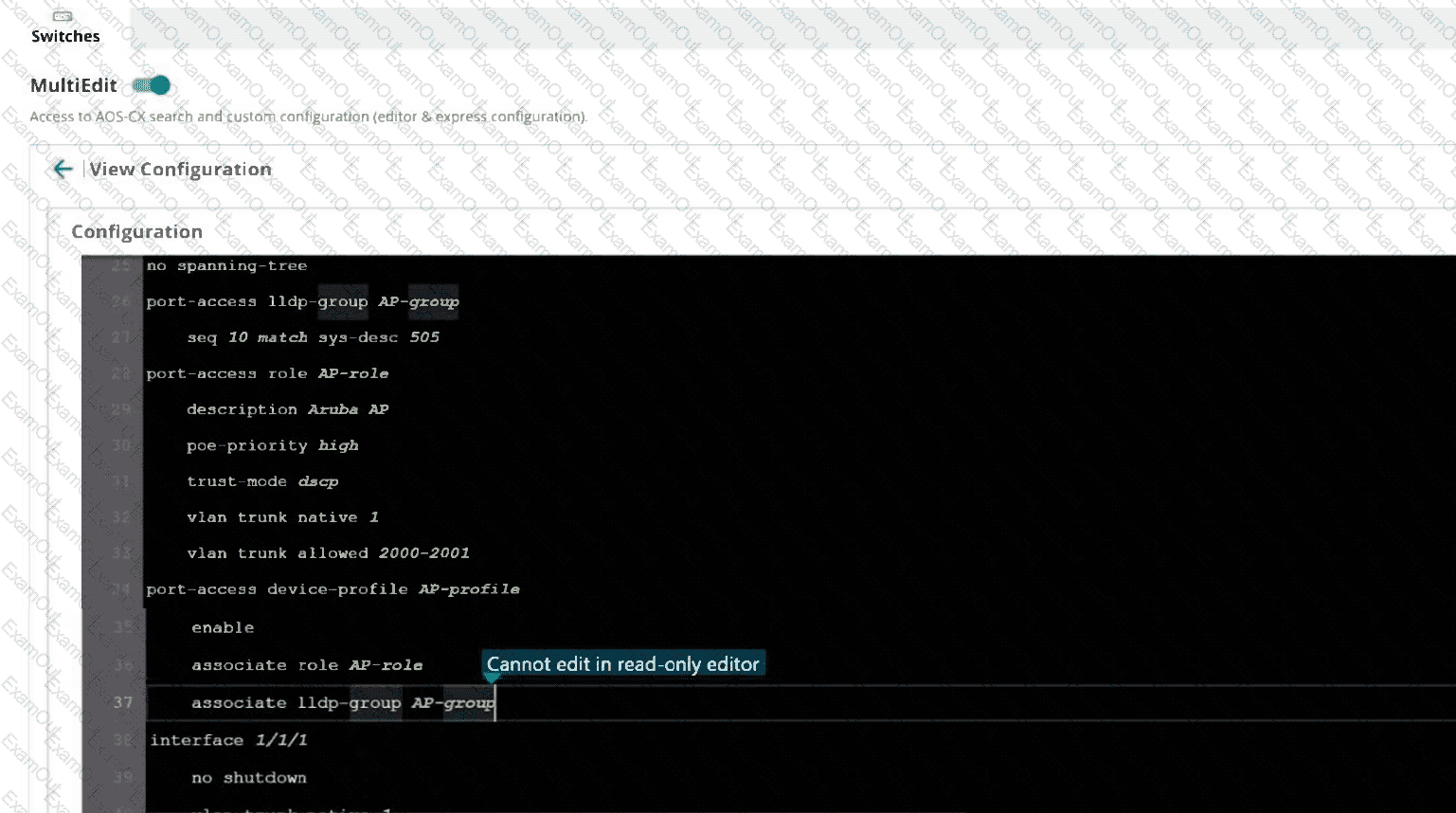

Device Profiles on AOS-CX switches are a " Lite " version of Dynamic Segmentation, allowing the switch to automatically configure a port when a specific device is detected via LLDP or CDP, without needing a RADIUS server.

Associate an LLDP group (Option C): To " catch " a device, you first define a Device Group (often an lldp-group) that contains match criteria such as the System Name or OUI of an Aruba AP. This group tells the switch which devices should trigger the profile.

Associate a role (Option A): Once a device matches the group, the switch needs to know what to do with it. The Role is the container that holds all the port attributes (VLAN, PoE priority, STP settings, etc.). The Device Profile ' s job is to " bridge " the group and the role together using the associate role and associate lldp-group commands.

Why other options are incorrect:

Options B, D, and E: These are all settings that are configured inside the Role. You do not associate a VLAN or an ACL directly to the Profile; you associate them to the Role, and then associate the Role to the Profile.

When User-Based Tunneling (UBT) is configured and HTTPS-enabled websites fail to load, this often relates to issues with packet fragmentation. The solution is to enable IP fragmentation on the devices to allow large tunneled packets to be properly fragmented and reassembled.

Path MTU discovery is helpful but may be blocked in some networks.

Fragment reassembly is usually on the receiving end.

Jumbo frames may not resolve fragmentation across tunneled paths.

Therefore, enabling IP fragmentation is the most effective solution.

In an AOS-CX Virtual Switching Extension (VSX) environment, the Configuration Synchronization (vsx-sync) feature simplifies management by allowing the Primary switch to automatically push configuration settings to the Secondary switch.

Primary-Only Configuration: A fundamental rule of vsx-sync is that all synchronization commands must be configured on the Primary VSX node. The Secondary node simply receives and applies the configuration; it does not initiate the sync.

The time Synchronization Module: In AOS-CX, the command used to synchronize all time-related parameters—including NTP servers, authentication keys, and time zone settings—is vsx-sync time.

Command Logic: By adding vsx-sync time under the vsx context on the Primary switch, the NTP configuration currently present on the Primary will be replicated to the Secondary switch ' s running configuration.

Why other options are incorrect:

Options B and C: These are incorrect because they suggest configuring the sync on the Secondary switch.

Option A: While it specifies the Primary switch, vsx-sync ntp is not the correct command syntax in AOS-CX; the feature is consolidated under the broader vsx-sync time module.

Comprehensive Detailed Explanation:

To prevent man-in-the-middle attacks based on Layer 2 (Ethernet) addressing, enabling ARP inspection in the VLAN context is recommended. ARP inspection validates ARP packets and ensures only legitimate ARP responses are forwarded.

Enabling ARP inspection at VLAN level allows granular control.

Interface-level or global context is less typical or supported for ARP inspection on Aruba CX switches.

In HPE Aruba CX VSX, the hardware replacement of a single switch is non-disruptive for Layer 2 configurations because the system MAC address in the ServiceOS can be changed to the original system MAC address. This ensures consistent MAC address usage, avoiding disruptions in Layer 2 forwarding and preventing MAC flapping in the network.

Options involving VSX-sync or reserved system MAC ranges do not specifically address hardware replacement scenarios as effectively.

Changing the ServiceOS system MAC to match the original maintains Layer 2 stability during switch replacement.

To enable Layer 3 multicast functionality on an AOS-CX switch, it is essential to understand the roles of different protocols and where they are applied in the hierarchy of the switch configuration.

L3 vs. L2 Multicast:

IGMP (Internet Group Management Protocol): This is a Layer 3 protocol used by hosts to report their multicast group memberships to adjacent routers. It is configured on a Layer 3 interface, such as an SVI (Switch Virtual Interface) or a routed port.

IGMP Snooping: This is a Layer 2 optimization feature. It allows a switch to " listen in " on IGMP conversations between hosts and routers to constrain multicast traffic to only those ports that have requested it, preventing the traffic from flooding the entire VLAN.

Enabling L3 Multicast Locally: When the " core switch " acts as the default gateway for multicast receivers, it must be able to process membership reports from those receivers. By enabling IGMP on the SVI (e.g., interface vlan 100), the switch begins listening for IGMP Join/Leave messages from clients on that subnet. This is a prerequisite for the switch to populate its multicast routing table and, when combined with a routing protocol like PIM (Protocol Independent Multicast), forward traffic from a source to those local receivers.

Analysis of Options:

Option A (Correct): IGMP must be enabled on the SVI so the switch can function as a multicast-aware gateway for that specific subnet.

Option B: In AOS-CX syntax, you do not configure " IGMP " under the L2 vlan [ID] context; it is an L3 function.

Option C: Enabling IGMP-snooping on a VLAN only manages the L2 delivery of traffic; it does not enable L3 routing or the processing of multicast packets across different subnets.

Option D: While IGMP-snooping is often used in conjunction with L3 multicast, it is technically a VLAN-level configuration, not a property of the SVI itself.

Key CLI Commands:

To fully enable this, a professional would typically use:

Bash

router multicast

routing

!

interface vlan 100

ip igmp

ip pim-sm

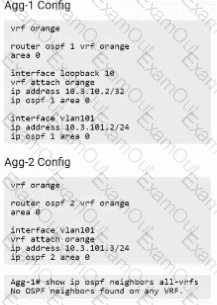

The question concerns an OSPF configuration where the interface does not come up as expected.

Common reasons for no OSPF adjacency or interface participation include:

Interfaces being passive (no adjacency formed)

Mismatched OSPF process IDs

Missing loopback interfaces (for router ID)

Layer-3 interfaces not associated with VRFs when VRFs are configured

Option D (a Layer-3 interface has not been associated with a VRF) is the root cause because in Aruba CX switches, when VRF is configured, all Layer-3 interfaces that participate in OSPF must be associated with the correct VRF instance to establish adjacency and participate correctly.

If an interface is not part of the VRF configured for OSPF, it will not appear in the OSPF interface list or form neighbors.

To isolate wired ports on the same VLAN on a large scale (such as hotel rooms) but allow communication within the same VLAN for common areas, Private VLANs (PVLANs) are recommended. PVLANs allow segmentation within a single VLAN by dividing it into primary and secondary VLANs, controlling communication between ports.

VPN and VXLAN are overlay technologies for different purposes.

UBT (User-Based Tunneling) is related to wireless user segmentation, not wired port isolation.

Therefore, PVLANs provide the simplest and most effective solution to isolate room ports within a single VLAN.

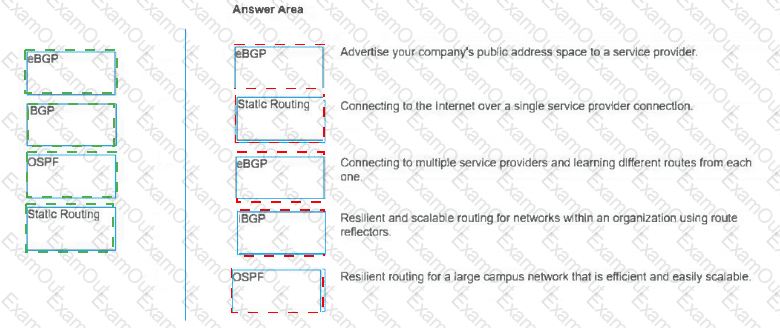

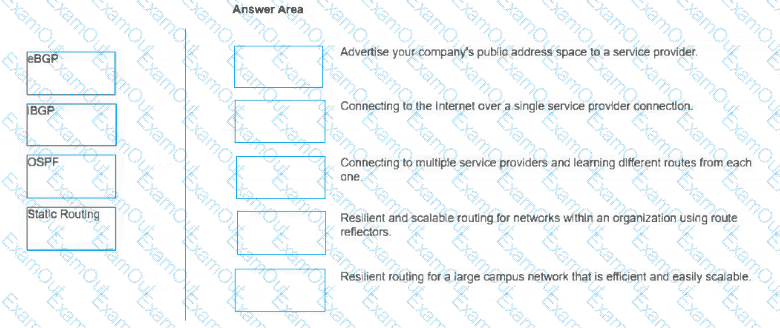

Answer Area:

Advertise your company ' s public address space to a service provider: eBGP

Connecting to the Internet over a single service provider connection: Static Routing

Connecting to multiple service providers and learning different routes from each one: eBGP

Resilient and scalable routing for networks within an organization using route reflectors: iBGP

Resilient routing for a large campus network that is efficient and easily scalable: OSPF

In AOS-CX design, selecting the right routing protocol is based on the boundary of the administrative control and the required scale.

Advertise public address space to a service provider (eBGP): External BGP (eBGP) is the industry-standard protocol used to exchange routing information between different Autonomous Systems (AS). To let the world know how to reach your public IP block, you must " speak " eBGP with your ISP.

Single service provider connection (Static Routing): When a network has only one exit point (a " stub " connection) to the Internet, dynamic protocols are unnecessary. A simple default static route (0.0.0.0/0) pointing to the ISP gateway is the most efficient and least resource-intensive method.

Multiple service providers / Multi-homing (eBGP): When you have two or more ISPs, your switch needs to make a decision on which path is better based on attributes like AS-Path length or MED. eBGP is required here to receive and process these external path attributes.

Internal organization routing with route reflectors (iBGP): Internal BGP (iBGP) is used to carry BGP prefixes within an AS. Because iBGP requires a " Full Mesh " by default (every router connected to every other router), it does not scale well. Route Reflectors are the architectural solution used to allow a central switch to reflect routes to others, ensuring scalability within the organization.

Large campus network (OSPF): Open Shortest Path First (OSPF) is a Link-State Interior Gateway Protocol (IGP). It is the preferred choice for Aruba campus environments because of its fast convergence, hierarchical design (Areas), and ability to handle large numbers of internal subnets efficiently.
