Free Practice Questions for Fortinet NSEI_OTS_AR-7.6 Exam

The correct answer is A. Device Detection is enabled on the other identified device .

The study guide explains that device identification is a “useful feature for the Security Fabric topology view” and that “FortiGate detects most third-party devices in your network and adds them to the topology view of the Security Fabric.” It also states that in the interfaces section, you can enable device detection , and this detection is what allows FortiGate to identify devices based on observed traffic.

In the exhibit, the tooltip distinguishes between “1 device requires authorization” and “1 other identified device.” That means the unauthorized device is a separate FortiGate/Fabric member issue, while the other identified device is simply a detected third-party device shown in the topology because device detection is working. Therefore, the correct interpretation is that device detection is enabled for that identified device. Option B is incorrect because the exhibit does not say the other identified device requires authorization. Option C is not supported by the study guide, and option D is too specific because no evidence in the exhibit confirms that the detection was enabled specifically on port3 .

The correct answer is A. Fortinet Single-Sign On (FSSO) . The study guide states under Active and Passive Authentication that for passive authentication, “User does not receive a login prompt from FortiGate” , “Credentials are determined automatically” , and specifically “FSSO, RSSO, and NTLM can be used.” It then explains that passive authentication occurs with the single sign-on method and explicitly identifies Fortinet SSO (FSSO) as one of those methods.

The guide also says: “For passive authentication, you can implement FSSO. FSSO allows users who have already authenticated on the network through another system to be transparently identified. After initial login to any system on the network, users can access allowed resources without being prompted for credentials.” That is exactly what the question asks for: improving access control in a large OT network using passive authentication .

The other options do not match passive authentication. Local users are part of local authentication, two-factor authentication adds an extra security factor but still uses active authentication, and FortiAuthenticator as a remote server supports centralized authentication for mid-to-large networks, but by itself it is not the specific passive-authentication method being asked here. The study guide is explicit that the FortiGate configuration for passive authentication is FSSO .

According to the OT Security 7.6 Architect study guide section on Asset Management , specifically regarding FortiNAC Visibility :

Layer 2 Polling Data : Because each physical address is unique, FortiNAC identifies hosts as they connect to the network. The information gathered during this process fills in the physical address and location information in the database.

Visibility Components : The guide states that the physical address learned , the time it was learned , and where it was learned from provide the foundation of endpoint visibility in the form of " what, where, and when " information. This confirms that Where it was learned (Option A) and The time it was learned (Option D) are correct.

Exclusions :

Layer 3 Polling : The MAC-to-IP correlation (Option B) is explicitly defined as a function of Layer 3 polling , where the correlated IP address is added to the database record for the corresponding MAC address.

DHCP Fingerprinting : The host name or system name (Option C) and the operating system are gathered via DHCP fingerprinting , not layer 2 polling.

According to the OT Security 7.6 Architect study guide regarding IEC 62443 Security Levels :

Security Level 4 (SL 4) Definition : This level provides " Protection against intentional violation using sophisticated means with extended resources, specific skills, and high motivation " .

Real-World Application : The study guide specifically notes: " If you are facing a syndicate of cyber extortionists with extensive resources and capabilities, then you should strive for security level 4 " .

Comparison to other levels :

SL 1 : Protection against " casual or unintentional system violation " .

SL 2 : Protection against " intentional violation using simple means with low resources " .

SL 3 : Protection against " intentional violation using sophisticated means with moderate resources " .

 The study guide says playbooks are used to automate tasks such as running reports and creating/updating incidents . It also says that after a playbook is triggered, it flows through its configured tasks.

 It further shows a sample playbook sequence where an event is detected, an incident is created , a report runs , and details are attached to the incident . That is exactly the kind of workflow shown in the incident analysis view.

 By contrast, the study guide says event handlers generate events when logs match configured rules. Event handlers are for detection, not for attaching reports to incidents.

The correct answer is D. EtherCAT . The study guide explicitly states under the Ethernet/IP and EtherCAT section that “EtherCAT is a protocol that offers real-time communication in a primary-secondary configuration” and “EtherCAT skips layers 3 to 6 to deliver real-time communication.” It also adds that “the most important feature of this protocol is that secondary devices collect only the information they need from the data packets.” This matches the exhibit exactly, where the diagram shows Real-Time Data above a Proprietary MAC and Proprietary physical layer , reflecting the protocol structure that bypasses the intermediate OSI layers.

The other options do not match this behavior. The guide says POWERLINK uses layer 2 and layer 7 of the OSI model, not that it skips layers 3 to 6. It also explains that Ethernet/IP is the industrial protocol based entirely on Ethernet standards and adapts to the OSI model. Modbus is described as an open client/server protocol and is not suitable for transmitting data in real time . Therefore, the protocol in the exhibit is clearly EtherCAT .

The correct answer is A. You must enable Virtual Patching in the Feature Visibility section .

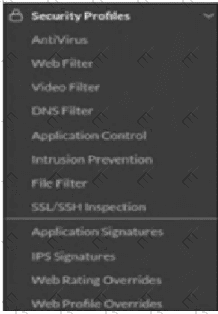

The study guide states clearly that “By default, virtual patching profiles are hidden on the GUI, and you must enable them through System > Feature Visibility.” That exactly matches the situation in the exhibit, where Virtual Patching does not appear under Security Profiles . So the issue is not that the feature is unsupported, but that it is simply hidden in the GUI until it is enabled.

The other options do not answer the question being asked. A valid OT security service license is required for virtual patching signatures and protection workflow, and OT signatures are relevant to IPS-based OT protection, but those do not explain why the menu item itself is missing from the Security Profiles section . The guide specifically identifies Feature Visibility as the reason the Virtual Patching profile is not shown in the GUI. Therefore, the required action is to enable Virtual Patching in System > Feature Visibility .

Based on the provided exhibit and the OT Security 7.6 Architect curriculum regarding the Fortinet Security Fabric :

Fabric Role : The exhibit clearly shows that FortiGate-2 has the role set to Join Fabric . This confirms it is a downstream device and not the Fabric Root (eliminating Option A).

Upstream Connection : The device is configured to point to an Upstream FortiGate at IP address 10.1.2.254 .

Fabric Status : The status is currently displayed as Not Connected . In a standard Fortinet Security Fabric deployment, once a downstream device is configured to join the fabric, it sends a request to the upstream root device. The root FortiGate must then explicitly authorize the downstream unit before the connection is established and the status changes to " Connected. "

Authorization Requirement : The " Not Connected " status, while having the upstream IP correctly configured, is the classic indicator that the authorization step is pending on the root FortiGate. Furthermore, under the LAN Edge Devices section, it shows another downstream FortiGate requiring authorization on this specific unit, highlighting that authorization is a manual security requirement for all stages of the Fabric hierarchy.

FortiAnalyzer Status : While the Logging & Analytics section shows FortiAnalyzer is Disabled , this is a configuration choice and does not prevent the Security Fabric from connecting; therefore, configuring it is not the solution to the connectivity status shown (eliminating Option C).

In summary, FortiGate-2 cannot join the fabric until an administrator logs into the Root FortiGate (10.1.2.254) and authorizes the join request from FortiGate-2.

The correct answer is C. You can implement parallel redundancy protocol . The study guide explains that media redundancy involves creating a backup path that can be used when part of the network fails and specifically states that “Parallel Redundancy Protocol (PRP) can be used for a star topology.” Since the problem described is many disconnections in the links , the issue is link availability, which is a media redundancy problem rather than a firewall virtualization or policy separation problem. PRP is designed to provide a backup communication path with low recovery time when links fail.

The other options do not fit this scenario as well. HA clusters are described in the guide as a solution for network node redundancy , where a backup firewall or switch takes over when the primary device fails. SD-WAN is recommended for remote site access across multiple WAN links, not for the local floor links shown in this topology. VDOMs provide logical segmentation, not link redundancy or higher link availability. Because the question is specifically about repeated link disconnections , the best action is to implement PRP .
