Free Practice Questions for Fortinet NSEI_OTS_AR-7.6 Exam

The correct answer is A. You must enable Virtual Patching in the Feature Visibility section .

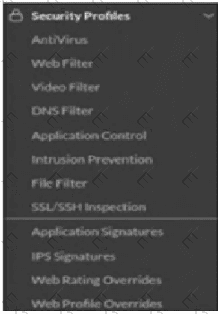

The study guide states clearly that “By default, virtual patching profiles are hidden on the GUI, and you must enable them through System > Feature Visibility.” That exactly matches the situation in the exhibit, where Virtual Patching does not appear under Security Profiles . So the issue is not that the feature is unsupported, but that it is simply hidden in the GUI until it is enabled.

The other options do not answer the question being asked. A valid OT security service license is required for virtual patching signatures and protection workflow, and OT signatures are relevant to IPS-based OT protection, but those do not explain why the menu item itself is missing from the Security Profiles section . The guide specifically identifies Feature Visibility as the reason the Virtual Patching profile is not shown in the GUI. Therefore, the required action is to enable Virtual Patching in System > Feature Visibility .

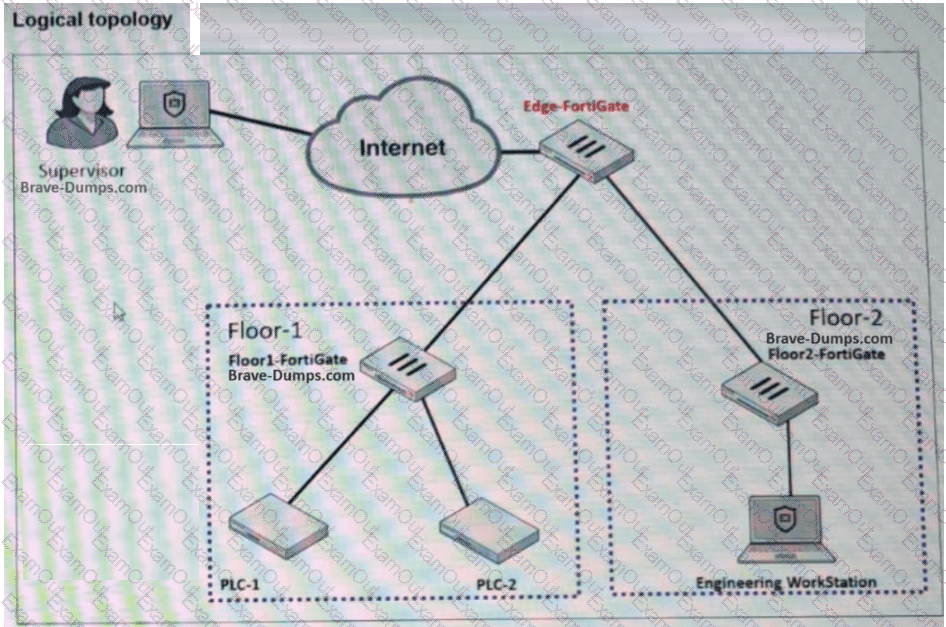

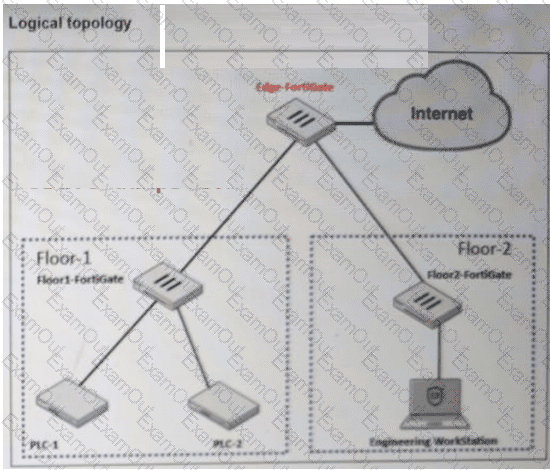

The correct answer is C. You can implement parallel redundancy protocol . The study guide explains that media redundancy involves creating a backup path that can be used when part of the network fails and specifically states that “Parallel Redundancy Protocol (PRP) can be used for a star topology.” Since the problem described is many disconnections in the links , the issue is link availability, which is a media redundancy problem rather than a firewall virtualization or policy separation problem. PRP is designed to provide a backup communication path with low recovery time when links fail.

The other options do not fit this scenario as well. HA clusters are described in the guide as a solution for network node redundancy , where a backup firewall or switch takes over when the primary device fails. SD-WAN is recommended for remote site access across multiple WAN links, not for the local floor links shown in this topology. VDOMs provide logical segmentation, not link redundancy or higher link availability. Because the question is specifically about repeated link disconnections , the best action is to implement PRP .

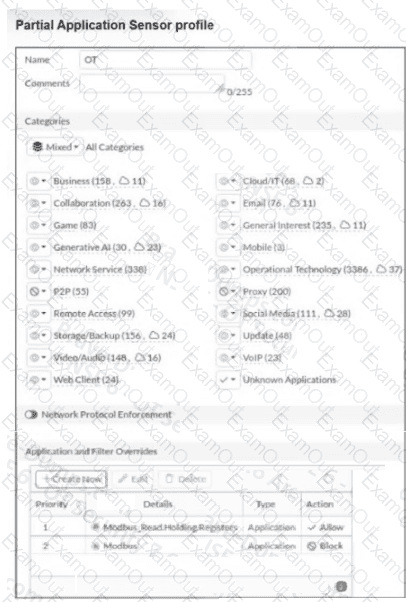

The correct answers are A and C . The study guide explains that “You can use application control signatures to detect OT protocols” and that application control provides “granular message type identification.” In the exhibit, the Operational Technology application category is included in the Application Sensor profile, so OT application signatures are enabled in this profile.

Option C is also correct because the override table shows Modbus_Read.Holding.Registers = Allow and Modbus = Block . The study guide states that you can use specific granular application control signatures to allow a specific Modbus command and block all others , and it also shows that application control can identify read and write commands separately at message level. Therefore, Modbus write commands are blocked by this profile.

Option B is incorrect because the profile is not simply monitoring all OT protocols; it contains a Block action for Modbus. Option D is incorrect because the study guide links OT protocol visibility specifically to the monitor status , while in the exhibit Modbus_Read.Holding.Registers is set to Allow , not Monitor .

Deploying a FortiGate in offline IDS (also known as one-arm sniffer mode) is a common strategy in OT environments for several reasons found in the study guide:

Priority of Availability : In OT, availability and safety are critically important and prioritized higher than in IT. An offline IDS minimizes impact because it does not sit in the direct path of production traffic.

Network Sensor Role : In this mode, the FortiGate is connected to a mirror/SPAN port on a switch. It acts as a network sensor , receiving a copy of the traffic rather than having the traffic flow through it. This confirms Statement A is correct and Statement D is incorrect.

Passive vs. Active : The guide explicitly states that in OT environments, passive methods are preferred over active methods to avoid negatively impacting performance or causing process interruptions.

Depth of Visibility : Even though the device is offline, you apply security profiles (such as IPS, Application Control, and Antivirus) to the sniffer interface. This allows the FortiGate to analyze the copied traffic and provide deep visibility into the OT assets and their behaviors. This confirms Statement B is correct.

Detection vs. Prevention : An IDS (Intrusion Detection System) is passive ; it can detect threats but cannot reset connections or drop packets to block attacks. Therefore, it cannot block zero-day attacks, making Statement C incorrect.

The correct answers are C and D .

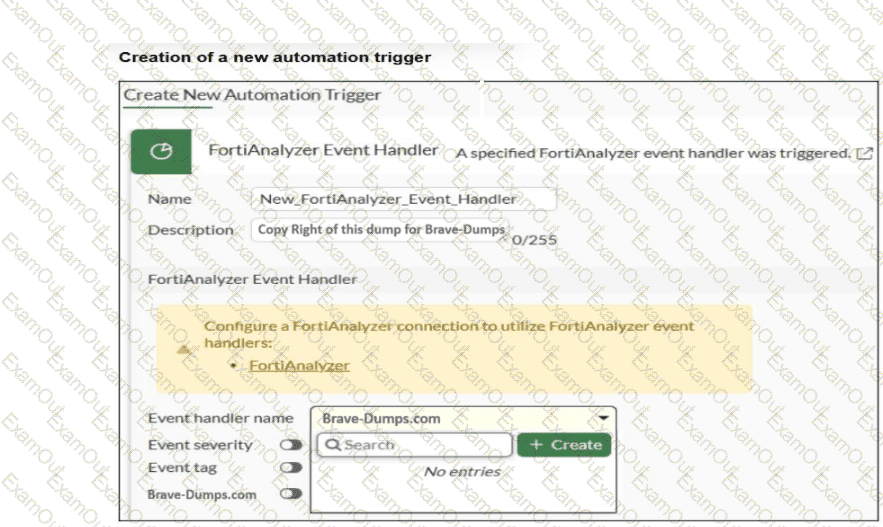

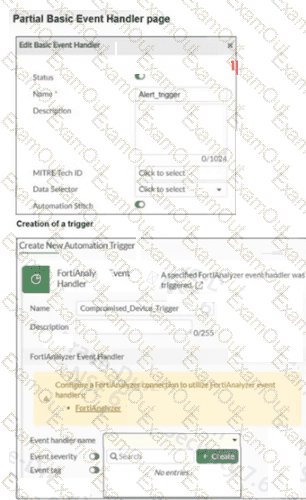

Option C is correct because the study guide explains that when “a handler generates an event with the automation stitch option enabled, FortiAnalyzer sends a notification” and, in the Security Fabric workflow, “FortiAnalyzer parses the logs and notifies the root FortiGate.” This means FortiGate must first have the FortiAnalyzer connection configured so it can consume FortiAnalyzer event handlers and use them in automation. The wizard message in the exhibit also points to this requirement by indicating that a FortiAnalyzer connection must be configured.

Option D is also correct because the study guide explicitly says that in this automation flow “the root FortiGate triggers the action” and shows “Stitches configured on root FortiGate.” Therefore, if you want the FortiAnalyzer event handler to appear and be usable for automation, the trigger must be configured on the root FortiGate , not on an arbitrary downstream FortiGate.

Option A is incorrect because + Create is only a GUI control and does not solve the missing-event-handler visibility problem. Option B is not identified in the study guide as the requirement for making a FortiAnalyzer event handler available in the FortiGate automation trigger list.

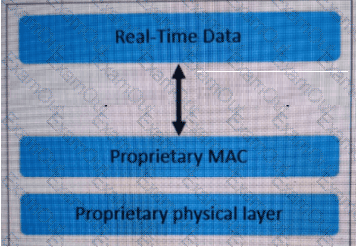

The correct answer is D. EtherCAT . The study guide explicitly states under the Ethernet/IP and EtherCAT section that “EtherCAT is a protocol that offers real-time communication in a primary-secondary configuration” and “EtherCAT skips layers 3 to 6 to deliver real-time communication.” It also adds that “the most important feature of this protocol is that secondary devices collect only the information they need from the data packets.” This matches the exhibit exactly, where the diagram shows Real-Time Data above a Proprietary MAC and Proprietary physical layer , reflecting the protocol structure that bypasses the intermediate OSI layers.

The other options do not match this behavior. The guide says POWERLINK uses layer 2 and layer 7 of the OSI model, not that it skips layers 3 to 6. It also explains that Ethernet/IP is the industrial protocol based entirely on Ethernet standards and adapts to the OSI model. Modbus is described as an open client/server protocol and is not suitable for transmitting data in real time . Therefore, the protocol in the exhibit is clearly EtherCAT .
