Free Practice Questions for Fortinet NSE7_SOC_AR-7.6 Exam

Collector 2. Worker 3. Supervisor 4. Agent

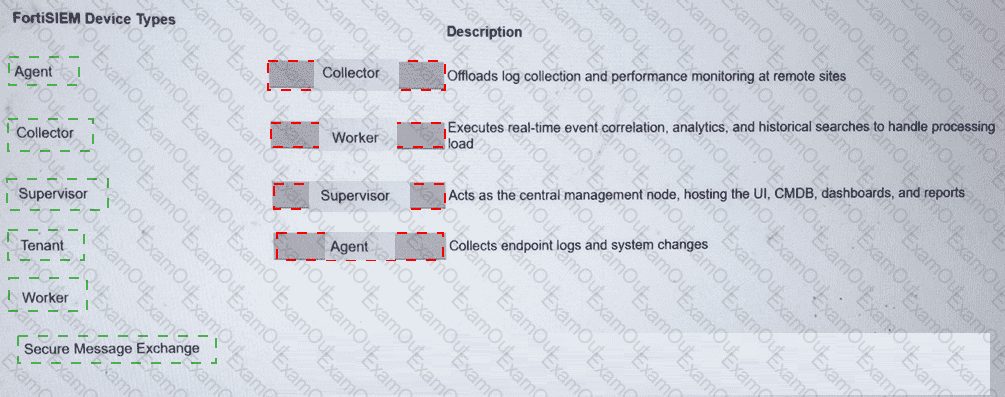

The FortiSIEM 7.3 architecture is built upon a distributed multi-tenant model consisting of several distinct functional roles to ensure scalability and performance:

Supervisor: This is the primary management node in a FortiSIEM cluster. It hosts the Graphical User Interface (GUI), the Configuration Management Database (CMDB), and manages the overall system configurations, reporting, and dashboarding.

Worker: These nodes are responsible for the heavy lifting of data processing. They execute real-time event correlation against the rules engine, perform historical search queries, and handle the analytics workload to ensure the Supervisor node is not overwhelmed.

Collector: Collectors are typically deployed at remote sites or different network segments to offload log collection from the central cluster. They receive logs via Syslog, SNMP, or WMI, compress the data, and securely forward it to the Workers or Supervisor. They also perform performance monitoring of local devices.

Agent: These are lightweight software components installed directly on endpoints (Windows/Linux). Their primary role is to collect local endpoint logs, monitor file integrity (system changes), and track user activity that cannot be captured via traditional network-based logging.

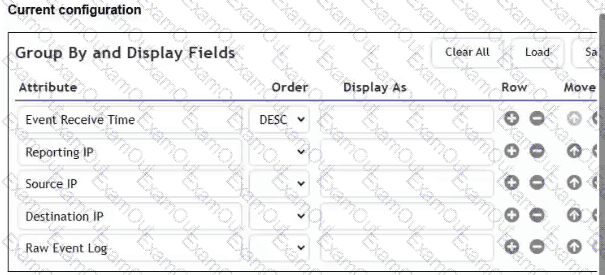

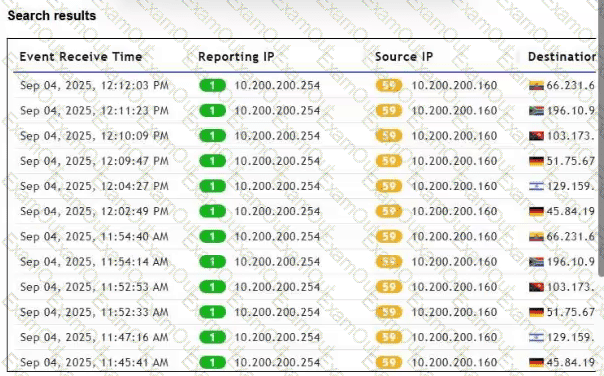

The correct answers are B, D, and E. FortiSIEM supports aggregation through its Group By and Display Fields configuration. To consolidate duplicate records into aggregated results, attributes that uniquely identify individual log entries must be removed.

The study guide specifically explains that Event Receive Time and Raw Event Log cannot be included as displayed fields when aggregating matched events. These attributes prevent the intended grouping.

Adding COUNT(Matched Events) provides the number of records matching each unique combination of grouping attributes, allowing analysts to identify repeated communications with destination IP addresses.

SUM(Matched Events) is not the correct aggregation function because the objective is to count matching events rather than sum a numerical event attribute.

Sorting Destination IP in descending order changes presentation order but does not aggregate duplicate events.

Understanding the Playbook Configuration:

The playbook named " Update Asset and Identity Database " is designed to update the FortiAnalyzer Asset and Identity database with endpoint and user information.

The exhibit shows the playbook with three main components: ON_SCHEDULE STARTER, GET_ENDPOINTS, and UPDATE_ASSET_AND_IDENTITY.

Analyzing the Components:

ON_SCHEDULE STARTER: This component indicates that the playbook is triggered on a schedule, not on-demand.

GET_ENDPOINTS: This action retrieves information about endpoints, suggesting it interacts with an endpoint management system.

UPDATE_ASSET_AND_IDENTITY: This action updates the FortiAnalyzer Asset and Identity database with the retrieved information.

Evaluating the Options:

Option A: The actions shown in the playbook are standard local actions that can be executed by the FortiAnalyzer, indicating the use of a local connector.

Option B: There is no indication that the playbook uses a FortiMail connector, as the tasks involve endpoint and identity management, not email.

Option C: The playbook is using an " ON_SCHEDULE " trigger, which contradicts the description of an on-demand trigger.

Option D: The action " GET_ENDPOINTS " suggests integration with an endpoint management system, likely FortiClient EMS, which manages endpoints and retrieves information from them.

Conclusion:

The playbook is configured to use a local connector for its actions.

It interacts with FortiClient EMS to get endpoint information and update the FortiAnalyzer Asset and Identity database.

Exact Extract: “If there are conflicts with any unique constraints (in other words, a new record is evaluated as being a duplicate record), you can configure the Create Record step to do one of the following: Stop the create process… Do not create a new record (keep the existing intact)… Update existing record… Selectively update some fields of the existing record.”

Exact Extract: “Do not create a new record (keep the existing intact): The playbook does not make any changes to the existing record, and the subsequent steps of the playbook work on the existing record if they refer to this step result. The duplicate record does not cause the playbook to fail.”

The correct answers are B and D. Duplicate handling only works if the module has uniqueness conditions, such as unique username, email address, employee ID, or another reliable identity field. Without uniqueness conditions, FortiSOAR cannot determine whether an incoming user record is a duplicate. Then, in the Create Record step, you select Do not create new record (keep existing intact) so the existing user record is not overwritten and the playbook does not fail when a duplicate is encountered.

A is wrong because it stops the playbook on duplicates. C is wrong because parallel execution affects processing behavior and speed, not duplicate protection or overwrite behavior.

Technical Deep Dive: The right design is: configure uniqueness at the module level, then choose duplicate behavior at the Create Record step. For user ingestion, use stable identifiers. Do not use mutable display names as uniqueness keys. In bulk or loop-based creation, this prevents duplicate records while allowing clean records to continue. This is FortiSOAR database and workflow logic; FortiGate NP/CP offloading is irrelevant.

Understanding Playbook Variables:

Playbook tasks in Security Operations Center (SOC) playbooks use variables to pass and manipulate data between different steps in the automation process.

Variables help in dynamically handling data, making the playbook more flexible and adaptive to different scenarios.

Types of Variables:

Input Variables:

Input variables are used to provide data to a playbook task. These variables can be set manually or derived from previous tasks.

They act as parameters that the task will use to perform its operations.

Output Variables:

Output variables store the result of a playbook task. These variables can then be used as inputs for subsequent tasks.

They capture the outcome of the task ' s execution, allowing for the dynamic flow of information through the playbook.

Other Options:

Create: Not typically referred to as a type of variable in playbook tasks. It might refer to an action but not a variable type.

Trigger: Refers to the initiation mechanism of the playbook or task (e.g., an event trigger), not a type of variable.

Conclusion:

The two types of variables used in playbook tasks are input and output.

Overview of Automation Stitches:

Automation stitches in FortiAnalyzer are predefined sets of automated actions triggered by specific events. These actions help in automating responses to security incidents, improving efficiency, and reducing the response time.

FortiAnalyzer Connectors:

FortiAnalyzer integrates with various Fortinet products and other third-party solutions through connectors. These connectors facilitate communication and data exchange, enabling centralized management and automation.

Available Connectors for Automation Stitches:

FortiCASB:

FortiCASB is a Cloud Access Security Broker that helps secure SaaS applications. However, it is not typically used for running automation stitches within FortiAnalyzer.

Understanding Incident Creation in FortiAnalyzer:

FortiAnalyzer allows for the creation of incidents to track and manage security events.

Incidents can be created both automatically and manually based on detected events and predefined rules.

Analyzing the Methods:

Option A: Using a connector action typically involves integrating with other systems or services and is not a direct method for creating incidents on FortiAnalyzer.

Option B: Incidents can be created manually on the Event Monitor page by selecting relevant events and creating incidents from those events.

Option C: While playbooks can automate responses and actions, the direct creation of incidents is usually managed through event handlers or manual processes.

Option D: Custom event handlers can be configured to trigger incident creation based on specific events or conditions, automating the process within FortiAnalyzer.

Conclusion:

The two valid methods for creating an incident on FortiAnalyzer are manually on the Event Monitor page and using a custom event handler.

Exact Extract: “After retrieving output from your search query, you should save it to a variable so that you can filter or modify the data as required.” The guide then shows Jinja being used to extract selected data from stored output: {{ vars.steps.Advanced_Search_Query.data.events | json_query( ' [].attributes.destGeoCountry ' ) | unique }}.

Exact Extract: “You can assign specific fields from your connector action output to their own variables and further manipulate the data using Jinja filters. This approach allows you to efficiently extract, clean, and prepare information for use in later steps of your automation.”

The correct answer is D because extract_artifacts is the FortiSOAR Jinja filter intended to parse unstructured or semi-structured text/data and extract observables/artifacts such as IP addresses, domains, URLs, email addresses, hashes, and similar indicator values. In this question, the source ingestion data has already been saved into vars.ingestion_data; the next requirement is not merely to format it or debug it, but to extract indicators from it. Option A only works if ingestion_data is already a structured list containing objects with type == " IOC " ; it does not generally parse raw ingestion data. Option B is badly chained and unreliable because each filter would transform the previous result rather than produce one clean indicator list. Option C only returns the data type for troubleshooting.

Technical Deep Dive: In FortiSOAR playbooks, Jinja filters are commonly used inside Set Variable steps, task descriptions, connector parameters, and decision logic. Use json_query when the data is already structured JSON and you know the exact path. Use extract_artifacts when you need FortiSOAR to scan the content and pull out indicator-like values. This is SOAR automation-layer parsing; FortiGate NP/CP acceleration has no role because no packet inspection or ASIC forwarding is occurring.
