Which are two benefits of using CLI templates in FortiManager? (Choose two.)

A.

You can reference meta fields.

B.

You can configure interfaces as SD-WAN members without having to remove references first.

C.

You can configure FortiManager to sync local configuration changes made on the managed device, to the CLI template.

D.

You can configure advanced CLI settings.

What are two benefits of choosing packet duplication over FEC for data loss correction on noisy links? (Choose two.)

A.

Packet duplication can leverage multiple IPsec overlays for sending additional data.

B.

Packet duplication does not require a route to the destination.

C.

Packet duplication supports hardware offloading.

D.

Packet duplication uses smaller parity packets which results in less bandwidth consumption.

In a hub-and-spoke topology, what are two advantages of enabling ADVPN on the IPsec overlays? (Choose two.)

A.

It provides the benefits of a full-mesh topology in a hub-and-spoke network.

B.

It provides direct connectivity between spokes by creating shortcuts.

C.

It enables spokes to bypass the hub during shortcut negotiation.

D.

It enables spokes to establish shortcuts to third-party gateways.

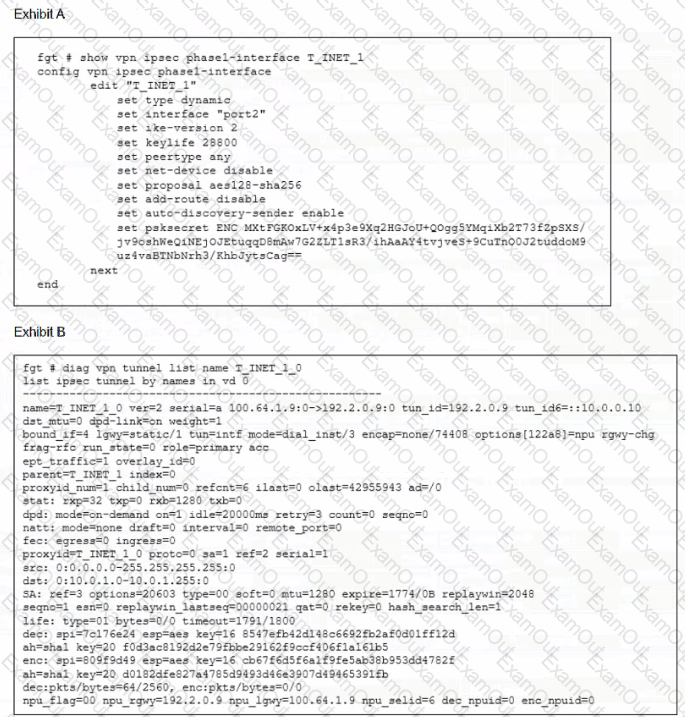

Refer to the exhibit.

Which two statements about the IPsec VPN configuration and the status of the IPsec VPN tunnel are true? (Choose two.)

A.

FortiGate does not install IPsec static routes for remote protected networks in the routing table.

B.

The phase 1 configuration supports the network-overlay setting.

C.

FortiGate facilitated the negotiation of the T_INET_1_0_0 ADVPN shortcut over T_INET_1_0.

D.

Dead peer detection is disabled.

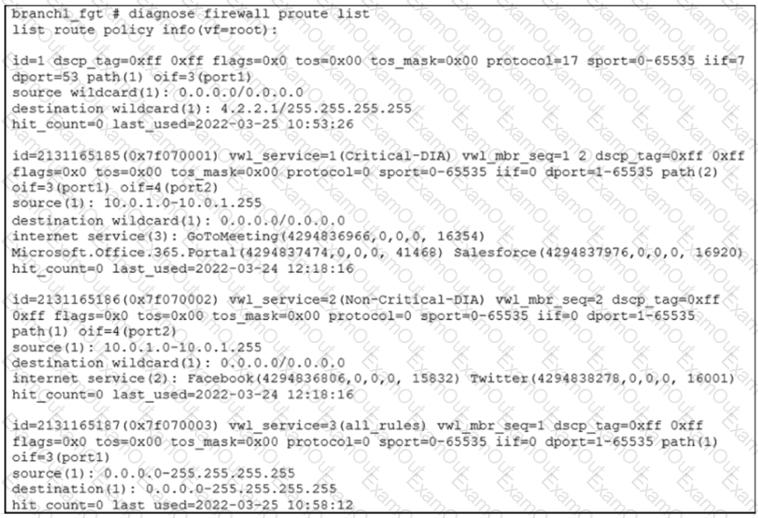

Refer to the exhibit.

Based on the output, which two conclusions are true? (Choose two.)

A.

There is more than one SD-WAN rule configured.

B.

The SD-WAN rules take precedence over regular policy routes.

C.

Theall_rulesrule represents the implicit SD-WAN rule.

D.

Entry1(id=1)is a regular policy route.

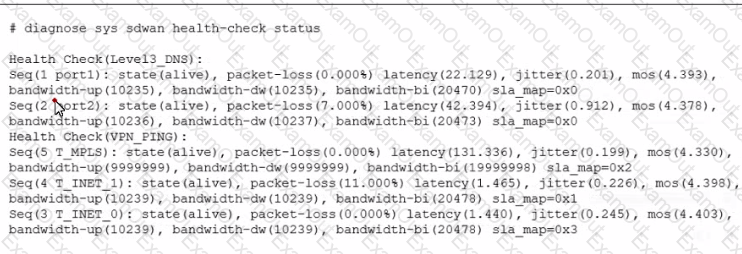

Exhibit.

The exhibit shows the output of the command diagnose sys sdwan health-check status collected on a FortiGate device. Which two statements are correct about the health check status on this FortiGate device? (Choose two.)

A.

The health-check VPN_PING orders the members according to the lowest jitter.

B.

The interface T_INET_1 missed one SLA target.

C.

There is no SLA criteria configured for the health-check Level3_DNS.

D.

The interface T_INET_0 missed three SLA targets.

What is a benefit of using application steering in SD-WAN?

A.

The traffic always skips the regular policy routes.

B.

You steer traffic based on the detected application.

C.

You do not need to enable SSL inspection.

D.

You do not need to configure firewall policies that accept the SD-WAN traffic.

Which two statements about SD-WAN central management are true? (Choose two.)

A.

The objects are saved in the ADOM common object database.

B.

It does not support meta fields.

C.

It uses templates to configure SD-WAN on managed devices.

D.

It supports normalized interfaces for SD-WAN member configuration.

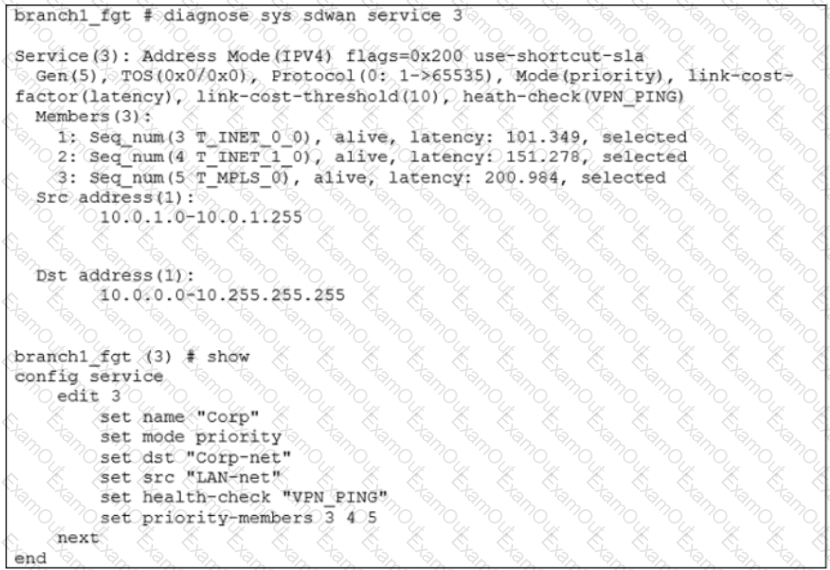

Refer to the exhibit.

The exhibit shows the SD-WAN rule status and configuration.

Based on the exhibit, which change in the measured latency will make T_MPLS_0 the new preferred member?

A.

When T_INET_0_0 and T_MPLS_0 have the same latency.

B.

When T_MPLS_0 has a latency of 100 ms.

C.

When T_INET_0_0 has a latency of 250 ms.

D.

When T_N1PLS_0 has a latency of 80 ms.

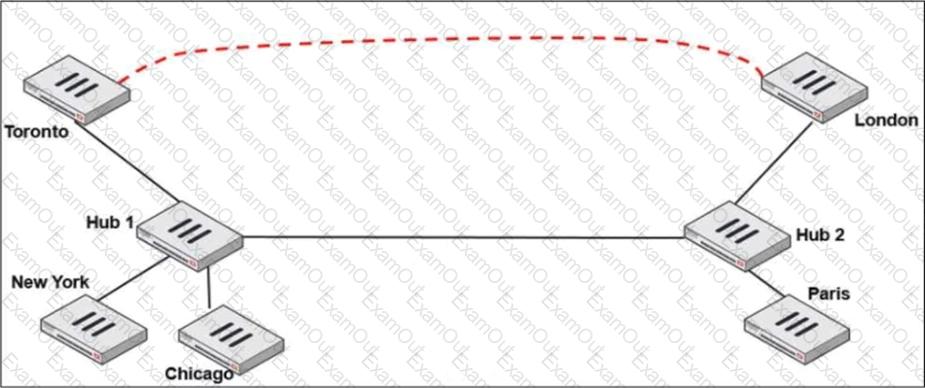

Refer to the exhibit.

Two hub-and-spoke groups are connected through a site-to-site IPsec VPN between Hub 1 and Hub 2.

Which two configuration settings are required for Toronto and London spokes to establish an ADVPN shortcut? (Choose two.)

A.

On the hubs,auto-discovery-sendermust be enabled on the IPsec VPNs to spokes.

B.

On the spokes,auto-discovery-receivermust be enabled on the IPsec VPN to the hub.

C.

auto-discovery-forwardermust be enabled on all IPsec VPNs.

D.

On the hubs,net-devicemust be enabled on all IPsec VPNs.
