Free Practice Questions for Fortinet NSE7_PBC-7.2 Exam

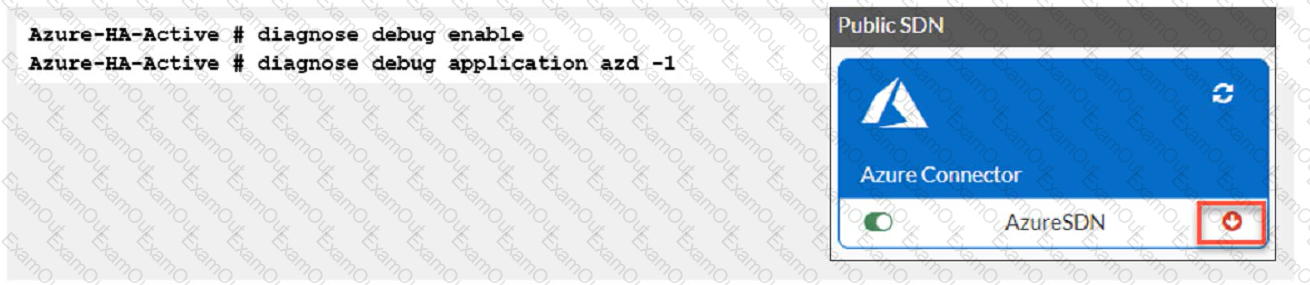

The three settings that should be checked while troubleshooting this problem are:

Ensure FortiGate port4 can resolve DNS. This is because the Azure SDN connector requires DNS resolution to communicate with the Azure API1. If the FortiGate port4 cannot resolve DNS, the SDN connector will not be able to retrieve the Azure resources and display them in the GUI.

Ensure FortiGate portl has internet access. This is because the Azure SDN connector requires internet access to communicate with the Azure API1. If the FortiGate portl does not have internet access, the SDN connector will not be able to connect to the Azure cloud and display an error in the CLI.

Ensure IP address 169.254.169_254 is not blocked. This is because the Azure SDN connector uses this IP address to obtain metadata information from the Azure instance2. If this IP address is blocked by a firewall policy or a network ACL, the SDN connector will not be able to get the required information and display an error in the CLI.

To deploy a FortiGate HA solution in AWS using Terraform, you need to create an AWS IAM user with permissions to access the AWS resources and services required by the FortiGate-VM. You also need to use CloudShell to install Terraform, which is a tool for building, changing, and versioning infrastructure as code.

References:

Deploying FortiGate-VM using Terraform | AWS Administration Guide

Setting up IAM roles | AWS Administration Guide

Launching the instance using roles and user data | AWS Administration Guide

Terraform by HashiCorp

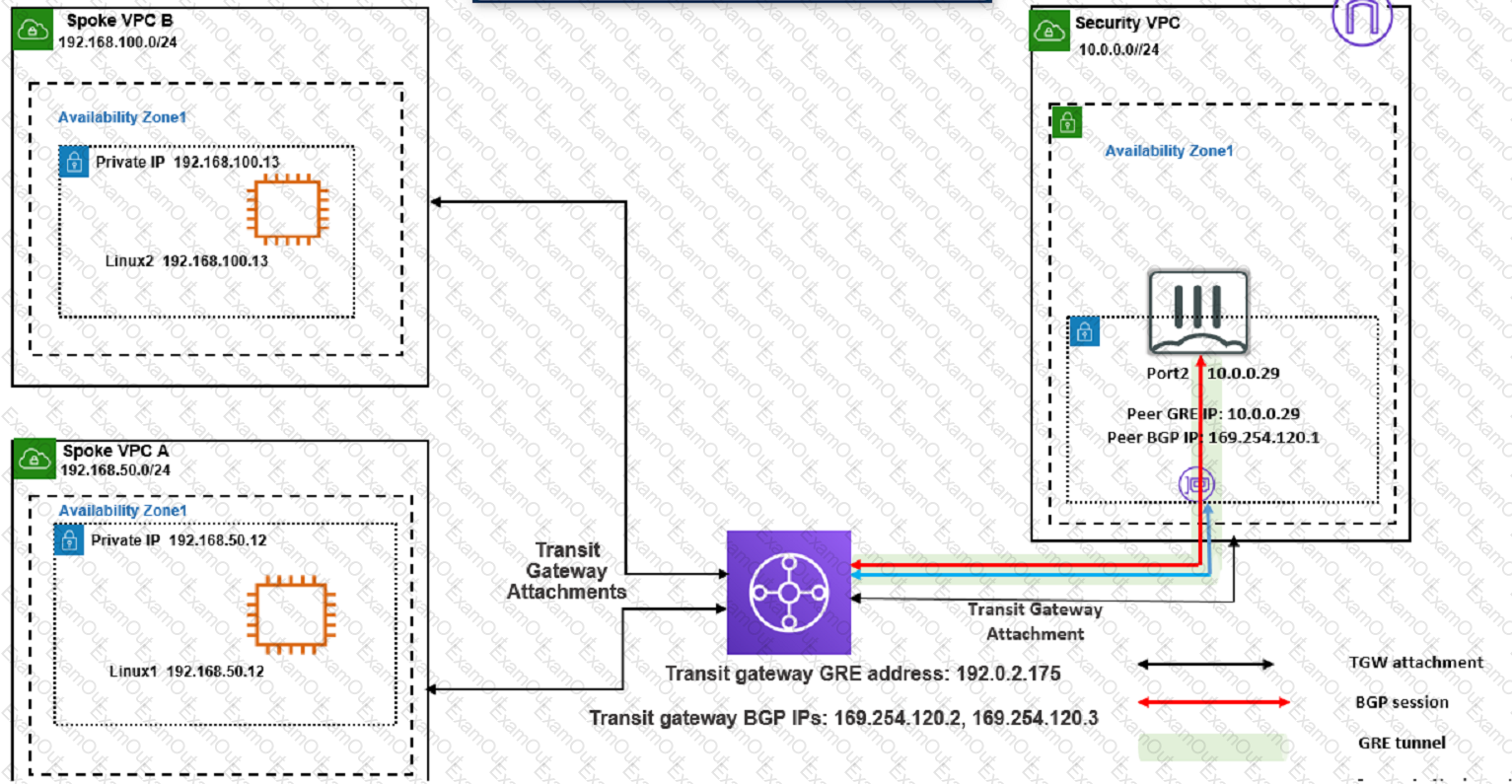

This is because the Linux1 EC2 instance is not accessible directly from the internet using its public IP address in AWS.

An internet gateway is a horizontally scaled, redundant, and highly available VPC component that allows communication between instances in your VPC and the internet. Without an internet gateway, the Linux1 EC2 instance cannot receive or send traffic to or from the internet, even if it has a public IP address assigned to it.

To fix this issue, you need to attach an internet gateway to the Spoke VPC A and configure a route table that directs internet-bound traffic to the internet gateway. You also need to ensure that the Linux1 EC2 instance has a security group that allows inbound and outbound traffic on the desired ports.

[Internet Gateways - Amazon Virtual Private Cloud] : [Attach an Internet Gateway to Your VPC - Amazon Virtual Private Cloud] : [Security Groups for Your VPC - Amazon Virtual Private Cloud]

B. It is recommended to enable NAT on FortiGate policies. This is because the Azure load balancer uses a hash-based algorithm to distribute traffic to the FortiGate instances, and it relies on the source and destination IP addresses and ports of the packets1. If NAT is not enabled, the source IP address of the packets will be the same as the load balancer’s frontend IP address, which will result in uneven distribution of traffic and possible asymmetric routing issues1. Therefore, it is recommended to enable NAT on the FortiGate policies to preserve the original source IP address of the packets and ensure optimal load balancing and routing1. D. It supports session synchronization for handling asynchronous traffic. This means that the FortiGate instances can synchronize their session tables with each other, so that they can handle traffic that does not follow the same path as the initial packet of a session2. For example, if a TCP SYN packet is sent to FortiGate A, but the TCP SYN-ACK packet is sent to FortiGate B, FortiGate B can forward the packet to FortiGate A by looking up the session table2. This feature allows the FortiGate instances to handle asymmetric traffic that may occur due to the Azure load balancer’s hash-based algorithm or other factors.

The other options are incorrect because:

It does not use the vdom-exception command to exclude the configuration from being synced. The vdom-exception command is used to exclude certain configuration settings from being synchronized between FortiGate devices in a cluster or a high availability group3. However, in this scenario, the FortiGate devices are not in a cluster or a high availability group, but they are standalone devices with standalone configuration synchronization enabled. This feature allows them to synchronize most of their configuration settings with each other, except for some settings that identify the FortiGate to the network, such as the hostname.

It does not use the FGCP protocol. FGCP stands for FortiGate Clustering Protocol, which is used to synchronize configuration and state information between FortiGate devices in a cluster or a high availability group. However, in this scenario, the FortiGate devices are not in a cluster or a high availability group, and they use standalone configuration synchronization instead of FGCP.

The correct answer is B and D. A transit gateway with an attachment and a transit VPC support east-west traffic inspection within the AWS cloud by the FortiGate VM.

According to the Fortinet documentation for Public Cloud Security, a transit gateway is a network transit hub that connects VPCs and on-premises networks. A transit gateway attachment is a resource that connects a VPC or VPN to a transit gateway. By using a transit gateway with an attachment, you can route traffic from your spoke VPCs to your security VPC, where the FortiGate VM can inspect the traffic1.

A transit VPC is a VPC that serves as a global network transit center for connecting multiple VPCs, remote networks, and virtual private networks (VPNs). By using a transit VPC, you can deploy the FortiGate VM as a virtual appliance that provides network security and threat prevention for your VPCs2.

The other options are incorrect because:

A NAT gateway with an EIP is a service that enables instances in a private subnet to connect to the internet or other AWS services, but prevents the internet from initiating a connection with those instances. A NAT gateway with an EIP does not support east-west traffic inspection within the AWS cloud by the FortiGate VM3.

An Internet gateway with an EIP is a horizontally scaled, redundant, and highly available VPC component that allows communication between instances in your VPC and the internet. An Internet gateway with an EIP does not support east-west traffic inspection within the AWS cloud by the FortiGate VM4.

1: Fortinet Documentation Library - Deploying FortiGate VMs on AWS 2: [Fortinet Documentation Library - Transit VPC on AWS] 3: [NAT Gateways - Amazon Virtual Private Cloud] 4: [Internet Gateways - Amazon Virtual Private Cloud]

Securing container environments from newly emerged security threats involves employing specific security mechanisms tailored to the technology and structure of containers. In this context, the use of Docker-related application control signatures (Option D) is critical for effectively managing and mitigating threats in containerized environments.

Docker-Specific Threats: Docker containers, being a prevalent form of container technology, are targeted by various security threats, including those that exploit vulnerabilities specific to the Docker environment and runtime. Using Docker-related application control signatures means implementing security measures that are specifically designed to detect and respond to anomalies and threats that are unique to Docker containers.

Application Control Signatures: These are sets of definitions that help identify and block potentially malicious activities within application traffic. By focusing on Docker-related signatures, administrators can ensure that the security tools are finely tuned to the operational specifics of Docker containers, thereby providing a robust defense against exploits that target container-specific vulnerabilities.

References: The recommendation to use Docker-related application control signatures is based on best practices for securing container environments, emphasizing the need for specialized security measures that address the unique challenges posed by container technologies.

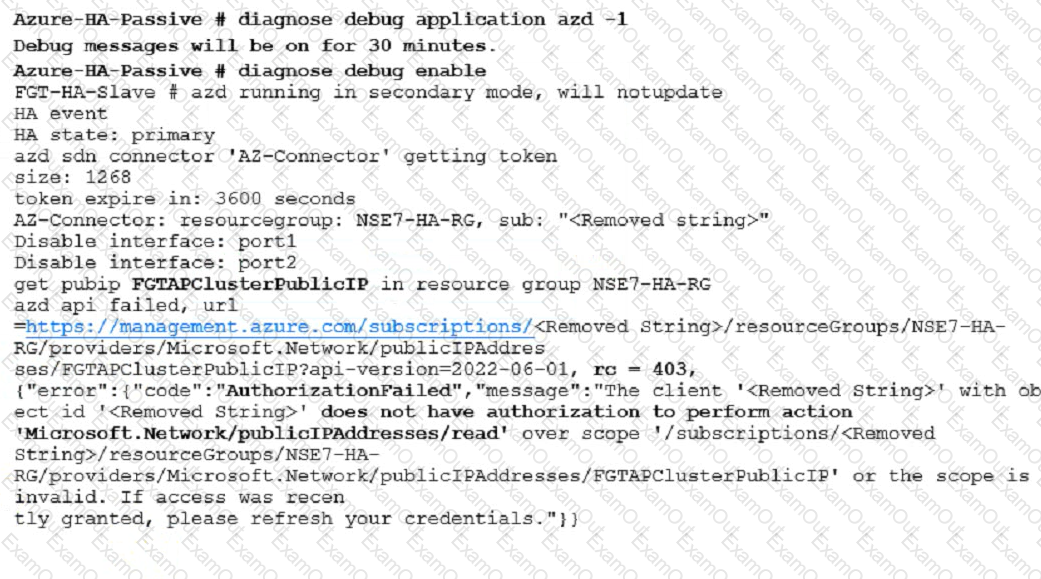

In this scenario, the issue is caused by the Azure service principle account not having a contributor role. This is required for the FortiGate HA floating IP to work properly. Without this role, the new primary device will not have the previous primary device floating IP address after failover. References: Fortinet Public Cloud Security knowledge source documents or study guide.

https://docs.fortinet.com/product/fortigate-public-cloud/7.2
